GODOX MoveLink Mini LT Kit2 Wireless Microphone System for iPhone User Manual

1. Уводзіны

The GODOX MoveLink Mini LT Kit2 is a compact and high-performance 2.4G wireless microphone system designed for clear audio recording. It features omnidirectional microphones with noise reduction, a portable charging case, and broad compatibility with various devices, especially iPhones. This manual provides essential information for setting up, operating, and maintaining your MoveLink Mini LT Kit2.

2. Што ў скрынцы

• 2 х перадатчык
• 1 х прыёмнік
• 1 x Charging Case (ML-C2)
• 1 х адаптар Lightning
• 1 x 3.5mm TRS Audio Adapter
• 1 x 3.5mm TRRS Audio Adapter
• 1 x USB to Type-C Data Cable
• 2 x Wind foam

Image: All components included in the Godox MoveLink Mini LT Kit2 package.

3. Настройка

3.1 Пачатковая падрыхтоўка

• Before first use, ensure to remove the clear tape from the charging contacts on the back of the transmitters and receiver.
• Fully charge the charging case and all units. The charging case has a 1370mAh built-in battery, providing up to 24 hours of continuous use for the transmitters (6 hours per full charge) and receiver (8 hours per full charge).

Image: The charging case with units, illustrating the charging process and battery indicators.

3.2 Спалучэнне

The units are designed for easy pairing:

1. Place the transmitters and receiver into the charging case.
2. Click the 'PAIR' button located in the charging box. The indicator lights on the units will turn blue when pairing is complete.

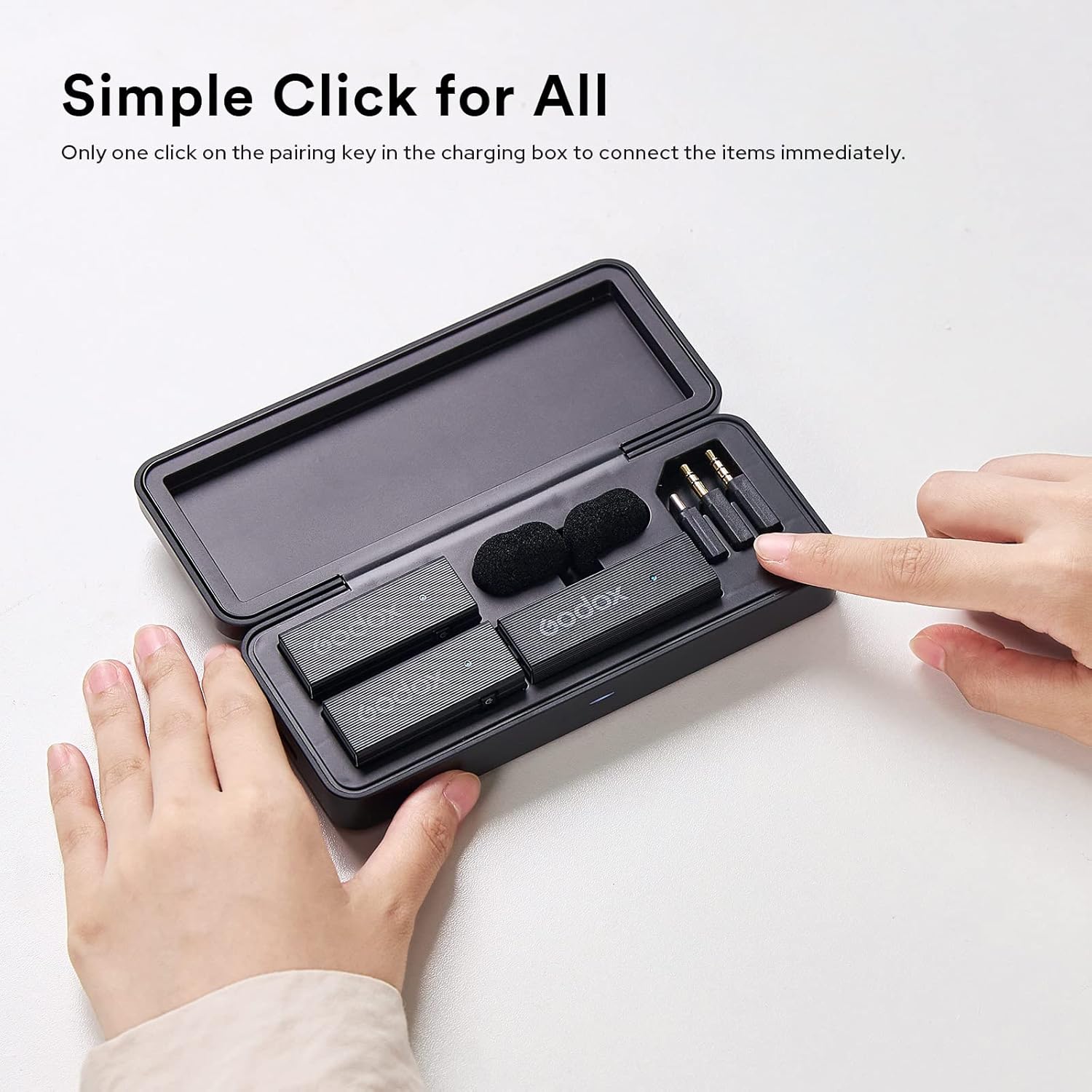

Image: Demonstrating the one-click pairing process within the charging case.

3.3 Падключэнне да прылад

The MoveLink Mini LT Kit2 offers flexible connectivity:

• For iPhone (Lightning devices): Attach the Lightning Adapter to the receiver. Plug the receiver directly into your iPhone's Lightning port.
• For Cameras/Recorders (3.5mm TRS): Attach the 3.5mm TRS Audio Adapter to the receiver. Connect the receiver to your camera's microphone input using a 3.5mm TRS cable (not included, but adapter is).
• Для смартфонаў/планшэтаў (3.5 мм TRRS): Attach the 3.5mm TRRS Audio Adapter to the receiver. Connect the receiver to your device's headphone/microphone jack using a 3.5mm TRRS cable (not included, but adapter is).

Image: Illustrates the versatility of adapters for connecting to different devices.

4. Інструкцыя па эксплуатацыі

4.1 Уключэнне/выключэнне сілкавання

• перадатчык: Каб уключыць або выключыць, доўга націскайце кнопку харчавання на працягу 3 секунд.
• Прыёмнік: Каб уключыць або выключыць, доўга націскайце кнопку харчавання на працягу 3 секунд.

4.2 Выключыць/Уключыць гук

• перадатчык: Short press the on-off button to mute. The indicator stays red constantly. Short press again to unmute.

4.3 Шумапрыглушэнне

• перадатчык: Double press the on-off button quickly to activate noise reduction. The indicator flashes twice in purple. Double press again to turn off noise cancellation (indicator flashes twice in green).

Image: The transmitter with visual cues for noise cancellation and gain adjustment.

4.4 Налада ўзмацнення

• Прыёмнік: Short press the on-off button to adjust the gain level.
• Level one is -33dB (indicator flashes green).
• Level two is -43dB (indicator flashes purple).

4.5 Усенакіраваны мікрафон

The MoveLink Mini LT Kit2 features a 360-degree omnidirectional microphone with enhanced pickup and excellent noise reduction technology, providing clear and natural sound quality. The attached foam windscreen effectively reduces unwanted noise, such as friction between skin and clothes.

4.6 Dual-Channel Function

The dual-channel design allows for simultaneous recording from two people, making it suitable for interviews, podcasts, and other multi-person recording scenarios.

Image: Two users demonstrating the dual-channel recording feature in an outdoor setting.

5. Медыягалерэя

5.1 Прадукт скончыўсяview і Асаблівасці

5.2 Кароткае кіраўніцтва

5.3 Compatibility and Usage

6. Тэхнічнае абслугоўванне

6.1 Ачыстка

• Wipe the units and charging case with a soft, dry cloth.
• Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя матэрыялы.
• Для аптымальнай зарадкі пераканайцеся, што зарадныя кантакты чыстыя і без смецця.

6.2 Захоўванне

• Store the MoveLink Mini LT Kit2 in its charging case when not in use to protect the units and keep them charged.
• Пазбягайце захоўвання пры экстрэмальных тэмпературах або высокай вільготнасці.

7. Выпраўленне непаладак

• Няма аўдыя: Ensure all units are powered on and properly paired. Check device connections and adapter compatibility. Verify the transmitter is not muted.
• Дрэнная якасць гуку: Check for obstructions between transmitter and receiver. Ensure the foam windscreen is properly attached to reduce wind noise. Adjust gain settings on the receiver. Activate noise cancellation if in a noisy environment.
• Не зараджаецца: Ensure clear tape is removed from contacts. Verify the charging cable is securely connected to the case and a power source. Check for debris on charging contacts.
• Праблемы спалучэння: Ensure units are placed correctly in the charging case and press the 'PAIR' button. If issues persist, try resetting the units (refer to manufacturer's full manual for specific reset procedures if available).

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

This product comes with a 1-year warranty. For support or further inquiries, please refer to the official GODOX webсайт або звярніцеся да прадаўца.
