1. Уводзіны
This manual provides detailed instructions for the Hiearcool USB C Hub, model UCN3286. This intelligent USB C adapter is designed to expand the connectivity of your USB-C enabled devices, offering multiple ports for various peripherals and power delivery.
Асноўныя функцыі ўключаюць у сябе:
- Два порты USB 3.0 для хуткаснай перадачы дадзеных.
- One 4K@30Hz HDMI port for video output.
- SD and TF card readers for memory card access.
- Up to 100W/20V/5A Type C Power Delivery (PD) charging port.
The Hiearcool USB C Hub UCN3286 is UL/SGS approved, ensuring quality and reliability.
2. Прадукт скончыўсяview
Familiarize yourself with the components and ports of your Hiearcool USB C Hub UCN3286.

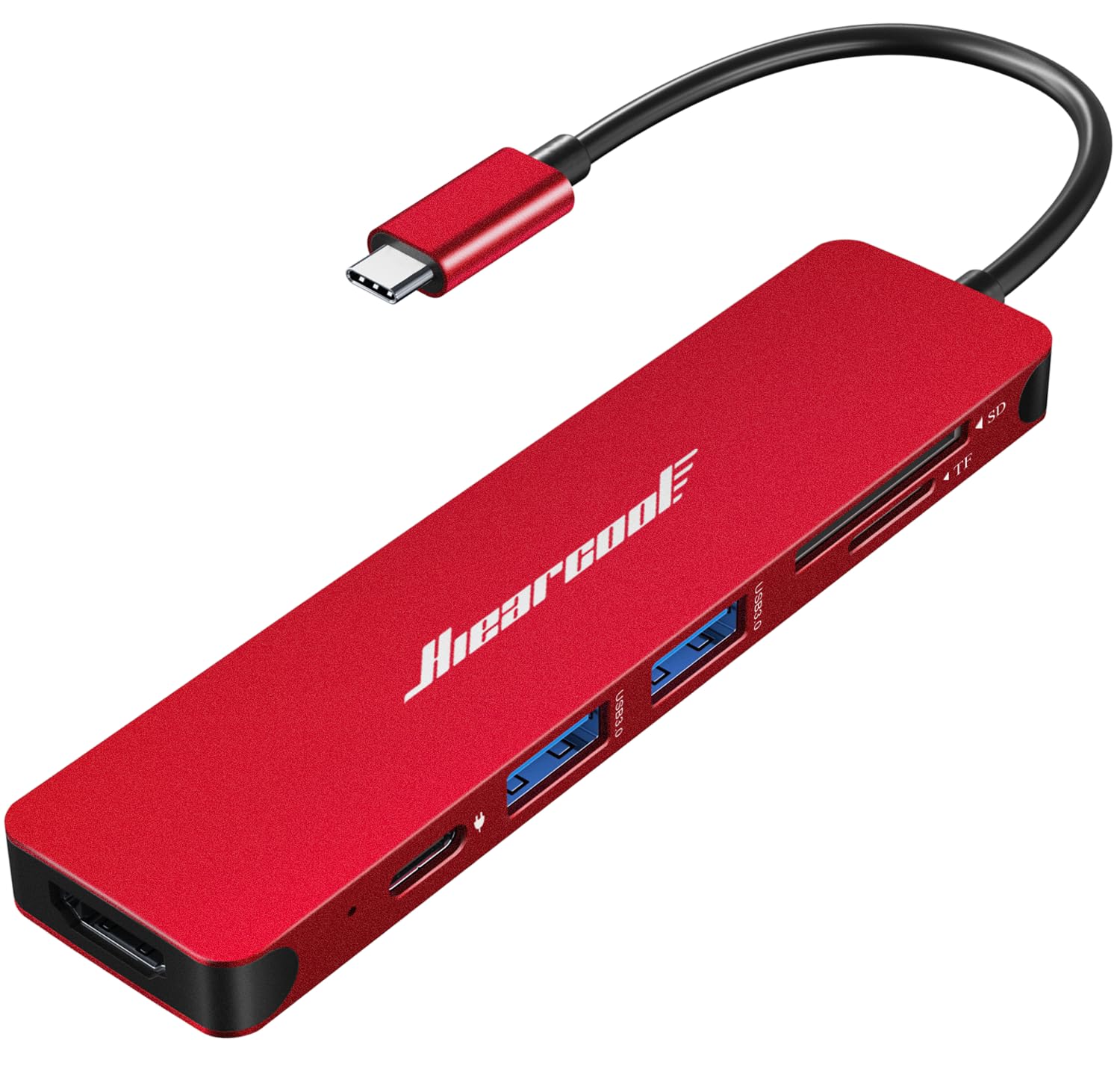

Figure 1: Hiearcool USB C Hub UCN3286. This image displays the compact, red USB C hub with its integrated USB-C cable, highlighting its sleek design and port layout.
Малюнак 2: падрабязна view of the Hiearcool USB C Hub UCN3286 ports. This image provides a clear look at the various input/output options available on the hub, including USB-A, HDMI, and card reader slots.
3. Інструкцыі па ўсталёўцы
- Падключыце хаб да вашай прылады: Insert the USB-C connector of the Hiearcool USB C Hub into an available USB-C port on your laptop, tablet, or smartphone. Ensure the connection is firm.
- Падключэнне харчавання (неабавязкова): If your device requires charging or if you are connecting power-intensive peripherals, connect your USB-C power adapter to the Power Delivery (PD) port on the hub. The hub supports up to 100W power pass-through.
- Падключэнне перыферыйных прылад:
- USB прылады: Plug your USB-A devices (e.g., mouse, keyboard, USB flash drive) into the USB 3.0 ports.
- HDMI-дысплей: Connect an HDMI cable from your monitor or TV to the HDMI port on the hub for video output. Ensure your display is set to the correct HDMI input.
- Карты памяці: Insert your SD or TF (Micro SD) cards into the corresponding slots.
- Ўстаноўка драйвера: The Hiearcool USB C Hub is plug-and-play and typically does not require additional drivers for most operating systems (Windows, macOS, Chrome OS, Android). If a device is not recognized, try reconnecting the hub or restarting your host device.
4. Інструкцыя па эксплуатацыі
4.1 USB 3.0 парты
The two USB 3.0 ports support data transfer speeds up to 5Gbps. These ports are backward compatible with USB 2.0 devices. Use them to connect external hard drives, USB flash drives, keyboards, mice, and other USB peripherals.
4.2 Порт HDMI
The HDMI port supports resolutions up to 4K (3840x2160) at 30Hz. Connect an HDMI-enabled display to extend or mirror your device's screen. Ensure your device's USB-C port supports DisplayPort Alternate Mode (Alt Mode) for video output.
4.3 SD/TF Card Readers
The integrated SD and TF (Micro SD) card slots allow you to read and write data from memory cards simultaneously. Insert the cards firmly until they click into place. To remove, push the card in slightly to release it.
4.4 USB-C Power Delivery (PD) Port
This port is for power input only and does not support data transfer. Connect your original USB-C power adapter to this port to charge your host device (laptop, tablet) while using the hub. It supports power delivery up to 100W.
5. Тэхнічнае абслугоўванне
- Уборка: Для чысткі ступіцы выкарыстоўвайце мяккую сухую тканіну. Пазбягайце выкарыстання вадкіх ачышчальнікаў або растваральнікаў.
- захоўванне: Захоўвайце канцэнтратар у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
- Апрацоўка: Avoid dropping the hub or subjecting it to strong impacts. Do not attempt to disassemble or modify the device.
- Сыход за кабелем: Do not bend the integrated USB-C cable excessively or pull on it forcefully.
6. Выпраўленне непаладак
- No Display via HDMI:
- Пераканайцеся, што порт USB-C вашай прылады падтрымлівае рэжым DisplayPort Alt.
- Check the HDMI cable connection to both the hub and the display.
- Verify the display input source is correctly selected.
- Try a different HDMI cable or display if possible.
- USB-прылады не распазнаюцца:
- Пераканайцеся, што USB-прылада правільна ўстаўлена ў порт USB 3.0 канцэнтратара.
- Паспрабуйце падключыць USB-прыладу непасрэдна да галоўнай прылады, каб пераканацца, што яна працуе самастойна.
- If connecting a high-power USB device (e.g., external hard drive), ensure the hub is connected to a power source via its PD port.
- Reconnect the hub to your host device.
- Зарадка не працуе:
- Пераканайцеся, што ваш адаптар харчавання USB-C падключаны да порта PD канцэнтратара і працуе правільна.
- Пераканайцеся, што ваша прылада падтрымлівае тэхналогію харчавання USB-C.
- Check the power adapter's wattage; it should be sufficient for your device.
- Intermittent Connectivity/Sound Buffering:
- Ensure all connections are secure and free from dust or debris.
- Avoid using excessively long or low-quality cables with the hub.
- If experiencing audio buffering with an external display, try reducing the display resolution or refresh rate, or ensure the hub is receiving adequate power.
- Disconnect and reconnect the hub. If issues persist, try connecting the hub to a different USB-C port on your host device, if available.
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Нумар мадэлі | UCN3286 |
| Марка | Hiearcool |
| Парты | 2x USB 3.0, 1x HDMI, 1x SD Card, 1x TF Card, 1x USB-C PD |
| Дазвол HDMI | Up to 4K@30Hz (3840x2160@30Hz) |
| Хуткасць перадачы дадзеных праз USB 3.0 | Да 5 Гбіт/с |
| Пастаўка электраэнергіі | Up to 100W (input only) |
| Памеры (ДхШхВ) | 4.17 х 1.4 х 0.34 цалі |
| Вага | 1.8 унцыі |
| Сумяшчальныя прылады | Macbook M1/M2, Type C Laptops, iPad Air/Pro/Mini, iMac, Steam Deck, Type C Smartphones, Mouse, Keyboard, iPhone 15 series |
8. Гарантыя і падтрымка
Hiearcool offers a Two-Year Support for this product. Additionally, a 30-дзённая пробная версія period is available. For any inquiries or technical assistance, please contact our support team.
Звязацца з намі: Hiearcool@outlook.com
This product is UL/SGS Approved, ensuring it meets high quality and safety standards. It is also protected by the Transparency Program, which verifies its authenticity. Look for the Transparency logo and code on the product packaging to verify authenticity using the Transparency app.
