1. Прадукт скончыўсяview

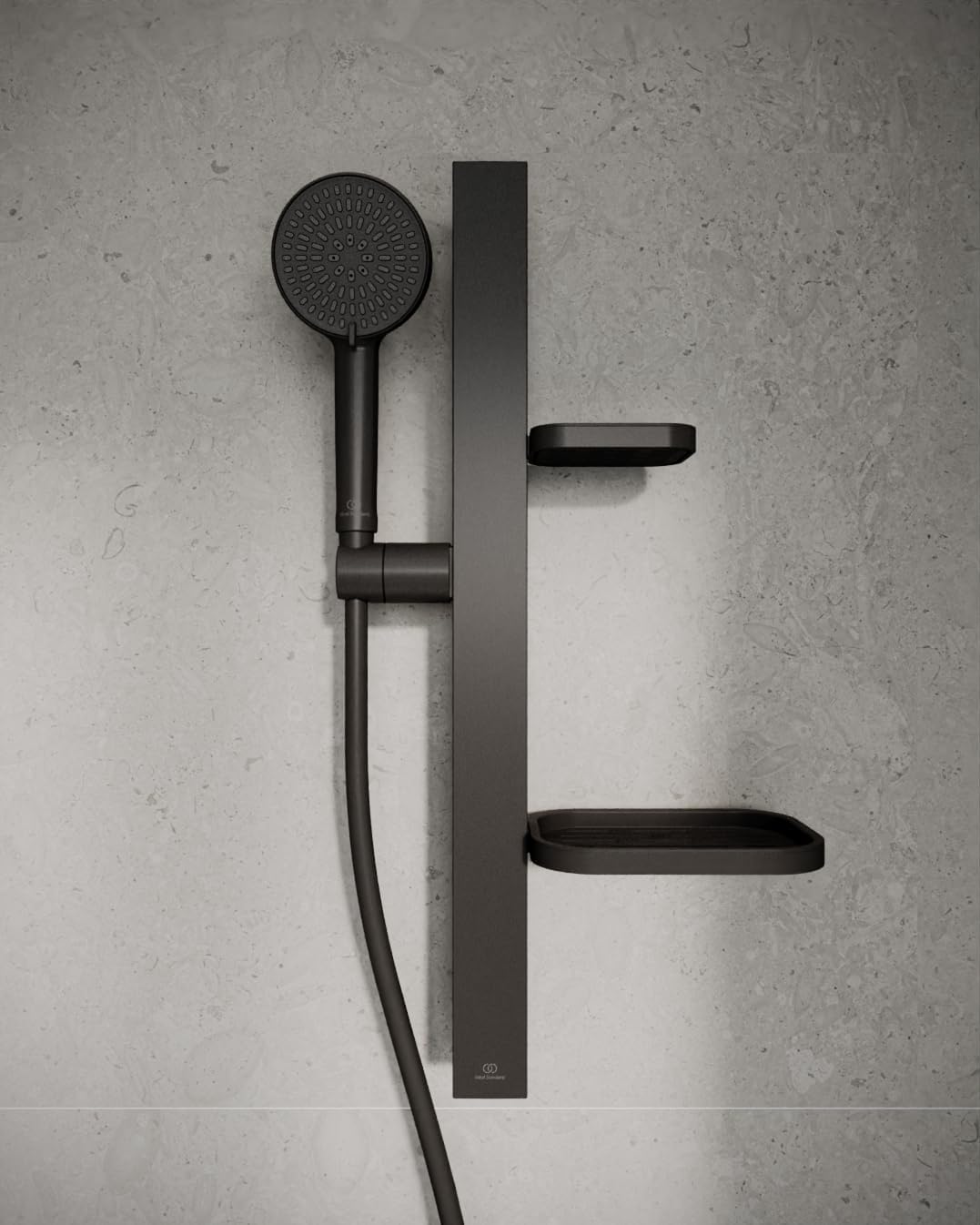

The Ideal Standard Alu+ shower bar, model BD586XG, is designed for a modern and eco-responsible bathroom experience. This Silk Black shower bar combines aesthetic appeal with practical features, including integrated storage and water-saving technology.
Асноўныя функцыі ўключаюць у сябе:
- Трывалы дызайн: Constructed from 84% recycled aluminum, free from chrome, nickel, and lead.
- Экалагічная адказнасць: Features an EcoFlow regulator for water and energy savings.
- Зручнае захоўванне: Equipped with easily adjustable integrated shelves.
- Personalized Shower: Includes a 100 mm hand shower with multiple spray modes.
- Лёгка чысціць: Designed for quick and effortless limescale removal.
2. Змесціва ўпакоўкі
Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:
- Душавы бар
- Рэгуляваныя паліцы
- Hand Shower (100 mm)
- Гнуткі шланг
- Мантажныя прыналежнасці (шрубы, дзюбелі)
- Кіраўніцтва па ўстаноўцы (гэты дакумент)
3. Настройка і ўстаноўка
Важна: Installation should be performed by a qualified professional or a person with adequate plumbing knowledge. Ensure water supply is turned off before starting.
3.1 Неабходныя інструменты
- Дрыль
- Drill bits (appropriate for wall material)
- Вымяральная стужка
- Аловак
- Нівелір
- Адвёртка
- Развадны ключ
3.2 Інструкцыі па мантажы
- Падрыхтуйце сцяну: Choose a suitable location on the wall, ensuring it is structurally sound and free from hidden pipes or electrical wires. Mark the desired height for the top and bottom mounting points of the shower bar.
- Пазначце адтуліны для свідравання: Use the shower bar or the provided template to accurately mark the positions for drilling. Ensure the marks are level using a spirit level.
- Свідраваць адтуліны: Drill holes at the marked positions, using a drill bit suitable for your wall material. Insert the wall plugs into the drilled holes.
- Прымацуйце мантажныя кранштэйны: Замацуйце мантажныя кранштэйны да сцяны з дапамогай прадугледжаных шруб.
- Усталяваць душавую штангу: Carefully position the shower bar onto the mounting brackets. Secure it in place according to the specific design of the brackets (e.g., tightening grub screws).
- Падключыце шланг: Attach the flexible hose to the water outlet and to the hand shower. Ensure all connections are hand-tightened, then use an adjustable wrench for a final snug fit, being careful not to overtighten.
- Attach Hand Shower: Place the hand shower into its holder on the shower bar.
- Адрэгуляваць паліцы: The integrated shelves can be adjusted to your preferred height. Loosen the securing mechanism, slide the shelf to the desired position, and re-tighten.
4. Інструкцыя па эксплуатацыі
4.1 Using the Hand Shower
The 100 mm hand shower offers two distinct spray modes: Rain and SilkRain. To switch between modes, gently rotate the shower head. The holder on the shower bar allows for easy adjustment of the hand shower's height and angle.
4.2 Рэгуляванне паліц
The integrated shelves provide convenient storage for shower essentials. To adjust their height, locate the small lever or button on the side of the shelf's attachment point. Press or lift it to release the shelf, slide it to the desired position, and then release to lock it in place.
5. Тэхнічнае абслугоўванне і догляд
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Ideal Standard BD586XG shower bar.
5.1 Cleaning the Shower Bar and Hand Shower
- Use a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the Silk Black finish.
- For limescale removal from the hand shower nozzles, gently rub the silicone nozzles to dislodge deposits. The "Easy to Clean" feature allows for quick and effortless limescale removal.
- Старанна прамыйце чыстай вадой і высушыце мяккай тканінай, каб пазбегнуць плям ад вады.
5.2 Hose Care
The IdealFlex anti-twist hose is designed for durability. Avoid kinking or excessive pulling on the hose to maintain its integrity.
6. Выпраўленне непаладак
If you encounter any issues with your shower bar, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Low water pressure from hand shower | Clogged nozzles or EcoFlow regulator | Clean hand shower nozzles by rubbing them. Check if the EcoFlow regulator is partially blocked (consult a professional if unsure). |
| Water leakage at hose connection | Loose connection or worn washer | Ensure the hose connections are tightened properly. Replace the washer if it appears worn. |
| Shower bar feels loose on the wall | Мацавальныя шрубы аслабленыя | Carefully re-tighten the mounting screws. Do not overtighten. If the wall plugs are damaged, professional repair may be needed. |
| Shelves do not stay in place | Securing mechanism is not engaged | Ensure the shelf's securing mechanism is fully engaged after adjustment. |
If the problem persists after attempting these solutions, please contact Ideal Standard customer support or a qualified plumber.
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Нумар мадэлі | BD586XG |
| Марка | Ідэальны стандарт |
| Памеры прадукту (Д х Ш х У) | 60 х 4.8 х 10.5 см |
| Вага прадмета | 2.2 кілаграма |
| Колер | Шаўковы чорны |
| Тып матэрыялу | Mixed Aluminum (84% recycled) |
| Тып аздаблення | Пэндзаль |
| Тып мацавання | Насценнае мацаванне |
| Уключаныя кампаненты | Shower Bar, Shelves, Hand Shower, Flexible Hose |
| Hand Shower Head Size | 100 мм |
| Краіна паходжання | Кітай |
8. Гарантыя і падтрымка
This product comes with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Ideal Standard website. For technical support, spare parts, or any inquiries, please contact Ideal Standard customer service.
Кантактная інфармацыя: Калі ласка, звярніцеся да афіцыйнага прадстаўніка Ideal Standard website or your purchase receipt for the most up-to-date contact details for your region.
