TEEHO TE001L Keyless Entry Door Lock with Handle Instruction Manual

1. Прадукт скончыўсяview

This manual provides detailed instructions for the installation, operation, and maintenance of your TEEHO TE001L Keyless Entry Door Lock with Handle. This keyless entry system offers enhanced security and convenience for your home or office.

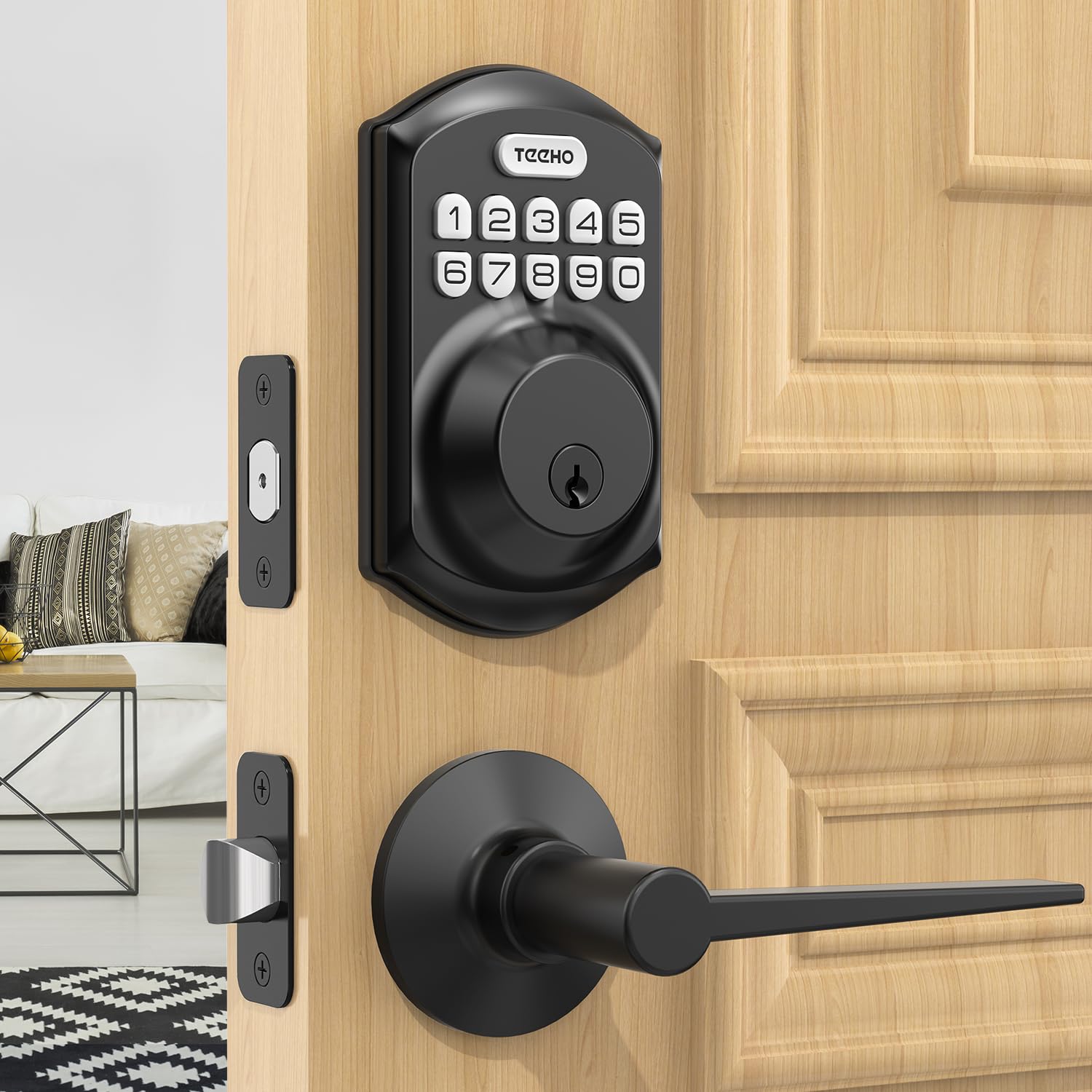

Image 1.1: TEEHO TE001L Keyless Entry Door Lock with Handle, Matte Black. This image displays the complete lock set, including the exterior keypad deadbolt and the interior handle, showcasing its sleek design and matte black finish.

2. Кампаненты прадукту

The TEEHO TE001L Keyless Entry Door Lock with Handle includes the following components:

• Зашчапка (x1)
• Knob Release Tool (x1)
• Screws for the Latch Plate (x2)
• Screws for the Strike Plate (x2)
• Interior Knob (x1)
• Exterior Knob (x1)
• Plastic Latch Cover (x1)
• Ударная пласціна (x1)

3. Кіраўніцтва па ўстаноўцы

Follow these steps to install your TEEHO TE001L Keyless Entry Door Lock. A screwdriver is the only tool required for installation. Ensure your door has a 2-1/8" (54mm) door hole; this lock is not compatible with 38mm door holes.

1. Prepare the Latch: The latch is suitable for backset scale ranges of 2-3/8 inches (60mm) and 2-3/4 inches (70mm). Adjust the latch to match your door's backset.
2. Усталюйце зашчапку: Insert the adjusted latch into the door's edge hole. Ensure it is correctly oriented. Use a screwdriver to tighten the screws for the latch plate, securing it to the door.
3. Усталюйце знешнюю ручку: Match the exterior knob to the keyhole on the door and carefully pass its spindle through the lock latch mechanism.
4. Prepare the Interior Knob: Before installing the interior knob, you need to disassemble the rear lock ball. Rotate the interior knob to align the internal protruding part, then use the knob release tool to depress the knob retainer and pull the knob out of the spindle.
5. Connect Knobs: Connect the interior knob and exterior knob together, ensuring proper alignment of the internal components.
6. Secure Knobs: Tighten the screws with a screwdriver to firmly connect the front and rear lock components.
7. Install Rear Ball Lock: Finally, buckle the rear ball lock against the rear lock body. Ensure it is securely installed according to the corresponding position.

4. Інструкцыя па эксплуатацыі

The TEEHO TE001L offers multiple convenient ways to secure and access your door:

• Уваход без ключа: Utilize up to 20 access code options, ranging from 4 to 10 digits, for easy entry without a physical key.
• Smart-Locking: The system features automatic locking, which can be configured to engage between 10 and 99 seconds after the door closes. For immediate locking, use the one-touch auto-lock option by holding down any key on the keypad for 2 seconds.
• One-Time Code Feature: Generate temporary access codes for guests, cleaners, or delivery personnel. These codes are automatically deleted after a single use, enhancing security.
• Пароль супраць падглядвання: Enter random digits before or after your actual code to prevent others from guessing your entry sequence.
• Рэжым адключэння гуку: Адключыць гукі клавіятуры для ціхай працы.
• Рэжым адпачынку: A security feature designed for extended absences, disabling regular access codes until manually reactivated.
• Клавіятура з падсветкай: The keypad illuminates for easy visibility in low-light conditions.

5. Асаблівасці

The TEEHO TE001L is designed with robust features for security and durability:

• Security Deadbolt: Equipped with an ANSI Grade 3 smart door lock cylinder, constructed from durable alloy.
• Крыніца харчавання: Operates on 4 AA batteries, providing over 1 year of typical use.
• Ўстойлівасць да надвор'я: Features an IP54 weather resistance rating, suitable for various environmental conditions.
• Combination Lock Set: Includes both a passage handle and a keypad deadbolt lock for comprehensive door security.

6. Тэхнічныя характарыстыкі

7. Выпраўленне непаладак

For common issues or operational difficulties not covered in this manual, please refer to the support section or contact customer service for assistance.

8. Гарантыя і падтрымка

TEEHO provides a 2-year warranty for the TE001L Keyless Entry Door Lock and offers lifetime customer service. Support is available via online phone from Monday to Friday, 9 AM to 5 PM PST, and through 24/7 online email service. For support, please visit the official TEEHO webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў.
