ADDIESDIVE MY-H3-2 Automatic Diver Watch User Manual

Уводзіны

Thank you for choosing the ADDIESDIVE MY-H3-2 Automatic Diver Watch. This timepiece is engineered for reliability and performance, featuring a robust stainless steel construction, a precise Japanese NH35A mechanical movement, and significant water resistance. This manual provides essential information for the proper setup, operation, and maintenance of your watch to ensure its longevity and accurate function.

Выява: спераду view of the ADDIESDIVE MY-H3-2 Automatic Diver Watch, showcasing its dial and bezel.

Інфармацыя па бяспецы

• Пазбягайце ўздзеяння экстрэмальных тэмператур або рэзкіх перападаў тэмператур на гадзіннік.
• Do not operate the crown or pushers underwater unless specifically designed for such use and the crown is fully screwed down.
• Keep the watch away from strong magnetic fields, as these can affect the accuracy of the mechanical movement.
• Ensure the crown is always fully pushed in or screwed down to maintain water resistance.

Асаблівасці прадукту

• Рух: Japanese NH35A Automatic Mechanical Movement.
• Case and Bracelet: Premium 316L Stainless Steel, highly anti-corrosion.
• Воданепранікальнасць: 200M/300M (20-30 Bar), suitable for professional diving.
• абадок: 120-click Unidirectional Rotating Ceramic Bezel.
• Luminescence: C3 luminous hands and indices, BGW9 luminescent ceramic bezel for visibility in low light.
• Крышталь: Sapphire glass for scratch resistance.
• Зашпілька: Double Locking Foldover Clasp for secure wear.

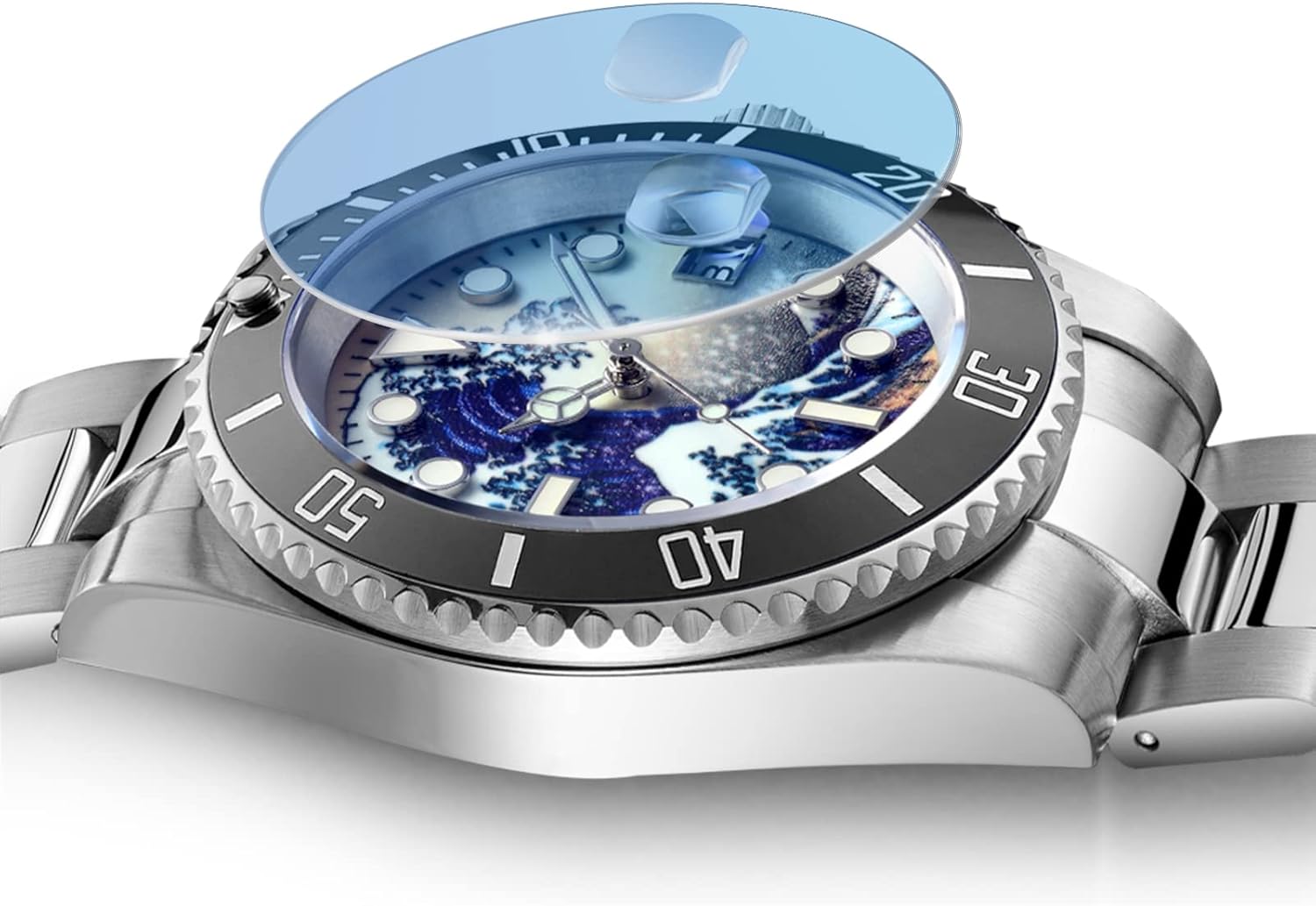

Выява: Крупны план view of the watch crystal, highlighting its sapphire material and clarity.

Налада і пачатковая эксплуатацыя

1. Winding the Automatic Movement

Your ADDIESDIVE MY-H3-2 watch is powered by an automatic mechanical movement (NH35A) that winds itself with the motion of your wrist. If the watch has stopped or its power reserve is low, it can be manually wound:

1. Unscrew the crown counter-clockwise until it pops out to position 0 (winding position).
2. Павярніце заводную галоўку па гадзіннікавай стрэлцы прыкладна 20-30 разоў. Гэтага будзе дастаткова для запуску гадзінніка.
3. Once the watch starts running, push the crown back in and screw it down clockwise to ensure water resistance.

Wearing the watch for at least 8 hours a day will keep it sufficiently wound.

2. Устаноўка часу і даты

1. Адкруціце венца counter-clockwise until it pops out.
2. Выцягніце галоўку ў становішча 2 (first click) for date adjustment. Turn the crown to set the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
3. Выцягніце галоўку ў становішча 3 (second click) for time adjustment. The second hand will stop (hacking feature). Turn the crown to set the hour and minute hands. To ensure accurate time, set the minute hand a few minutes ahead and then turn it back to the correct time.
4. Once time and date are set, засуньце каронку назад to position 0 and screw it down clockwise firmly для падтрымання воданепранікальнасці.

3. Рэгуляванне бранзалета

The stainless steel bracelet features a double locking foldover clasp with micro-adjustment holes. To adjust the length:

• Use a small tool to depress the spring bar in the clasp's micro-adjustment holes to shift the clasp position.
• For more significant adjustments, links can be removed or added by a qualified watchmaker.

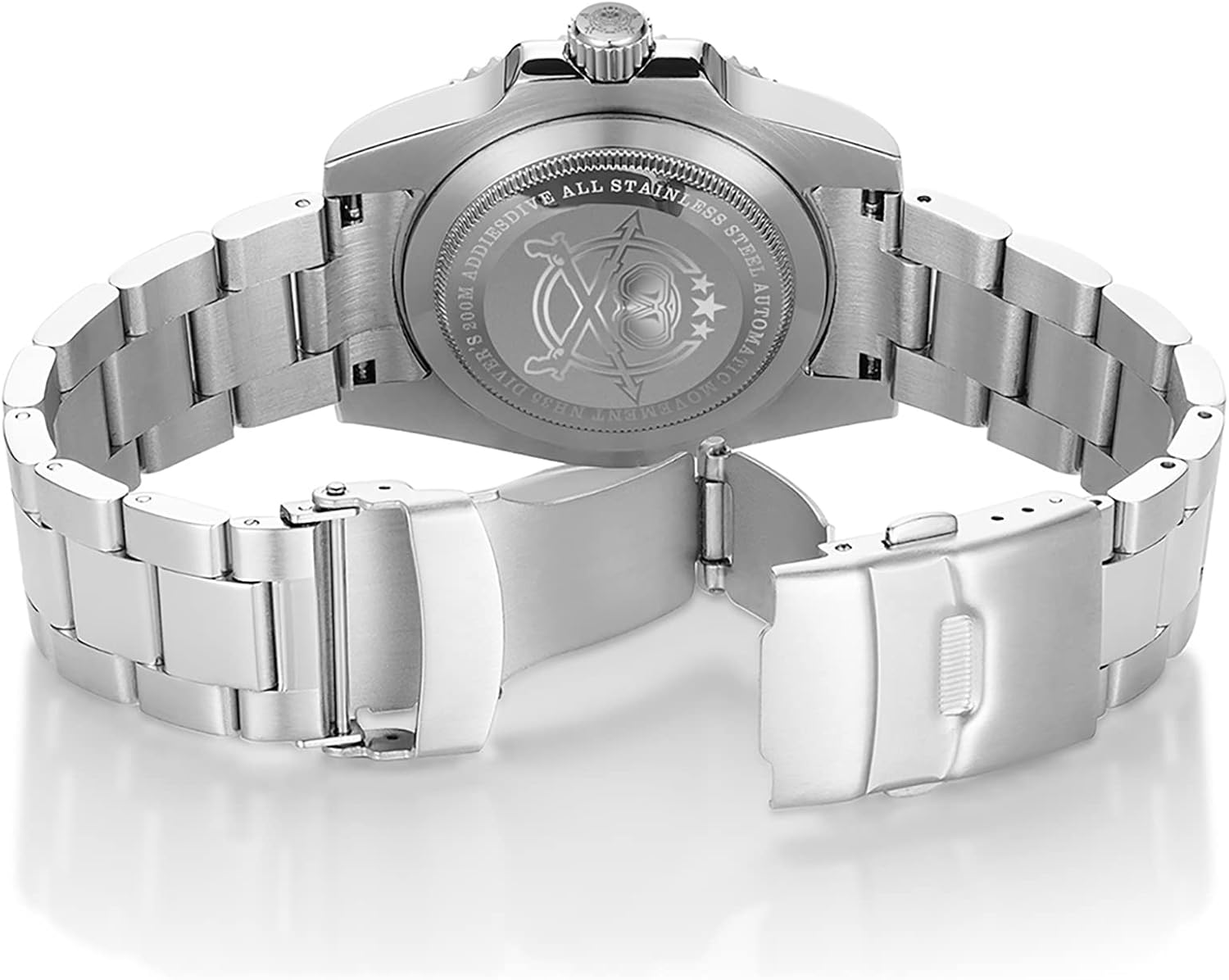

выява: View of the watch's case back and the open double locking foldover clasp, showing the bracelet mechanism.

Кіраванне гадзіннікам

Аднанакіраваны круцільны безель

The 120-click unidirectional rotating bezel is a key feature for divers. It allows you to measure elapsed time underwater or for other timing purposes.

1. Rotate the bezel counter-clockwise to align the zero marker with the minute hand.
2. The minute hand will then indicate the elapsed time on the bezel.
3. The unidirectional design prevents accidental clockwise rotation, which could falsely indicate less elapsed time.

Выява: Збоку view of the ADDIESDIVE MY-H3-2 watch resting on a rock, highlighting the rotating bezel and crown.

Люмінесцэнцыя

The watch features C3 luminous material on the hands and indices, and BGW9 luminescent material on the ceramic bezel. These materials absorb light and glow in low-light conditions, ensuring readability underwater or in darkness.

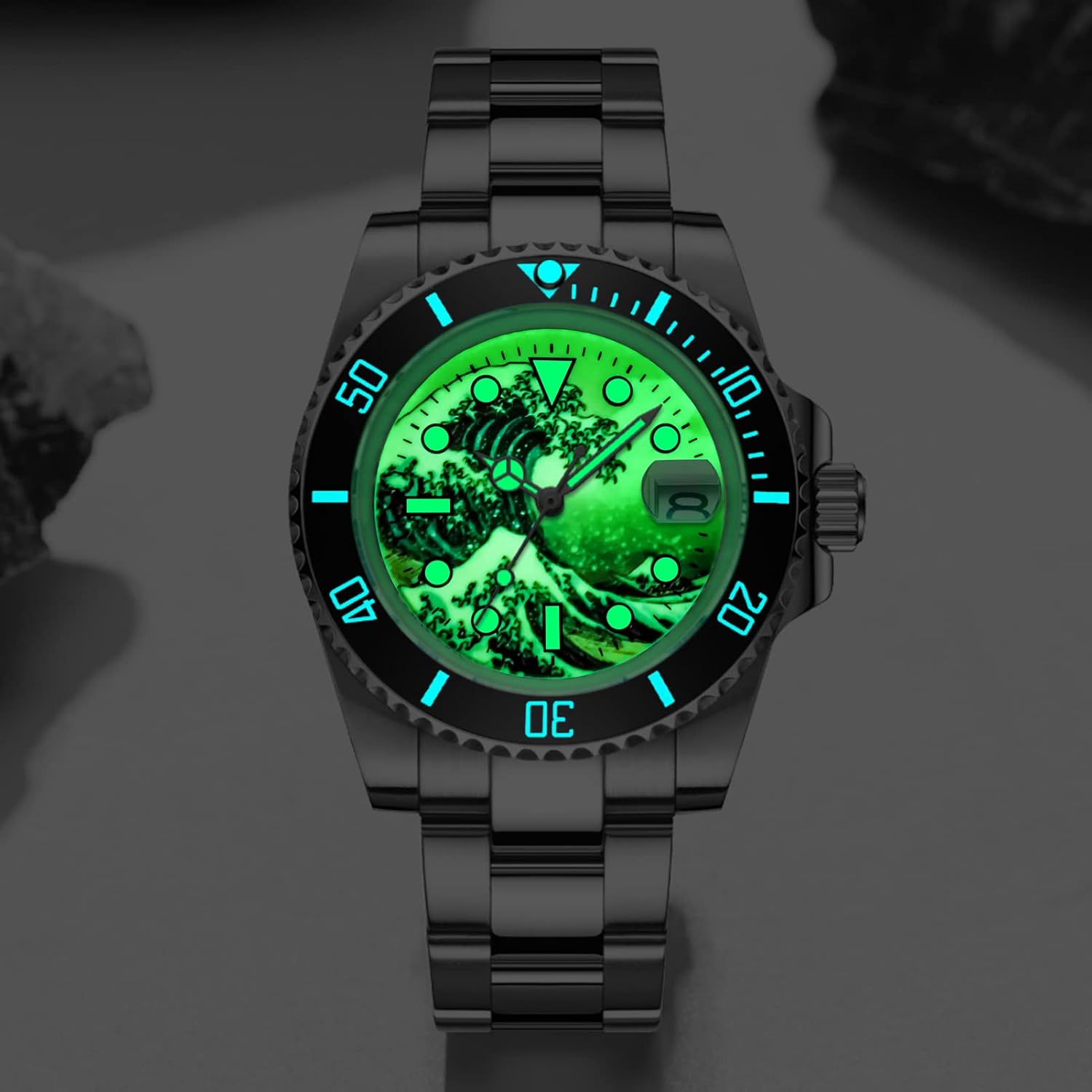

Image: The ADDIESDIVE MY-H3-2 watch in darkness, showcasing the bright green luminescence of its hands, indices, and bezel markers.

Тэхнічнае абслугоўванне

Уборка

• Wipe the watch regularly with a soft, dry cloth to remove dust and fingerprints.
• After exposure to saltwater, rinse the watch thoroughly with fresh water and dry it completely with a soft cloth. Ensure the crown is fully screwed down before rinsing.
• Avoid using chemical cleaners or abrasive materials, as these can damage the watch's finish.

Воданепранікальнасць Сыход

The MY-H3-2 is water resistant up to 200M/300M. To maintain this rating:

• Always ensure the crown is fully screwed down before any contact with water.
• Не круціце заводную галоўку або штурхачы, калі гадзіннік мокры або пагружаны ў ваду.
• Have the water resistance seals checked periodically (e.g., every 2-3 years) by a professional watchmaker, especially if the watch is frequently used for diving.

Image: The ADDIESDIVE MY-H3-2 watch partially submerged in water, demonstrating its water resistance.

Захоўванне

When not wearing the watch, store it in a cool, dry place away from direct sunlight and strong magnetic fields. If storing for an extended period, ensure it is fully wound or consider a watch winder to keep the movement running.

Ліквідацыю непаладак

• Гадзіннік не працуе: Ensure the watch is sufficiently wound. Manually wind the crown 20-30 times. If it still does not start, the power reserve may be completely depleted, or there might be an internal issue requiring professional inspection.
• Недакладнасць часу: Mechanical watches can have slight variations in accuracy. If the deviation is significant (e.g., more than +/- 30 seconds per day), it may require regulation by a watchmaker. Exposure to strong magnetic fields can also affect accuracy; demagnetization may be necessary.
• Дата не змяняецца: Check if the date is being set during the "danger zone" (9 PM - 3 AM). If so, adjust the time outside this period and then set the date. If the issue persists, seek professional assistance.
• Кандэнсацыя пад крышталем: Гэта сведчыць аб парушэнні воданепранікальнасці. Неадкладна аднясіце гадзіннік прафесійнаму гадзіншчыку для праверкі і рамонту, каб прадухіліць далейшае пашкоджанне механізму.

Тэхнічныя характарыстыкі

Image: Diagram illustrating the dimensions (diameter, thickness, lug width, total length) and weight of the ADDIESDIVE MY-H3-2 watch.

Гарантыя і падтрымка

ADDIESDIVE watches are manufactured to high standards. For any issues or warranty claims, please refer to your purchase documentation or contact ADDIESDIVE customer support through the retailer where the watch was purchased. Keep your proof of purchase for warranty validation.

For further assistance or inquiries, please visit the official ADDIESDIVE store or contact their customer service department.
