Dirt Devil DD2501 Bagless Canister Vacuum Cleaner

1. Прадукт скончыўсяview

The Dirt Devil DD2501 is a bagless cyclonic canister vacuum cleaner designed for efficient home cleaning. It features an 850W motor, a HEPA 12 filter for allergen reduction, and a 1.5-liter dust collection bin. Its compact design and 7.5-meter operating radius make it easy to maneuver around your home, providing thorough cleaning for various surfaces.

Figure 1: Dirt Devil DD2501 Bagless Canister Vacuum Cleaner, side view.

2. Інфармацыя па бяспецы

Read all instructions before use. This appliance is not intended for use by persons (including children under 8 years) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Always unplug the vacuum cleaner from the power outlet before cleaning or maintenance.
• Do not use the appliance to pick up water or wet materials.
• Do not pick up burning or smoking objects.
• Забяспечыць абtage, пазначанае на прыладзе, адпавядае аб'ёму сеткіtagе ў вашым доме.
• The appliance complies with European directives 2014/30/EC, 2014/35/EC, and 2011/65/EU.

3. Змесціва ўпакоўкі

The Dirt Devil DD2501 package includes the following components:

• Dirt Devil DD2501 Vacuum Cleaner Unit
• Гнуткі шланг
• Тэлескапічная металічная трубка
• Combi-brush (for various floor types)
• Crevice Tool (for hard-to-reach areas)
• Parquet Brush (for delicate floors)
• Кіраўніцтва па эксплуатацыі

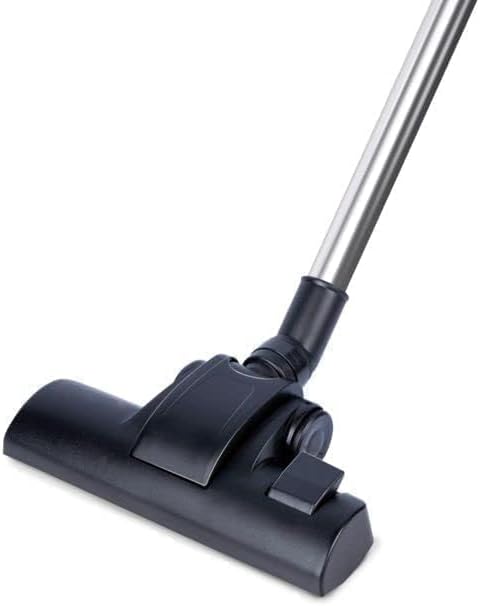

Figure 2: The combi-brush accessory for the vacuum cleaner.

Figure 3: The crevice tool accessory for reaching tight spaces.

Figure 4: The parquet brush accessory for gentle cleaning of delicate floors.

4. Настройка

1. Unpack all components from the box and ensure all parts listed in Section 3 are present.
2. Attach the flexible hose to the vacuum cleaner's suction inlet. Push firmly until it clicks securely into place.
3. Connect the telescopic metal tube to the handle end of the flexible hose. Adjust the tube length by pressing the release button and sliding the sections.
4. Select the appropriate floor brush (combi-brush for general use or parquet brush for delicate floors) and attach it to the end of the telescopic tube.

Figure 5: The Dirt Devil DD2501 vacuum cleaner fully assembled.

5. Аперацыя

1. Ensure the vacuum cleaner is properly assembled and the dust bin is securely in place.
2. Plug the power cord into a suitable electrical outlet (220-240V AC, 50/60 Hz).
3. Press the power button, usually located on the main unit, to turn on the vacuum cleaner.
4. Begin vacuuming. Use the combi-brush for general cleaning on carpets and hard floors. For delicate surfaces like wood or laminate, use the parquet brush. The crevice tool is ideal for cleaning corners, edges, and upholstery.
5. After use, press the power button to turn off the vacuum cleaner and unplug it from the outlet.
6. Press the cable rewind button to automatically retract the power cord into the unit. Guide the cable gently to prevent tangling.

6. Тэхнічнае абслугоўванне

6.1 Апаражненне пылазборніка

The 1.5-liter dust bin should be emptied regularly to maintain optimal suction performance. To empty:

1. Пераканайцеся, што пыласос адключаны ад разеткі.
2. Press the release button, typically located on the top or side of the dust bin, to detach it from the main unit.
3. Hold the dust bin over a trash receptacle and open the bottom flap to release collected dust and debris.
4. Шчыльна зачыніце вечка і зноў усталюйце пылазборнік на пыласос да пстрычкі.

Figure 6: Detaching and emptying the dust collection bin.

6.2 Ачыстка фільтра HEPA 12

The washable HEPA 12 filter helps trap fine dust particles and allergens. Clean the filter periodically, or when you notice a decrease in suction power.

1. Пераканайцеся, што пыласос адключаны ад сеткі.
2. Зніміце пылазборнік, як апісана ў раздзеле 6.1.
3. Locate and carefully remove the HEPA filter from the dust bin assembly.
4. Tap the filter gently over a trash can to remove loose dust. If heavily soiled, rinse the filter under cold running water until the water runs clear.
5. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use heat to dry the filter.
6. Reinsert the dry filter into the dust bin and reattach the bin to the vacuum cleaner.

7. Выпраўленне непаладак

If you encounter issues with your Dirt Devil DD2501, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact customer support for further assistance.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

This Dirt Devil DD2501 vacuum cleaner comes with a 1-year availability for spare parts. For warranty claims, technical assistance, or further inquiries, please refer to the contact information provided with your purchase documentation or visit the official Dirt Devil webсайт. Захоўвайце пацвярджэнне пакупкі для пацверджання гарантыі.
