IFM EFECTOR EVT042 4-Wire M12 Cordset Instruction Manual

1. Уводзіны

This manual provides essential information for the proper installation, operation, and maintenance of the IFM EFECTOR EVT042 4-Wire M12 Cordset. Please read this manual thoroughly before using the product to ensure safe and efficient operation. This cordset is designed for industrial applications requiring reliable M12 connectivity.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Failure to follow these safety instructions may result in injury or equipment damage.

• Always disconnect power to equipment before connecting or disconnecting the cordset.
• Ensure all connections are secure and properly seated to prevent intermittent operation or electrical hazards.
• Не перавышайце паказаны аб'ёмtage and current ratings for the cordset.
• Пазбягайце рэзкага згінання або перагінання кабеля, бо гэта можа пашкодзіць унутраныя правады.
• Protect the cordset from extreme temperatures, corrosive substances, and mechanical stress.
• Installation should only be performed by qualified personnel familiar with industrial electrical systems.

3. Прадукт скончыўсяview

The EVT042 is a 4-wire M12 patchcable designed for robust industrial connectivity. It features straight M12 male (M) to female (F) connectors with stainless steel (SS) nuts for secure fastening. The cable jacket is made of PVC, providing durability and flexibility for various applications. The 1-meter length is suitable for short-distance connections between sensors, actuators, and control systems.

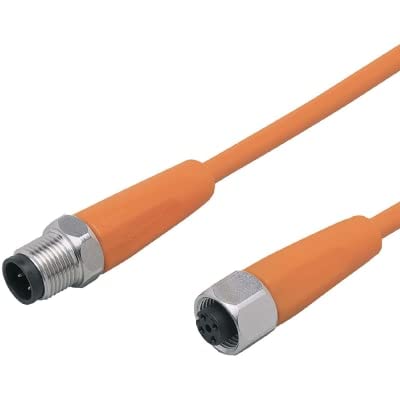

Figure 1: The EVT042 4-Wire M12 Cordset, showing the straight male and female connectors and the PVC cable. This image illustrates the physical appearance of the cordset, highlighting its M12 connectors and cable material.

4. Настройка і ўстаноўка

1. Адключэнне сілкавання: Before beginning installation, ensure that all power to the connected devices is completely disconnected.
2. Connector Alignment: Align the M12 male connector of the EVT042 cordset with the corresponding female port on your device (e.g., sensor, actuator).
3. Бяспечнае злучэнне: Gently push the connector into the port until it seats properly. Then, hand-tighten the stainless steel nut clockwise until it is snug. Do not overtighten, as this can damage the connector threads.
4. Repeat for Female Connector: Connect the M12 female connector to the male port of the other device (e.g., control unit) following the same alignment and tightening procedure.
5. Пракладка кабеля: Route the cable to avoid sharp bends, pinch points, and areas of high heat or abrasion. Use cable ties or clips if necessary to secure the cable path.
6. Аднаўленне электразабеспячэння: Once both ends of the cordset are securely connected, restore power to the equipment.
7. Праверка функцыянальнасці: Verify proper operation of the connected devices.

5. Кіраўніцтва па эксплуатацыі

The EVT042 cordset is a passive component designed to transmit electrical signals or power between two M12-compatible devices. Once properly installed, no specific operational steps are required for the cordset itself. Its function is to provide a reliable electrical connection.

• Ensure the cordset is not subjected to excessive pulling or twisting forces during operation.
• Regularly inspect the cable and connectors for any signs of wear or damage, especially in dynamic applications.
• Maintain a clean environment around the connectors to prevent contamination that could affect signal integrity.

6. Тэхнічнае абслугоўванне

The EVT042 cordset requires minimal maintenance. Regular inspection is recommended to ensure optimal performance and longevity.

• Візуальны агляд: Periodically check the entire length of the cable and both connectors for any signs of physical damage, such as cuts, abrasions, cracks, or corrosion on the nuts.
• Цэласнасць злучэння: Ensure that the stainless steel nuts on both connectors remain securely tightened. Retighten if necessary, but do not overtighten.
• Уборка: If connectors become dirty, gently wipe them with a clean, dry, lint-free cloth. For stubborn dirt, a mild, non-abrasive cleaning solution can be applied to the cloth (not directly to the connector), ensuring no liquid enters the pin contacts. Allow to dry completely before reconnecting.
• Ахова навакольнага асяроддзя: Verify that the cordset is not exposed to conditions beyond its specified operating environment.

7. Выпраўленне непаладак

If you experience issues with your connected devices, consider the following troubleshooting steps related to the cordset:

If troubleshooting steps do not resolve the issue, contact technical support or a qualified technician.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

This product is covered by the standard warranty provided by the manufacturer, IFM EFECTOR, against defects in materials and workmanship under normal use. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or service, please contact your local IFM EFECTOR distributor or visit the official IFM EFECTOR website for contact information. When contacting support, please have your product model number (EVT042) and purchase details readily available.

Note: Warranty terms may vary by region and specific product. Refer to the official IFM EFECTOR warranty policy for complete details.
