Jectse 2.4GHz 4-Channel RC Gyro Receiver Instruction Manual

1. Прадукт скончыўсяview

The Jectse 2.4GHz 4-Channel RC Gyro Receiver is designed for remote control vehicles such as cars and boats. It features a single antenna bidirectional transmission system and integrates a high-performance gyroscope for enhanced control. This receiver is compatible with AFHDS 3 transmitters, including Flysky NB4, Noble Lite, and Noble Pro series.

Асноўныя функцыі ўключаюць у сябе:

• Bidirectional transmission with a single antenna.
• Support for PWM, PPM, i BUS2, S.BUS, and J BUS data output.
• Compatibility with AFHDS 3 protocol transmitters.
• Built-in high-performance gyroscope.
• Integrated BVD (Battery Voltage Detection) function.
• PPX6 splash-proof rating.

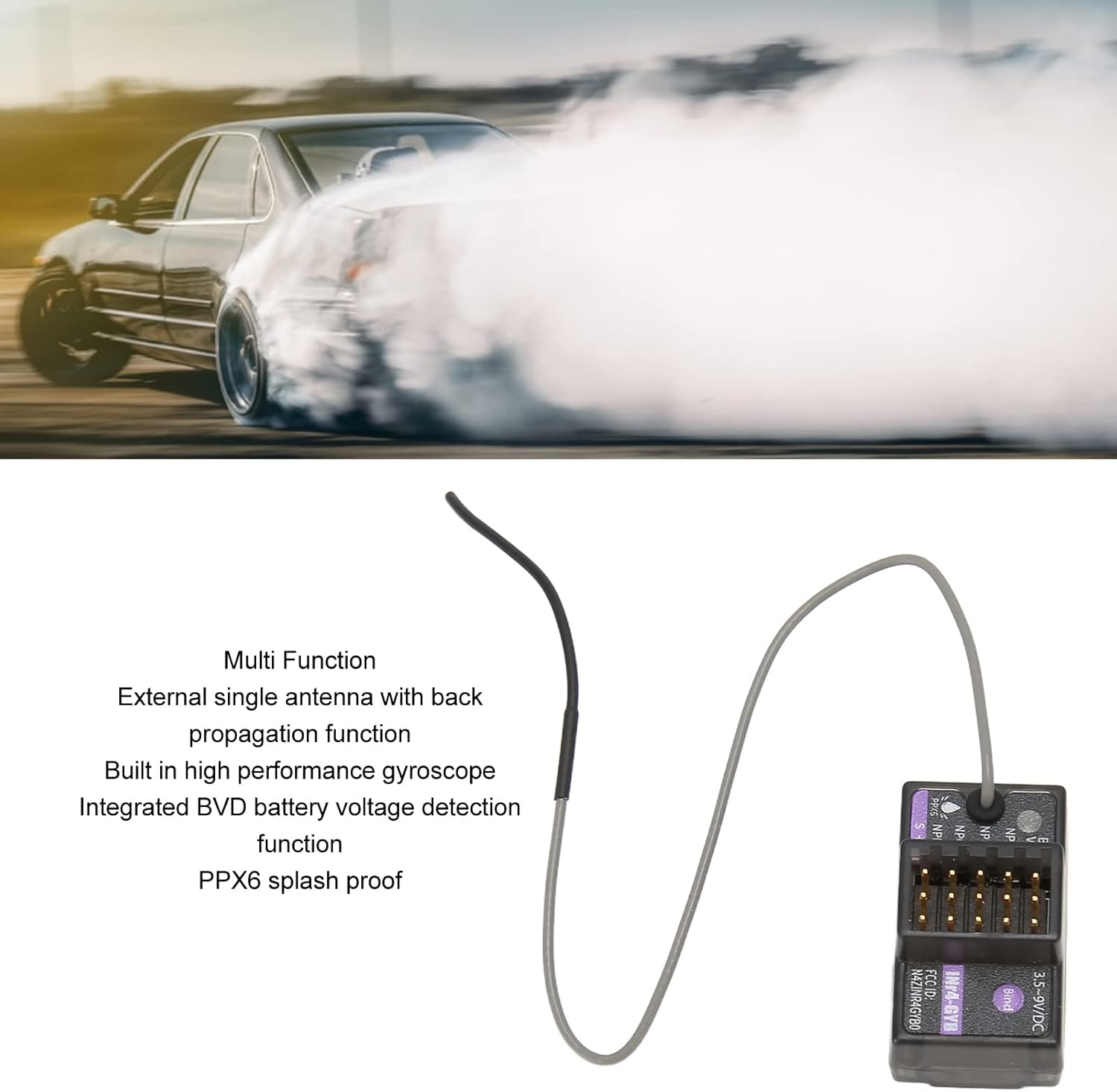

Image 1.1: The Jectse RC Gyro Receiver highlighting its multi-function capabilities, including external single antenna with back propagation, built-in high-performance gyroscope, integrated BVD battery voltage detection, and PPX6 splash-proof design.

2. Змесціва ўпакоўкі

Калі ласка, пераканайцеся, што ўсе пералічаныя ніжэй прадметы ўваходзяць у ваш пакет:

• 1 x Gyro Receiver
• 1 х кабель падключэння
• 1 х Інструкцыя па эксплуатацыі (гэты дакумент)
• 1 х пластыкавая скрынка

Image 2.1: The Jectse RC Gyro Receiver shown alongside its included connection cable.

3. Тэхнічныя характарыстыкі

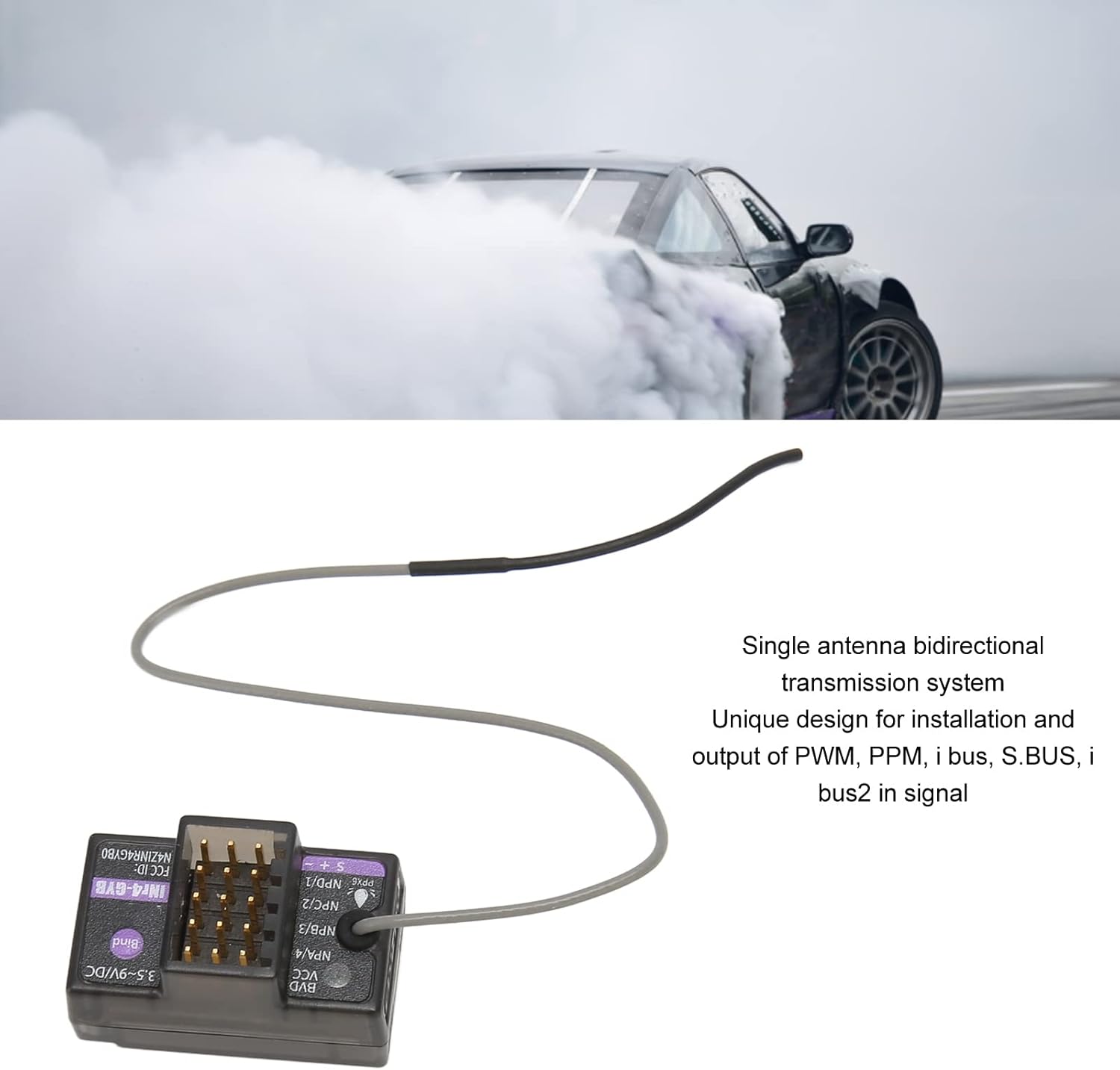

Image 3.1: The Jectse RC Gyro Receiver, illustrating its single antenna bidirectional transmission system and the various data output types supported (PWM, PPM, i BUS, S.BUS, i BUS2).

4. Настройка і ўстаноўка

Follow these steps to properly install and set up your Jectse RC Gyro Receiver:

1. Фізічная ўстаноўка: Mount the receiver securely in your RC vehicle (car or boat), ensuring it is protected from excessive vibration and moisture.
2. Падключэнне сілкавання: Connect the receiver to a power source within the specified input power range of 3.5-9 V DC.
3. Transmitter Compatibility: Ensure your transmitter uses the AFHDS 3 protocol. Compatible transmitters include Flysky PL18, NB4, NB4 Lite, and other Noble series transmitters.
4. Працэс звязвання:
   • Уключыце прымач.
   • Націсніце і ўтрымлівайце Звязаць кнопка на прымачы.
   • Initiate the binding process on your AFHDS 3 compatible transmitter according to its specific instructions.
   • Пасля падключэння індыкатар прымача пацвердзіць паспяховае падключэнне.
5. Data Output Connections: Connect your servos, ESC, and other components to the appropriate PWM, PPM, i BUS2, S.BUS, or J BUS ports on the receiver.
6. BVD Port Connection: If using the Battery Voltage Detection (BVD) function, connect the provided cable to the BVD port толькі. Do not connect other components to this port.
7. Gyroscope Function (Noble Series): For Noble series transmitters, you may need to enable the gyroscope function (INr4 GYB) through your transmitter's settings menu. Refer to your transmitter's manual for detailed instructions.

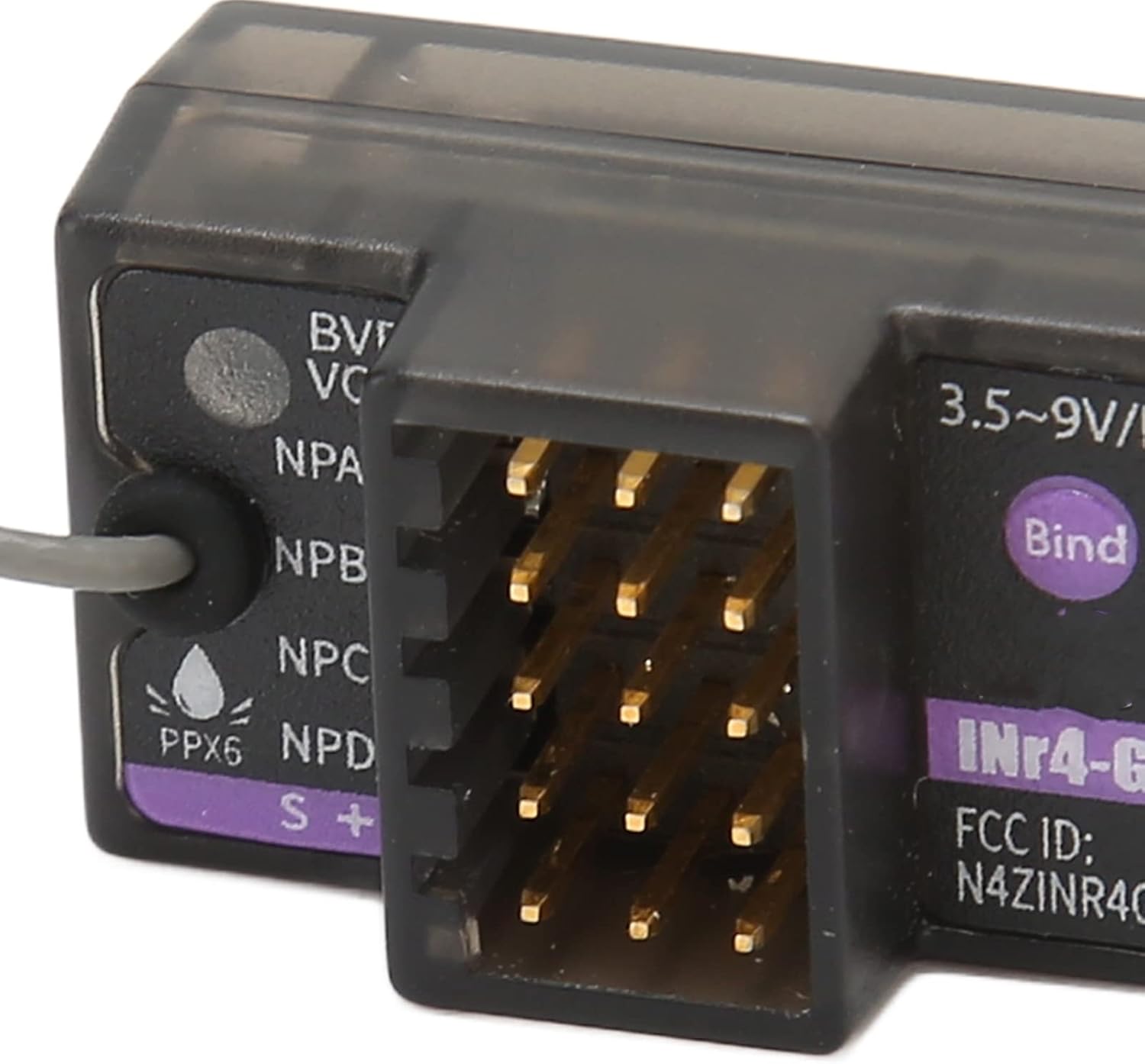

Малюнак 4.1: Крупны план view of the Jectse RC Gyro Receiver, showing the various ports for connections and the "Bind" button for pairing with a transmitter.

Image 4.2: The connection cable, with a clear warning to connect it to the BVD port only for battery voltagэлектроннае выяўленне.

5. Інструкцыя па эксплуатацыі

Once the receiver is successfully installed and bound to your transmitter, you can begin operation:

• Асноўны кантроль: Use your AFHDS 3 transmitter to control your RC vehicle. The receiver processes signals for steering, throttle, and other functions via the connected servos and ESC.
• Функцыя гіраскопа: The built-in gyroscope provides stability and improved handling, especially for drift cars and other high-performance vehicles. Adjust gyroscope sensitivity via your transmitter if supported.
• Акумулятар Voltage Detection (BVD): If the BVD cable is connected, your transmitter can display the real-time battery voltage of your RC vehicle, allowing you to monitor power levels during operation.
• Вывад дадзеных: The receiver supports various data output protocols. Ensure your connected devices (e.g., flight controllers, telemetry modules) are configured to receive data from the appropriate port (PWM, PPM, i BUS2, S.BUS, J BUS).

Image 5.1: The Jectse RC Gyro Receiver, detailing its compatibility with AFHDS 3 transmitters (PL18, NB4, NB4 Lite) and its suitability for various RC applications including drift cars, recreational vehicles, F1, and linear acceleration cars. It also notes the ability to enable gyroscope function for Noble series.

6. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and reliable performance of your receiver:

• Уборка: Regularly clean the receiver with a soft, dry cloth. Avoid using harsh chemicals or solvents.
• Умовы навакольнага асяроддзя: Operate and store the receiver within the specified temperature range (-10°C to +60°C) and humidity range (20%-95%).
• Абарона ад вільгаці: While the receiver is PPX6 splash-proof, avoid submerging it in water or exposing it to heavy rain. Ensure all connections are dry before powering on.
• Цэласнасць злучэння: Periodically check all wire connections for looseness or damage. Secure any loose connections.
• Абнаўленні прашыўкі: The receiver supports online updates. Check the Jectse official website or your transmitter's manufacturer for available firmware updates to ensure optimal performance and access to new features.

7. Выпраўленне непаладак

Калі ў вас узніклі праблемы з прыёмнікам, звярніцеся да наступных распаўсюджаных крокаў па ліквідацыі непаладак:

• Няма харчавання:
  • Check power source connection and battery charge.
  • Пераканайцеся, што ўвод абtage is within 3.5-9 V DC.
• Памылка прывязкі:
  • Ensure both receiver and transmitter are in binding mode.
  • Verify your transmitter is AFHDS 3 compatible.
  • Move closer to the transmitter during the binding process.
  • Праверце на наяўнасць перашкод ад іншых прылад 2.4 ГГц.
• Страта сігналу/перарывісты кантроль:
  • Check antenna placement; ensure it is not obstructed or damaged.
  • Verify the transmitter battery level.
  • Пераканайцеся, што паблізу няма моцных крыніц перашкод.
• Gyroscope Not Functioning (Noble Series):
  • Confirm the gyroscope function (INr4 GYB) is enabled in your transmitter's settings.
  • Refer to your transmitter's manual for specific gyroscope calibration or adjustment procedures.
• Вывад няправільных даных:
  • Verify that connected devices are configured for the correct data protocol (PWM, PPM, i BUS2, S.BUS, J BUS).
  • Check wiring connections to ensure they are correctly plugged into the designated ports.

If problems persist, consult the support resources mentioned in the next section.

8. Гарантыя і падтрымка

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Jectse customer service directly. Keep your proof of purchase for warranty claims.

Каб атрымаць дадатковую дапамогу, вы таксама можаце наведаць Jectse Store on Amazon.
