Youmile DR-YM-187A-1 DC-DC Step Up Boost Converter Module Instruction Manual

Уводзіны

This manual provides essential information for the safe and effective use of the Youmile DR-YM-187A-1 DC-DC Step Up Boost Converter Module. This module is designed to convert a lower DC input voltage to a higher DC output voltage, making it suitable for various electronic projects and power supply applications.

Інфармацыя па бяспецы

• Always ensure correct polarity when connecting input and output wires to prevent damage to the module and connected devices.
• Не перавышайце максімальны ўваходны аб'ёмtage of 24V DC or the maximum output current of 2A. For continuous operation, an output current of 1A is recommended.
• This module is a boost converter; the output voltage must always be set higher than the input voltage. Attempting to step down voltage will not work and may damage the module.
• Handle the module with care to avoid electrostatic discharge, which can damage sensitive electronic components.
• Трымайце модуль далей ад вільгаці, пылу і экстрэмальных тэмператур.
• If you are unsure about any connection or operation, consult a qualified electronics professional.

Тэхнічныя характарыстыкі

Image: The Youmile DR-YM-187A-1 boost converter module displaying its key electrical parameters.

Image: The physical dimensions of the boost converter module, measuring 36mm by 17mm.

Настройка і падключэнне

Follow these steps to correctly set up and connect your boost converter module:

1. Ідэнтыфікацыя тэрміналаў: Locate the input terminals (IN+ and IN-) and output terminals (VOUT+ and VOUT-) on the module.
2. Падключэнне ўваходнага сілкавання: Connect your DC power source (2V-24V) to the IN+ and IN- terminals. Ensure correct polarity: positive to IN+ and negative to IN-.
3. Падключэнне нагрузкі: Connect your device or circuit requiring the boosted voltage to the VOUT+ and VOUT- terminals. Again, observe correct polarity.
4. Initial Potentiometer Adjustment: Before applying power, it is recommended to rotate the adjustable potentiometer (blue component) counter-clockwise more than 10 full turns. This typically sets the output to its lowest possible voltage, which is safer for initial power-up.

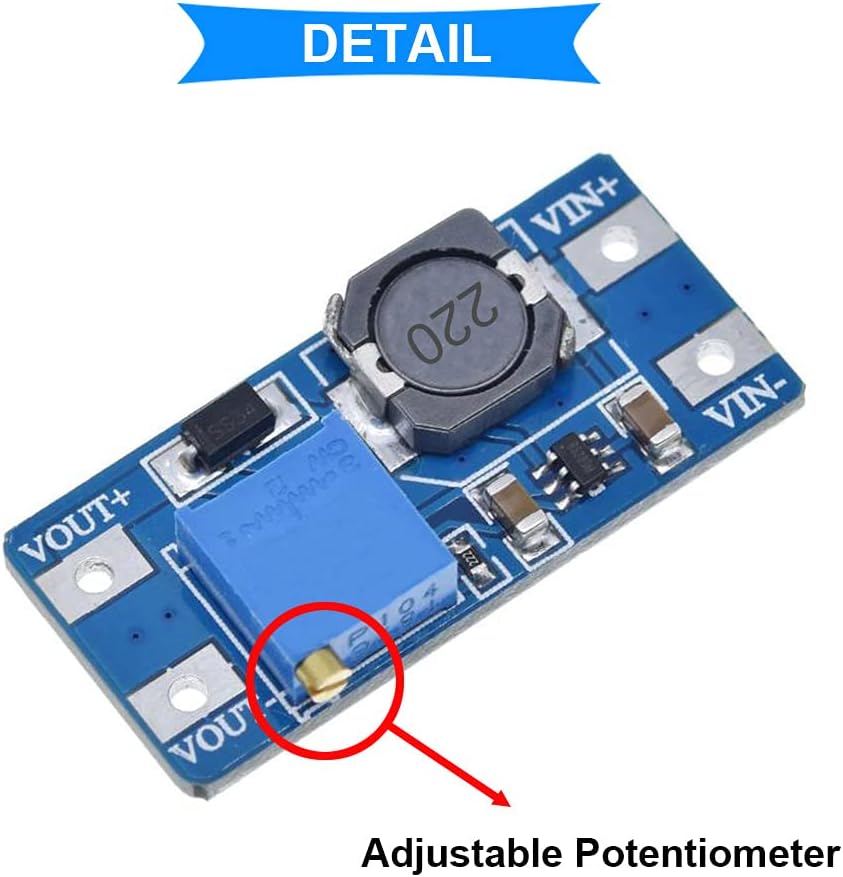

Выява: Падрабязны view highlighting the adjustable potentiometer, used for setting the output voltage.

Інструкцыя па эксплуатацыі

Once the module is connected, follow these steps to operate it:

1. Apply Input Power: Turn on your DC power source connected to the IN+ and IN- terminals.
2. Вымярэнне выхаду Voltage: Для вымярэння аб'ёму выкарыстоўвайце мультиметрtage across the VOUT+ and VOUT- terminals.
3. Наладзіць гучнасць выхадуtage: Carefully turn the adjustable potentiometer clockwise to increase the output voltage, or counter-clockwise to decrease it.
   • Важна: Выхад абtage must always be set higher than the input voltage. This module is a boost converter.
   • Turn the potentiometer slowly and check the voltage with a multimeter frequently to avoid overshooting your desired voltage.
4. Ток манітора: Ensure that the total current drawn by your load does not exceed 2A (1A for prolonged use) to prevent overheating and damage.

Тэхнічнае абслугоўванне

The Youmile DR-YM-187A-1 module requires minimal maintenance. To ensure its longevity and reliable operation:

• Захоўваць у чысціні: Periodically inspect the module for dust or debris and gently clean it with a soft, dry brush or compressed air.
• Праверце злучэнні: Regularly check all wire connections to ensure they are secure and free from corrosion.
• Умовы навакольнага асяроддзя: Operate and store the module in a dry, well-ventilated area within its specified temperature range. Avoid environments with high humidity or extreme temperatures.
• Пазбягайце фізічных нагрузак: Do not apply excessive force or bend the circuit board, as this can damage internal components.

Ліквідацыю непаладак

If you encounter issues with your Youmile DR-YM-187A-1 module, consider the following troubleshooting steps:

• Няма вываду Voltage or Incorrect Voltage:
  • Рэгуляванне патэнцыяметра: If the module does not seem to be working or the output voltage is not adjustable, rotate the potentiometer counter-clockwise more than 10 full turns before re-testing. The potentiometer may be at an extreme end of its range.
  • Уваходны кнtagэлектронная праверка: Пераканайцеся, што ўвод voltage is within the 2V-24V range and that polarity is correct.
  • Выхад Voltage супраць Input Voltage: Confirm that you are attempting to set an output voltage that is вышэй чым уваход абtage. This module cannot step down voltage.
  • Load Disconnected: Disconnect the load and measure the output voltage. If it adjusts correctly without a load, the issue might be with the load drawing too much current or a short circuit.
• Перагрэў модуля:
  • Выхадны ток: Ensure the output current does not exceed 1A for continuous operation. If your application requires more, consider using multiple modules or a higher-rated converter.
  • Вентыляцыя: Забяспечце дастатковую цыркуляцыю паветра вакол модуля.
• Module Failure (Burning Out):
  • Уваходны кнtage Мяжа: Не перавышайце максімальны ўваходны аб'ёмtage of 24V. Operating at or near the absolute maximums can stress the components.
  • Кароткія замыканні: Check for any short circuits in your wiring or connected load.
  • Няправільная палярнасць: Double-check that input and output polarities are correct. Reverse polarity can instantly damage the module.

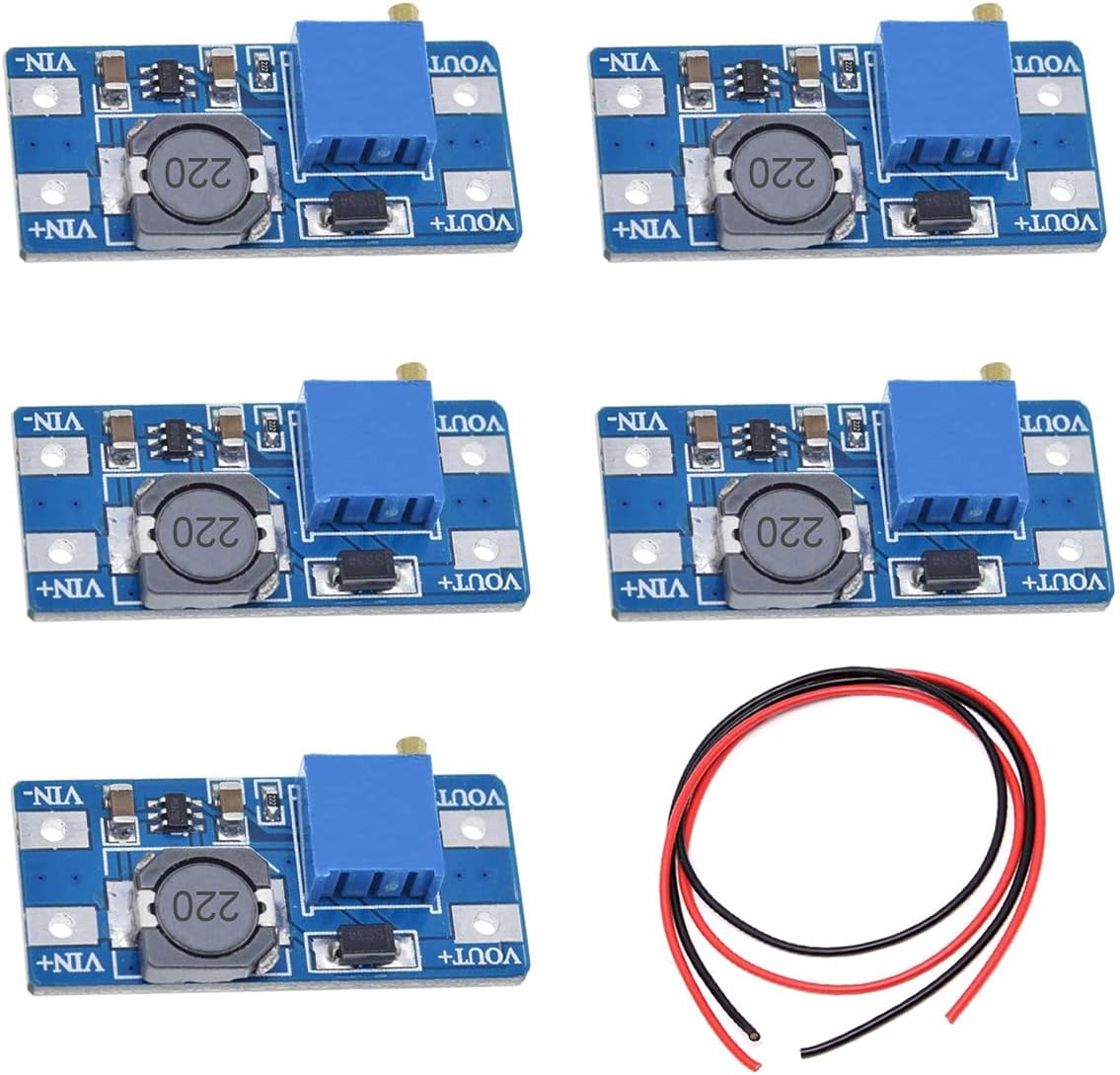

Выява: Ясна view of the Youmile DR-YM-187A-1 module, showing its components and connection points.

Гарантыя і падтрымка

Specific warranty information for the Youmile DR-YM-187A-1 DC-DC Step Up Boost Converter Module is not provided in the product details. For any support inquiries or warranty claims, please refer to the retailer or contact Youmile directly through their official channels.
