Hilitand NLQ3-125/4P Dual Power Automatic Transfer Switch User Manual

1. Уводзіны

The Hilitand NLQ3-125/4P Dual Power Automatic Transfer Switch (ATS) is designed to ensure a continuous power supply by automatically switching between a main power source and a standby power source. This device is crucial for emergency power systems in homes, factories, and other applications where uninterrupted power is essential. It features millisecond-level switching for seamless power transition.

This manual provides detailed instructions for the safe installation, operation, and maintenance of your NLQ3-125/4P ATS.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Installation and maintenance should only be performed by qualified personnel. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Заўсёды адключайце ўсе крыніцы харчавання перад устаноўкай або абслугоўваннем АВР.
• Забяспечце належнае зазямленне прылады.
• Праверце, ці ўсе злучэнні правадоў надзейныя і правільныя ў адпаведнасці са схемай падключэння.
• Не карыстайцеся выключальнікам, калі ён выглядае пашкоджаным.
• Выконвайце ўсе мясцовыя і нацыянальныя электрычныя нормы.

3. Прадукт скончыўсяview

The NLQ3-125/4P ATS is a compact, 4-pole device featuring both automatic and manual operation modes. It is constructed from flame-retardant PC plastic for safety and durability, with silver contacts for improved conductivity and extended service life.

Малюнак 3.1: Спераду view of the NLQ3-125/4P ATS, showing the main power (Source A) and generator (Source B) inputs, output terminals, and the manual/auto selector switch.

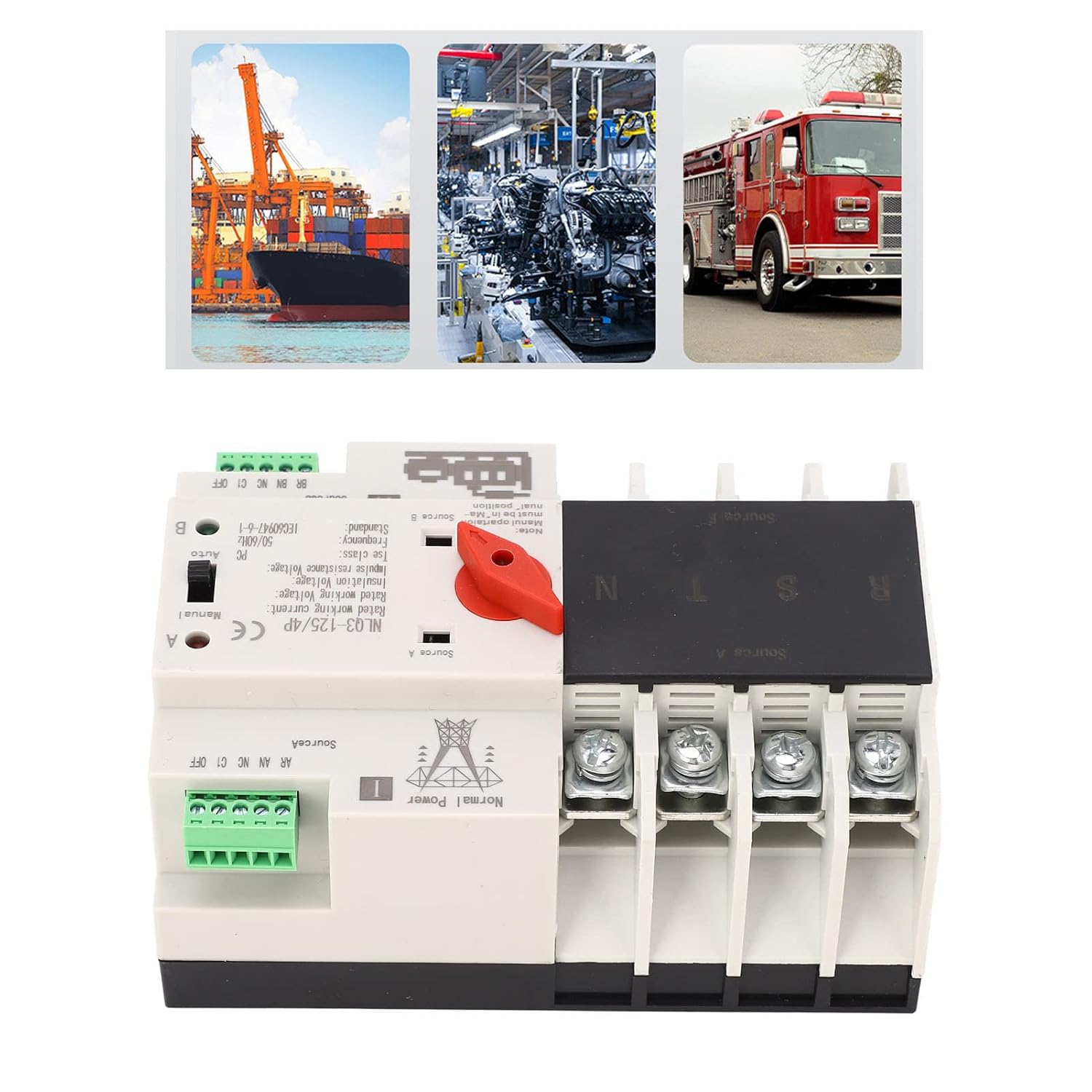

Малюнак 3.2: Пад вуглом view of the ATS, highlighting the robust terminal blocks for secure wiring connections.

Ключавыя кампаненты:

• Source A (Normal Power) Terminals: For connecting the primary power supply.
• Source B (Generator) Terminals: For connecting the standby power supply.
• Выхадныя тэрміналы: For connecting to the load.
• Manual/Auto Selector Switch: Allows selection between automatic and manual operation modes.
• Светавыя індыкатары: To show the active power source (A or B).
• Тэрміналы кіравання: For external control signals (AR, AN, NC, C1, OFF, BR, BN, NC, C1, OFF).

4. Тэхнічныя характарыстыкі

Figure 4.1: Approximate dimensions of the NLQ3-125/4P ATS for installation planning.

5. Ўстаноўка і налада

The NLQ3-125/4P ATS is designed for track installation and is compatible with PZ30 power distribution boxes. Before proceeding with installation, ensure all power is disconnected at the main breaker.

Этапы ўстаноўкі:

1. агляд: Before installation, carefully inspect the ATS for any signs of damage. Use the operating handle to manually switch it on and off to check the flexibility of the transmission mechanism. Verify the generation and disconnection conditions of the load at each stage for both normal and standby power supplies.
2. Мантаж: Mount the ATS securely onto a DIN rail within your PZ30 power distribution box or suitable enclosure.
3. Wiring Main Power (Source A): Connect the main power supply (Normal Power) to the terminals labeled 'Source A'. Ensure correct phase (R, S, T) and neutral (N) connections for 4-pole systems.
4. Wiring Standby Power (Source B): Connect the standby power supply (Generator) to the terminals labeled 'Source B'. Ensure correct phase (R, S, T) and neutral (N) connections.
5. Wiring Load: Connect the load (your electrical system) to the output terminals of the ATS.
6. Праводка кіравання: Connect any necessary external control signals to the AR, AN, NC, C1, OFF (for Source A) and BR, BN, NC, C1, OFF (for Source B) terminals as per your system requirements.
7. Праверка: Double-check all wiring for correctness and tightness. Ensure no loose connections are present.

Малюнак 5.1: Выпample wiring diagram for the NLQ3-125/4P ATS. Consult a qualified electrician for specific installation needs.

Умовы навакольнага асяроддзя:

• Тэмпература навакольнага асяроддзя: Maximum 40°C, minimum -5°C. The average temperature within 24 hours should not exceed 35°C.
• Вышыня: Installation site altitude should not be higher than 2000m.
• Адносная вільготнасць: At 40°C, relative humidity should not exceed 50%. At -5°C, higher humidity is permissible (e.g., 90% at 25°C). Special measures may be needed to address occasional condensation due to temperature changes.

6. Інструкцыя па эксплуатацыі

The NLQ3-125/4P ATS offers both automatic and manual operation modes.

Аўтаматычны рэжым:

• Set the selector switch to the 'Auto' position.
• In this mode, the ATS will continuously monitor the main power supply (Source A).
• If Source A fails or becomes abnormal, the ATS will automatically switch to the standby power supply (Source B) within milliseconds.
• When Source A is restored and stable, the ATS will automatically switch back to Source A.
• The indicator lights (A or B) will show which power source is currently active.

Ручной рэжым:

• Set the selector switch to the 'Manual' position.
• In manual mode, the user can manually switch between Source A and Source B using the operating handle.
• This mode is typically used for testing, maintenance, or in situations where automatic switching is not desired.
• Заўвага: Ensure the manual operation is performed carefully and safely, especially when power is connected.

7. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and reliable operation of your ATS.

• Перыядычная праверка: Annually inspect the ATS for any signs of wear, damage, or loose connections.
• Уборка: Трымайце прыладу чыстай і без пылу і смецця. Выкарыстоўвайце для чысткі сухую мяккую тканіну. Не выкарыстоўвайце вадкія ачышчальнікі.
• Праверка тэрмінала: Periodically check all terminal screws to ensure they are tight and secure.
• Функцыянальны тэст: Regularly test the automatic switching function by simulating a main power failure (if safe to do so) to ensure the standby power engages correctly.
• Прафесійнае абслугоўванне: For any complex issues or internal repairs, contact a qualified electrician or service technician.

8. Выпраўленне непаладак

This section addresses common issues you might encounter with your ATS.

Issue: ATS does not switch automatically.

• Рэжым праверкі: Ensure the selector switch is set to 'Auto' mode.
• крыніца харчавання: Verify that both main (Source A) and standby (Source B) power supplies are connected and functional.
• Праводка кіравання: Inspect control wiring for any disconnections or faults.
• Унутраная памылка: If all external checks are clear, there might be an internal fault. Contact a qualified technician.

Issue: No power to load.

• Уваходная магутнасць: Check if both Source A and Source B have power.
• Становішча пераключальніка: Ensure the ATS is switched to an active power source (either A or B, indicated by lights).
• Выходная праводка: Inspect the wiring from the ATS output to the load for any breaks or loose connections.
• Overload/Short Circuit: Check for any overload or short circuit conditions in your electrical system that might have tripped protective devices upstream.

Issue: ATS makes unusual noises.

• Сыпкія кампаненты: Disconnect power and check for any loose internal components or mounting screws.
• Унутранае пашкоджанне: If the noise persists and cannot be identified, it may indicate internal damage. Seek professional assistance.

9. Гарантыя і падтрымка

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Hilitand customer service through their official channels. Keep your purchase receipt as proof of purchase.

вытворца: Хілітанд

Нумар мадэлі: NLQ3-125/4P
