CARDORIA 1028ZM-1S Smart Fingerprint Keyless Entry Door Lock User Manual

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your CARDORIA 1028ZM-1S Smart Fingerprint Keyless Entry Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Асаблівасці прадукту

The CARDORIA 1028ZM-1S Smart Door Lock offers multiple unlocking methods and smart functionalities for enhanced security and convenience.

5-у-1 бесключавы доступ: Unlock using Fingerprint, RFID Card, Passcode, TUYA APP, or Mechanical Keys.
Пульт дыстанцыйнага кіравання: Built-in WiFi module allows remote unlocking and temporary password generation via the TUYA app.
Аўтаматычная блакіроўка: Features automatic and passage modes, suitable for various door types.
Ручка, якая пераварочваецца: Both the latch and handle are reversible to accommodate different door orientations.
Energy-saving Design: Utilizes passive signal transmission technology for extended battery life (up to one year with 4 AA batteries).
Fast Recognition: 3D Biometric Fingerprint Verification Speed: <0.3 seconds.
Папярэджанні бяспекі: Low battery reminder and abnormal alarm functions.

Diagram illustrating the main functions of the CARDORIA smart lock, including fingerprint unlock, card unlock, passcode unlock, Tuya APP unlock, remote control, reversible handle, unlocking combination, auto-lock, and energy-saving design. — Малюнак 1: Закончанаview of the CARDORIA 1028ZM-1S Smart Lock's main functions.

3. Уключаныя кампаненты

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

Front panel (x1)
Rear panel (x1)
User Manual (English and Spanish) (x2)
RFID Card (x3)
Механічны ключ (x2)
Accessory pack (x1)
Drill template (x1)
Lock body (x1)

4. Тэхнічныя характарыстыкі

Атрыбут	Дэталь
Марка	CARDORIA
Нумар мадэлі	1028ZM-1S
Асаблівасць	Fingerprint, Smart Lock, Wi-Fi
Тып замка	Біяметрычны
Матэрыял	Stainless steel & AL-alloy
Памеры прадмета (Д х Ш х У)	8.86 х 5.91 х 3.54 цалі
Вага прадмета	2.3 кілаграма
Рэкамендуемае выкарыстанне	Securing doors in residential and commercial settings
Тып кантролера	Android, Hand Control, Mechanical knob
Метад кантролю	дадатак
Пратакол злучэння	Wi-Fi
Колер	Чорны
Сумяшчальнасць таўшчыні дзвярэй	1 1/2" - 4" (35mm-95mm)
Bore Hole Spacing	2 цалі (50 мм)
Працоўная вільготнасць	20% - 80% адноснай вільготнасці
Працоўная тэмпература	10°F - 150°F

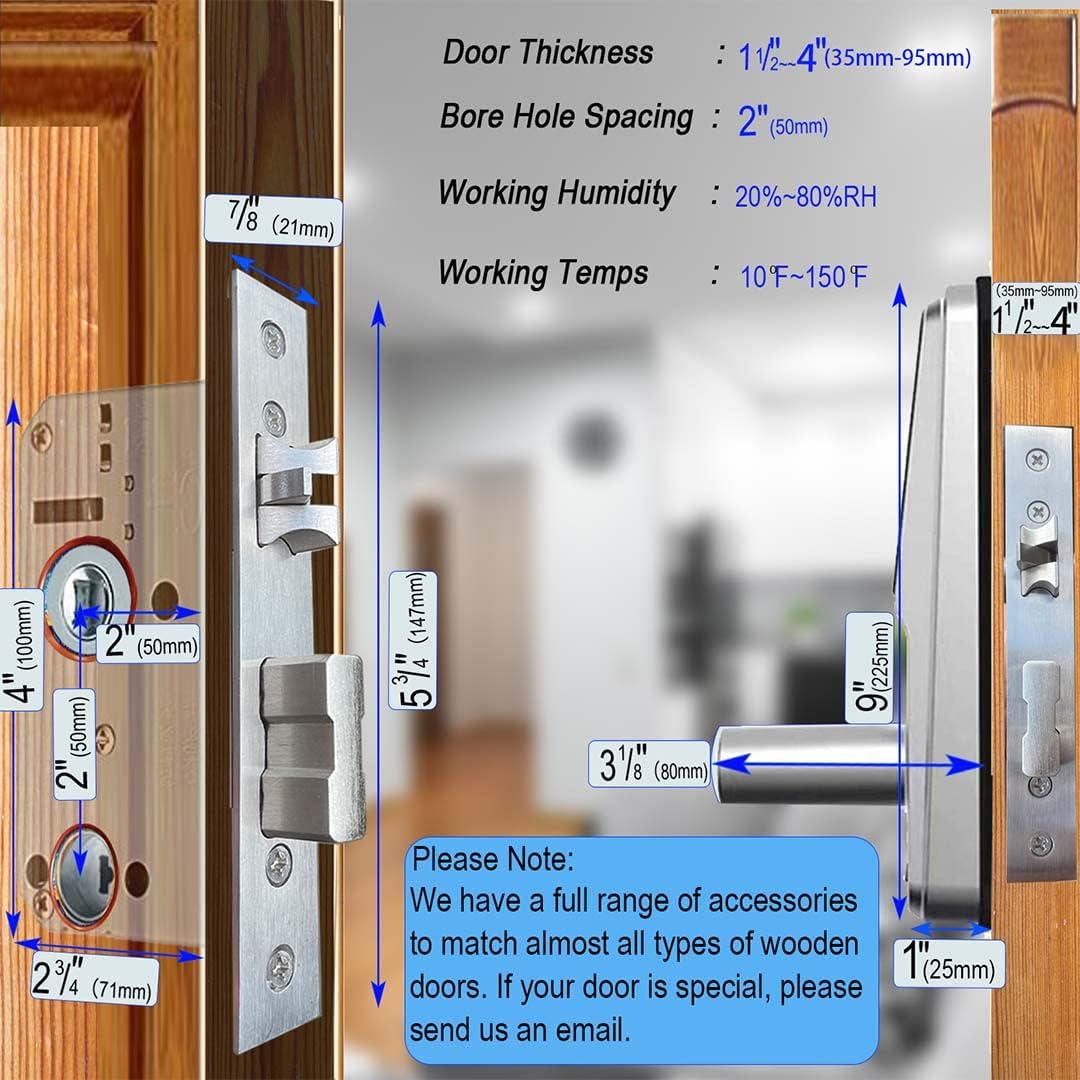

Diagram showing door thickness, bore hole spacing, working humidity, and working temperature requirements for the smart lock. It also notes that a full range of accessories is available for wooden doors and to contact customer service if the door does not match. — Figure 2: Door compatibility and environmental specifications.

Image highlighting key features: Super Energy-saving with 4 AA batteries lasting up to one year, Super Fast Recognition with 3D Biometric Fingerprint verification under 0.3 seconds, and Super Comfortable with low battery reminders and emergency unlock options. — Figure 3: Energy efficiency and biometric performance details.

5. Усталёўка і налада

Follow these steps carefully for proper installation of your smart door lock.

5.1. Handle and Latch Adjustment

If necessary, adjust the handles or latches to match your door's orientation. Remove the screw to pull out the handle and adjust it. Do not overtighten the screw when putting it back, as this may prevent the handle from bouncing back correctly.

Diagram showing two types of bolts, A Style Bolt and C Style Bolt, and instructions for adjusting the handle direction. It notes that the product does not contain B & C style lock bodies and to contact customer service if needed. — Figure 4: Handle and bolt style adjustment.

5.2. Ўстаноўка корпуса замка

Use the provided drill template to make the necessary door holes. Insert the lock body into the door hole and secure it with screws. Ensure the concave end of the square rod faces outwards when inserting it into the lock body.

5.3. Panel Connection and Battery Installation

Connect the front and rear panel cables. Screw the front and rear panels to the door. When fixing the front panel, ensure the left handle 'L' is facing down and the right handle 'R' is facing down. Install 4 AA batteries (purchased separately) into the rear panel. After installation, test the door lock function.

Video 1: This video demonstrates the physical installation steps, including adjusting handles and latches, installing the lock body, connecting cables, and inserting batteries. It also covers initial setup for adding users and connecting to WiFi.

Важная заўвага: This product features a double bolt and back twistlock design. Installation requires drilling one more door hole than a single bolt lock. Refer to the drill template for precise measurements.

Image showing a 'Purchasing Notice' indicating that due to the double bolt and back twistlock design, installation requires one more door hole than a single bolt lock. — Figure 5: Installation notice regarding door hole requirements.

6. Аперацыя

6.1. Adding Administrator Password

To enter system settings and add your administrator password, press the asterisk (*) and hash (#) keys on the keypad. Follow the voice prompts to set your password. The password should be 6-12 digits long and needs to be entered twice for confirmation.

6.2. Adding Users (Fingerprint, Card, Passcode)

After setting the administrator password, you can add users. Press '1' to hear the voice prompt "Add User". You can then add a fingerprint (enter four times), an RFID card (tap the card), or a passcode (6-12 digits, entered twice). The system will confirm successful addition.

6.3. TUYA App Setup and WiFi Connection

Download the "TUYA Smart" app from the App Store or Google Play and sign up for an account. Turn on Bluetooth on your device. In the app, click "Add Device" to search for the smart lock. If the device is not found, poke the reset hole on the lock with a stick to make it discoverable. Once found, click "Add" and enter your WiFi network name and password. If the WiFi connection fails, move the lock closer to the router and try again.

6.4. Дыстанцыйнае разблакіроўка

After successfully connecting the lock to WiFi via the TUYA app, you can remotely unlock the door. When a visitor requests entry, you will receive a notification on your phone. Press "9" and "#" on the lock keypad, then confirm the remote unlocking request in the TUYA app to open the door.

Image showing a person remotely controlling the smart lock via a smartphone app, with a dialogue bubble indicating a visitor outside the house and instructions to press 9 and # on the lock for remote unlocking. — Figure 6: Remote control and unlocking process via the TUYA app.

Image showing a smartphone screen displaying unlocking records from the smart lock, with a person in the background checking their phone and a child approaching a door with the smart lock installed. — Figure 7: Unlocking records are updated in real-time on the app.

7. Тэхнічнае абслугоўванне

Уборка: Працірайце паверхню замка мяккай сухой тканінай. Пазбягайце выкарыстання абразіўных ачышчальнікаў або растваральнікаў, якія могуць пашкодзіць пакрыццё або электронныя кампаненты.
Замена батарэі: The lock will provide a low battery reminder. Replace all 4 AA batteries promptly when indicated to ensure continuous operation. Do not mix old and new batteries or different types of batteries.
Рэгулярныя праверкі: Перыядычна правярайце ўсе шрубы і злучэнні, каб пераканацца ў іх надзейнасці.
Абнаўленні праграмнага забеспячэння: Keep the TUYA Smart app updated to the latest version for optimal performance and security features.

8. Выпраўленне непаладак

Замак не адказвае: Check battery levels. If batteries are low or depleted, replace them.
Адбітак пальца не распазнаны: Пераканайцеся, што ваш палец чысты і сухі. Паспрабуйце зарэгістраваць адбітак пальца зноў, калі праблемы не знікнуць.
Passcode Not Working: Verify the correct passcode is being entered. Ensure the keypad is clean and free from obstructions.
Праблемы з падключэннем да Wi-Fi: Ensure the lock is within range of your WiFi router. Try moving the router closer or improving WiFi signal strength. If connection fails, try the reset procedure (poking the reset hole) and re-add the device in the app.
Remote Unlocking Failure: Check your phone's internet connection and ensure the TUYA app is running and connected to the lock.
Handle Not Bouncing Back: This may indicate that the handle screw was overtightened during installation. Loosen the screw slightly to allow for proper movement.

9. Гарантыя і падтрымка

The CARDORIA 1028ZM-1S Smart Fingerprint Keyless Entry Door Lock comes with a Гарантыя 2 год. For technical support, product inquiries, or warranty claims, please contact CARDORIA customer service. Refer to the contact information provided in your product packaging or on the official CARDORIA webсайт.

CARDORIA is committed to providing quality products and excellent customer service. Your satisfaction is our priority.
