GIVI TR2139 Side Bag Holders Instruction Manual

Уводзіны

This instruction manual provides essential information for the safe and correct installation, operation, and maintenance of your GIVI TR2139 Side Bag Holders. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and use ensure the longevity and optimal performance of the product.

Інфармацыя па бяспецы

• Always ensure the motorcycle is stable and on a level surface before beginning installation.
• Wear appropriate personal protective equipment (PPE) during installation, such as gloves and eye protection.
• Do not exceed the maximum load capacity specified for your motorcycle or the side bags.
• Regularly check all fasteners for tightness, especially after the first few rides and periodically thereafter.
• Ensure the side bag holders do not interfere with the motorcycle's moving parts, controls, or lighting.
• Калі вы не ўпэўненыя ў якім-небудзь этапе працэсу ўстаноўкі, звярніцеся да кваліфікаванага механіка.

Змест пакета

Verify that all components are present before starting the installation. The package should contain:

• GIVI TR2139 Side Bag Holders (Left and Right)
• Камплект мантажных элементаў (балты, шайбы, распоркі, кранштэйны)
• Інструкцыя (гэтае кіраўніцтва)

If any parts are missing or damaged, please contact your retailer or GIVI customer support.

Настройка і ўстаноўка

The GIVI TR2139 Side Bag Holders are designed for specific motorcycle models. Ensure compatibility before proceeding. Installation typically requires basic hand tools.

Неабходныя інструменты:

• Wrench set (metric)
• Набор шасцігранных ключоў (шасцігранныя ключы)
• Дынамаметрычны ключ (рэкамендуецца)
• Фіксатар разьбы (напрыклад, Loctite, сярэдняй трываласці)

Этапы ўстаноўкі:

1. Падрыхтуйце матацыкл: Park the motorcycle on its center stand or a paddock stand on a firm, level surface. Ensure the engine is off and cool.
2. Вызначце кропкі мацавання: Locate the designated mounting points on your motorcycle's frame, typically near the rear passenger footpegs and under the rear fender/seat. Refer to your motorcycle's service manual if necessary.
3. Attach Initial Brackets: Secure any auxiliary brackets provided in the kit to the motorcycle's frame using the specified bolts and washers. Apply thread-locking compound to the bolt threads before tightening. Do not fully tighten at this stage.
4. Position Side Bag Holders: Carefully position the left and right TR2139 side bag holders onto the motorcycle, aligning them with the mounting points and any previously installed brackets.
5. Secure Holders: Insert the remaining bolts, washers, and spacers as indicated in the diagram (if provided with the physical product). Ensure all components are correctly oriented.
6. Выраўнаваць і зацягнуць: Once all bolts are in place, gently align the side bag holders to ensure they are symmetrical and do not obstruct any motorcycle components. Gradually tighten all bolts to the manufacturer's recommended torque specifications. Start with the main frame attachment points, then move to secondary points.
7. Канчатковая праверка: After tightening all fasteners, double-check that the side bag holders are securely mounted and stable. Ensure there is no interference with the rear wheel, chain, exhaust, or passenger comfort.

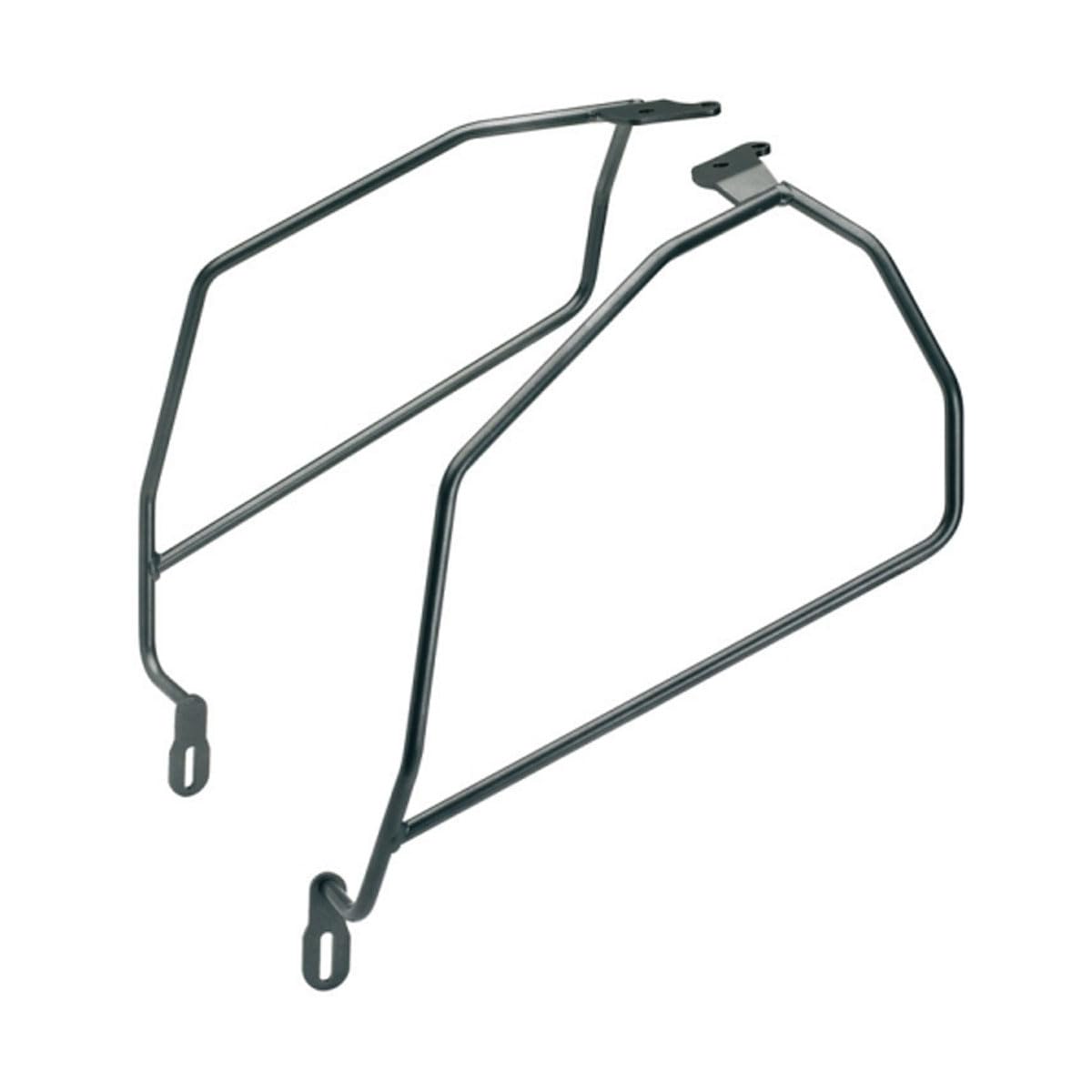

Image: GIVI TR2139 Side Bag Holders. This image illustrates the general appearance of the side bag holders when installed on a motorcycle, providing a visual reference for the product.

Інструкцыя па эксплуатацыі

The GIVI TR2139 Side Bag Holders are designed to provide a stable mounting platform for compatible soft side bags.

1. Attaching Side Bags: Position your compatible soft side bags over the holders. Utilize the straps and attachment points on your side bags to secure them firmly to the TR2139 frames. Ensure all straps are tight and the bags are stable, preventing movement during riding.
2. Detaching Side Bags: Unfasten all straps and attachment points securing the side bags to the holders. Carefully lift the bags off the frames.
3. Размеркаванне нагрузкі: Distribute the weight evenly between both side bags. Avoid placing heavy items on one side only, as this can affect motorcycle handling. Always adhere to the maximum load capacity of your bags and motorcycle.
4. Праверка перад паездкай: Before each ride, verify that the side bags are securely attached and that the holders themselves remain firmly bolted to the motorcycle.

Тэхнічнае абслугоўванне

Regular maintenance ensures the safety and longevity of your GIVI TR2139 Side Bag Holders.

• Уборка: Clean the holders periodically with a mild soap solution and water. Avoid abrasive cleaners or solvents that could damage the finish. Rinse thoroughly and dry completely to prevent rust.
• Праверка крапежных элементаў: Regularly inspect all mounting bolts and fasteners for tightness. Vibrations from riding can cause bolts to loosen over time. Re-tighten to specifications if necessary.
• Праверка пашкоджанняў: Inspect the metal frames for any signs of damage, cracks, bends, or corrosion. If significant damage is found, replace the affected components immediately.
• захоўванне: If removing the holders for extended periods, store them in a dry environment away from direct sunlight and extreme temperatures.

Ліквідацыю непаладак

This section addresses common issues you might encounter with your GIVI TR2139 Side Bag Holders.

• Holders feel loose after installation:
  • Ensure all mounting bolts are tightened to the recommended torque specifications.
  • Verify that all spacers and brackets are correctly installed according to the product's specific diagram.
  • Check for any missing components.
• Side bags are not stable:
  • Confirm that the side bags are compatible with the TR2139 holders.
  • Ensure all bag straps are securely fastened and tightened.
  • Distribute the weight inside the bags evenly.
• Interference with motorcycle parts:
  • Re-check the installation steps to ensure correct positioning.
  • Ensure no cables, hoses, or moving parts are pinched or obstructed by the holders.
  • If interference persists, consult a professional mechanic.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

GIVI products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official GIVI webсайт. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

Падтрымка кліентаў

If you have any questions regarding the installation, operation, or maintenance of your GIVI TR2139 Side Bag Holders, please contact GIVI customer support or your authorized GIVI dealer. You can typically find contact information on the official GIVI webсайт.

Афіцыйны ГІВІ Webсайт: www.givi.it
