Cooler Master Hyper 212 EVO V2 CPU Air Cooler User Manual

1. Уводзіны

Thank you for choosing the Cooler Master Hyper 212 EVO V2 CPU Air Cooler. This manual provides detailed instructions for the installation, operation, and maintenance of your new CPU cooler. Designed for optimal thermal performance and quiet operation, the Hyper 212 EVO V2 ensures efficient cooling for your processor.

2. Інфармацыя па бяспецы

• Заўсёды адключайце камп'ютар ад харчавання перад устаноўкай або абслугоўваннем.
• Handle components with care to avoid damage to the cooler or your motherboard.
• Захоўваць у месцах, недаступных дзецям.
• Do not attempt to modify the cooler. Any modifications will void the warranty.
• Забяспечце належнае зазямленне, каб прадухіліць пашкоджанне кампанентаў электрастатычным разрадам (ESD).

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• Hyper 212 EVO V2 Heatsink
• SickleFlow 120mm Fan V2
• Universal Mounting Brackets (for Intel & AMD sockets, including LGA1700)
• Задняя пласціна
• Мантажныя шрубы і фурнітура
• MasterGel Pro Thermal Paste
• Secondary Fan Mounting Brackets (with splitter cable)
• Кіраўніцтва карыстальніка (гэты дакумент)

4. Настройка і ўстаноўка

Follow these steps carefully for proper installation. Refer to the images for visual guidance.

4.1 Падрыхтуйце сістэму

• Выключыце кампутар і адключыце ўсе кабелі.
• Open your computer case and locate the CPU socket on the motherboard.
• Remove any existing CPU cooler and clean off old thermal paste from the CPU surface using isopropyl alcohol.

4.2 Install Backplate and Mounting Brackets

Select the appropriate backplate and mounting hardware for your CPU socket type (Intel LGA1700, 1200, 115x, 2066, 2011-v3, 2011 or AMD AM4, AM3+, AM2+, AM2, FM2+, FM2, FM1).

Выява: Зверхуview of mounting hardware components.

1. Attach the universal backplate to the rear of the motherboard, aligning it with the CPU socket holes.
2. Secure the appropriate standoffs through the motherboard holes from the front side.
3. Place the correct mounting brackets onto the standoffs and secure them with the provided screws.

4.3 Нанясенне тэрмапасты

Apply a small amount of MasterGel Pro thermal paste to the center of the CPU's integrated heat spreader (IHS). A pea-sized dot is generally sufficient.

4.4 Mount the Heatsink

Image: The Hyper 212 EVO V2 heatsink with the SickleFlow 120mm fan attached.

1. Carefully place the heatsink onto the CPU, ensuring the base makes full contact with the thermal paste.
2. Align the heatsink's mounting holes with the screws on the mounting brackets.
3. Tighten the screws in an alternating diagonal pattern until snug. Do not overtighten.

4.5 Install the Fan

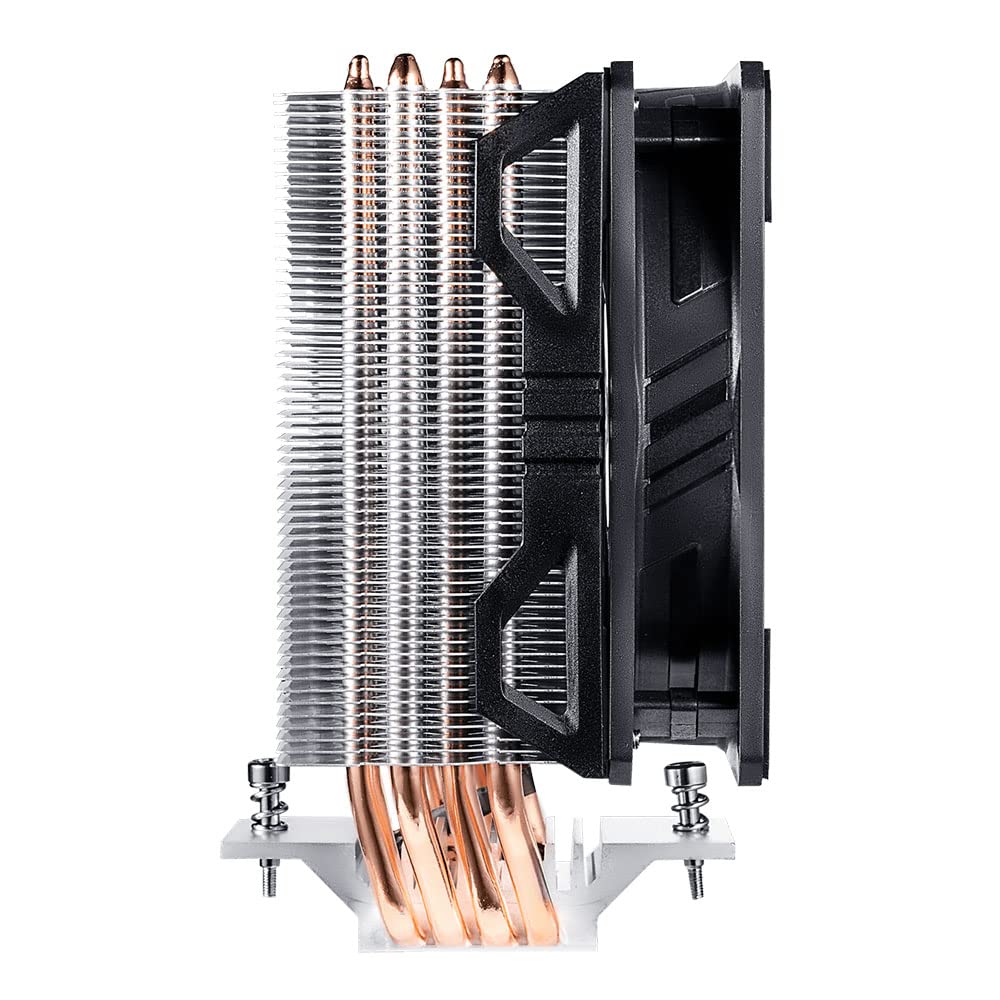

Выява: Збоку view of the cooler, showing the fan attachment mechanism.

1. Attach the SickleFlow 120mm fan to the heatsink using the provided fan clips. Ensure the fan is oriented to blow air through the heatsink fins towards the rear or top of your case.
2. Connect the fan's 4-pin PWM cable to the CPU_FAN header on your motherboard.
3. If installing a second fan (optional), use the secondary fan mounting brackets and splitter cable, connecting both fans to the CPU_FAN header.

Image: The Hyper 212 EVO V2 installed within a computer system, demonstrating its clearance with RAM modules.

5. Інструкцыя па эксплуатацыі

Once installed, the Cooler Master Hyper 212 EVO V2 operates automatically. The fan speed is controlled by your motherboard's BIOS/UEFI settings based on CPU temperature. Ensure your BIOS/UEFI is configured for optimal fan curve settings to balance cooling performance and noise levels.

• Кіраванне вентылятарам: Access your motherboard's BIOS/UEFI settings to adjust the CPU fan curve. This allows you to set fan speeds based on CPU temperature thresholds.
• Маніторынг: Use system monitoring software (e.g., HWMonitor, CPU-Z) to check CPU temperatures and fan speeds to ensure proper operation.

6. Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне дапамагае забяспечыць аптымальную прадукцыйнасць і тэрмін службы кулера працэсара.

• Выдаленне пылу: Periodically clean dust from the heatsink fins and fan blades using compressed air. Ensure the fan does not spin rapidly during cleaning to prevent damage to the bearings.
• Тэрмапаста: Reapply thermal paste if you remove the heatsink for any reason. Thermal paste typically lasts for several years under normal conditions.
• Агляд вентылятара: Праверце вентылятар на наяўнасць прыкмет зносу, незвычайных шумоў або зніжэння прадукцыйнасці. Пры неабходнасці заменіце вентылятар.

7. Выпраўленне непаладак

If you encounter issues with your Cooler Master Hyper 212 EVO V2, refer to the following common problems and solutions:

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information and technical support, please refer to the official Cooler Master website or contact your local Cooler Master distributor. Keep your proof of purchase for warranty claims.

Cooler Master Official Webсайт: www.coolermaster.com
