DEUSES PZ30 Carburetor Instruction Manual

1. Уводзіны

This manual provides essential information for the proper installation, operation, and maintenance of your DEUSES PZ30 Carburetor. This carburetor is designed to deliver optimal fuel-air mixture to your engine, ensuring efficient performance. Please read this manual thoroughly before installation and use to ensure safety and prolong the life of your product.

2. Асаблівасці прадукту

• 100% factory tested for reliability and performance.
• Engineered for a long service life.
• Designed for easy and direct replacement.
• Provides a perfect fit as a replacement part.
• Manufactured to strict quality control standards.

3. Сумяшчальнасць

The DEUSES PZ30 Carburetor is compatible with 200cc to 250cc engines commonly found in Pit Dirt Motor Motorcycles, ATVs, Quads, and 4-wheelers, including models like Taotao. Please verify your engine's specifications to ensure proper fitment.

4. Кампаненты большview

The PZ30 Carburetor consists of several key components working together to regulate fuel and air flow to the engine. Key parts include the main body, float bowl, choke mechanism, and various jets.

5. Настройка і ўстаноўка

Папярэджанне: Installation of engine components can be complex. If you are not experienced with mechanical work, it is highly recommended to seek professional assistance for installation to prevent damage to the carburetor or your vehicle.

1. Падрыхтоўка: Ensure the engine is cool and disconnect the battery. Drain any fuel from the old carburetor and fuel lines.
2. Зняцце старога карбюратара: Carefully disconnect the fuel line, throttle cable, and choke cable from the old carburetor. Remove the mounting bolts/nuts connecting the carburetor to the intake manifold and air filter housing.
3. агляд: Inspect the intake manifold and air filter housing for any damage or debris. Replace gaskets if necessary.

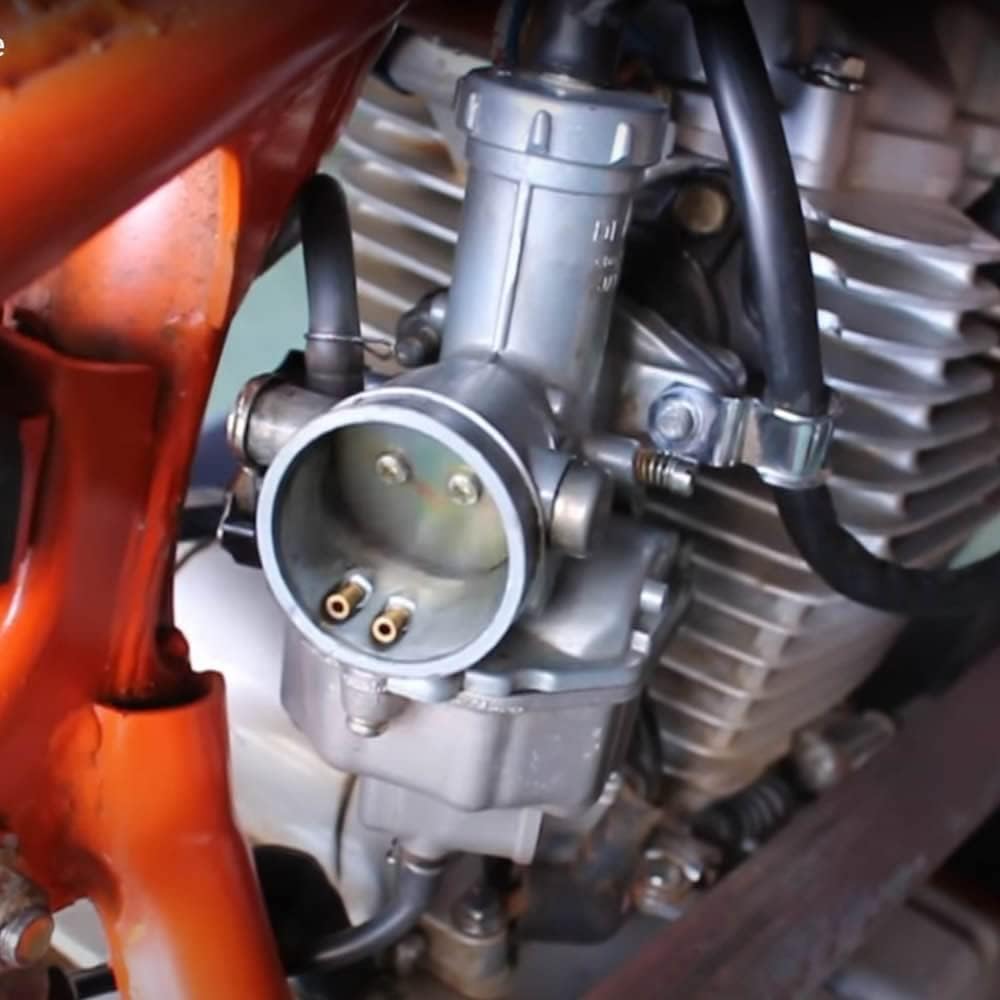

4. Усталёўка новага карбюратара:
   • Mount the DEUSES PZ30 Carburetor onto the intake manifold, ensuring a tight seal with new gaskets if applicable.
   • Connect the air filter housing to the carburetor's air intake (diameter: 45mm).
   • Reconnect the fuel line, ensuring it is securely clamped and free of leaks.
   • Attach the throttle cable and choke cable. Ensure smooth operation of both mechanisms without binding.
5. Пачатковыя карэкціроўкі: After installation, perform initial adjustments for idle speed and air-fuel mixture as per your vehicle's service manual.
6. Тэставанне: Reconnect the battery, refill the fuel tank, and start the engine. Check for any fuel leaks and ensure the engine runs smoothly.

6. Аперацыя

The PZ30 Carburetor is designed for straightforward operation. The choke cable mechanism is used to enrich the fuel mixture for cold starts. Pull the choke lever for starting a cold engine, and gradually push it back as the engine warms up to prevent over-rich mixture and stalling.

Ensure the throttle cable provides smooth and full range of motion for the throttle valve. Regular inspection of cable tension and lubrication is recommended.

7. Тэхнічнае абслугоўванне

Regular maintenance is crucial for the longevity and optimal performance of your carburetor.

• Уборка: Periodically clean the carburetor, especially the float bowl and jets, to remove fuel deposits and debris. Use a carburetor cleaner and compressed air.
• Паветраны фільтр: Ensure your air filter is clean and properly installed. A dirty air filter can restrict airflow and affect carburetor performance.
• Паліўны фільтр: Regularly check and replace the fuel filter to prevent contaminants from reaching the carburetor.
• Пракладкі і ўшчыльняльнікі: Inspect all gaskets and seals for wear or damage and replace them as needed to prevent air or fuel leaks.
• Змазка кабеля: Lubricate the throttle and choke cables periodically to ensure smooth operation.

8. Выпраўленне непаладак

If you encounter issues with your engine's performance, consider the following common troubleshooting steps related to the carburetor:

• Рухавік не запускаецца:
  • Check fuel supply to the carburetor.
  • Ensure the choke is properly engaged for cold starts.
  • Inspect for clogged fuel jets or passages.
• Poor Idle/Stalling:
  • Adjust the idle speed screw.
  • Check for vacuum leaks around the intake manifold.
  • Clean the pilot jet.
• Lack of Power/Hesitation:
  • Inspect the main jet for clogs.
  • Пераканайцеся, што паветраны фільтр чысты.
  • Verify proper throttle cable adjustment.
• Уцечкі паліва:
  • Check float bowl gasket and drain screw.
  • Inspect fuel line connections and clamps.
  • Verify float level is correct.

If problems persist after basic troubleshooting, consult a qualified mechanic.

9. Тэхнічныя характарыстыкі

10. Важная інфармацыя па бяспецы

• Always wear appropriate safety gear, including eye protection, when working on your vehicle.
• Ensure the engine is off and cool before performing any maintenance or installation.
• Працуйце ў добра вентыляваным памяшканні, каб пазбегнуць удыхання пароў паліва.
• Keep fire extinguishers or appropriate fire suppression materials nearby when working with fuel.
• Утылізуйце старое паліва і дэталі адказна ў адпаведнасці з мясцовымі правіламі.
• Refer to your vehicle's specific service manual for detailed safety procedures and torque specifications.
