Tefola 1000W 36V/48V Brushless Motor Controller Kit User Manual

1. Уводзіны

Thank you for choosing the Tefola 1000W 36V/48V Brushless Motor Controller Kit. This kit provides stable speed control and sensitive braking for your electric bike or scooter. It features a durable aluminum alloy controller housing for efficient heat dissipation and an LCD display for clear riding data. Please read this manual carefully before installation and operation to ensure proper use and safety.

2. Інфармацыя па бяспецы

• Always wear appropriate safety gear when operating electric bikes or scooters.
• Ensure all connections are secure and properly insulated before powering on the system.
• Do not attempt to modify the controller or any components, as this may void the warranty and create safety hazards.
• Keep the controller and display away from water and extreme temperatures.
• Regularly inspect all wiring for damage or loose connections.

3. Змесціва ўпакоўкі

Праверце, ці ўсе пералічаныя ніжэй прадметы ўваходзяць у вашу ўпакоўку:

• 1 х кантролер рухавіка
• 1 x Throttle with LCD Display Panel
• 1 x Throttle Handle Grip
• 2 x Keys (for throttle lock)
• 1 х Інструкцыя па эксплуатацыі (гэты дакумент)

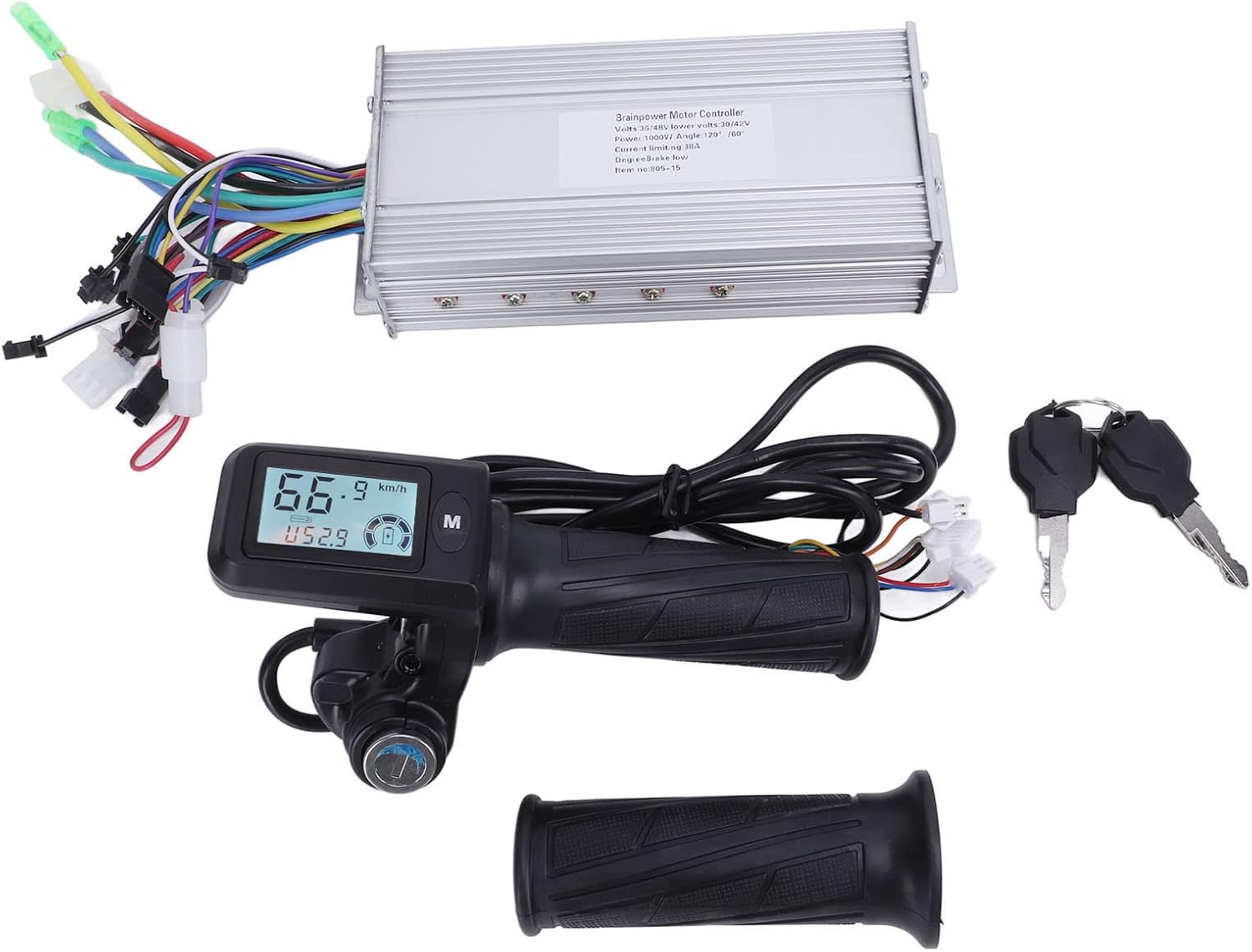

Image: Complete contents of the Tefola Motor Controller Kit.

4. Тэхнічныя характарыстыкі

5. Настройка і ўстаноўка

This section outlines the general steps for installing the motor controller kit. Professional installation is recommended if you are unfamiliar with electric bike/scooter wiring.

5.1 Controller Placement

Mount the controller in a secure location on your electric bike or scooter, ensuring it is protected from direct impact and moisture. The fluted aluminum housing is designed for heat dissipation, so ensure adequate airflow around it.

5.2 Throttle and Handlebar Installation

1. Remove your existing throttle and handle grip from the handlebar.
2. Slide the new throttle with LCD display onto the right side of the handlebar. Ensure it fits securely on 22.5mm diameter handlebars.
3. Install the additional handle grip on the left side of the handlebar.
4. Secure both components firmly to prevent rotation during use.

Image: Throttle with LCD display and handle grip for handlebar installation.

5.3 Правадныя злучэнні

The controller has multiple color-coded wires for various functions. Connect them according to your electric bike/scooter's wiring diagram. Common connections include:

• Сілавыя драты: Connect to the battery (usually thicker red for positive, black for negative).
• Правады рухавіка: Connect to the motor (typically three phase wires and five Hall sensor wires). Match colors carefully.
• Throttle Wires: Connect to the throttle unit.
• Тармазныя драты: Connect to brake levers (often with cut-off function).
• LCD Display Wires: Connect to the display unit.
• Іншыя правады: May include wires for lights, pedal assist sensor (PAS), speed sensor, etc. Refer to your vehicle's specific wiring diagram for these.

Image: Motor controller with its array of connection wires.

Важна: Ensure all connections are correct and secure before applying power. Incorrect wiring can damage the components.

6. Інструкцыя па эксплуатацыі

6.1 Уключэнне/выключэнне

Insert the key into the throttle's lock mechanism and turn it to the 'ON' position to power on the system. The LCD display will illuminate. Turn the key to 'OFF' to power down.

6.2 Функцыі ВК-дысплея

The LCD display provides real-time riding data. The backlight ensures visibility in various lighting conditions. Use the 'M' button to cycle through display modes or adjust settings.

Image: LCD display showing current speed, battery level, and mileage.

The display typically shows:

• Хуткасць у рэжыме рэальнага часу: Бягучая хуткасць язды.
• Узровень батарэі: Indication of remaining battery charge.
• тtage: Бягучы аб'ём батарэіtage.
• Single Run Mileage: Distance covered in the current trip.
• Агульны прабег: Cumulative distance covered by the vehicle.
• Gear Indication: Current assist level or gear.
• Абвестка аб нізкім зарадзе батарэі: Visual warning when battery is low.
• Значок няспраўнасці: Indicates system errors (refer to troubleshooting for details).

6.3 Кіраванне дросельнай засланкай

Gently twist the throttle grip to engage the motor and control speed. The brushless motor controller provides sensitive and stable speed control. Release the throttle to reduce speed or apply brakes.

6.4 Функцыя блакіроўкі клавіш

The integrated key lock on the throttle acts as a power switch, preventing unauthorized use of your electric bike or scooter when turned to the 'OFF' position and the key is removed.

7. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and optimal performance of your motor controller kit.

• Уборка: Wipe the controller and LCD display with a soft, dry cloth. Avoid using harsh chemicals or excessive moisture.
• Праверка злучэння: Periodically inspect all electrical connections for tightness and signs of corrosion or damage. Re-secure any loose connections.
• Корпус кантролера: Ensure the controller's aluminum housing remains free of obstructions to allow for proper heat dissipation.
• Праверка праводкі: Check all wires for fraying, cuts, or pinches. Repair or replace damaged wiring immediately.

8. Выпраўленне непаладак

Калі ў вас узнікнуць праблемы, звярніцеся да наступных распаўсюджаных праблем і рашэнняў:

If you cannot resolve the issue using the troubleshooting guide, please contact customer support.

9. Гарантыя і падтрымка

For warranty information, please refer to the purchase documentation or contact your retailer. If you require technical assistance or have questions about your Tefola Motor Controller Kit, please visit the Tefola Store on Amazon or contact customer support through your purchase platform.
