1. Уводзіны
Thank you for choosing the Karinear Vitroceramic Hob KNC-D46663-DE. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions carefully before installation and use, and keep them for future reference.
This 60 cm vitroceramic hob is equipped with four cooking zones, including two standard zones and two dual-ring zones, designed for faster heating and improved energy efficiency. It features 9 heat levels, a timer function from 1 to 99 minutes, automatic shutdown, overheating protection, and a child lock for enhanced safety.
Малюнак 1: Закончанаview of the Karinear Vitroceramic Hob.
2. Інфармацыя па бяспецы
Your safety and the safety of others are paramount. Please read all instructions before operating the appliance to reduce the risk of fire, electric shock, injury to persons, or damage to the hob.
- Блакіроўка ад дзяцей: This feature prevents accidental operation by children. Activate the child lock to disable the control panel.
- Абарона ад перагрэву: The hob is equipped with a safety sensor that monitors the temperature. If an excessive temperature is detected, the hob will automatically shut down to prevent damage.
- Аўтаматычнае адключэнне: If a cooking zone is left on for an extended period without adjustment, or if a pot boils dry, the hob will automatically switch off for safety.
- Індыкатар рэшткавага цяпла: After use, the cooking zones will remain hot. An indicator light will show which zones are still hot, warning against touching them.
- Забяспечце належную вентыляцыю падчас выкарыстання.
- Не захоўвайце лёгкаўзгаральныя матэрыялы побач з плітой.

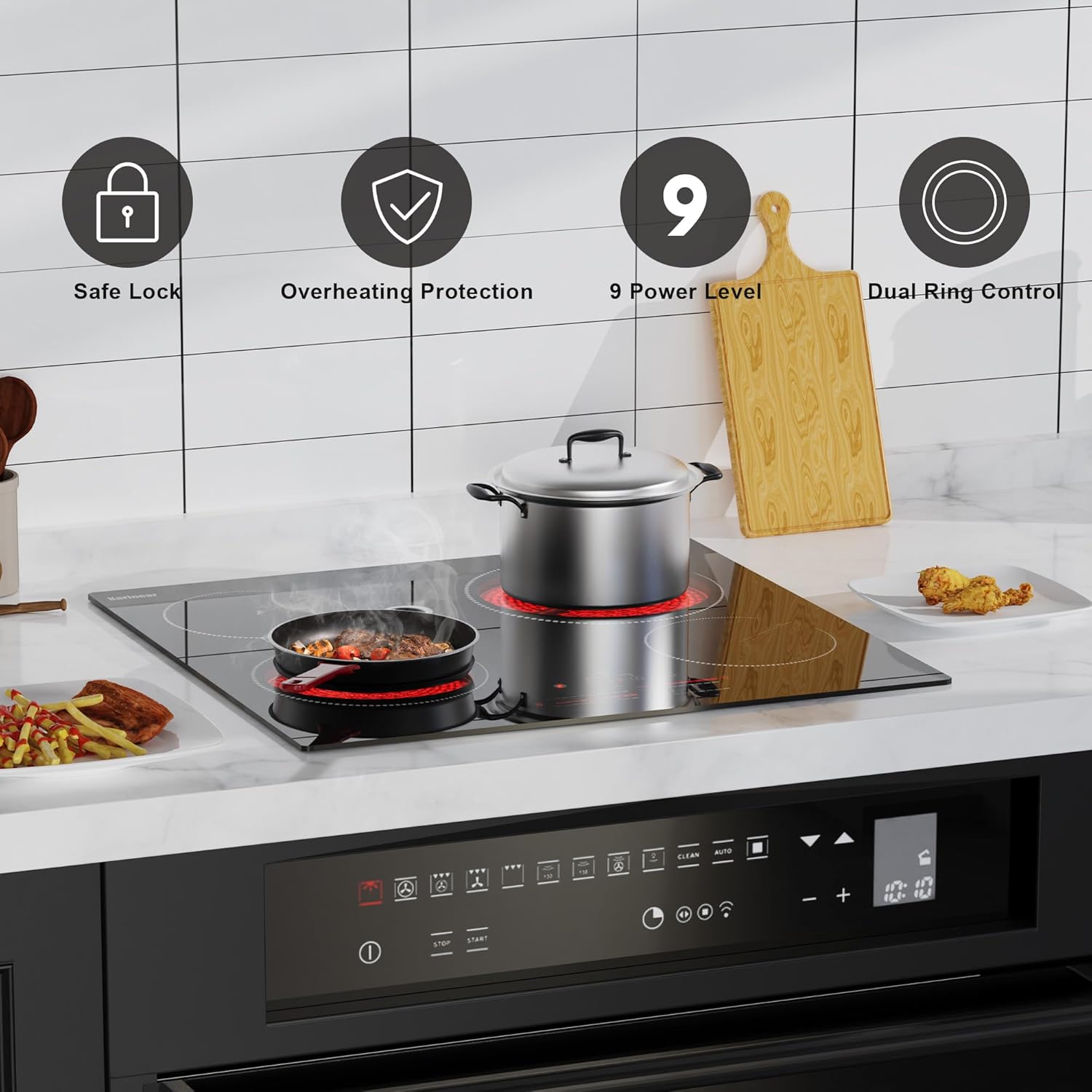

Figure 2: Safety features and controls overview.
3. Настройка і ўстаноўка
The Karinear Vitroceramic Hob KNC-D46663-DE is designed for built-in installation. It is supplied without a plug and requires direct wiring to the electrical supply. Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations.
3.1. Памеры
- Product Dimensions (Depth x Width x Height): 52 cm x 59 cm x 4.4 cm
- Cut-out Dimensions (Width x Depth): Approximately 56 cm x 49 cm (Refer to detailed installation diagram for precise measurements)
3.2. Электрычнае падключэнне
The hob operates on a 220-240V / 6600W electrical supply. It must be hardwired. Ensure the electrical supply is disconnected before commencing any wiring work.
Figure 3: Electrical connection diagram and product dimensions. This image illustrates the required voltagе і ватtage, and the absence of a plug, emphasizing the need for professional wiring.
4. Інструкцыя па эксплуатацыі
The hob features a sensitive touch control panel for easy operation.
4.1. Уключэнне / выключэнне харчавання
Націсніце на сімвал харчавання (O) on the control panel to turn the hob on or off.
4.2. Рэгуляванне ўзроўняў магутнасці
Each cooking zone has its own slider control. To adjust the power level (1-9), simply slide your finger along the illuminated bar corresponding to the desired zone. The selected power level will be displayed.
Figure 4: Sensitive touch control panel with key functions.

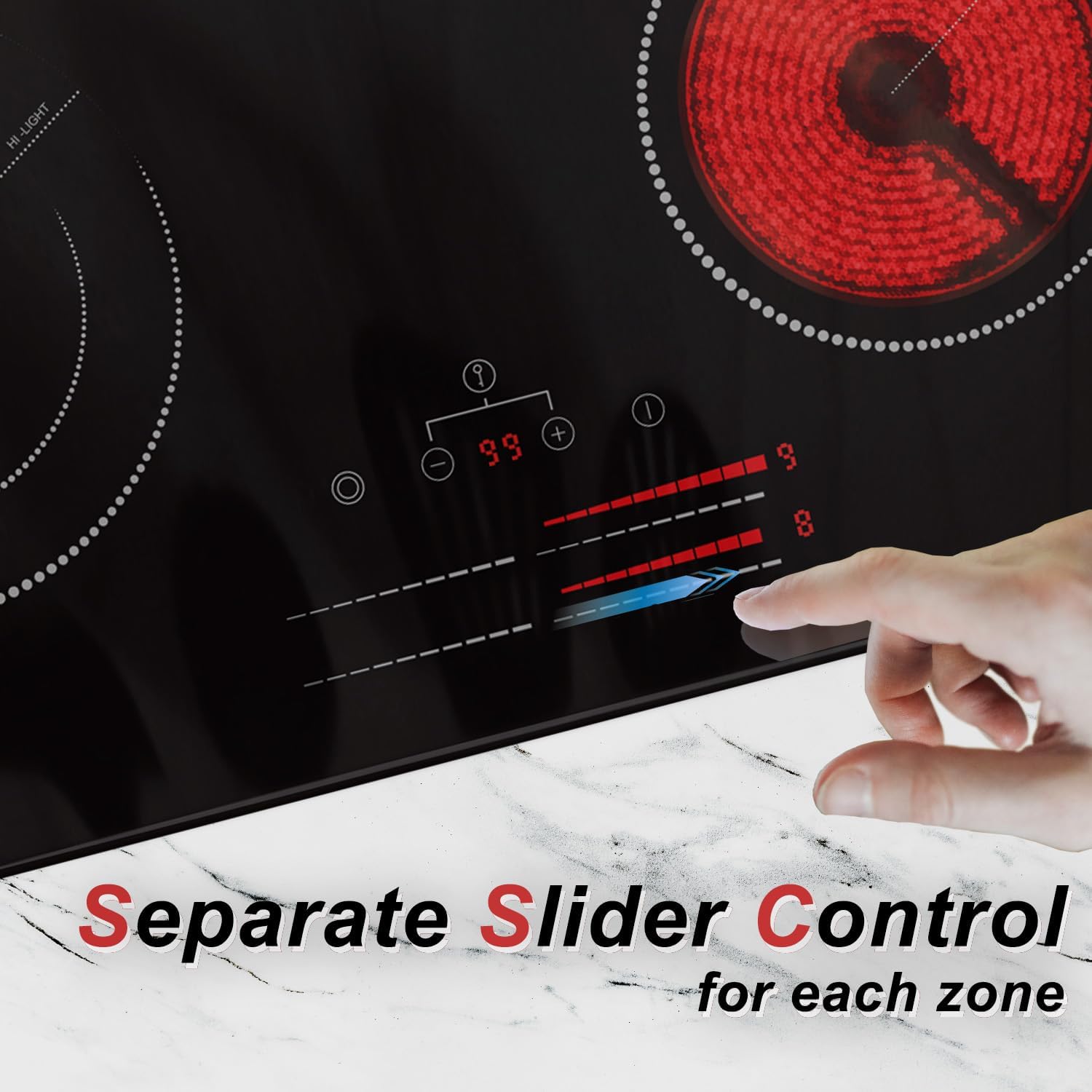

Figure 5: Demonstrating the separate slider control for each cooking zone.
4.3. Dual Ring Function
Two cooking zones feature a dual-ring function, allowing you to adapt the heating area to larger or smaller cookware. To activate the dual ring, first set the burner to your desired power level, then touch the dual ring control symbol (usually a concentric circle icon) for that zone. The outer ring will illuminate when activated.
Figure 6: Dual Ring Control in action, showing how to adjust the cooking zone size.
4.4. Функцыя таймера
The timer can be set independently for each cooking zone from 1 to 99 minutes. Touch the timer control symbol, then use the '+' and '-' buttons or the slider to set the desired cooking time. The zone will automatically switch off when the timer expires.
4.5. Сумяшчальнасць посуду
This vitroceramic hob is suitable for all types of flat-bottomed cookware, including those made of iron, aluminum, ceramic, stainless steel, copper, and heat-resistant glass.
Малюнак 7: Выпamples of compatible cookware types.
5. Тэхнічнае абслугоўванне і ачыстка
Рэгулярная чыстка і абслугоўванне забяспечаць даўгавечнасць і аптымальную прадукцыйнасць вашай варачнай панэлі.
- Заўсёды пераканайцеся, што варачная панэль астыла і адключана ад электрычнасці перад чысткай.
- Wipe the ceramic surface with a soft cloth and a mild detergent after each use to remove food spills and grease.
- For stubborn stains, use a specialized ceramic hob cleaner and a scraper designed for glass-ceramic surfaces.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the surface.
- Ачысціць панэль кіравання з дапамогай рэкламыamp тканінай і старанна высушыце.
6. Выпраўленне непаладак
If you encounter issues with your hob, please refer to the following common problems and solutions before contacting customer service.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Пліта не ўключаецца | Няма харчавання; актываваная блакіроўка ад дзяцей | Check circuit breaker; Deactivate child lock |
| Канфорка не награваецца | Incorrect power level selected; Cookware not suitable | Adjust power level; Use compatible flat-bottomed cookware |
| Hob shuts down automatically | Overheating protection activated; Timer expired | Allow hob to cool down; Check timer settings |
| Панэль кіравання не адказвае | Child lock activated; Moisture on panel | Deactivate child lock; Wipe panel dry |
Калі праблема не знікне пасля спробы вырашэння гэтых праблем, звярніцеся да кваліфікаванага спецыяліста па абслугоўванні.
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | Карынэар |
| Нумар мадэлі | KNC-D46663-DE |
| Памеры прадукту (ДxШxВ) | 52 см х 59 см х 4.4 см |
| Вага | 9.33 кг |
| Магутнасць | 6600 ват |
| тtage | 220-240В |
| Колькасць награвальных элементаў | 4 |
| Тып гарэлкі | Прамяністы |
| Тып кіравання | Touch & Scroll (Slider) for power and timer |
| Тып ўстаноўкі | Убудаваны |
| Матэрыял паверхні | Шклокераміка |
| Асаблівасці | Child Lock, Automatic Shutdown, Dual Ring Function, Timer Function, Unique Light Bar Display |
| Cooking Zone 1 (Front Left) | 1200 Вт (165 мм) |
| Cooking Zone 2 (Rear Left) | 1000 W / 2000 W (200 mm Max) - Dual Ring |
| Cooking Zone 3 (Front Right) | 1200 Вт (165 мм) |
| Cooking Zone 4 (Rear Right) | 1000 W / 2200 W (230 mm Max) - Dual Ring |
8. Інфармацыя аб гарантыі
Specific warranty details for the Karinear Vitroceramic Hob KNC-D46663-DE are not provided in the available product data. Please refer to the warranty card included with your product or contact your retailer or the manufacturer directly for detailed warranty terms and conditions.
9. Падтрымка кліентаў
For technical assistance, spare parts, or any questions regarding your Karinear Vitroceramic Hob, please contact the retailer where you purchased the product or visit the official Karinear website for support contact information. Please have your model number (KNC-D46663-DE) and purchase date ready when contacting support.
