Generico System White 10A Unipolar Push Button Instruction Manual

1. Прадукт скончыўсяview

The Generico System White 10A Unipolar Push Button is a modular electrical device designed for controlling lighting systems in both civil and commercial environments. This push button operates with a normally open (NO) contact, typically used in conjunction with a relay to manage lighting from one or more points.

Асноўныя функцыі ўключаюць у сябе:

• Durable white polymer construction, resistant to impacts and UV rays.
• Basculating mechanism for reliable operation.
• Non-porous, glossy white finish for easy cleaning.
• Occupies 1 module in standard flush-mounted supports and surface-mounted enclosures.
• Designed, engineered, and manufactured in Italy with IMQ and TSE certifications.

2. Інфармацыя па бяспецы

Калі ласка, прачытайце і зразумейце ўсе інструкцыі па тэхніцы бяспекі перад устаноўкай і выкарыстаннем. Невыкананне гэтых інструкцый можа прывесці да паражэння электрычным токам, пажару або сур'ёзных траўмаў.

• ПАПЯРЭДЖАННЕ: Always disconnect power at the circuit breaker or fuse box before installing or servicing any electrical device.
• Усталёўку павінен выконваць кваліфікаваны электрык у адпаведнасці з усімі мясцовымі і нацыянальнымі электрычнымі нормамі.
• Не выкарыстоўвайце прыладу, калі яна выглядае пашкоджанай.
• Забяспечце належнае зазямленне там, дзе гэта неабходна.
• Захоўваць удалечыні ад вады і вільгаці.

3. Змесціва ўпакоўкі

Ваш пакет павінен змяшчаць наступныя рэчы:

• 3 x Generico System White 10A Unipolar Push Buttons

Калі якія-небудзь прадметы адсутнічаюць або пашкоджаныя, звярніцеся да прадаўца.

4. Настройка і ўстаноўка

The Generico System White 10A Unipolar Push Button is designed for simple and intuitive installation. It features double-housing terminals with Phillips head screw tightening for secure connections.

4.1 Метады ўстаноўкі

This push button can be installed using various methods:

• Убудаваны: In masonry walls and plasterboard.
• Surface-mounted: Using external wall boxes.
• На праfiles: With dedicated boxes and plates.
• In systems: Such as Multibox and Interlink.
• On conduits, turrets, and DIN rails.

4.2 Электрычная схема

Refer to the following diagram for typical wiring with a relay (relay not included).

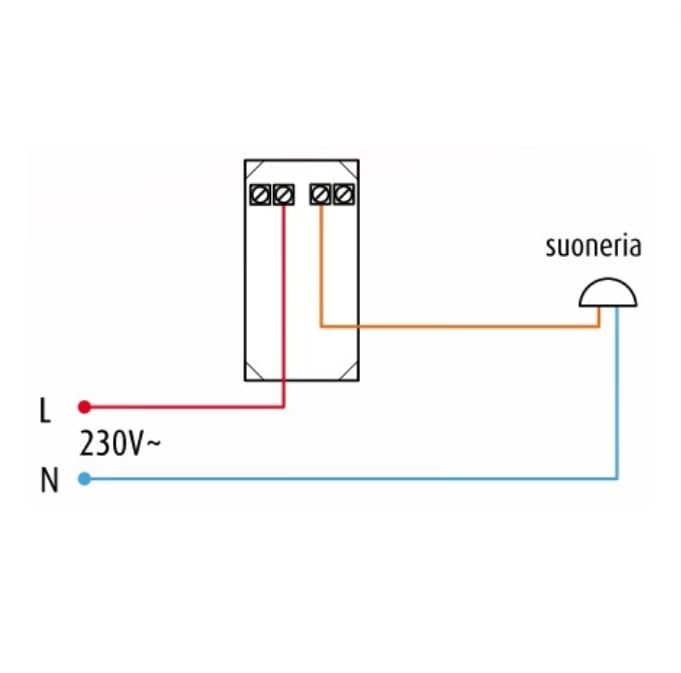

Малюнак 1: Wiring diagram showing connection of the unipolar push button to a 230V~ power supply (L for Line, N for Neutral) and a doorbell ('suoneria') circuit, typically through a relay. The red wire connects the Line (L) to one terminal of the push button, and an orange wire connects the other terminal of the push button to the relay input. The blue wire connects Neutral (N) to the doorbell, and another orange wire connects the relay output to the doorbell.

4.3 Зборка кампанентаў

The push button modules are designed for easy integration into compatible frames and plates.

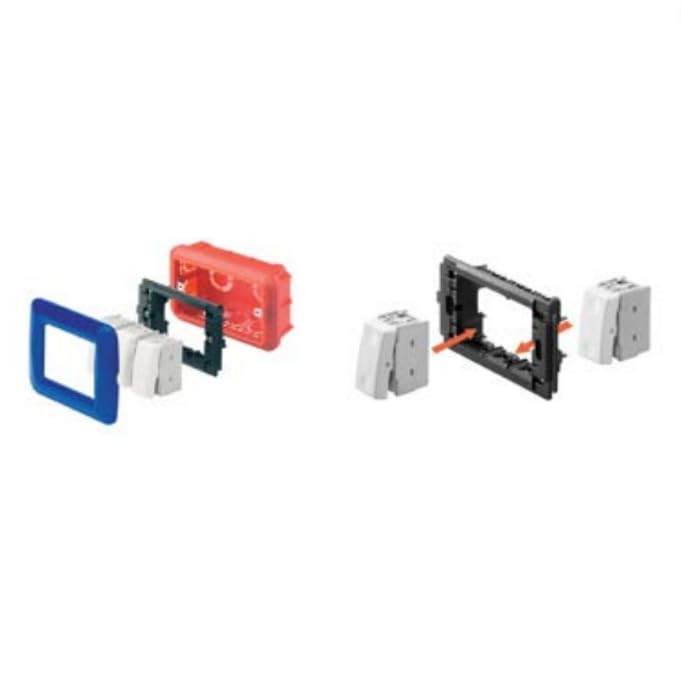

Малюнак 2: Выбухнуў view illustrating the assembly of modular electrical components. On the left, a blue decorative plate, a white module, and a red mounting box are shown disassembled. On the right, a black mounting frame is shown with two white modules being inserted, indicating a snap-in or screw-in installation process for the modules into the frame.

4.4 Сумяшчальнасць

Ensure compatibility with appropriate mounting boxes and frames. Below are examples of compatible Idrobox IP40 and IP55 enclosures.

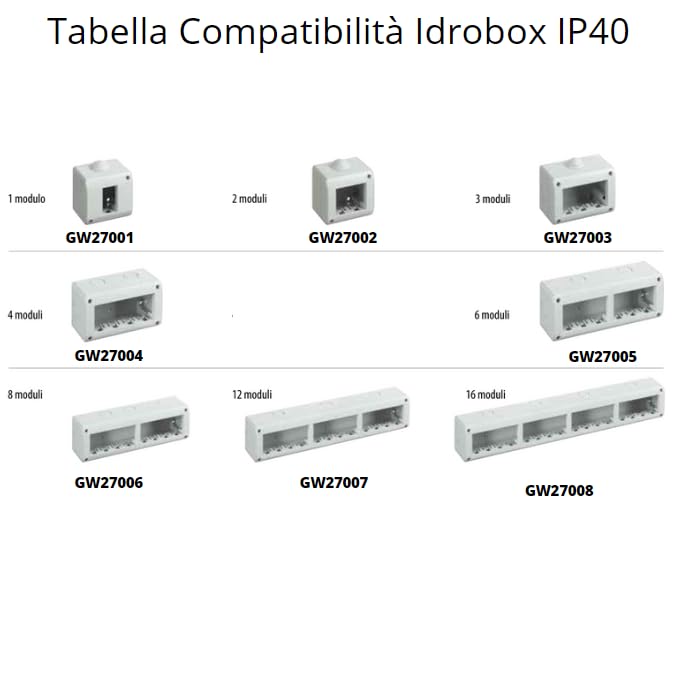

Малюнак 3: Compatibility table for Idrobox IP40 enclosures. This image displays various sizes of IP40 rated enclosures, ranging from 1-module (GW27001) to 16-module (GW27008) configurations, showing how the push button can be integrated into different sized housing units for indoor applications.

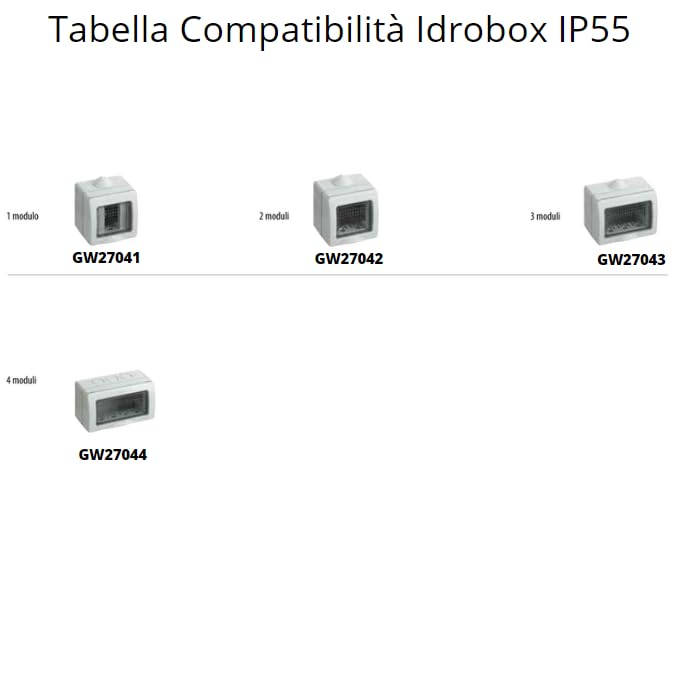

Малюнак 4: Compatibility table for Idrobox IP55 enclosures. This image displays various sizes of IP55 rated enclosures, ranging from 1-module (GW27041) to 4-module (GW27044) configurations, indicating suitable housing units for outdoor or high-humidity environments.

Once installed, the push button should appear flush and integrated with the wall plate.

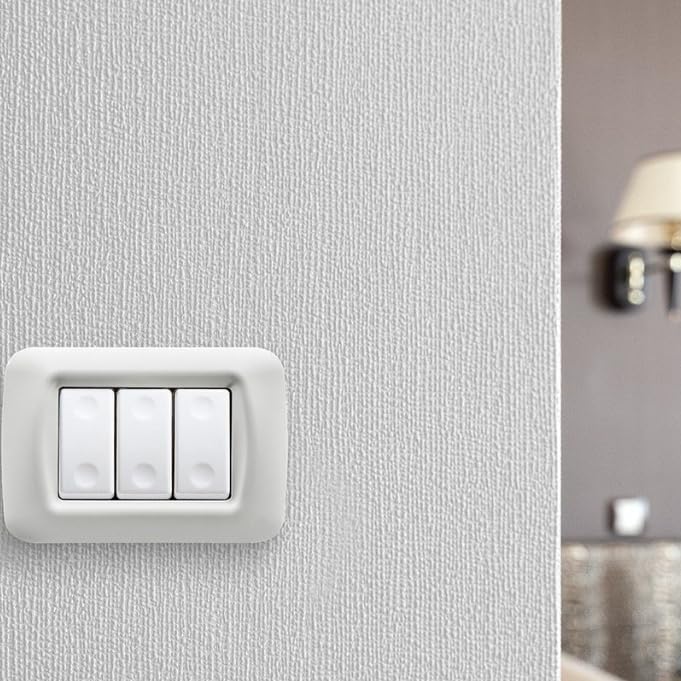

Малюнак 5: A Generico System White 10A Unipolar Push Button, shown as part of a three-gang switch plate, installed on a textured white wall. This image demonstrates the aesthetic integration of the product into a typical indoor setting.

5. Інструкцыя па эксплуатацыі

The Generico System White 10A Unipolar Push Button functions as a momentary contact switch. When pressed, it momentarily closes a circuit (normally open contact), sending a signal to a connected relay or control unit. Releasing the button opens the circuit again.

• To activate the connected device (e.g., turn on lights via a relay), simply press the button.
• The button will return to its original position upon release.
• For applications like staircase lighting, multiple push buttons can be wired in parallel to control the same lighting circuit through a single relay.

6. Тэхнічнае абслугоўванне

The Generico System White 10A Unipolar Push Button requires minimal maintenance due to its durable construction and non-porous finish.

• Уборка: To clean the surface of the push button, use a soft, damp тканінай. Пазбягайце абразіўных ачышчальнікаў, растваральнікаў або агрэсіўных хімікатаў, бо яны могуць пашкодзіць пакрыццё.
• агляд: Periodically inspect the push button and its surrounding plate for any signs of damage, loose connections, or discoloration. If any issues are found, disconnect power and consult a qualified electrician.

7. Выпраўленне непаладак

If you encounter issues with your Generico System White 10A Unipolar Push Button, consider the following troubleshooting steps:

• Прылада не адказвае:
  • Ensure power is supplied to the circuit. Check the circuit breaker or fuse.
  • Verify all wiring connections are secure and correctly installed according to the wiring diagram.
  • If used with a relay, check the relay's functionality and its connections.
• Button feels loose or sticky:
  • Disconnect power and carefully inspect the button mechanism for any obstructions or damage.
  • Ensure the button is correctly seated within its frame.

If the problem persists after attempting these steps, it is recommended to contact a qualified electrician or the product's support.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

Каб атрымаць інфармацыю аб гарантыі або тэхнічную падтрымку, звярніцеся да дакументацыі, якая пастаўляецца з пакупкай, або звярніцеся непасрэдна да прадаўца/вытворцы. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.
