Fernco P1001-88 Flexible PVC Pipe Coupling Instruction Manual

1. Прадукт скончыўсяview

The Fernco P1001-88 is a flexible PVC pipe coupling designed for connecting clay pipes in drain, waste, and vent (DWV) systems. This coupling provides a strong, leak-proof connection without the need for primers or glues. It is constructed from durable elastomeric polyvinyl chloride and features corrosion-resistant, rust-proof stainless steel clamps, ensuring longevity and resistance to chemicals and sewer gases.

Збоку view of the Fernco P1001-88 Flexible PVC Pipe Coupling, showing the flexible PVC body and stainless steel clamps.

2. Важная інфармацыя па бяспецы

• Always wear appropriate personal protective equipment, including safety glasses and gloves, when working with plumbing materials and tools.
• Пераканайцеся, што рабочая зона добра вентылюецца.
• Consult local plumbing codes and regulations to ensure compliance before beginning any installation.
• Turn off water supply if working on a pressurized system, though this coupling is primarily for DWV.

3. Choosing the Correct Coupling (Pre-Installation)

Accurate pipe measurement is critical for a secure, leak-proof connection. This Fernco P1001-88 coupling is designed for specific pipe dimensions.

• Measure the Outside Diameter (OD): Before selecting or installing, carefully measure the outside diameter of both pipes you intend to connect.
• Compatible Pipe OD Range: This P1001-88 coupling has an internal diameter (ID) of 9.65 inches and is designed to fit pipes with an outside diameter (OD) between 9.10 inches and 9.85 inches.
• Матэрыял трубы: This coupling is specifically designed for connecting clay pipes to other clay pipes.

Illustration demonstrating the importance of measuring the outside diameter (OD) of pipes to ensure proper coupling selection.

4. Інструкцыя па ўстаноўцы

The Fernco P1001-88 coupling offers a straightforward, no-mess installation process.

Неабходныя інструменты:

• Адвёртка
• Кіроўца арэхаў
• Torque Wrench (recommended for precise clamp зацягванне)

Этапы ўстаноўкі:

1. Падрыхтоўка канцоў труб: Ensure the ends of both clay pipes are clean, free of debris, and have no sharp edges that could damage the coupling.
2. Slide Coupling On: Slide the Fernco coupling fully onto one of the pipe ends. If necessary, apply a small amount of water or approved lubricant to the inside of the coupling for easier sliding.
3. Align Pipes: Bring the second pipe end into alignment with the first pipe.
4. Center Coupling: Slide the coupling back over the joint, centering it equally over both pipe ends to ensure maximum contact and seal.
5. Зацягніце клamps: Using a screwdriver, nut driver, or torque wrench, tighten the stainless steel clamps evenly. Tighten each clamp alternately, a little at a time, until the specified torque is reached (refer to local codes or manufacturer recommendations for specific torque values, typically found on the clamp itself or packaging). Ensure the clamps are snug and the coupling material is compressed evenly around the pipes.
6. Праверце падключэнне: Visually inspect the connection to confirm the coupling is properly seated and the clamps are uniformly tightened.

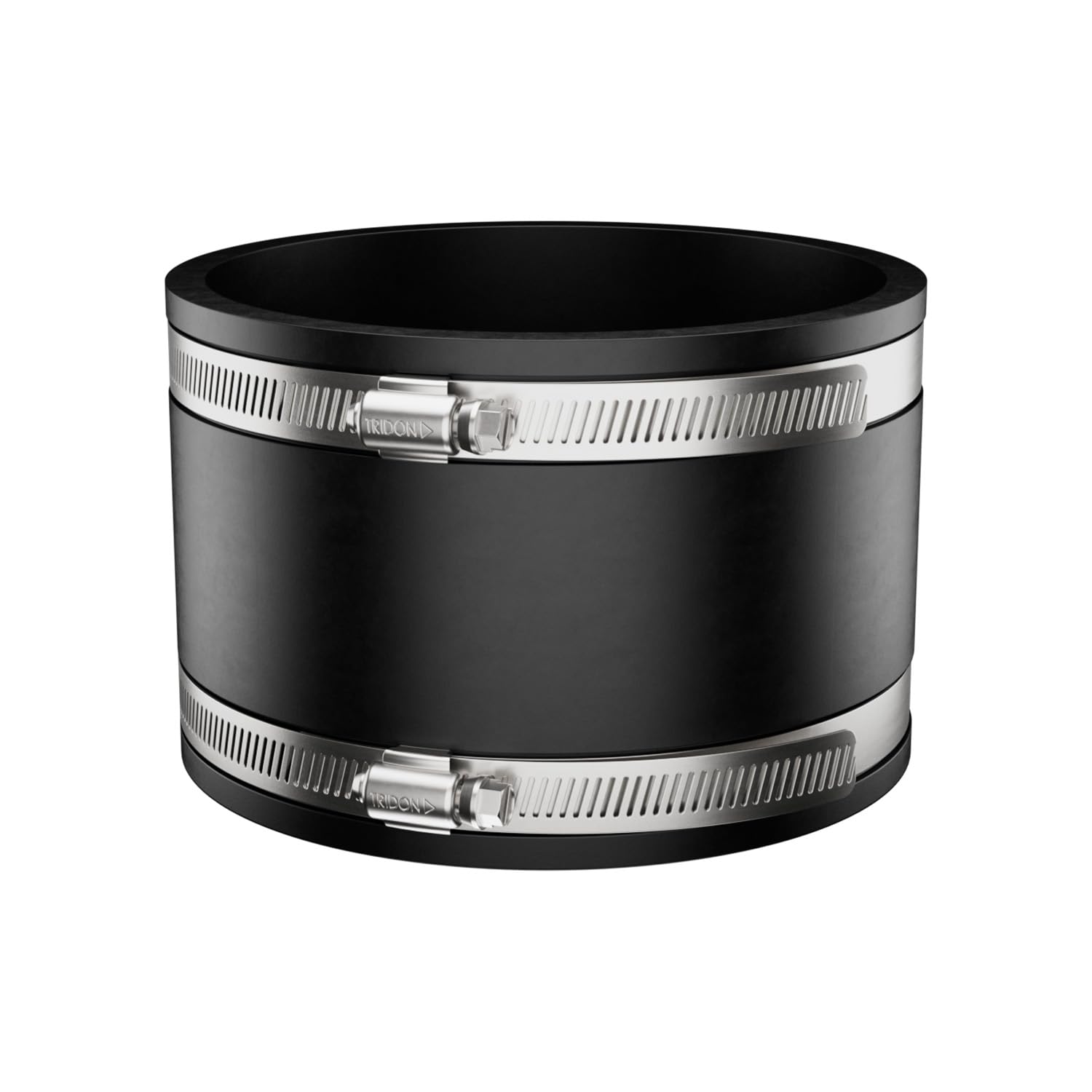

Падрабязны view of the Fernco P1001-88 coupling, highlighting the stainless steel clamps that secure the connection.

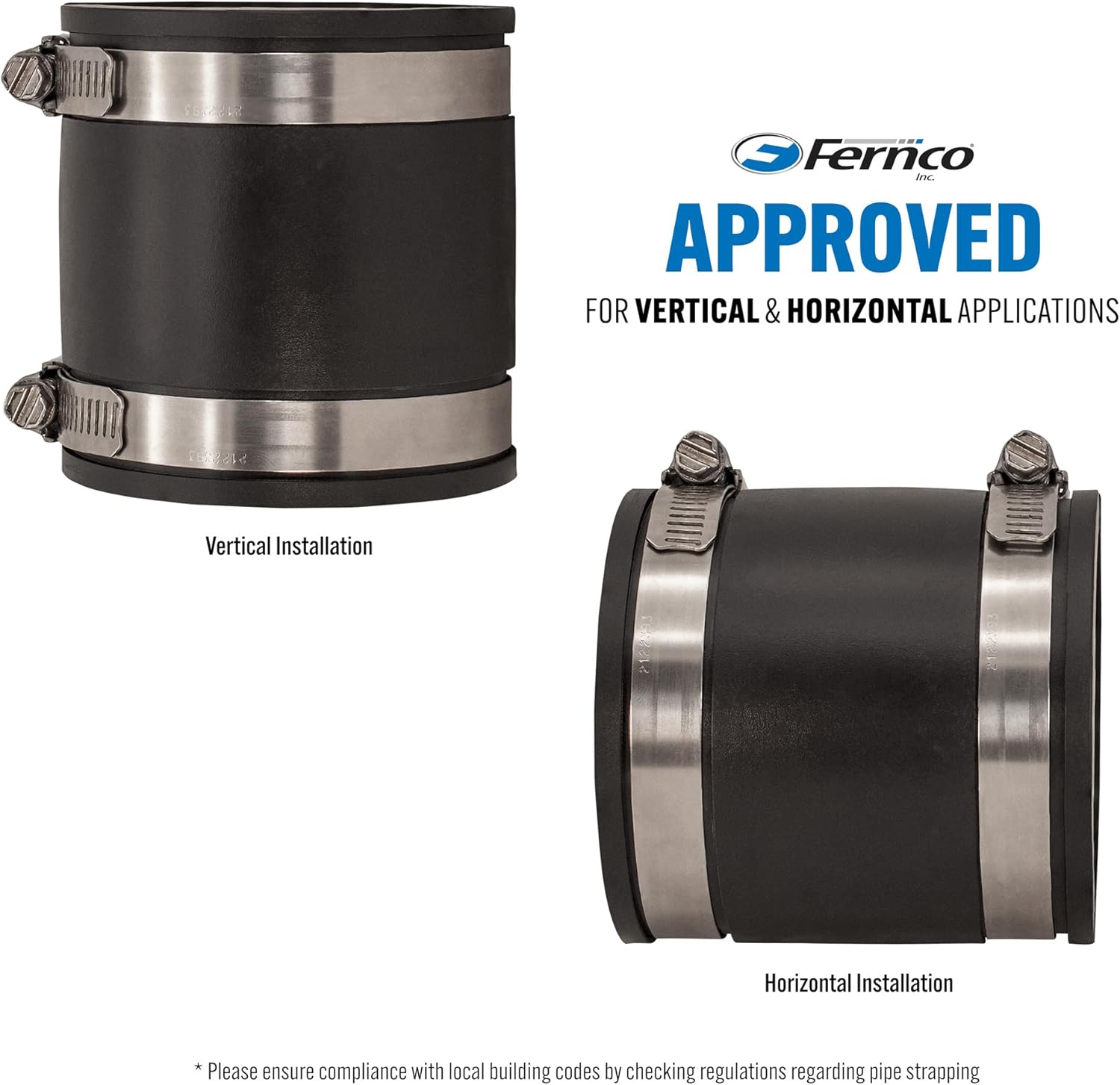

This image illustrates the Fernco coupling's suitability for both vertical and horizontal pipe installations.

5. Прымяненне

The Fernco P1001-88 Flexible PVC Pipe Coupling is specifically engineered for:

• Connecting clay pipes to other clay pipes.
• Use in sewer, drain, waste, and vent (DWV) piping systems.
• Both vertical and horizontal applications, subject to local building codes and proper pipe support.

Visual confirmation that the Fernco 1001 Series is designed for reliable clay to clay pipe connections.

6. Тэхнічнае абслугоўванне

Once properly installed, the Fernco P1001-88 Flexible PVC Pipe Coupling is generally maintenance-free. However, periodic inspection of accessible connections is recommended to ensure continued integrity:

• Візуальны агляд: Periodically check for any signs of leaks, cracks, or deterioration of the PVC material.
• Clamp Герметычнасць: In rare cases, clamps may loosen over time. If a leak is suspected, re-check the tightness of the stainless steel clampс. Не зацягвайце занадта моцна.

7. Выпраўленне непаладак

Most issues with flexible couplings relate to improper installation.

Issue: Leakage at the connection point.

• Cause 1: Insufficient Clamp Tightness.
  рашэнне: Ensure the stainless steel clamps are tightened evenly and to the recommended torque specifications. Avoid overtightening, which can damage the coupling or pipe.
• Cause 2: Improper Pipe Alignment or Seating.
  рашэнне: Disassemble the connection, ensure pipe ends are clean and properly aligned, and re-center the coupling over the joint before re-tightening.
• Cause 3: Damaged Coupling or Pipe End.
  рашэнне: Inspect the coupling for any cuts, tears, or deformities. Check pipe ends for cracks or chips. Replace damaged components as necessary.
• Cause 4: Incorrect Coupling Size.
  рашэнне: Verify that the coupling's compatible OD range matches the actual outside diameter of the pipes being joined. If not, replace with the correct size coupling.

8. Тэхнічныя характарыстыкі

9. Інфармацыя аб гарантыі

Specific warranty details for the Fernco P1001-88 Flexible PVC Pipe Coupling are typically provided at the point of purchase or can be found on the official Fernco webсайт. Калі ласка, захавайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

10. Падтрымка кліентаў

For further assistance, technical questions, or additional product information, please visit the official Fernco webсайт або звярніцеся ў іх аддзел абслугоўвання кліентаў.

Fernco Official Webсайт: Visit the Fernco Store on Amazon
