Generic GY-TYD 1200W LED Solar Flood Light User Manual

1. Прадукт скончыўсяview

This manual provides instructions for the Generic GY-TYD 1200W LED Solar Flood Light. This outdoor lighting unit features a motion sensor, three distinct operating modes, and remote control functionality. It is designed for security and general illumination in outdoor environments such as yards, streets, and walls.

Image: The Generic 1200W LED Solar Flood Light, a motion sensor security wall light.

Асноўныя характарыстыкі:

• Тры рэжыму асвятлення: Offers versatile illumination options controlled by motion detection or continuous dim light.
• Пульт дыстанцыйнага кіравання: Allows convenient adjustment of lighting modes.
• Датчык руху PIR: Detects movement up to 16.4 feet within a 120° angle, activating the light.
• Воданепранікальнасць IP65: Constructed with heatproof PC plastic steel and anti-UV material for durability in various weather conditions.
• Polysilicon Solar Panel: Efficient solar charging with a 5.5V, 1200mAh lithium battery, providing 8-10 hours of light after 6-8 hours of charging.

Змест пакета:

• 1x Solar Street LED Light Lamp
• 1x Пульт дыстанцыйнага кіравання
• 3x Nails (for mounting)

Image: Contents of the package, including the solar flood light, its remote control, and three mounting nails.

2. Настройка і ўстаноўка

Before installation, ensure the solar panel receives direct sunlight for optimal charging. The light can be mounted on a wall or pole.

Этапы ўстаноўкі:

1. Выберыце месцазнаходжанне: Select a location where the solar panel will receive maximum direct sunlight throughout the day. Avoid shaded areas.
2. Адзначыць кропкі свідравання: Hold the light fixture against the desired mounting surface (wall or pole) and mark the positions for the mounting holes.
3. Свідраваць адтуліны: Прасвідруйце адтуліны ў адзначаных месцах.
4. Уставіць якары: Insert the provided wall anchors (if applicable for your surface) into the drilled holes.
5. Гара Святло: Secure the light fixture to the wall or pole using the provided nails/screws. Ensure it is firmly attached.
6. Наладзіць кут: The light's bracket allows for a 60° rotation. Adjust the angle to direct illumination as needed.

Выява: Падрабязная view of the solar flood light showing the PIR motion inductor, ON/OFF switch, and the adjustable bracket allowing 60° rotation for optimal positioning.

Першапачатковая зарадка:

Allow the solar light to charge for at least 6-8 hours in direct sunlight before its first use to ensure the battery is fully charged. The light will automatically absorb sunlight during the day.

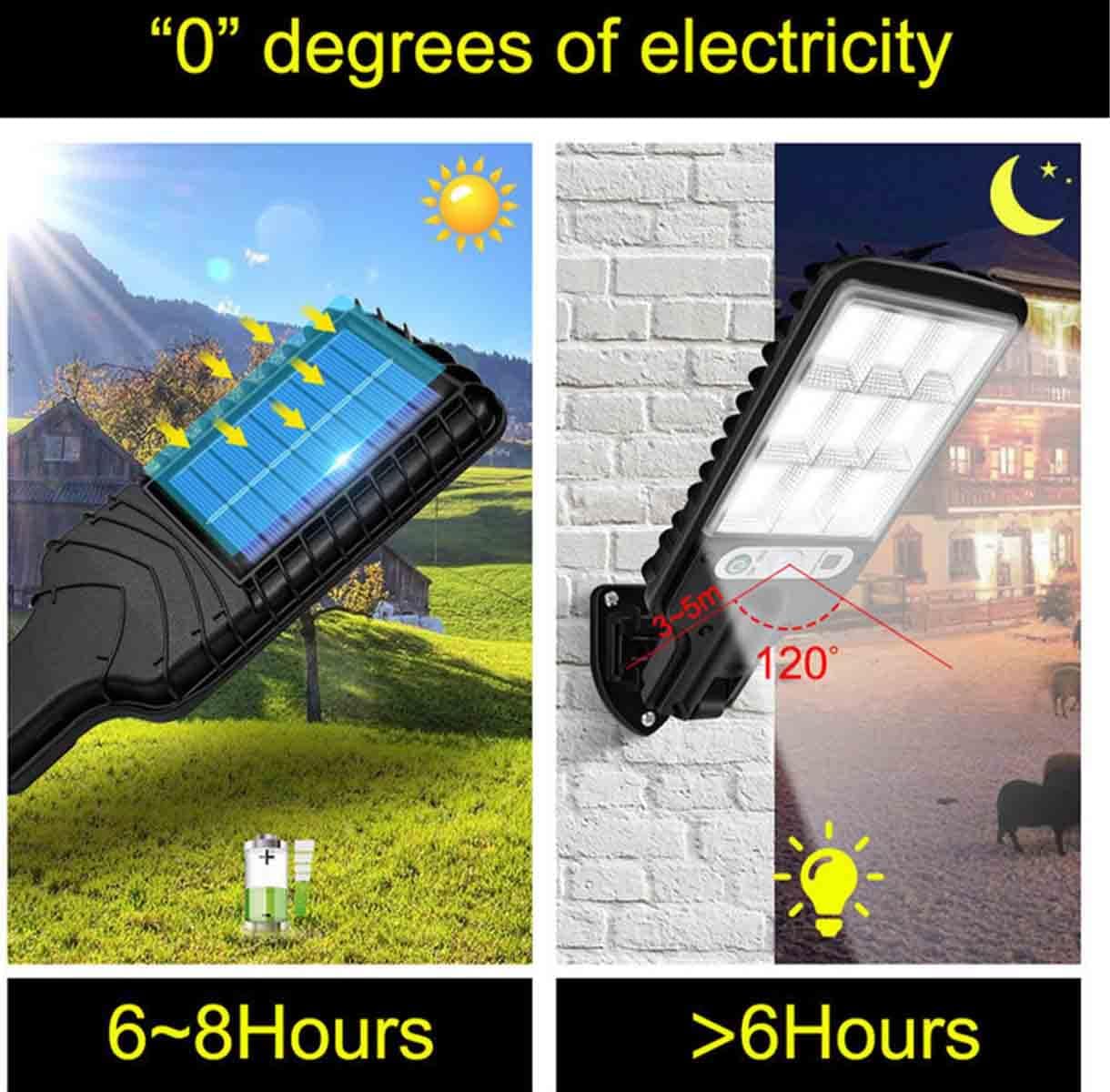

Image: Illustration of the solar panel absorbing sunlight for 6-8 hours during the day, and the light activating for over 6 hours at night with a 120° motion detection angle.

3. Інструкцыя па эксплуатацыі

The solar flood light features a PIR motion sensor and three distinct lighting modes, controllable via the included remote.

Рэжымы асвятлення:

• Mode 1 (Motion Sensor Full Brightness): The light remains off until motion is detected. Upon detection, it illuminates at full brightness for approximately 20 seconds, then turns off.
• Mode 2 (Motion Sensor Dim to Full Brightness): The light maintains a dim brightness. When motion is detected, it switches to full brightness for approximately 20 seconds, then returns to dim brightness.
• Mode 3 (Always On Dim Brightness): The light stays on continuously at a dim brightness (approximately 70% of full brightness) in dark conditions, regardless of motion. This mode is also referred to as AUTO Mode.

Image: Visual representation of the three lighting modes: Mode 1 (motion detected, bright light, then off), Mode 2 (motion detected, bright light, then dim light), and Mode 3 (always on at 70% brightness after daytime charging).

Выкарыстанне пульта дыстанцыйнага кіравання:

The remote control allows you to switch between the three lighting modes and manually turn the light on or off. Point the remote directly at the light's sensor for effective operation.

4. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and longevity of your solar flood light.

Ачыстка панэлі сонечных батарэй:

Перыядычна працірайце паверхню сонечнай панэлі мяккай анучайamp cloth to remove dust, dirt, or debris. A clean panel ensures efficient sunlight absorption and charging.

Ўстойлівасць да надвор'я:

The light is designed with an IP65 waterproof rating, making it resistant to rain and dust. While it can withstand various weather conditions, avoid submerging the unit in water.

Image: The solar flood light operating effectively outdoors during a rainstorm, demonstrating its IP65 waterproof capability.

5. Выпраўленне непаладак

If you encounter issues with your solar flood light, refer to the following common troubleshooting steps:

• Святло не ўключаецца ўначы:
  • Ensure the light's ON/OFF switch is in the "ON" position.
  • Verify the solar panel is receiving direct sunlight for at least 6-8 hours during the day. Obstructions like trees or buildings can reduce charging efficiency.
  • Праверце, ці патрэбна замена батарэйкі ў пульце дыстанцыйнага кіравання.
  • Ensure the light is not installed under another light source that might prevent its activation at night.
• Motion sensor is not detecting movement:
  • Confirm the light is set to Mode 1 or Mode 2, which utilize the motion sensor.
  • Ensure there are no obstructions directly in front of the motion sensor.
  • Verify the distance and angle of detection are within the specified range (up to 16.4ft, 120°).
• Працягласць святла карацейшая за чаканую:
  • The solar panel may not be receiving sufficient direct sunlight for a full charge. Relocate if necessary.
  • Clean the solar panel surface to maximize charging efficiency.
  • Extreme cold weather can affect battery performance.

6. Тэхнічныя характарыстыкі

7. Інфармацыя аб гарантыі

Specific warranty details for this product are not provided in the available information. Please refer to the seller or manufacturer's documentation at the time of purchase for warranty terms and conditions.

8. Падтрымка кліентаў

For further assistance, technical support, or inquiries regarding your Generic GY-TYD 1200W LED Solar Flood Light, please contact the seller or retailer from whom the product was purchased. They will be able to provide the most accurate and up-to-date support information.
