Уводзіны
This manual provides detailed instructions for the safe installation, operation, and maintenance of your KINGTORO Modern Black Crystal Chandelier, Model A304BK-50IN. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Image: The KINGTORO Modern Black Crystal Chandelier (Model A304BK-50IN) in a dining room setting.
Інфармацыя па бяспецы
- Always turn off the main power supply at the circuit breaker before installing, cleaning, or replacing light bulbs.
- Калі вы не знаёмыя з электраправодкай, звярніцеся да кваліфікаванага электрыка.
- Пераканайцеся, што ўсе злучэнні надзейныя і правільныя, каб пазбегнуць небяспекі паражэння электрычным токам.
- Не перавышайце максімальную ватtagпазначана для лямпачак.
- Асцярожна звяртайцеся са шклянымі кампанентамі, каб пазбегнуць іх разбіцця.
Настройка і ўстаноўка
The KINGTORO Modern Black Crystal Chandelier is designed for hardwired ceiling mount installation. Follow these steps for proper assembly and installation:
- Распакуйце кампаненты: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify all components are present against the parts list in your included instruction manual.
- Збярыце асноўную раму: Attach the side support bars to the main rectangular frame using the provided screws.
- Attach Hanging Chains: Securely attach the two hanging chains to the main frame and the ceiling canopy. The length of the chains is adjustable to achieve your desired hanging height (maximum 59 inches).
- Усталюйце папярочную планку: Turn off power at the circuit breaker. Install the mounting crossbar to your ceiling junction box.
- Падключыце свяцільня: Connect the chandelier's electrical wires to your household wiring according to local electrical codes. Typically, black to black (live), white to white (neutral), and ground to ground. Secure connections with wire nuts.
- Замацуеце навес: Carefully lift the chandelier and secure the ceiling canopy to the mounting crossbar using the provided screws.
- Усталяваць лямпачкі: Screw in six E26 base bulbs (not included) into the sockets. Do not exceed 40W per bulb.
- Attach Crystal Panels: Carefully attach each water ripple glass panel to the frame using the small screws. Ensure they are securely fastened but do not overtighten.
For a visual guide on the assembly process, please refer to the installation video below:
Video: Step-by-step installation guide for the KINGTORO 50-inch Black Crystal Chandelier.
Additional visual details on components and assembly:

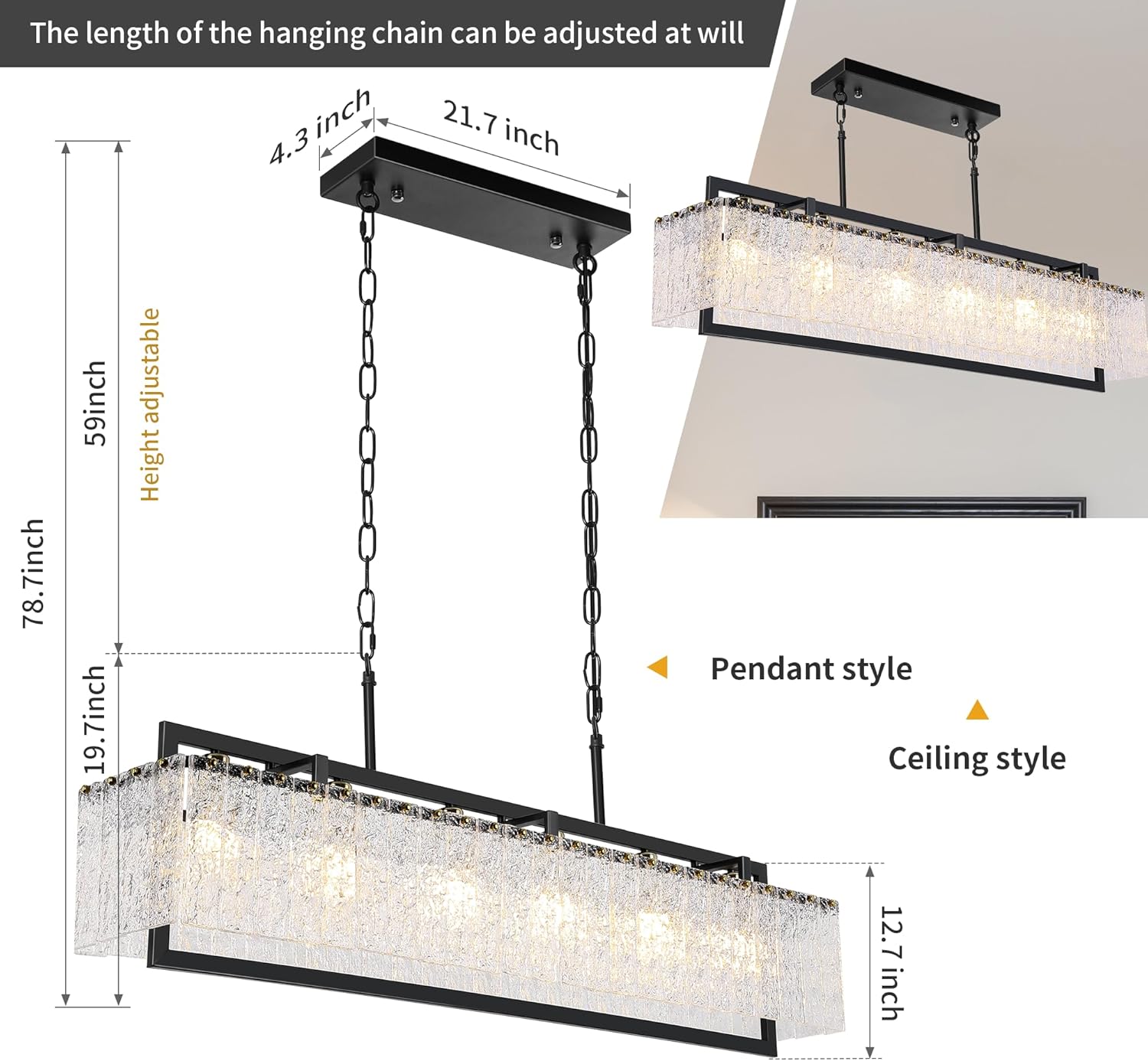

Image: Chandelier dimensions and adjustable chain length details.
Image: Details of the adjustable height, material quality, and water ripple glass design.
Інструкцыя па эксплуатацыі
Once installed, the chandelier operates via a standard wall switch (not included). The fixture is compatible with dimming and non-dimming E26 LED bulbs, energy-saving bulbs, halogen bulbs, and tungsten bulbs. For dimming functionality, ensure you use dimmable bulbs and a compatible dimmer switch.
Video: Demonstration of the Rectangular Pendant Chandelier with Water Ripple glass panels.
Тэхнічнае абслугоўванне
To maintain the appearance and functionality of your chandelier, follow these guidelines:
- Уборка: Before cleaning, always turn off the power supply to the fixture. Use a soft, dry, or slightly damp cloth to wipe down the metal frame and glass panels. Avoid using abrasive cleaners, solvents, or polishes as they may damage the finish or glass.
- Замена лямпачкі: Ensure the power is off and the bulbs have cooled before attempting to replace them. Use only E26 base bulbs with a maximum wattage 40 Вт.
- агляд: Periodically check all connections and components for any signs of wear or damage. If any issues are found, discontinue use and consult a qualified electrician.
Ліквідацыю непаладак
If you encounter any issues with your chandelier, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Не гарыць святло | No power supply; Loose wiring; Faulty bulb | Check circuit breaker; Verify wiring connections; Replace bulb. |
| Мігцяць агні | Loose bulb; Incorrect dimmer switch/bulb type; Voltagе ваганні | Tighten bulbs; Ensure dimmable bulbs are used with compatible dimmer; Consult electrician for voltagэлектронныя пытанні. |
| Glass panels are loose | Screws are not tightened sufficiently | Gently tighten the small screws holding the glass panels. Do not overtighten. |
Калі праблема не знікне пасля спробы гэтых рашэнняў, звярніцеся ў службу падтрымкі кліентаў або да кваліфікаванага электрыка.
Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | КІНГТАРА |
| Нумар мадэлі | A304BK-50IN |
| Памеры (Д х Ш х У) | 50"L x 12.7"W x 78.7"H (Max. hanging height) |
| Рэгуляваная даўжыня ланцужка | Max 59 inches |
| Колер | Чорны |
| Матэрыял | Шкло, метал |
| Бланк свяцільні | Люстра |
| Колькасць крыніц святла | 6 |
| Падстава лямпачкі | E26 |
| Макс Ватtagе на цыбуліну | 40 ват |
| тtage | 110 вольт (пераменны ток) |
| Метад кантролю | Wall Switch (Touch/Push Button compatible) |
| Тып ўстаноўкі | Hardwired, Ceiling Mount |
| Выкарыстанне ў памяшканні/на вуліцы | У памяшканні |
| Асаблівасці | Adjustable chain, Water Ripple Glass |
Інфармацыя аб гарантыі
This KINGTORO chandelier comes with a 1-гадовая гарантыя вытворцы from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
Падтрымка кліентаў
If you have any questions, require assistance with installation, or need to make a warranty claim, please contact KINGTORO customer support through the retailer where you purchased the product or visit the official KINGTORO webсайт для кантактнай інфармацыі.
