WUYJTIF GT68 4K HD TV Game Stick Video Game Console User Manual

Мадэль: GT68

Уводзіны

The WUYJTIF GT68 4K HD TV Game Stick is a versatile entertainment device designed to provide both retro gaming and Android TV functionalities. It operates on Android 7.1 and supports multiple languages, including English, Simplified Chinese, Traditional Chinese, Japanese, and Korean. This device offers a vast library of pre-installed games and the flexibility to access various applications through its Android TV mode.

Асноўныя функцыі ўключаюць у сябе:

  • Integrated Gaming and Android TV: Seamlessly switch between a vast library of retro games and the Android 7.1 operating system for streaming and apps.
  • Шырокая гульнявая бібліятэка: Pre-installed with over 10,000 or 20,000 retro classic games, compatible with emulators such as PSP, PS1, CP1, CP2, Neogeo, MAME, NES, SFC, GB, GBA, GBC, MD, and N64.
  • 4K HD Output: Connects to your TV, computer, monitor, or projector via HDMI for 1080P HD image quality, supporting 4K resolution.
  • Бесправаднае падключэнне: Features 2.4G wireless controllers and supports Wi-Fi and LAN connections for Android TV functions.
  • Палепшаная прадукцыйнасць: Equipped with an upgraded CPU chip for smooth gameplay across various emulators.
  • Multiplayer Support: Includes two 2.4G wireless controllers, supporting up to 4 players simultaneously for shared gaming experiences.
Diagram showing key features: HD Playback, Android 7.1, Upgrade Host, Wireless Link, Enhanced Chip, 2000+ Choices
Малюнак 1: Закончанаview of GT68 Game Stick features, including HD playback, Android 7.1, wireless connectivity, and enhanced processing.

Інструкцыя па наладзе

Follow these steps to set up your GT68 4K HD TV Game Stick:

  1. Падключэнне да тэлевізара: Insert the GT68 Game Stick directly into an available HDMI port on your television, monitor, or projector.
  2. Падключэнне сілкавання: Connect the included USB power cable to the Game Stick and then to a USB power source (e.g., a TV USB port or a USB wall adapter, not included). Ensure the device receives stable power.
  3. Выберыце ўвод: Turn on your TV and use your TV remote to select the correct HDMI input source that corresponds to the port where the Game Stick is connected.
  4. Устаўце карту TF: Ensure the TF (MicroSD) card, pre-loaded with games, is securely inserted into the Game Stick's TF card slot.
  5. Install Batteries in Controllers: Open the battery compartment on the back of each wireless controller and insert two AAA batteries (not included), observing the correct polarity.
  6. Connect Wireless Receiver: Plug the 2.4G wireless receiver (USB dongle) into the USB port on the GT68 Game Stick.
  7. Pair Controllers: The controllers should automatically pair with the Game Stick once powered on. If not, press the Home button on the controller to initiate pairing.

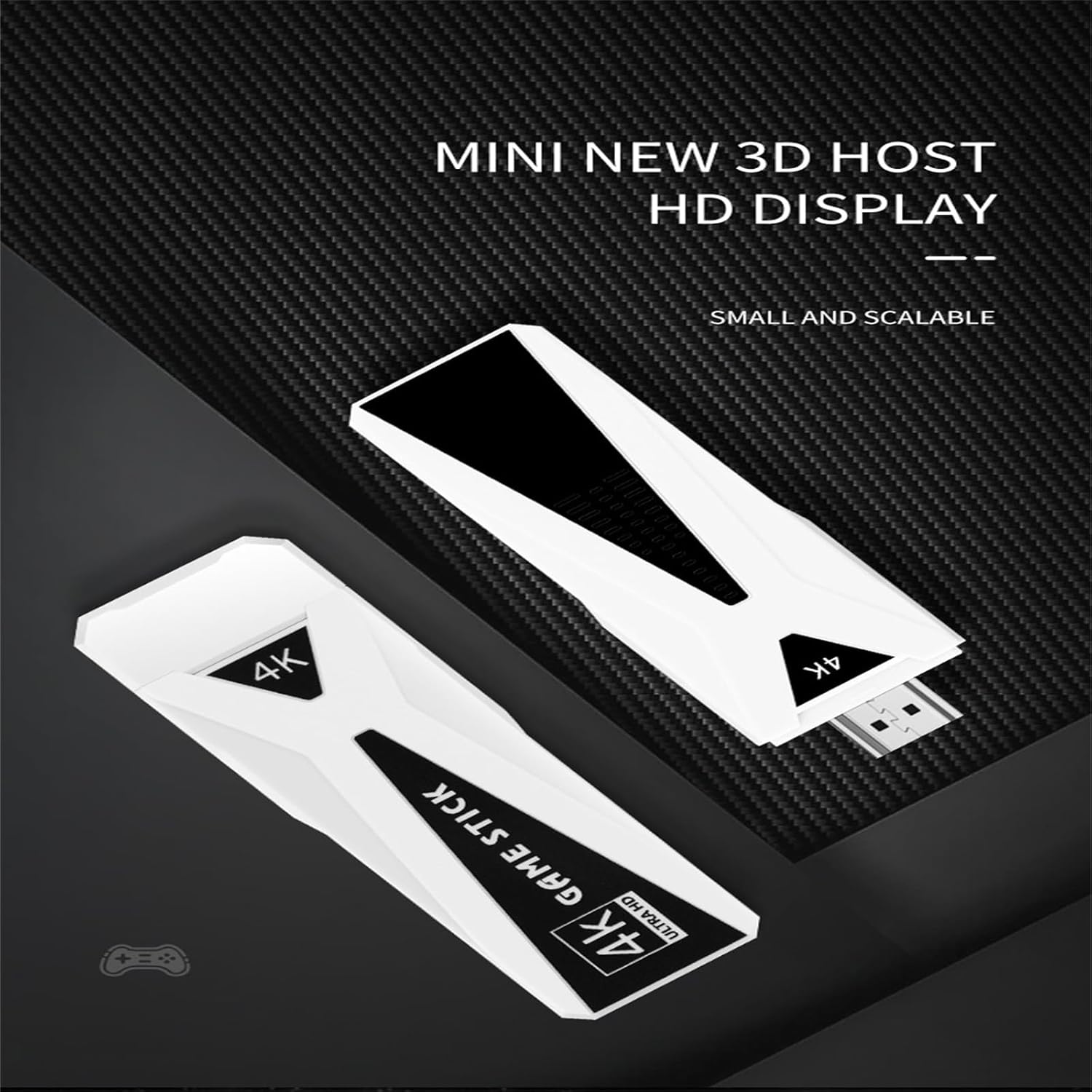

Image of the GT68 4K Game Stick, highlighting its compact design and 4K capability.
Figure 2: The compact design of the GT68 4K Game Stick, ready for HDMI connection.
Image showing the GT68 Game Stick connected to a TV via HDMI, displaying gameplay.
Figure 3: The GT68 Game Stick connected to a display, demonstrating HDMI HD output.

Інструкцыя па эксплуатацыі

Рэжым гульні

  1. Навігацыя па меню: Use the directional pad (D-pad) on your wireless controller to move through the game selection menu.
  2. Select a Game: Press the 'A' button (or equivalent action button) to select a game.
  3. Пачаць гульню: Once a game is selected, it will load automatically. Follow on-screen prompts to start playing.
  4. Выхад з гульні: To exit a game and return to the main menu, press the 'SELECT' and 'START' buttons simultaneously on the controller.
  5. Save/Load Game Progress: Many emulators support in-game saving and loading. Refer to the specific emulator's instructions within the game menu for details.
Screenshot of the game selection interface showing various emulator icons like Mame, SFC, GBA, PSP, FC, GB, GBC, MD, PS1, Atari, N64.
Figure 4: Game selection interface displaying various supported emulator platforms.
Hands holding a wireless controller, with a screen displaying multiple classic game screenshots.
Figure 5: Demonstrating gameplay with the wireless controller and a selection of classic games.
Two wireless controllers labeled 1P and 2P, with a screen showing a multiplayer game.
Figure 6: The GT68 Game Stick supports multiple players with included wireless controllers.

Android TV Mode

The GT68 Game Stick can also function as an Android TV box:

  1. Switch to Android TV: From the main game menu, locate and select the option to switch to Android TV mode. This may be labeled as "Android System" or similar.
  2. Падключэнне да сеткі:
    • Wi-Fi: Navigate to the settings menu in Android TV, select "Network & Internet," and connect to your preferred Wi-Fi network.
    • LAN: If available, connect an Ethernet cable to the LAN port on the Game Stick for a wired internet connection.
  3. Усталяваць праграмы: Access the Google Play Store (or similar app store) to download and install streaming applications like Netflix, YouTube, and other utilities.
  4. Праглядзець змест: Use the wireless controller or a compatible remote (not included) to navigate the Android TV interface, browse content, and watch videos.
Icons for Netflix, YouTube, and Play Store, indicating support for multiple video players and apps.
Figure 7: The GT68 Game Stick supports popular streaming services and applications via Android TV mode.

Тэхнічнае абслугоўванне

  • Уборка: Use a soft, dry cloth to clean the exterior of the Game Stick and controllers. Do not use liquid cleaners or abrasive materials.
  • захоўванне: Захоўвайце прыладу ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
  • Сыход за батарэяй: Remove batteries from the wireless controllers if they will not be used for an extended period to prevent leakage.
  • Абнаўленні праграмнага забеспячэння: Periodically check for system updates in Android TV mode to ensure optimal performance and security.

Ліквідацыю непаладак

праблема Магчымая прычына Рашэнне
Няма дысплея на тэлевізары. Incorrect HDMI input selected; power issue; loose connection.
  • Пераканайцеся, што тэлевізар настроены на правільны ўваход HDMI.
  • Verify the Game Stick is properly powered via the USB cable.
  • Check that the HDMI cable is securely connected to both the Game Stick and the TV.
Controllers not responding. Low batteries; wireless receiver not connected; pairing issue.
  • Replace controller batteries.
  • Ensure the 2.4G wireless receiver is firmly plugged into the Game Stick's USB port.
  • Press the Home button on the controller to re-initiate pairing.
Games not loading or freezing. TF card issue; software glitch; insufficient power.
  • Ensure the TF card is correctly inserted.
  • Restart the Game Stick by unplugging and replugging the power.
  • Verify the power source provides sufficient and stable power.
Cannot connect to Wi-Fi in Android TV mode. Няправільны пароль; па-за зонай дзеяння; праблема з маршрутызатарам.
  • Двойчы праверце пароль Wi-Fi.
  • Ensure the Game Stick is within range of your Wi-Fi router.
  • Перазапусціце свой Wi-Fi маршрутызатар.

Тэхнічныя характарыстыкі

  • Назва мадэлі: Game Console (GT68)
  • Марка: WUYJTIF
  • платформа: Android 7.1
  • Ёмістасць памяці: 64 GB (variant specific, 128GB also available)
  • колер: Белы
  • Памеры прадукту: Прыкладна 1 х 1 х 1 цалі
  • Выхад HDMI: 4K HD, 1080P
  • Бесправаднае падключэнне: 2.4G Wireless (for controllers), Wi-Fi, LAN
  • Падтрымліваюцца эмулятары: PSP, PS1, CP1, CP2, Neogeo, MAME, NES, SFC, GB, GBA, GBC, MD, N64, IGS
  • Рэкамендаваны ўзрост: 4 гады і вышэй

Інфармацыя аб гарантыі

Please refer to the retailer's return policy for details regarding product returns and exchanges. For specific warranty coverage, consult the documentation provided with your purchase or contact the manufacturer directly.

Падтрымка кліентаў

For technical assistance or further inquiries, please contact your point of purchase or refer to the manufacturer's official website for support resources. Keep your purchase receipt and product model information handy when seeking support.
