Nora NMC-6RTWMPW M-Curve 6-inch Can-Less Adjustable LED Downlight Instruction Manual

Прадукт скончаныview

The Nora NMC-6RTWMPW M-Curve adjustable LED downlight is a versatile lighting solution designed for both new construction and remodel applications. This can-less luminaire eliminates the need for a separate housing, simplifying installation while meeting IC Air-Tight requirements. Its unique design allows for significant adjustability, including 80° tilt and 360° rotation, to direct light precisely where needed. The fixture also features selectable color temperature (CCT) options, providing flexibility to match various lighting preferences and environments.

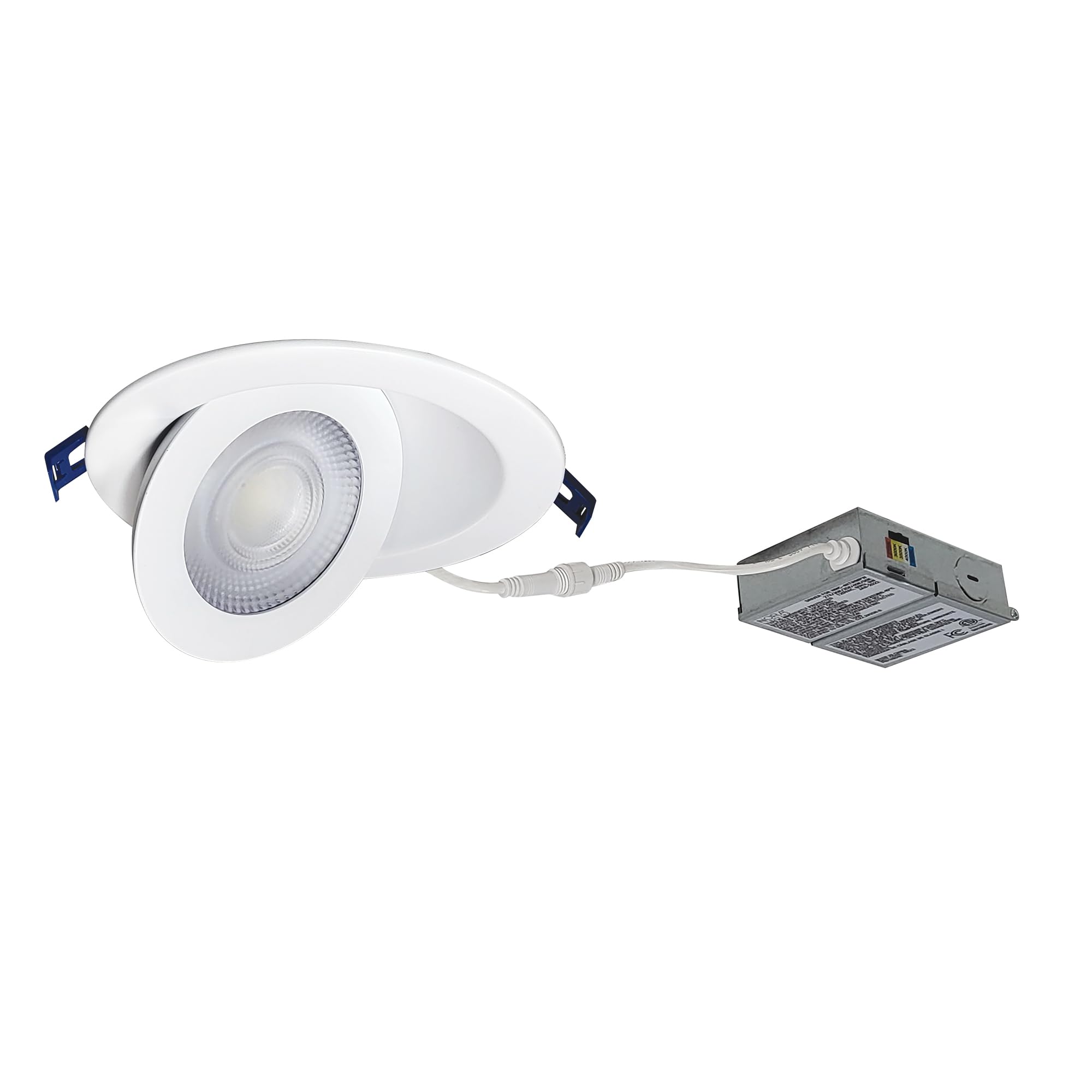

Малюнак 1: Nora NMC-6RTWMPW M-Curve 6-inch Can-Less Adjustable LED Downlight. This image shows the complete downlight unit, including the main light fixture and the attached junction box, ready for installation.

Асноўныя характарыстыкі:

• CCT па выбары: Choose from five color temperatures (2700K / 3000K / 3500K / 4000K / 5000K) to suit your preference.
• Can-Less Design: No housing required, making installation easier for remodel or new construction. IC Air-Tight rated.
• Рэгуляваны кірунак святла: Features 80° tilt and 360° rotation for precise illumination.
• Высокая прадукцыйнасць: Delivers 1300 lumens while consuming only 13 watts.
• Зацямненне: Compatible with Triac or ELV dimming systems.
• Ацэнка вільготнага месцазнаходжання: cETLus Listed for use in wet locations.

Інфармацыя па бяспецы

• Заўсёды адключайце электрычнасць з дапамогай аўтаматычнага выключальніка перад устаноўкай або тэхнічным абслугоўваннем.
• Калі вы не ўпэўненыя ў парадку падключэння або мантажу, звярніцеся да кваліфікаванага электрыка.
• Пераканайцеся, што ўсе электрычныя падключэнні адпавядаюць мясцовым нормам і правілам.
• Do not install the fixture with wet hands or while standing on a wet surface.
• This product is designed for 120V AC power supply.
• Do not attempt to modify the fixture. Any modifications will void the warranty.

Настройка і ўстаноўка

The Nora NMC-6RTWMPW downlight is designed for easy, can-less installation. Follow these steps carefully:

1. Падрыхтуйце месца ўстаноўкі:
   • Turn off power at the circuit breaker before beginning.
   • Determine the desired location for the downlight. Ensure there is sufficient clearance above the ceiling for the junction box and fixture.
   • Using the provided template (if applicable) or referring to the specifications, cut a 5-inch diameter hole in the ceiling.
2. Зрабіце электрычныя злучэнні:
   • Open the cover of the integrated junction box.
   • Connect the building's electrical wires to the corresponding wires in the junction box:
     • Black wire to Live (L)
     • White wire to Neutral (N)
     • Green or bare copper wire to Ground (G)
     Secure connections with wire nuts (not included, or as provided).
   • Шчыльна зачыніце вечка размеркавальнай скрынкі.
3. Усталюйце прыстасаванне:
   • Carefully push the junction box through the cut-out hole into the ceiling cavity.
   • Push the downlight fixture into the cut-out hole. The spring clips on the sides of the fixture will automatically engage and secure the fixture to the ceiling.
   • Ensure the fixture is flush with the ceiling surface.
4. Аднавіць сілу:
   • Пасля завяршэння ўстаноўкі зноў уключыце электрасілкаванне з дапамогай аўтаматычнага выключальніка.
   • Test the downlight to ensure proper operation.

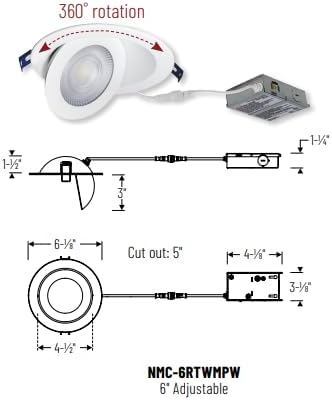

Малюнак 2: Installation diagram and dimensions for the Nora NMC-6RTWMPW 6-inch adjustable downlight. This diagram illustrates the 360° rotation capability, the required 5-inch cut-out, and the overall dimensions of the fixture and junction box for proper planning and installation.

Інструкцыя па эксплуатацыі

Выбар каляровай тэмпературы (CCT):

The Nora NMC-6RTWMPW downlight features a selectable CCT switch located on the junction box. This switch allows you to choose from five different color temperatures:

• 2700K (цёплы белы)
• 3000K (мяккі белы)
• 3500K (нейтральны белы)
• 4000K (халодны белы)
• 5000K (дзённае святло)

To change the CCT:

1. Адключыце харчаванне прыбора з дапамогай аўтаматычнага выключальніка.
2. Carefully pull the fixture down from the ceiling to access the junction box (if necessary, or if the switch is accessible without removing the fixture).
3. Locate the CCT selection switch on the junction box.
4. Перасуньце пераключальнік да жаданай налады каляровай тэмпературы.
5. Reinstall the fixture (if removed) and restore power to test the new CCT setting.

Рэгуляванне напрамку святла:

The M-Curve downlight offers exceptional adjustability to direct light as needed:

• Нахіл: The inner light module can be tilted up to 80° from its flush position. Gently push or pull the inner module to achieve the desired angle.
• Кручэнне: The entire inner light module can be rotated 360°. Gently twist the inner module to orient the light beam.

Заўвага: Always adjust the fixture gently to avoid damage. Do not force movement beyond its intended range.

Зацямненне:

This fixture is compatible with Triac or ELV dimmers. Ensure your dimmer switch is compatible with LED lighting and is properly installed according to its manufacturer's instructions. Dimming performance may vary depending on the dimmer used.

Тэхнічнае абслугоўванне

The Nora NMC-6RTWMPW LED downlight requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:

• Уборка: Перад чысткай пераканайцеся, што электрычнасць адключана. Выкарыстоўвайце мяккую, сухую або злёгку чыстую губку.amp cloth to wipe the exterior of the fixture. Do not use abrasive cleaners, solvents, or cleaners containing ammonia, as these can damage the finish or electrical components.
• святлодыёды: The integrated LED light source is designed for long life and is not user-replaceable. Do not attempt to open the sealed light module.
• агляд: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off power and consult a qualified electrician.

Ліквідацыю непаладак

If you experience issues with your Nora NMC-6RTWMPW downlight, refer to the following common problems and solutions:

If these solutions do not resolve the issue, contact Nora Lighting customer support or a qualified electrician.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

Nora Lighting products are manufactured to high standards and are backed by a manufacturer's warranty. Specific warranty terms and duration may vary. Please refer to the official Nora Lighting website or contact their customer service for detailed warranty information applicable to the NMC-6RTWMPW model.

Additionally, extended protection plans may be available for purchase through your retailer. For example, 3-Year and 4-Year protection plans may be offered to cover your product beyond the standard manufacturer's warranty.

Заўвага: Any unauthorized modifications or improper installation will void the product warranty.

Падтрымка кліентаў

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Nora Lighting customer support:

• Webсайт: Visit the official Nora Lighting webсайт з рэсурсамі падтрымкі, адказамі на часта задаваныя пытанні і кантактнай інфармацыяй.
• Тэлефон/Электронная пошта: Refer to the Nora Lighting webсайт для атрымання актуальнай кантактнай інфармацыі.

When contacting support, please have your product model number (NMC-6RTWMPW) and purchase date readily available.
