Total TCS2241008 100 Liter Air Compressor Instruction Manual

1. Уводзіны і большview

The Total TCS2241008 is a heavy-duty, direct-drive air compressor designed for industrial and workshop applications. It features a powerful 2 x 1200W (3.2 HP) motor and an oil-free system, providing efficient and consistent air compression. With a large 100-liter tank, it ensures a stable and reliable supply of compressed air for various pneumatic tools and equipment, reducing motor cycling frequency.

This compressor is an essential tool for professionals in fields such as car repair, carpentry, and other industrial operations requiring a dependable source of compressed air.

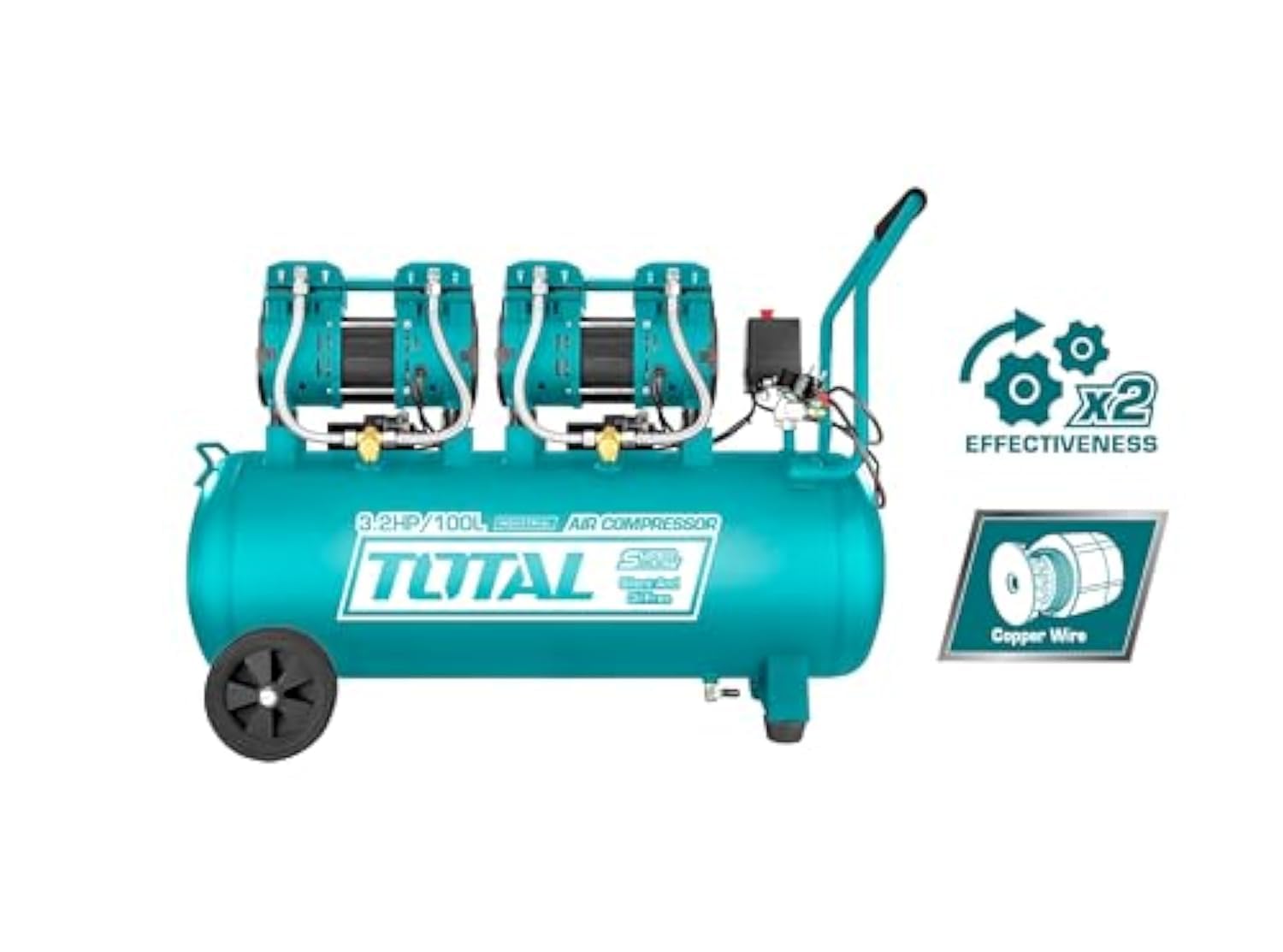

Image: The Total TCS2241008 air compressor, showcasing its robust design, 100-liter tank, and control panel.

2. Інструкцыі па тэхніцы бяспекі

Always prioritize safety when operating the air compressor. Failure to follow these instructions may result in serious injury or property damage.

• Электрабяспека: Пераканайцеся, што крыніца харчавання адпавядае магутнасці кампрэсараtage (220-240V, 50Hz). Use a grounded outlet and avoid using extension cords unless absolutely necessary and rated for the compressor's power. Never operate with wet hands or in damp умовы.
• Бяспека пад ціскам: Do not exceed the maximum operating pressure of 8 Bar. Always wear appropriate eye protection when working with compressed air. Never direct compressed air at people or animals.
• Вентыляцыя: Operate the compressor in a well-ventilated area to prevent overheating and ensure proper air intake.
• Сродкі індывідуальнай абароны (СІЗ): Always wear safety glasses or goggles. Hearing protection is recommended due to the 75 dB noise level.
• Стабільнасць: Place the compressor on a stable, level surface to prevent tipping. Ensure wheels are locked if applicable.
• Тэхнічнае абслугоўванне: Disconnect power before performing any maintenance or repairs. Regularly inspect hoses, fittings, and the tank for damage.
• Дзеці і сведкі: Трымайце дзяцей і старонніх асоб далей ад зоны эксплуатацыі.

3. Кампаненты прадукту

The Total TCS2241008 air compressor includes the following main components:

• Паветраны танк: 100-liter capacity for storing compressed air.
• Маторны блок: Two 1200W (total 2400W / 3.2 HP) copper wire motors with a direct drive system.
• Манометры: Паказвае ціск у балоне і рэгуляваны ціск на выхадзе.
• Рэгулятар ціску: Allows adjustment of the output air pressure.
• Ахоўны клапан: Automatically releases pressure if it exceeds a safe limit.
• Зліўны клапан: Located at the bottom of the tank for draining condensation.
• Выпускныя адтуліны для паветра: Connections for air hoses and pneumatic tools.
• Колы і ручка: For portability and ease of movement.

4. Настройка

Follow these steps for initial setup of your air compressor:

1. Распакаванне: Carefully remove the compressor from its plywood packaging. Inspect for any shipping damage.
2. пазіцыянаванне: Place the compressor on a firm, level surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
3. Зборка колаў (пры неабходнасці): Attach the wheels and handle according to the diagrams in the separate assembly guide (if provided).
4. Падключэнне сілкавання: Connect the power cord to a grounded 220-240V, 50Hz electrical outlet. Ensure the power switch is in the 'OFF' position before plugging in.
5. Check Drain Valve: Перад пачаткам працы пераканайцеся, што зліўны клапан у ніжняй частцы рэзервуара зачынены.

5. Інструкцыя па эксплуатацыі

To operate your Total TCS2241008 air compressor:

1. Падключэнне паветранага шланга: Attach your air hose and pneumatic tool to the air outlet.
2. Уключэнне: Flip the power switch to the 'ON' position. The compressor will begin to fill the tank with air.
3. Манітор ціску: Observe the tank pressure gauge. The compressor will automatically shut off when the maximum pressure (8 Bar) is reached.
4. Адрэгулюйце выхадны ціск: Use the pressure regulator knob to set the desired working pressure for your pneumatic tool. The regulated pressure will be shown on the output pressure gauge.
5. Пачаць працу: Once the desired pressure is set, you can begin using your pneumatic tool. The compressor will cycle on and off automatically to maintain tank pressure.
6. Выключэнне: Пасля завяршэння пераключыце выключальнік харчавання ў становішча «ВЫКЛ».
7. Знізіць ціск: Before disconnecting tools or hoses, release any remaining air pressure from the tank by opening the drain valve or using an air tool until the gauges read zero.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the lifespan of your air compressor. Always disconnect power before performing maintenance.

• Drain Condensation Daily: Open the drain valve at the bottom of the tank daily after use to release accumulated moisture. This prevents rust and corrosion inside the tank.
• Чысты паветраны фільтр: Periodically inspect and clean the air filter. A clogged filter reduces efficiency. Replace if damaged.
• Праверце шлангі і фітынгі: Check air hoses and fittings for cracks, leaks, or damage before each use. Replace any worn or damaged components.
• Праверце электрычныя злучэнні: Пераканайцеся, што ўсе электрычныя злучэнні надзейныя і не пашкоджаныя.
• Чысты знешні выгляд: Трымайце знешнія паверхні кампрэсара чыстымі і без пылу і смецця.
• Oil-Free System: This compressor features an oil-free system, eliminating the need for oil changes or lubrication of the pump.

7. Выпраўленне непаладак

Звярніцеся да гэтага раздзела, каб азнаёміцца ​​з распаўсюджанымі праблемамі і іх рашэннямі:

If you encounter problems not listed here or if solutions do not resolve the issue, please contact Total customer support.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information, technical support, or service inquiries regarding your Total TCS2241008 air compressor, please refer to the warranty card included with your product or contact Total customer service directly. Keep your purchase receipt as proof of purchase.
