Mumusuki SM4-WLTE 4G SMS Alarm Controller and Access Control System User Manual

1. Уводзіны

The Mumusuki SM4-WLTE is a versatile 4G SMS Alarm Controller and Access Control System designed for various monitoring and control applications. It integrates 4G network connectivity, APP and WEB interfaces, and SMS capabilities for power outage alarms, temperature, and humidity monitoring. This device functions as a reliable relay switch for home automation and industrial equipment control.

Image 1.1: The SM4-WLTE controller integrated into an industrial environment, demonstrating its application versatility.

2. Асаблівасці прадукту

• Шматфункцыянальны дызайн: Features 4G network connectivity, APP and WEB temperature/humidity linkage, and SMS power outage alarm functions to meet various needs.
• Трывалы і надзейны: Constructed from aluminum material for long-lasting performance.
• Шырокі спектр прымянення: Can be used as a relay switch for various occasions and devices, from home automation systems to industrial equipment control.
• Flexible and Convenient: Equipped with a standard SIM card and antenna interface for easy operation, installation, and use.
• Дакладны маніторынг: Enables precise and real-time monitoring with dedicated temperature and humidity sensor ports.

3. Змесціва ўпакоўкі

Калі ласка, пераканайцеся, што ўсе пералічаныя ніжэй прадметы ўваходзяць у ваш пакет:

• 1 x Mumusuki SM4-WLTE 4G SMS Alarm Controller Unit
• 1 x Power Adapter (EU Plug, 100-240V)
• 1 х Кіраўніцтва карыстальніка (гэты дакумент)
• 1 х 4G антэна
• 1 x Temperature/Humidity Sensor Probe
• 1 x Wiring Harness Set

Выява 3.1: Канецview of the SM4-WLTE controller and its included accessories.

4. Тэхнічныя характарыстыкі

5. Кіраўніцтва па наладцы

5.1 Пачатковая налада

1. Устаўце SIM-карту: Locate the SIM card slot on the device. Insert a standard 4G SIM card into the slot, ensuring it is correctly oriented.
2. Падключыце антэну: Connect the provided 4G antenna to the SMA interface on the controller. Ensure it is securely tightened for optimal signal reception.
3. Падключэнне датчыкаў: If using temperature and humidity monitoring, connect the sensor probe(s) to the designated sensor ports.
4. Падключэнне сілкавання: Connect the power adapter to the device and then plug it into a suitable power outlet (100-240V). The device will power on automatically.

5.2 Электронныя схемы

The SM4-WLTE controller offers flexible wiring options for various applications. Below are common wiring diagrams:

Image 5.1: Input Application Wiring Diagram. This diagram illustrates how to connect passive switches or micro switches to the controller's input terminals (Input 1-4) for various control scenarios, including level switches and wired door sensors for electric doors.

Image 5.2: Trigger to Control Electronic Lock. This diagram shows how to connect an electronic lock to one of the relay outputs (e.g., COM1, NO1) of the SM4-WLTE controller, allowing it to be controlled via a switch or remote command.

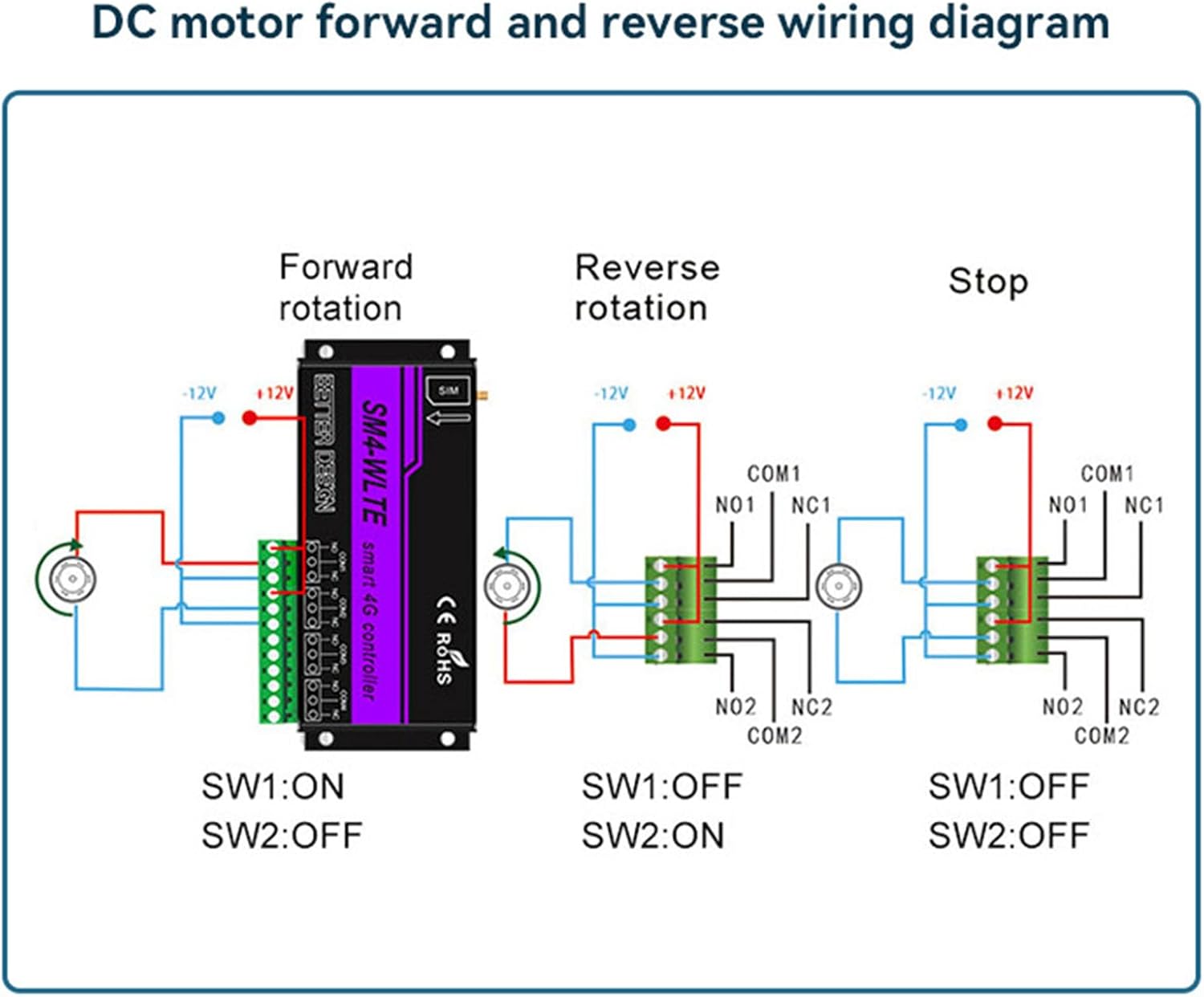

Image 5.3: DC Motor Forward and Reverse Wiring Diagram. This diagram details the connections for controlling a DC motor's direction (forward, reverse, stop) using two relay channels (e.g., COM1/NO1/NC1 and COM2/NO2/NC2) of the SM4-WLTE controller.

Image 5.4: Three-Phase Motor Forward and Reverse Control. This diagram illustrates how to interface the SM4-WLTE controller with AC contactors and an MCCB (Molded Case Circuit Breaker) to control the forward and reverse rotation of a 380V three-phase AC motor.

6. Інструкцыя па эксплуатацыі

6.1 APP Control (Function 5)

The SM4-WLTE supports APP pushing notifications to keep you informed about device status and alarms. Ensure you have the dedicated application installed on your mobile phone and the device is properly configured for network access.

• Receive real-time alerts for security events, power status changes (on/off), and temperature/humidity thresholds.
• The APP provides a user-friendly interface for monitoring and managing your device remotely.

Image 6.1: APP Pushing Notifications. This image shows examples of notifications received on a mobile device, including security alerts, power status changes, and temperature threshold warnings.

6.2 Web Control (Function 6)

Centralized control of your equipment can be achieved via a web browser on a PC or other internet-enabled device. This allows for remote management and monitoring.

• Доступ да прылады web interface by entering its IP address or domain into your browser.
• The web interface provides controls for each channel (e.g., ON/OFF/JOG) and displays device status.

Малюнак 6.2: Web Control Interface. This screenshot displays the web-based control panel, allowing users to manage individual channels (e.g., channel1, channel2) with ON, OFF, and JOG functions.

6.3 Humidity Control (Function 8)

The SM4-WLTE can monitor humidity levels and trigger actions or alarms when predefined thresholds are met.

• Configure humidity thresholds through the APP or web інтэрфейс.
• When detected humidity reaches a set value, the device can send alarm information (e.g., via SMS) and/or trigger a relay to activate connected equipment.

Image 6.3: Humidity Control Function. This image illustrates the humidity monitoring capability, showing a wine cellar environment and mobile phone screens with SMS alerts indicating humidity levels (e.g., 38% and 82%) relative to set thresholds.

6.4 SMS Commands and Power Outage Сігналізацыя

The device supports SMS commands for remote control and configuration. It also features an SMS power outagэлектронная сігналізацыя.

• Specific SMS commands can be sent to the device's SIM card number to control relays or query status. Refer to the detailed command list in the full user manual (if provided separately).
• У выпадку ўлады унtage, the device can send an SMS alert to pre-configured phone numbers, ensuring you are immediately notified of power interruptions.

7. Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your Mumusuki SM4-WLTE controller, follow these general maintenance guidelines:

• Захоўваць у чысціні: Regularly clean the device's exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Умовы навакольнага асяроддзя: Operate the device within its specified temperature and humidity ranges. Avoid exposure to extreme temperatures, direct sunlight, or high moisture.
• Абнаўленні прашыўкі: Праверце вытворцы website or APP for any available firmware updates to ensure the device has the latest features and security patches.
• Цэласнасць злучэння: Periodically check all wiring and antenna connections to ensure they are secure and free from corrosion or damage.
• SIM-карта: Ensure the SIM card remains active and has sufficient credit/data plan for SMS and 4G communication.

8. Выпраўленне непаладак

If you encounter issues with your SM4-WLTE controller, refer to the following common troubleshooting steps:

• Няма харчавання:
  • Check if the power adapter is securely connected to both the device and the power outlet.
  • Пераканайцеся, што разетка працуе.
• No 4G/GSM Signal:
  • Пераканайцеся, што SIM-карта правільна ўстаўлена і актыўная.
  • Check if the 4G antenna is securely attached.
  • Relocate the device to an area with better cellular reception.
  • Confirm the SIM card has an active data plan and supports the device's frequencies.
• Relay Not Responding:
  • Verify the wiring connections to the relay outputs are correct according to the diagrams.
  • Check the control commands (APP, Web, SMS) for accuracy.
  • Ensure the device has power and network connectivity.
• Няправільныя паказанні датчыка:
  • Ensure the sensor probe is correctly connected to the designated port.
  • Check for any physical damage to the sensor or its cable.
  • Verify sensor calibration settings in the APP or web інтэрфейс.

For further assistance, please contact Mumusuki customer support.

9. Гарантыя і падтрымка

The Mumusuki SM4-WLTE controller comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Mumusuki webсайт для атрымання падрабязных гарантыйных умоў.

For technical support, product inquiries, or warranty claims, please contact Mumusuki customer service through their official channels. Contact information can typically be found on the product packaging, the official webна сайце або праз пункт пакупкі.

вытворца: Мумусукі

Нумар мадэлі: Mumusuki8g5bd174yg
