XYWHPGV EI40 6-Pin Transformer Coil PC40 Ferrite Core Instruction Manual

1. Уводзіны

This manual provides essential information for the proper handling, setup, and application of the XYWHPGV EI40 6-Pin Transformer Coil PC40 Ferrite Core. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

2. Прадукт скончыўсяview

The EI40 Ferrite Core with 6+6 pin transformer coil is a passive electronic component designed for various high-frequency applications. It consists of two ferrite halves and a bobbin (coil body) with 6+6 pins for winding. This product is supplied as a set, typically including two complete units.

2.1 Асноўныя магчымасці

• Тып: EI40 Ferrite Core
• Канфігурацыя штыфта: 6+6 pins for transformer coil
• матэрыял: PC40 Ferrite
• прыкладанні: Switching power supply transformers, chokes, high-frequency transformers, filters, inductors.

2.2 Уключаныя кампаненты

Each set typically includes:

• 4 x Ferrite Halves (forming two EI40 cores)
• 2 x Bobbins (Coil Bodies) with 6+6 pins

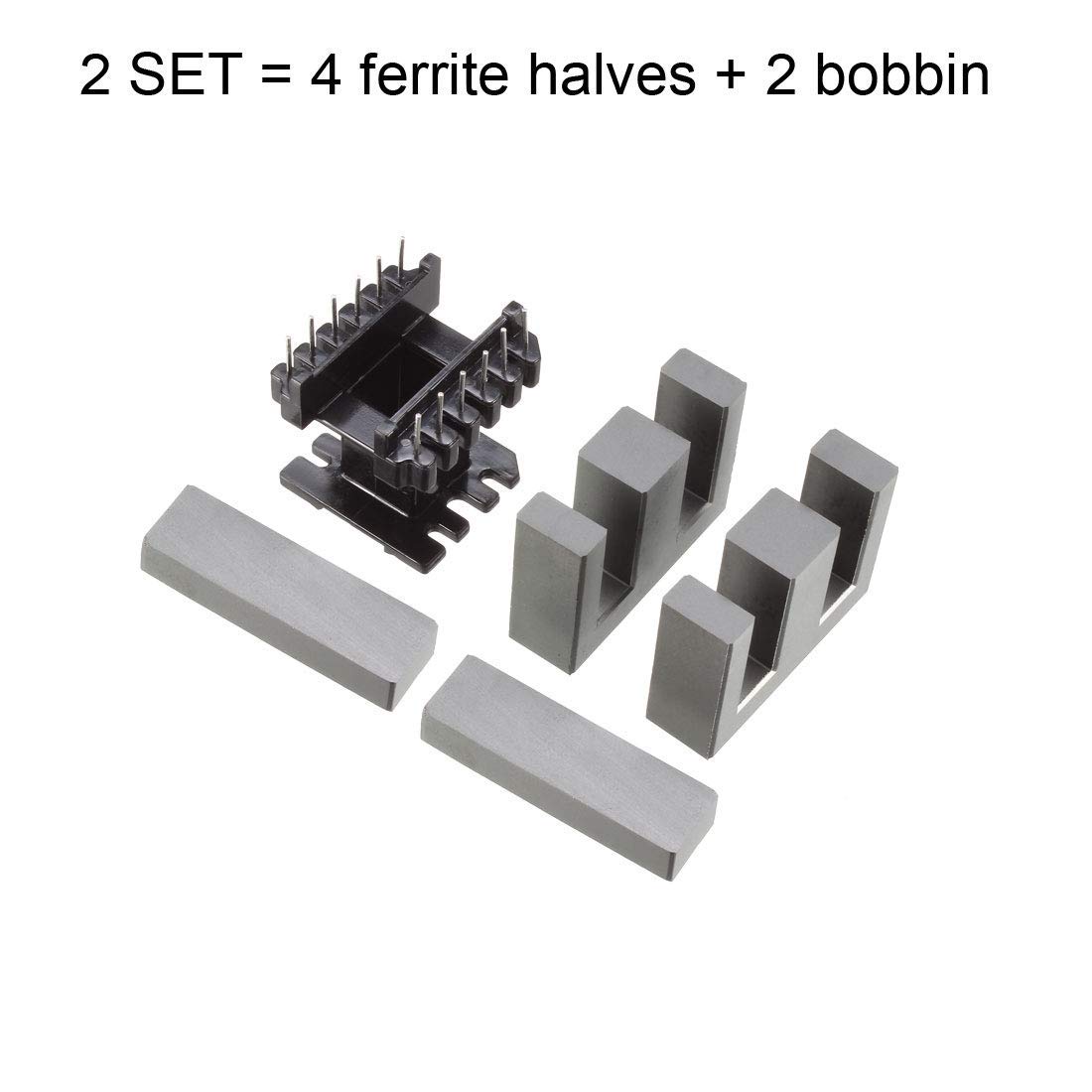

Figure 1: Components of the EI40 Ferrite Core Set. This image displays the individual parts: two E-shaped ferrite halves, two I-shaped ferrite halves, and two bobbin coil bodies.

3. Налада і зборка

The EI40 ferrite core and bobbin are designed for assembly into a complete transformer or inductor. Follow these general steps for assembly:

1. Winding the Coil: Before assembling the ferrite core, wind the required number of turns of magnet wire onto the bobbin. Ensure proper insulation and wire gauge according to your circuit design. The bobbin features 6+6 pins for primary and secondary windings.
2. Core Assembly: Carefully insert the wound bobbin between the two E-shaped ferrite halves. Then, place the I-shaped ferrite halves to complete the magnetic circuit. Ensure the ferrite pieces fit snugly without excessive force to avoid chipping.
3. Securing the Core: Depending on the application, the assembled core may need to be secured using clips, adhesive, or tape to maintain mechanical stability and consistent magnetic properties.

Figure 2: Assembled EI40 Ferrite Core Transformer Coils. This image shows two complete units, each comprising ferrite halves and a bobbin.

4. Operating Principles and Applications

The EI40 ferrite core and coil assembly function as a transformer or inductor, crucial for energy conversion and filtering in electronic circuits. Ferrite cores are chosen for their high magnetic permeability and low core losses at high frequencies.

4.1 Агульныя прыкладанні

• Switching Power Supplies: Used in flyback, forward, and other converter topologies for efficient power conversion.
• High-Frequency Transformers: For isolation and voltage transformation in high-frequency circuits.
• Filters and Chokes: To suppress electromagnetic interference (EMI) and smooth DC currents.
• Індуктары: For energy storage and impedance matching.

These components are widely integrated into devices such as color TVs, monitors, electric vehicle chargers, DVDs, DC-DC converters, household appliances, industrial automation systems, instrumentation, and energy-saving lighting.

5. Тэхнічнае абслугоўванне

Ferrite cores and transformer coils are generally maintenance-free components. However, proper handling and environmental conditions are important for their longevity:

• Апрацоўка: Ferrite material is brittle. Avoid dropping or subjecting the cores to mechanical shock, which can cause chipping or breakage.
• Умовы навакольнага асяроддзя: Store and operate the components within specified temperature and humidity ranges to prevent degradation of materials.
• Уборка: If necessary, gently clean the exterior surfaces with a dry, soft cloth. Avoid using solvents or abrasive cleaners.

6. Выпраўленне непаладак

As passive components, ferrite cores and bobbins typically do not "fail" in the same way active components do. Most issues arise from improper assembly, winding, or circuit design.

• Poor Performance (e.g., excessive heat, low efficiency):
  • Праверце абмотку: Ensure the correct number of turns, wire gauge, and winding technique were used. Improper winding can lead to increased resistance and leakage inductance.
  • Core Gap: Verify that the ferrite halves are properly seated and that any intended air gap is correctly implemented. An incorrect gap can significantly alter inductance.
  • Прыдатнасць матэрыялу: Confirm that the PC40 ferrite material is appropriate for the operating frequency and power levels of your application.
• Physical Damage (e.g., chipped core):
  • Замена: A physically damaged ferrite core should be replaced as its magnetic properties will be compromised.
  • Асцярожнае абыходжанне: Always handle ferrite components with care to prevent mechanical stress.

For complex issues, consult relevant electronics design resources or a qualified engineer.

7. Тэхнічныя характарыстыкі

Figure 3: Dimensional Specifications of the EI40 Ferrite Core and Bobbin.

8. Гарантыя і падтрымка

This product is a passive electronic component. Specific warranty information is typically provided by the reseller or distributor at the point of purchase. For technical support or inquiries regarding specific applications, please refer to the manufacturer's documentation or consult with an electronics specialist.

Manufacturer: XYZOOM
