Jsdoin Mini Handheld Fan Instruction Manual

1. Уводзіны

Дзякуй за пакупкуasing the Jsdoin Mini Handheld Fan. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fan. Please read this manual thoroughly before use and retain it for future reference.

2. Інструкцыі па тэхніцы бяспекі

• Do not insert fingers or any objects into the fan blades or protective grille.
• Трымайце вентылятар далей ад вады і іншых вадкасцей. Не выкарыстоўвайце ў вільготным асяроддзі.
• Не разбірайце, не рамантуйце і не мадыфікуйце вентылятар самастойна. Звярніцеся да кваліфікаванага персаналу для абслугоўвання.
• Захоўваць у месцах, недаступных маленькім дзецям і хатнім жывёлам.
• Выкарыстоўвайце толькі USB-кабель для зарадкі, які ўваходзіць у камплект.
• Не падвяргайце вентылятар уздзеянню экстрэмальных тэмператур або прамых сонечных прамянёў на працягу доўгага часу.
• Ensure the fan is placed on a stable surface when used as a desk fan.

3. Прадукт скончыўсяview і Асаблівасці

The Jsdoin Mini Handheld Fan is a versatile and portable cooling device designed for personal use. It features a powerful brushless motor, multiple speed settings, and a rechargeable battery for convenience.

Малюнак 3.1: Пярэдняя і бакавая часткі view of the Jsdoin Mini Handheld Fan, showcasing its compact design and integrated buckle.

Асноўныя характарыстыкі:

• 3 рэжымаў хуткасці: Equipped with a brushless motor, offering low, medium, and high wind speeds for quick cooling.
• Акумулятарная батарэя: Powered by a built-in rechargeable battery, ensuring portability and extended use. Charges via USB.
• Двайная функцыянальнасць: Can be used as a handheld fan or converted into a stable desk fan using its integrated ring buckle as a base.
• Кампактны і лёгкі: Measuring approximately 15 cm long, 6 cm wide, and 3.5 cm thick, making it highly portable.
• Універсальнае выкарыстанне: Ideal for travel, outdoor activities, office work, or studying.

Figure 3.2: Diagram illustrating key features such as strong wind output, three-speed control, USB charging capability, and 500mAh battery capacity.

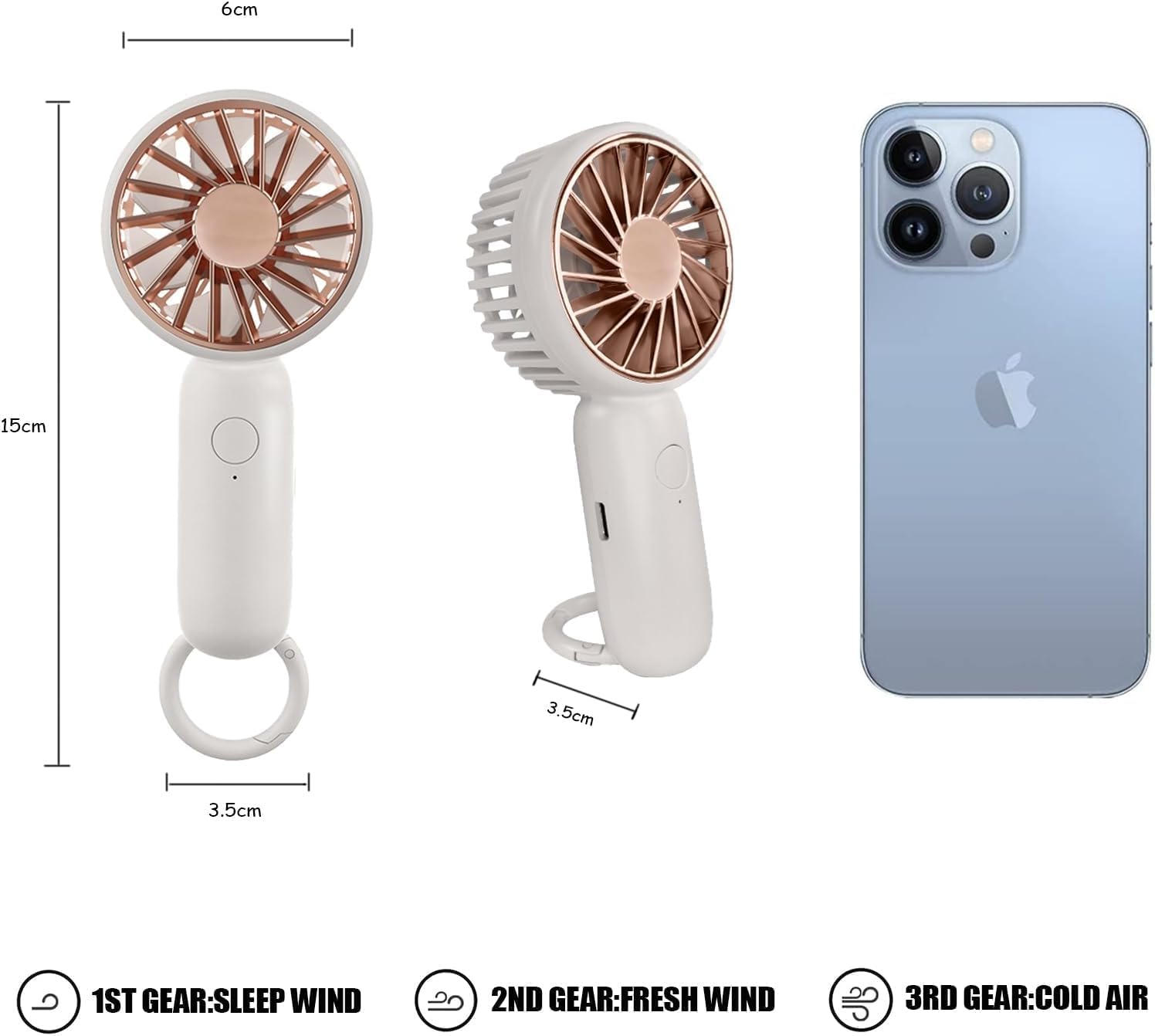

Figure 3.3: Product dimensions: 15cm length, 6cm width, and 3.5cm thickness, shown next to a smartphone for scale.

Figure 3.4: Chart detailing battery life at different speed settings: 5 hours on low (1st gear), 3.5 hours on medium (2nd gear), and 2 hours on high (3rd gear).

4. Настройка

4.1 Зарадка вентылятара

Before first use, fully charge the fan. The fan is powered by a rechargeable battery and comes with a USB charging cable.

1. Знайдзіце порт зарадкі USB на вентылятары.
2. Connect the smaller end of the USB cable to the fan's charging port.
3. Connect the larger end of the USB cable to a compatible USB power source (e.g., power adapter, computer USB port, power bank, car charger).
4. The charging indicator light will illuminate (color may vary) to show that charging is in progress.
5. A full charge typically takes 2.5-3 hours. The indicator light will change or turn off when fully charged.

Figure 4.1: Various USB power sources compatible with the fan, including power adapters, power banks, car chargers, and laptops.

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне харчавання і рэгуляванне хуткасці

The fan features a single power button for controlling power and fan speed.

1. Каб уключыць: Press the power button once. The fan will start at the lowest speed (1st gear).
2. Каб адрэгуляваць хуткасць:
   • Press the button a second time for medium speed (2nd gear).
   • Press the button a third time for high speed (3rd gear).
3. Каб выключыць: Націсніце кнопку чацвёрты раз, каб выключыць вентылятар.

5.2 Выкарыстанне ў якасці ручнога вентылятара

Hold the fan by its handle for portable cooling. Its lightweight design makes it comfortable for extended use.

Figure 5.1: The fan's integrated buckle allows it to be easily attached to bags or other items for convenient carrying.

5.3 Using as a Desk Fan

The integrated ring buckle can serve as a stable base, allowing the fan to be placed on a flat surface for hands-free operation.

1. Extend the ring buckle outwards to form a stable stand.
2. Пастаўце вентылятар на роўную ўстойлівую паверхню.
3. Adjust the fan head angle slightly if needed for optimal airflow.

Малюнак 5.2: Выпamples of the fan's versatile use, including on a desk for work or study, and for outdoor activities like mountaineering.

6. Тэхнічнае абслугоўванне

6.1 Ачыстка

• Ensure the fan is turned off before cleaning.
• Выкарыстоўвайце мяккую, сухую тканіну, каб праціраць знешнія паверхні вентылятара.
• For dust accumulation on the fan blades or grille, use a soft brush or compressed air.
• Не выкарыстоўвайце абразіўныя ачышчальнікі, растваральнікі і не апускайце вентылятар у ваду.

6.2 Захоўванне

When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to charge the battery every 3 months to maintain its lifespan.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

Note: The product description and visual aids indicate approximate dimensions of 15 cm (length) x 6 cm (width) x 3.5 cm (thickness), which may differ from the listed specification.

9. Гарантыя і падтрымка

Specific warranty information for the Jsdoin Mini Handheld Fan is not provided within this manual. Please refer to the product packaging, the retailer's return policy, or the manufacturer's official webсайт для атрымання падрабязных гарантыйных умоў.

For technical support or customer service inquiries, please contact the seller or manufacturer through the contact information provided at the point of purchase or on the product packaging.
