JOUNJIP Single-Sided Mechanical Keyless Combination Lever Handle Door Lock

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your JOUNJIP Single-Sided Mechanical Keyless Combination Lever Handle Door Lock. This lock is designed for secure, keyless entry and is suitable for various door types. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of your lock.

Інфармацыя па бяспецы

• Заўсёды апранайце адпаведныя сродкі бяспекі, такія як пальчаткі і ахоўныя акуляры, падчас усталёўкі.
• Перад выкарыстаннем пераканайцеся, што ўсе кампаненты надзейна замацаваны.
• Do not attempt to modify the lock's internal mechanisms, as this may compromise security and void the warranty.
• Трымайце дробныя дэталі далей ад дзяцей, каб прадухіліць небяспеку ўдушша.

Змест пакета

Праверце, ці ёсць у вашай упакоўцы ўсе пералічаныя ніжэй кампаненты:

• 1 Keypad and 2 lever handles
• 1 Square Spindle + 2 Latch Size Options
• 2 Screw size options + 2 Extension Posts
• 8 Extra Code Change Pins + Tweezers
• Latch plate and Strike plate set

Малюнак 1: Закончанаview of all components included in the JOUNJIP Single-Sided Mechanical Keyless Combination Lever Handle Door Lock package.

Тэхнічныя характарыстыкі

Настройка і ўстаноўка

The JOUNJIP keyless lock is designed for easier installation with its new square spindle design. It fits standard door thicknesses and offers flexibility with latch and screw options.

Door Thickness and Screw Selection

Ensure you select the correct screws and extension posts based on your door's thickness for a secure fit.

Figure 2: Guide for selecting appropriate screw lengths and extension posts for various door thicknesses (1 3/8" - 2 3/8").

Bore Hole and Clearance Requirements

The lock is designed to cover a standard 2 1/8" bore hole with its 2 1/2" black seal. Ensure sufficient clearance around the lock for proper operation.

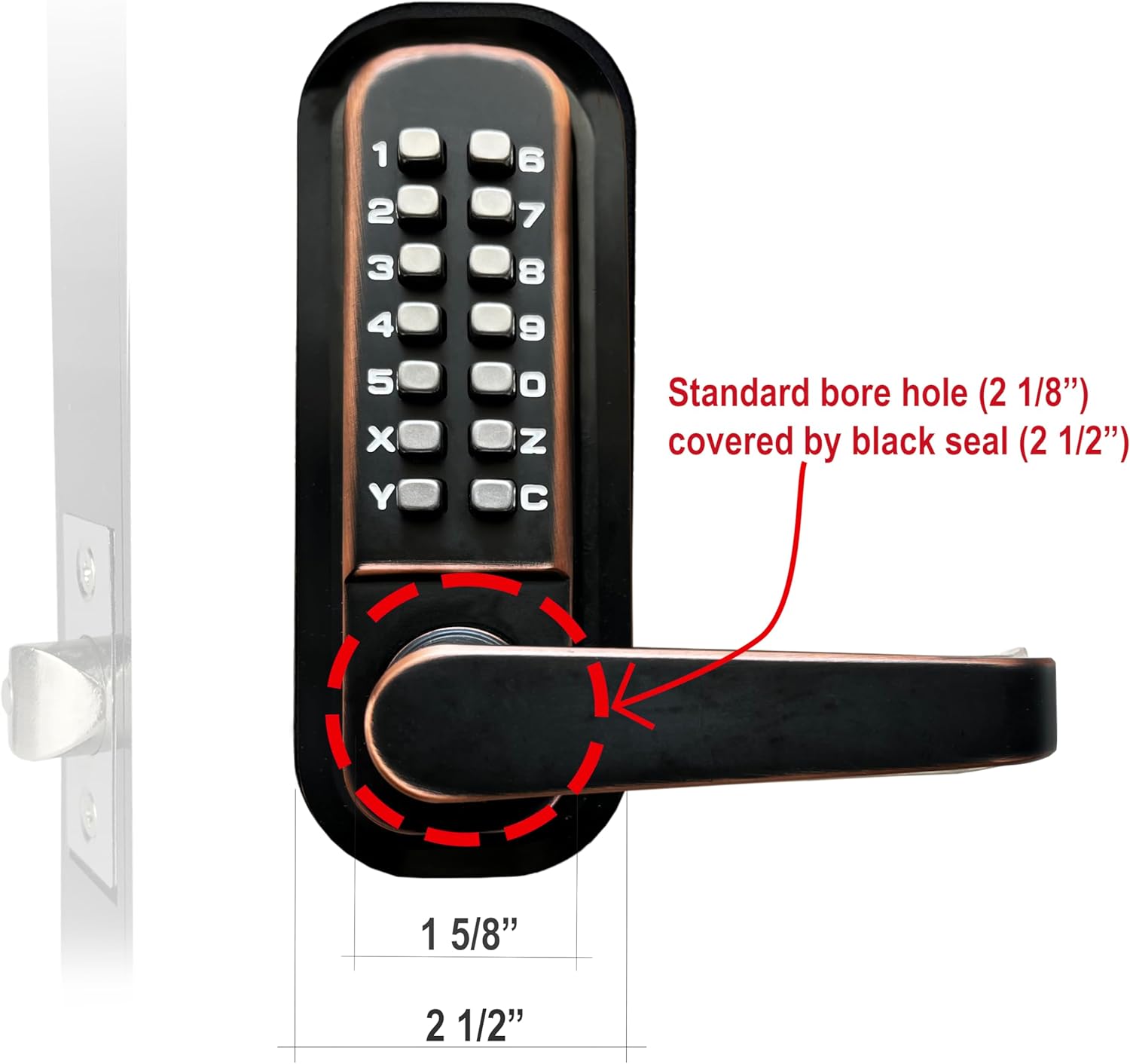

Figure 3: Illustration of the lock covering a standard 2 1/8" bore hole with a 2 1/2" seal.

Figure 4: Minimum 6.5 inches of clearance is required for proper installation and operation of the lever handle.

Internal Components and Assembly

The lock features a combination keypad on the outside and a lever handle on the inside. The square spindle ensures smooth operation and improved durability.

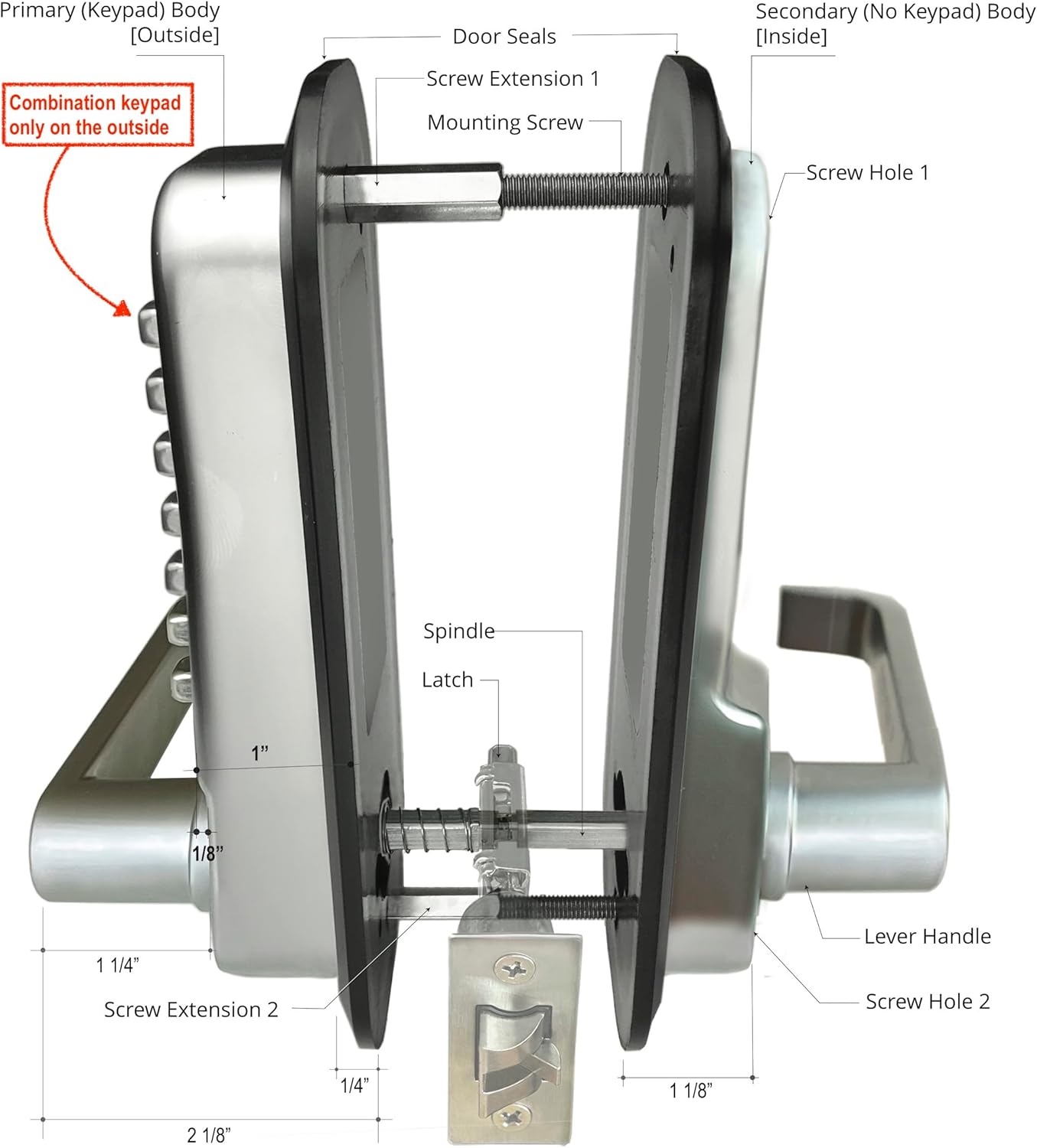

Малюнак 5: падрабязна view of the lock's internal structure, including the primary keypad body, secondary body, door seals, spindle, latch, and screw extensions.

Інструкцыя па эксплуатацыі

Entering a Passcode

To unlock the door, always press the "C" button before entering your passcode. The "C" button mechanically clears (resets) all previously pressed buttons. Then, enter your code (up to 9 digits) in any order. The lock is 100% mechanical and does not require batteries.

Figure 6: Always press the 'C' button to clear previous entries before inputting your passcode.

Рэжым праходжання

The lock features a convenient "Passage Mode" function. This allows you to temporarily deactivate the code requirement for free access without needing to change the passcode. This is useful for periods of high traffic or events.

Refer to the detailed instructions provided with your lock for specific steps on how to activate and deactivate Passage Mode and how to change your combination.

Тэхнічнае абслугоўванне

Your JOUNJIP keyless lock is constructed from industrial-grade alloy and stainless steel, designed for durability and outdoor use. While it is weather-proof, it is not salt-water proof.

Уборка

To maintain the appearance and function of your lock, periodically clean the exterior. For outdoor installations, dust and debris may accumulate. Simply spray it off with a hose and wipe it down with a soft cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.

Змазка

While the lock is mechanical and generally low-maintenance, applying a small amount of silicone-based lubricant to the internal moving parts (such as the latch mechanism) once a year can help ensure smooth operation, especially in harsh environments.

Ліквідацыю непаладак

Code Not Working

• Ensure you are pressing the "C" button firmly before entering your code.
• Verify that the correct code is being entered.
• Check if the Passage Mode is accidentally activated.

Lever Handle Feels Loose or Jiggles

• This may indicate that the mounting screws have loosened over time due to frequent use.
• Carefully tighten the mounting screws on both the interior and exterior sides of the lock. Do not overtighten.

Difficulty Turning Lever After Code Entry

• Ensure the latch is not obstructed in the door frame.
• Check for any debris or foreign objects within the lock mechanism.
• Consider applying a small amount of silicone lubricant to the latch and spindle if resistance persists.

Гарантыя і падтрымка

Your JOUNJIP Single-Sided Mechanical Keyless Combination Lever Handle Door Lock comes with a 1-гадовая гарантыя ад вытворцы. Гэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры звычайным выкарыстанні.

Figure 7: JOUNJIP offers American Tech Support and a 1-Year Manufacturer Warranty for this product.

Падтрымка кліентаў

For technical assistance, warranty claims, or any questions regarding your JOUNJIP product, please contact our American Tech Support team. Refer to the contact information provided on the product packaging or the official JOUNJIP webсайт для атрымання найбольш актуальнай інфармацыі аб падтрымцы.
