Franklin Electric Pumptec Motor Protection Device

1. Уводзіны

The Franklin Electric Pumptec Motor Protection Device, Model 5800020610, is a microcomputer-based system designed to protect 2- and 3-wire single-phase submersible motors. It monitors motor load and power line conditions to safeguard against various issues, including drywell conditions, waterlogged tanks, and abnormal line voltage fluctuations. This device is suitable for 115/230V applications with motors ranging from 1/3 to 1.5 HP.

The Pumptec interrupts power to the motor when the load drops quickly or falls below a preset level, indicating potential problems. Indicator lights on the device cover provide real-time system status. Additionally, the Pumptec offers an option for remote communication, allowing monitoring and adjustment of settings via compatible devices and software, along with access to a 15-event fault history for diagnostics.

Figure 1: Franklin Electric Pumptec Motor Protection Device in its packaging.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Electrical shock hazard. This device must be installed by a qualified electrician in accordance with all national and local electrical codes. Disconnect all power before installing or servicing this equipment. Failure to follow these instructions may result in serious injury or death.

• Always ensure the power supply is disconnected at the circuit breaker before performing any installation, maintenance, or troubleshooting.
• Пераканайцеся, што тtage and horsepower ratings of your pump motor are compatible with the Pumptec device.
• Protect the device from moisture and extreme temperatures outside its specified operating range.
• Пераканайцеся, што ўсе правадныя злучэнні надзейныя і належным чынам ізаляваны.

3. Настройка і ўстаноўка

The Pumptec device is designed for straightforward installation. Refer to the wiring diagram provided inside the unit's cover for specific connection details. The device is compatible with 2- and 3-wire single-phase well pumps operating within the 1/3 to 1.5 HP range at 115V or 230V.

3.1 Мантаж

The device features a durable enclosure with mounting provisions on the back. Select a suitable location that is protected from direct weather exposure and allows for adequate ventilation. The enclosure dimensions are approximately 8.4 inches (L) x 2.8 inches (W) x 8.4 inches (H).

Малюнак 2: Задняя частка view of the Pumptec device, illustrating mounting points.

3.2 Электрычныя злучэнні

Before making any connections, ensure the main power supply to the pump system is OFF. Open the Pumptec enclosure to access the terminal block and wiring diagram.

1. Connect the incoming power supply wires to the designated terminals as indicated on the internal wiring diagram.
2. Connect the pump motor wires to the appropriate output terminals.
3. Пераканайцеся, што ўсе злучэнні шчыльныя і надзейныя.
4. Close the enclosure securely after wiring is complete.

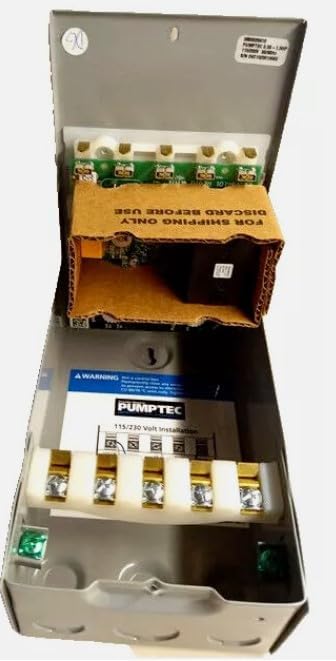

Figure 3: Internal components and wiring terminals of the Pumptec device.

Малюнак 4: Падрабязная ўнутраная view of the Pumptec device, highlighting the circuit board and connections.

3.3 Sensitivity Settings

The Pumptec features easily adjustable sensitivity settings. These settings determine the threshold at which the device will trip due to changes in motor load. Refer to the detailed instructions within the device's manual for proper adjustment based on your specific pump and well conditions.

4. Інструкцыя па эксплуатацыі

Once installed and powered, the Pumptec device continuously monitors your pump motor's operation. It provides protection against various conditions that can damage the motor or pump system.

• Motor Load Monitoring: The device constantly monitors the electrical load drawn by the motor. Significant drops in load can indicate a drywell condition or a broken pipe, while excessively high loads might suggest a blockage.
• Power Line Condition Monitoring: It also monitors the incoming power supply for abnormal voltage conditions (overvoltagе або падвtage) that could harm the motor.
• Аўтаматычнае адключэнне: If a fault condition is detected (e.g., drywell, waterlogged tank, abnormal voltage), the Pumptec will automatically interrupt power to the motor to prevent damage.
• Светавыя індыкатары: The device features 'Run' and 'Fault' indicator lights on its cover, providing immediate visual feedback on the system's status. Consult the device's label or internal diagram for the meaning of specific light patterns.

4.1 Remote Communication (Optional)

The Pumptec offers an optional remote communication feature. With compatible software from Franklin Electric and a Pocket PC or Palm OS device equipped with an infrared port, users can remotely monitor and adjust Pumptec settings. This feature also allows access to a 15-event fault history, aiding in system diagnostics.

5. Тэхнічнае абслугоўванне

The Franklin Electric Pumptec Motor Protection Device is designed for reliable, low-maintenance operation. Regular inspection is recommended to ensure optimal performance and longevity.

• Перыядычны візуальны агляд: Annually, inspect the device for any signs of physical damage, corrosion, or loose connections. Ensure the enclosure is sealed properly.
• Чысціня: Keep the exterior of the device clean and free from dust and debris. Do not use harsh chemicals or abrasive cleaners.
• Цэласнасць злучэння: With power disconnected, periodically check all electrical connections to ensure they remain tight and secure.
• Праверка індыкатара: Periodically observe the indicator lights during normal operation to confirm they are functioning as expected.

6. Выпраўленне непаладак

If your pump system is not operating correctly or the Pumptec device indicates a fault, follow these general troubleshooting steps. Always disconnect power before inspecting internal components.

• Праверце індыкатары: Observe the 'Run' and 'Fault' indicator lights on the device cover. The pattern or color of these lights will provide the first clue to the nature of the problem. Refer to the device's documentation for specific light codes.
• Review Fault History: If equipped with remote communication, access the 15-event fault history to identify past issues that may be contributing to the current problem.
• Common Fault Conditions:
  • Drywell: If the pump runs dry, the Pumptec will detect a low load condition and shut off the pump. Allow the well to recover before resetting the device.
  • Waterlogged Tank: This can lead to continuous pump cycling or abnormal load. Check the pressure tank and associated controls.
  • Abnormal Line Voltage: Аверволtagе або падвtage conditions will cause the Pumptec to trip. Verify the incoming power supply voltage.
  • Overload/Blockage: An unusually high load can indicate a blockage in the pump or piping.
• Скід прылады: After resolving a fault condition, the Pumptec may need to be manually reset. Refer to the specific instructions for your model on how to reset the device.
• Праверце праводку: Ensure all electrical connections are secure and free from damage or corrosion.

If the problem persists after following these steps, contact a qualified service technician or Franklin Electric customer support.

7. Тэхнічныя характарыстыкі

Below are the key technical specifications for the Franklin Electric Pumptec Motor Protection Device, Model 5800020610:

Figure 5: Product label displaying model, voltage, and HP range.

8. Інфармацыя аб гарантыі

For specific warranty terms and conditions applicable to the Franklin Electric Pumptec Motor Protection Device, Model 5800020610, please refer to the warranty card included with your product or visit the official Franklin Electric webсайт. Гарантыйнае пакрыццё звычайна распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні і абслугоўванні.

Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

9. Падтрымка кліентаў

If you require technical assistance, have questions about installation, operation, or need to report a problem with your Franklin Electric Pumptec device, please contact Franklin Electric customer support.

вытворца: Франклін Электрык
Webсайт: www.franklinwater.com (Калі ласка, наведайце website for the most current contact information, including phone numbers and service centers.)

When contacting support, please have your product model number (5800020610) and serial number (if applicable) readily available.
