Mumusuki Electric Motor Carbon Brushes User Manual
Model: 99044, 999044, Mumusukizxh93apn8v
Уводзіны
This manual provides essential information for the installation, operation, and maintenance of Mumusuki Electric Motor Carbon Brushes. These carbon brushes are designed to ensure proper electrical contact within electric motors, facilitating the transfer of current to the rotating armature.
Carbon brushes are critical components in many electric motors, acting as electrical contacts that conduct current between stationary wires and moving parts, typically the commutator or slip rings. Their conductive and thermal properties are essential for efficient motor operation.
Прадукт скончаныview
Малюнак 1: A set of four Mumusuki carbon brushes, each featuring a grey carbon block, a coiled spring, and a brass terminal for electrical connection. These brushes are designed for various electric motor applications.

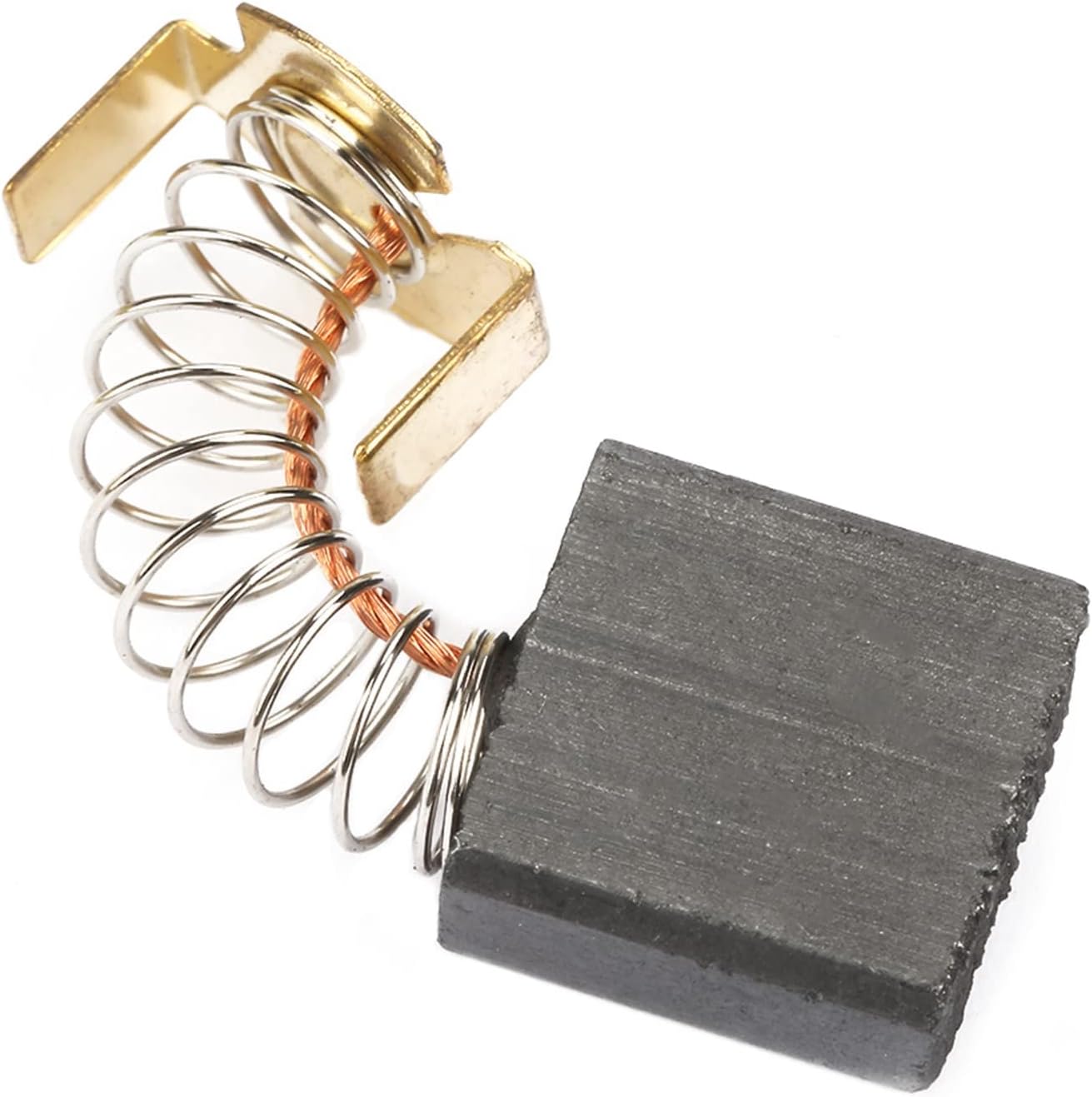

Малюнак 2: Падрабязны view of a single Mumusuki carbon brush, highlighting the rectangular carbon block, the attached coiled spring, and the metal terminal. The spring ensures constant contact with the motor's commutator or slip ring.
Інструкцыя па ўстаноўцы
Replacing carbon brushes requires careful attention to detail. Always ensure the power supply to the motor is disconnected before beginning any work.
- Бяспека перш за ўсё: Disconnect the motor from all power sources. Verify that no residual power remains.
- Access the Brush Holders: Locate the brush holders on the motor. These are typically small covers or caps that secure the carbon brushes in place.
- Выдаліце старыя пэндзлі: Carefully remove the old, worn-out carbon brushes. Note their orientation and how they are seated within the brush holder. This may involve unscrewing caps or releasing spring mechanisms.
- Ачысціць тэрыторыю: Gently clean any carbon dust or debris from the brush holders and commutator/slip ring area using compressed air or a soft brush. Avoid using abrasive materials.
- Устаўка новых пэндзляў: Insert the new Mumusuki carbon brushes (Models 99044, 999044) into the brush holders. Ensure they slide freely and make proper contact with the commutator or slip ring. The spring should apply consistent pressure.
- Бяспечныя пэндзлі: Re-secure the brush holder caps or mechanisms. Ensure they are tightened appropriately, but do not overtighten.
- Test Motor: Once both brushes are replaced and secured, reconnect the motor to its power source and perform a brief test run to ensure proper operation. Listen for unusual noises and observe for excessive sparking.
Малюнак 3: An individual carbon brush, illustrating the spring mechanism that maintains constant pressure against the motor's rotating component, ensuring reliable electrical contact.
Аперацыя
Mumusuki carbon brushes are passive components that facilitate the operation of an electric motor. Once correctly installed, they continuously transfer electrical current to the motor's rotor via the commutator or slip rings, enabling the motor to generate rotational motion.
The conductive and thermal properties of these carbon brushes ensure efficient current flow and heat dissipation during motor operation. Proper installation is key to their effective performance and the overall longevity of the motor.
Тэхнічнае абслугоўванне
Carbon brushes are wear-and-tear components and will gradually shorten over time due to friction with the commutator or slip rings. Regular inspection is recommended to ensure optimal motor performance and prevent damage.
- Перыядычная праверка: Depending on motor usage, inspect the carbon brushes every few months or as recommended by the motor manufacturer. Look for signs of excessive wear, chipping, or uneven wear.
- Brush Length: Replace brushes when they are worn down to approximately one-third of their original length, or if the spring can no longer apply adequate pressure.
- Стан камутатара: While inspecting brushes, also check the condition of the commutator or slip rings. They should be clean, smooth, and free of excessive grooving or burning.
- Выдаленне пылу: Periodically clean carbon dust from inside the motor housing, as excessive buildup can lead to short circuits or reduced efficiency.
Малюнак 4: Падрабязны view of the carbon brush, emphasizing the copper wire connecting the carbon block to the terminal, ensuring efficient current transfer.
Ліквідацыю непаладак
Issues with carbon brushes often manifest as motor performance problems. Here are common symptoms and potential solutions:
| Сімптом | Магчымая прычына | Рашэнне |
|---|---|---|
| Excessive Sparking at Commutator | Worn brushes, improper brush seating, dirty/damaged commutator. | Inspect and replace brushes if worn. Ensure brushes are seated correctly. Clean or service commutator. |
| Motor Losing Power or Intermittent Operation | Worn brushes, weak brush springs, poor electrical contact. | Replace worn brushes. Check spring tension. Ensure clean connections. |
| Матор не запускаецца | Completely worn brushes, open circuit. | Check and replace brushes. Verify electrical continuity. |
| Unusual Noise from Motor | Brushes not seating properly, foreign object, worn bearings. | Re-seat brushes. Inspect for obstructions. Consult a professional for bearing issues. |
Тэхнічныя характарыстыкі
| Атрыбут | Дэталь |
|---|---|
| Назва прадукту | вугляродныя шчоткі |
| Марка | Мумусукі |
| Матэрыял | Вуглярод |
| Мадэлі | 99044, 999044 |
| Individual Brush Size (Approx.) | 7 x 17 x 18 мм (0.3 x 0.7 x 0.71 цалі) |
| Package Weight (20pcs) | 121 г (4.3 унцыі) |
| Памеры ўпакоўкі | 21 х 6 х 4 см; 150 г |
| Нумар мадэлі тавару | Mumusukizxh93apn8v |
Гарантыя і падтрымка
Specific warranty information for Mumusuki Electric Motor Carbon Brushes is not provided in this manual. For details regarding product warranty, returns, or technical support, please refer to the product packaging or contact Mumusuki customer service directly through their official channels or the retailer from whom the product was purchased.
