GAOMON Gaming Desk PHO_11GBD491-DF Instruction Manual

1. Уводзіны

Thank you for choosing the GAOMON Gaming Desk. This L-shaped desk is designed to provide a versatile and efficient workspace for gaming, studying, or home office activities. It features a built-in charging station, ample storage, and a durable construction. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new desk.

Please read this manual carefully before assembly and retain it for future reference.

2. Інфармацыя па бяспецы

• Заўсёды збірайце стол на мяккай, чыстай паверхні, каб пазбегнуць драпін.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and retighten if necessary.
• Не перагружайце стол або паліцы больш, чым яны могуць сабе дазволіць.
• Keep children away from small parts during assembly to avoid choking hazards.
• For electrical components (charging station), ensure proper grounding and avoid contact with water. Do not use if the power cord is damaged.
• It is recommended that two people assemble this desk for safety and ease.

3. Змесціва ўпакоўкі

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact GAOMON customer support.

4. Інструкцыі па ўсталёўцы і зборцы

Follow these steps carefully to assemble your GAOMON Gaming Desk. All parts are numbered for easy identification.

Крок 1: Збярыце раму

• Attach the main frame legs (C) to the crossbars (D) using the provided screws (I). Do not fully tighten screws until all parts are aligned.
• Connect the L-shaped section of the frame. Ensure the orientation matches your desired left or right configuration.
• Once all frame parts are loosely connected, gently tighten all screws.

Step 2: Attach Desktop Panels

• Carefully place the Main Desktop Panel (A) and Side Desktop Panel (B) onto the assembled frame.
• Align the pre-drilled holes on the desktop panels with the holes on the frame.
• Secure the desktop panels to the frame using the appropriate screws (I).

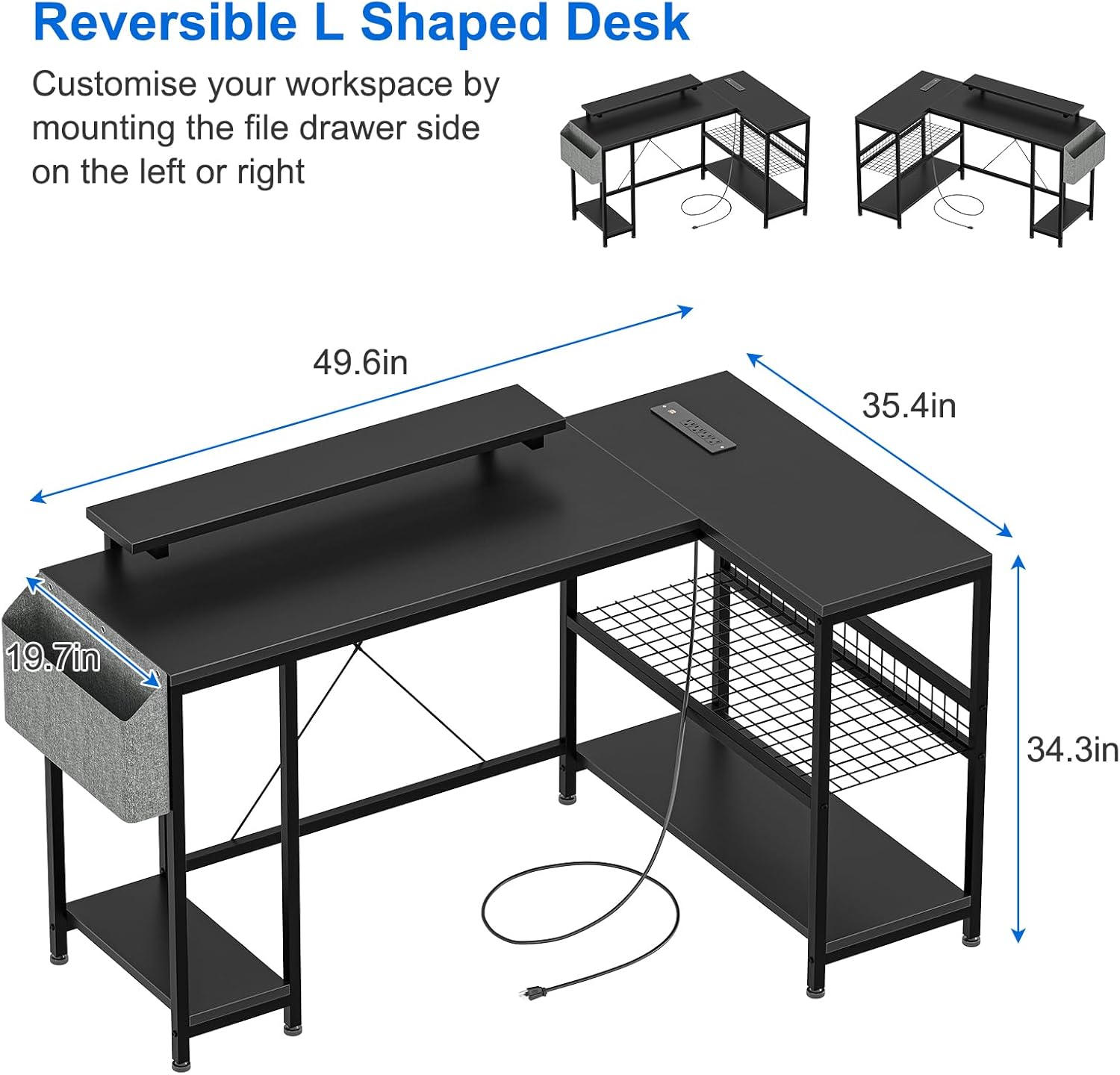

Figure 1: Desk dimensions and reversible L-shaped setup. The desk measures approximately 49.6 inches on the long side, 35.4 inches on the short side, and 34.3 inches in height. The main desktop depth is 19.7 inches.

Step 3: Install Shelves and Charging Station

• Insert the Wire Mesh Shelves (H) into the designated slots on the L-shaped section of the frame.
• Mount the Charging Station Unit (E) to the underside of the desktop or in the designated area, ensuring the power cord can reach an outlet.

Figure 2: Detail of the integrated charging station, featuring 4 AC outlets (125V 12A) and 1 USB port (5V-2A), with a 6.6-ft power cord.

Step 4: Attach Fabric Storage Bag and Monitor Stands

• Hook the Fabric Storage Bag (F) onto the side of the desk frame as desired.
• Place the Removable Monitor Stands (G) on the desktop in your preferred positions.

Figure 3: Features including the upgraded fabric bag for storage, two removable monitor stands, and double-layer shelves for organization.

Крок 5: Канчатковыя карэкціроўкі

• Adjust the Adjustable Foot Pads (J) on the bottom of the desk legs to ensure stability and level the desk on uneven floors.
• Double-check all screws to ensure they are fully tightened.

Figure 4: The GAOMON Gaming Desk fully assembled and set up in a modern gaming environment, demonstrating its functional design.

5. Інструкцыя па эксплуатацыі

5.1 Выкарыстанне зараднай станцыі

• Plug the desk's power cord into a standard wall outlet.
• The integrated charging station provides 4 AC outlets and 1 USB charging port.
• Connect your electronic devices (smartphones, gaming devices, Bluetooth devices, etc.) to the appropriate outlets for charging.
• Пераканайцеся, што прылады сумяшчальныя з прадстаўленым томамtage (125V for AC, 5V-2A for USB).

5.2 Reversible L-Shaped Configuration

The desk is designed to be reversible, allowing you to configure the L-shape to either the left or right side to best suit your space. This configuration is determined during the initial assembly of the frame (Step 1). If you wish to change the orientation after assembly, you will need to partially disassemble the frame and reassemble it in the desired direction.

5.3 Utilizing Monitor Stands and Storage

• The two removable monitor stands can be placed anywhere on the main desktop to elevate your monitors to an ergonomic viewING вышыні.
• Use the fabric storage bag for documents, magazines, or other small items to keep your desktop clutter-free.
• The wire mesh shelves provide additional space for books, files, gaming consoles, or other accessories.

Малюнак 5: Накладныя выдаткі view highlighting the two removable monitor stands, which help promote ergonomic posture by elevating screens.

6. Тэхнічнае абслугоўванне

• Уборка: Wipe the desktop and metal frame with a soft, damp тканінай. Пазбягайце выкарыстання агрэсіўных хімічных рэчываў або абразіўных ачышчальнікаў, якія могуць пашкодзіць пакрыццё.
• Разлівы: The desktop is waterproof. Wipe up spills immediately to prevent potential damage or stains.
• Зашпількі: Periodically check all screws and bolts to ensure they remain tight. Retighten as needed to maintain desk stability.
• Электрычныя кампаненты: Keep the charging station dry and free from dust. Do not attempt to repair the electrical components yourself.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

GAOMON products are manufactured to high-quality standards. For warranty information, technical support, or to report missing/damaged parts, please contact GAOMON customer service through the retailer where the product was purchased or visit the official GAOMON webсайт.

Please have your model number (PHO_11GBD491-DF) and proof of purchase ready when contacting support.
