1. Уводзіны
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the TUTHILL 4RCK1B-RH-7 Gear Pump. Please read this manual thoroughly before attempting to install or operate the pump. Retain this manual for future reference.
2. Інфармацыя па бяспецы
Always observe standard safety precautions when working with industrial machinery. Failure to follow these instructions may result in personal injury, equipment damage, or property damage.
- Ensure all power sources are disconnected before installation, maintenance, or repair.
- Апранайце адпаведныя сродкі індывідуальнай абароны (СІЗ), у тым ліку ахоўныя акуляры, пальчаткі і ахоўную вопратку.
- Verify that the pump is compatible with the fluid being transferred.
- Do not exceed the maximum operating pressure or temperature specified for the pump.
- Ensure proper ventilation when operating the pump, especially with volatile fluids.
- Securely mount the pump to prevent vibration and movement during operation.
3. Прадукт скончыўсяview
The TUTHILL 4RCK1B-RH-7 is a robust cast iron rotary gear pump designed for various industrial fluid transfer applications. It features a 1-1/2 inch NPT inlet and discharge port, a flange mount, and a reversing feature. This pump is designed for reliable performance within specified operating parameters.
Малюнак 3.1: Фронт view of the TUTHILL 4RCK1B-RH-7 Gear Pump. This image shows the pump's main body, inlet and outlet ports, and the TUTHILL PUMP CO. branding.
Асноўныя характарыстыкі:
- Inlet Port: 1-1/2 inch NPT
- Discharge Port: 1-1/2 inch NPT
- Construction: Cast Iron
- Mounting: Flange mount
- Reversing Feature: Included
- Series: C Series
4. Тэхнічныя характарыстыкі
The following table details the technical specifications for the TUTHILL 4RCK1B-RH-7 Gear Pump:
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Нумар мадэлі | 4RCK1B-RH-7 |
| Марка | TUTHILL (Manufacturer) / Generic (Seller Brand) |
| Матэрыял | Чыгун |
| Памер ўваходнага адтуліны | 1-1/2 цалі NPT |
| Discharge Port Size | 1-1/2 цалі NPT |
| Хуткасць патоку | 36 GPM @ 1750 RPM |
| Перапад ціску | Да 150 PSI |
| Працоўная тэмпература | Да 375°F (190°C) |
| Дыяпазон глейкасці | 40 SSU to 250,000 SSU |
| Вага прадмета | 70 фунта |
| Уключаныя кампаненты | 1 Pump Unit (Motor NOT included) |

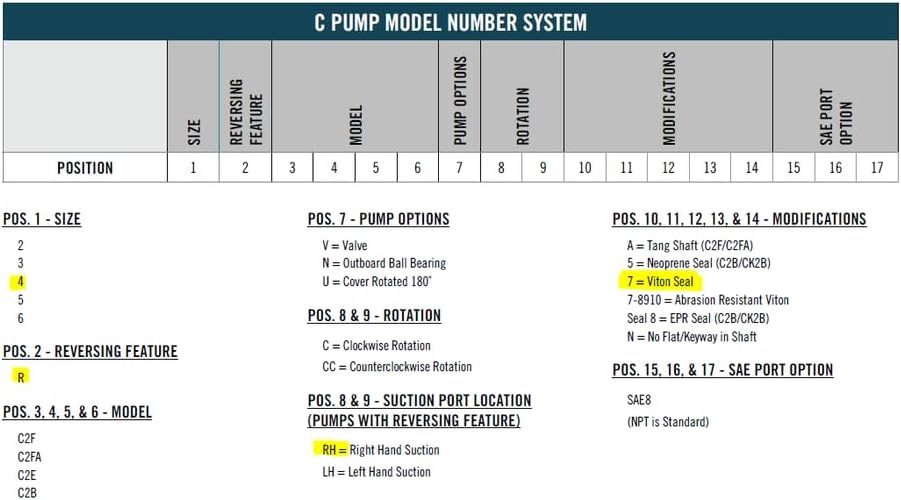

Малюнак 4.1: TUTHILL C Pump Model Number System. This chart explains the breakdown of the model number, indicating features like size, reversing feature, model type, pump options, rotation, modifications, and SAE port options. For model 4RCK1B-RH-7, '4' indicates size, 'R' indicates reversing feature, 'CK1B' is the model, 'RH' indicates right hand suction, and '7' indicates Viton seal.
5. Настройка і ўстаноўка
Proper installation is crucial for the pump's performance and longevity. This pump is designed as a pump end only; a suitable motor must be provided separately.
5.1 Мантаж
The TUTHILL 4RCK1B-RH-7 is a flange-mount pump. Ensure the mounting surface is rigid, level, and capable of supporting the pump and motor assembly. Use appropriate fasteners to secure the pump firmly to the mounting structure.
5.2 Падключэнне рухавіка
This pump requires a separate motor. Ensure the motor's RPM matches the pump's design speed (1750 RPM for 36 GPM flow). The pump is designed for adapter mounting to NEMA C-frame motors. Refer to the dimension diagram for correct adapter selection and mounting procedures.
Малюнак 5.1: Dimensions for adapter mounting CK2B pumps to NEMA C frame motors. This diagram provides critical measurements and a table for selecting the correct adapter based on pump model (4CK1B highlighted) and motor frame size, ensuring proper alignment and connection between the pump and motor.
5.3 Piping Connections
Connect 1-1/2 inch NPT piping to both the inlet and discharge ports. Ensure all connections are leak-free and properly supported to prevent strain on the pump ports. Use appropriate thread sealant. The pump has a right-hand suction (RH) configuration, meaning the inlet is on the right when viewed from the shaft end.
5.4 Грунтоўка
Before initial operation, the pump must be primed. Ensure the pump casing and suction line are filled with the fluid to be pumped. This prevents dry running and potential damage to the pump components.
6. Інструкцыя па эксплуатацыі
Once installed and primed, the pump is ready for operation. Adhere to the following guidelines for optimal performance.
6.1 Пуск
- Пераканайцеся, што ўсе злучэнні надзейныя і не герметычныя.
- Ensure the suction and discharge valves are open.
- Start the motor. The pump should begin transferring fluid immediately.
- Monitor pressure gauges to ensure operation within the specified 150 PSI differential pressure.
6.2 Fluid Compatibility and Conditions
The pump is designed for fluids with viscosities ranging from 40 SSU to 250,000 SSU and temperatures up to 375°F. Ensure the fluid being pumped falls within these parameters. The Viton seal (indicated by '7' in the model number) provides chemical resistance for a wide range of fluids; however, always confirm compatibility for specific applications.
6.3 Reversing Feature
The 4RCK1B-RH-7 model includes a reversing feature, allowing the pump to operate in both directions of rotation while maintaining flow direction relative to the ports. Consult the motor and control system documentation for proper implementation of directional control.
6.4 Выключэнне
To shut down the pump, simply turn off the motor. If the pump will be out of service for an extended period, consider draining and flushing it, especially if pumping corrosive or viscous fluids.
7. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and reliable operation of your TUTHILL gear pump. Always disconnect power before performing any maintenance.
- Звычайная праверка: Periodically check for leaks, unusual noises, or vibrations. Inspect piping and connections for integrity.
- Замена ўшчыльняльніка: The pump is equipped with a Viton seal. If leaks occur around the shaft, the seal may need replacement. Refer to the manufacturer's service manual for detailed instructions on seal replacement.
- Праверка шасцярні: Over time, gears may wear. If flow rate decreases significantly or noise increases, internal inspection of the gears may be necessary. This typically requires disassembly by qualified personnel.
- змазка: The pump's internal components are lubricated by the pumped fluid. Ensure the fluid is clean and free of abrasive particles.
- Уборка: If pumping fluids that can solidify or leave residue, periodic flushing or cleaning of the pump may be required.
8. Выпраўленне непаладак
This section provides guidance for common operational issues. For complex problems, contact a qualified service technician.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Няма патоку або паніжаны паток | Pump not primed; Suction line blocked; Air leak in suction line; Incorrect motor rotation; Worn gears. | Prime the pump; Check and clear suction line; Inspect suction connections for leaks; Verify motor rotation; Inspect and replace gears if necessary. |
| Празмерны шум або вібрацыя | Cavitation (insufficient fluid supply); Misalignment between pump and motor; Loose mounting; Worn bearings or gears. | Ensure adequate fluid supply and proper priming; Check and correct pump-motor alignment; Tighten mounting bolts; Inspect and replace worn components. |
| Уцечка вадкасці | Worn shaft seal; Loose pipe connections; Cracked casing. | Replace shaft seal; Tighten pipe connections; Inspect casing for damage and replace pump if cracked. |
| Перагрэў | Operating against closed discharge valve; Pumping fluid outside viscosity/temperature limits; Excessive back pressure. | Ensure discharge valve is open; Verify fluid properties are within specifications; Reduce back pressure if possible. |
9. Гарантыя і падтрымка
Warranty information for the TUTHILL 4RCK1B-RH-7 Gear Pump is typically provided by the original manufacturer or the seller at the time of purchase. Please refer to your purchase documentation or contact your supplier for specific warranty terms and conditions.
For technical support, spare parts, or service inquiries, please contact the authorized TUTHILL distributor or the vendor from whom the pump was purchased. Provide your pump's model number (4RCK1B-RH-7) and serial number (if available) for efficient assistance.
