1. Уводзіны
This manual provides essential instructions for the safe and efficient operation of your Generic TC-800 Up/Down Power Transformer. The TC-800 is designed to convert electrical voltage, allowing you to use appliances designed for one voltage standard in regions with a different standard. Please read this manual thoroughly before using the device and retain it for future reference.
2. Інфармацыя па бяспецы
ПАПЯРЭДЖАННЕ: Невыкананне гэтых інструкцый па бяспецы можа прывесці да паражэння электрычным токам, пажару або сур'ёзных траўмаў.
- Прачытайце ўсе інструкцыі перад выкарыстаннем.
- This device is for indoor use only. Do not expose to rain or moisture.
- Ensure the transformer is placed on a stable, flat, and well-ventilated surface.
- Do not overload the transformer. The total wattage of connected appliances must not exceed the transformer's rated capacity (100W).
- Always ensure the correct input voltage is selected (if applicable) and matches your power supply. The depicted model is primarily for 110V input to 220V output.
- Захоўваць у месцах, недаступных дзецям.
- Do not open the transformer casing. Унутры няма дэталяў, якія можа абслугоўваць карыстальнік.
- If the transformer emits smoke, unusual odors, or makes abnormal noises, immediately unplug it from the power outlet and discontinue use.
- Always unplug the transformer from the wall outlet when not in use or before cleaning.
3. Прадукт скончыўсяview
The Generic TC-800 is a compact power transformer designed for voltage conversion. It features a robust construction suitable for various applications requiring voltage step-up or step-down. The specific model shown is configured for 110V AC input to 220V AC output.
3.1 Кампаненты
- Уваходны штэкер: Connects to the wall power outlet.
- Выхадны раздым: Connects to your appliance.
- Індыкатар харчавання: Загараецца пры ўключэнні прылады.
- Ручка для пераноскі: Для зручнасці пераноскі.

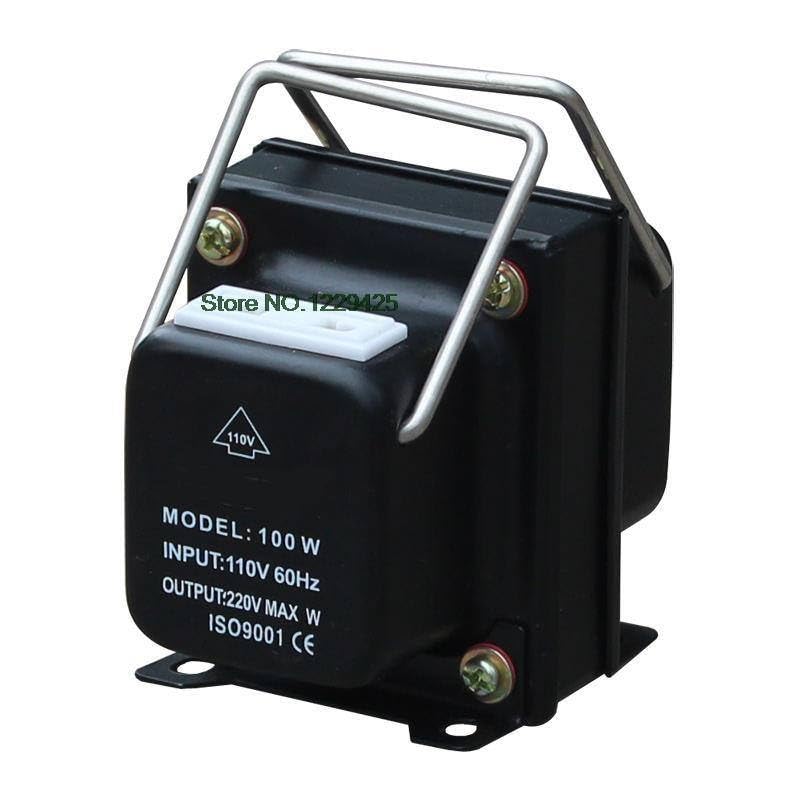

Малюнак 1: Спераду view of the TC-800 Power Transformer. This image displays the main body, the carrying handle, and labels indicating "MODEL: 100 W", "INPUT: 110V 60Hz", and "OUTPUT: 220V MAX W".

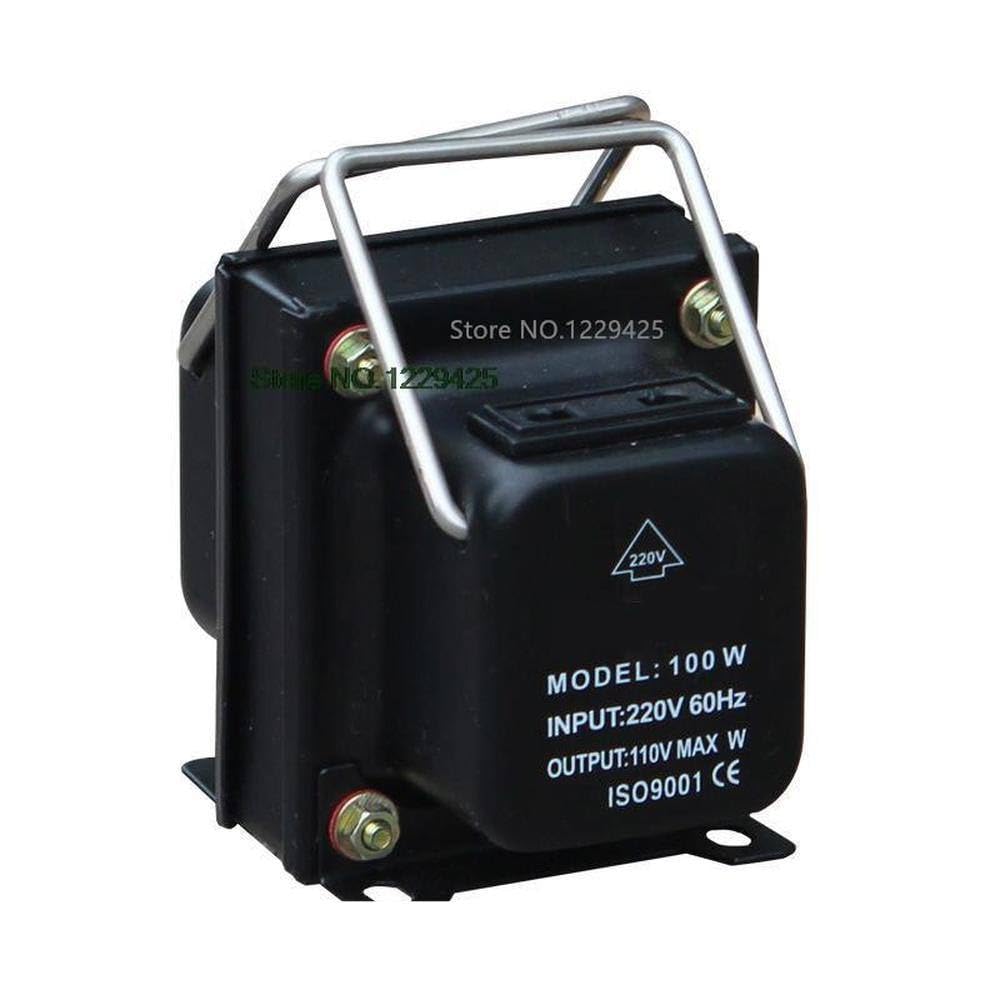

Малюнак 2: бок view of the TC-800 Power Transformer. This image provides a perspective of the transformer's side, revealing its internal coil and wiring connections.

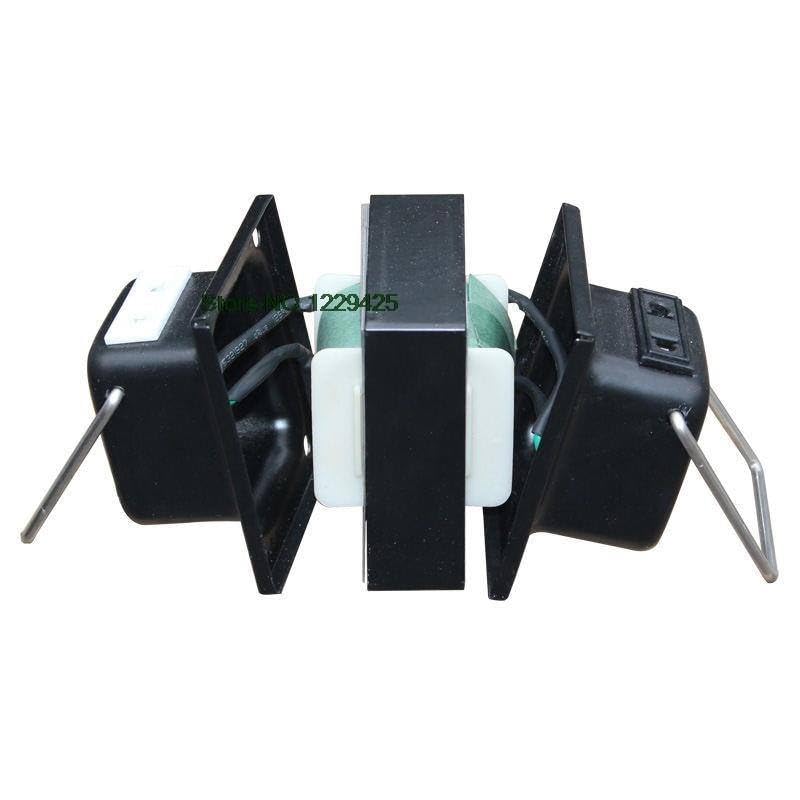

Малюнак 3: Процілеглы бок view of the TC-800 Power Transformer. This image shows the other side of the transformer, detailing its structural components and connections.
4. Настройка
- Распакуйце: Асцярожна выміце трансфарматар з упакоўкі. Праверце на наяўнасць пашкоджанняў.
- Размяшчэнне: Place the transformer on a dry, stable, and well-ventilated surface. Ensure there is adequate space around the unit for heat dissipation.
- Падключэнне ўваходнага сілкавання: For the depicted model, ensure your wall outlet provides 110V AC power. Plug the transformer's input plug into a grounded 110V AC wall outlet.
- Падключыць прыладу: Plug your 220V AC appliance into the output socket of the transformer. Ensure the appliance's wattage не перавышае 100 Вт.
Важна: Always connect the transformer to the wall outlet first, then connect your appliance to the transformer. When disconnecting, unplug the appliance from the transformer first, then unplug the transformer from the wall outlet.
5. Інструкцыя па эксплуатацыі
- After completing the setup steps, ensure all connections are secure.
- If your model has a power switch, turn it to the "ON" position. The power indicator light should illuminate.
- Operate your connected appliance as usual.
- To turn off, switch the transformer to the "OFF" position (if applicable), then unplug your appliance, and finally unplug the transformer from the wall outlet.
Заўвага: The TC-800 is designed for continuous operation within its rated capacity. However, for optimal lifespan, avoid prolonged use at maximum load.
6. Тэхнічнае абслугоўванне
- Уборка: Disconnect the transformer from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- захоўванне: Store the transformer in a cool, dry place away from direct sunlight and moisture when not in use.
- Няма частак, якія абслугоўваюцца карыстальнікам: Do not attempt to open or repair the transformer. Refer all servicing to qualified personnel.
7. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Няма індыкатара харчавання |
|
|
| Connected appliance not working |
|
|
| Transformer is unusually hot |
|
|
8. Тэхнічныя характарыстыкі
| мадэль: | TC-800 |
| Тып: | Up/Down Power Transformer (depicted model: Step-Up) |
| Уваходны кнtage: | 110V AC, 60Hz (for depicted model) |
| Выхад Voltage: | 220V AC (for depicted model) |
| Намінальная магутнасць: | 100 Вт |
| Бачная магутнасць: | 800 ВА |
| вытворца: | Радавыя |
9. Гарантыя і падтрымка
This product is covered by a standard manufacturer's warranty. For warranty claims, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Please have your model number (TC-800) and purchase information ready when contacting support.
For further assistance, please visit the retailer's webсайт або звярніцеся да дакументацыі па куплі, каб атрымаць кантактную інфармацыю.
