1. Уводзіны
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Outsunny 12' x 10' Retractable Awning. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.
Image 1.1: The Outsunny 12' x 10' Retractable Awning providing shade over a patio area.
2. Інфармацыя па бяспецы
Adhere to all safety warnings and instructions to prevent injury or damage to the product. Failure to do so may void the warranty.
- Правільнае мацаванне: Ensure the awning is securely anchored to a suitable wall or surface. The mounting surface must be capable of supporting at least 55 lbs (25 kg) of weight.
- Умовы надвор'я: Retract the awning during strong winds, heavy rain, or snowfall. Large amounts of rain or snow can collect on the fabric, causing damage to the awning structure.
- афармленне: Maintain adequate clearance around the awning during operation to avoid obstructions.
- Дзеці і хатнія жывёлы: Keep children and pets away from the awning during operation to prevent accidents.
- агляд: Regularly inspect all components for wear, damage, or loose connections. Do not operate the awning if any part is damaged.
3. Асаблівасці прадукту
- Solid Design: Constructed with a durable aluminum and steel frame, featuring steel square tubes for enhanced stability. The powder-coated aluminum frame resists corrosion for extended product life.
- Рэгуляваны навес: The extension arm height on the telescopic rod can be adjusted by loosening a locking screw, allowing for optimal shade positioning. The height of the retractable door canopy ends is also adjustable.
- UV & Water-Resistant Fabric: Made from 280g polyester with a PU coating, the fabric protects against the sun's UV rays and helps reduce heat indoors, potentially lowering cooling costs.
- Універсальнае размяшчэнне: Suitable for attachment to various surfaces including concrete or solid brick walls, above doors, balconies, patios, or windows.
- Памеры навеса: Provides a shaded area of approximately 120 ft².
Image 3.1: Detail of the durable, UV and water-resistant polyester fabric.

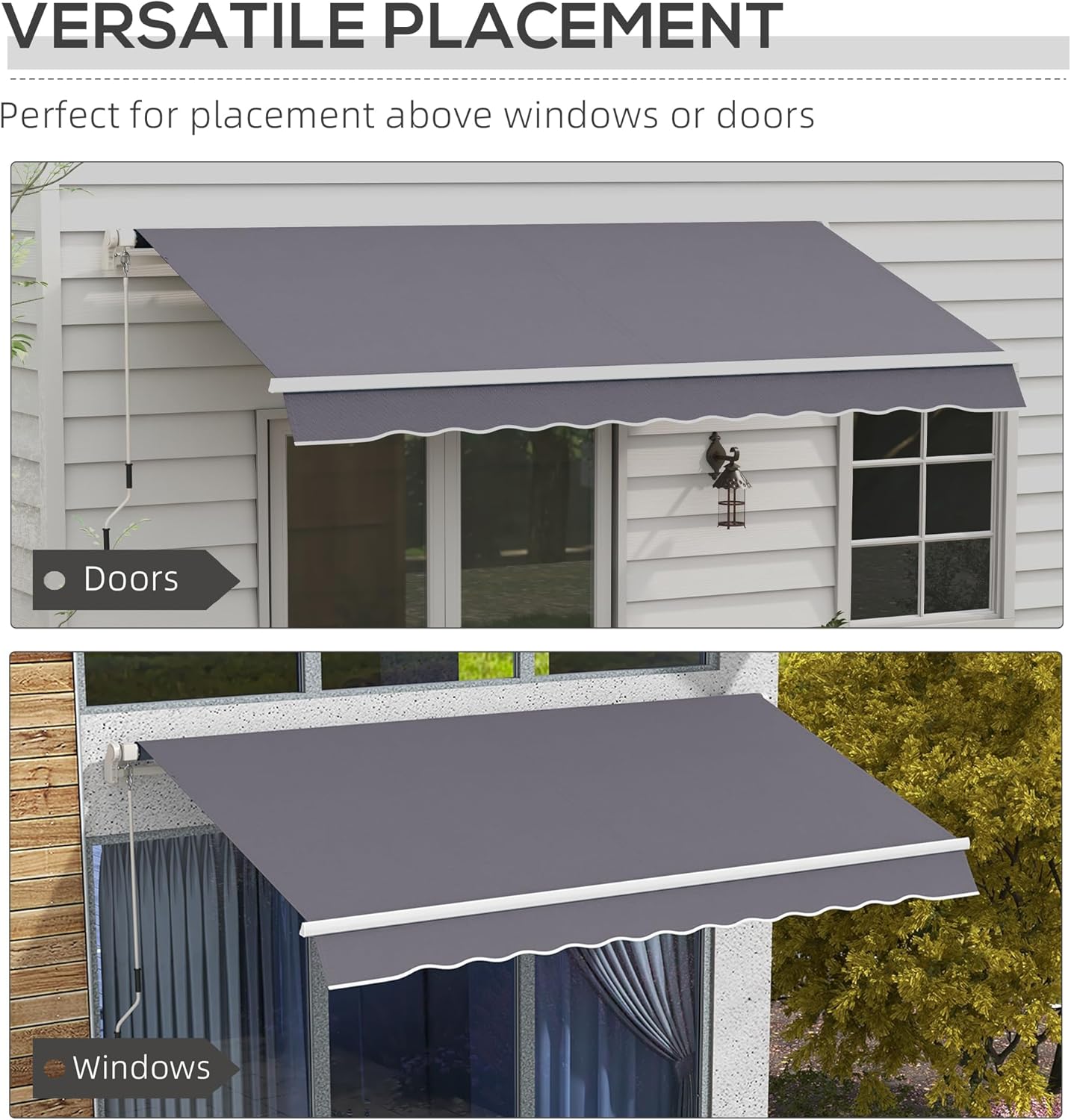

Малюнак 3.2: Прыкладamples of the awning's versatile placement above doors and windows.
4. Камплектуючыя і спіс дэталяў
Перад зборкай пераканайцеся, што ўсе дэталі наяўныя і не пашкоджаныя. Звярніцеся да схемы ніжэй для іх ідэнтыфікацыі.
- Solid Aluminum Supporting Bracket
- Высоўныя рукі
- Smooth Sliding Front Support Bar
- Decorative Edging (Valance)
- Ручная ручка
- Тканіна для тэнта
- Mounting Hardware (bolts, screws, etc. - specific types may vary)
Малюнак 4.1: Крупны план views of key product components.
5. Настройка і ўстаноўка
Assembly is required. It is recommended that two people perform the installation. Ensure you have the necessary tools before beginning.
5.1 Site Selection and Measurement
- Choose a mounting location on a concrete or solid brick wall, or a sturdy wooden structure. The surface must support at least 55 lbs (25 kg).
- Measure the desired height for the awning. The recommended installation height is between 98.5 inches (2.5 m) and 137.75 inches (3.5 m) from the ground.
- Ensure a reserved installation distance of at least 11.75 inches (30 cm) above the top of a door or window if mounting above one.
5.2 Мантаж тэнта
- Mark the drilling points on the wall according to the awning's bracket dimensions. Use a level to ensure accuracy.
- Прасвідруйце пілотныя адтуліны ў адзначаных месцах.
- Secure the mounting brackets to the wall using appropriate fasteners for your wall type. Ensure they are firmly attached.
- Carefully lift the awning assembly and attach it to the mounted brackets. Secure all connections.
- Attach the manual crank handle mechanism.
Image 5.1: Installation suggestions and measurements for optimal placement.
6. Інструкцыя па эксплуатацыі
Your Outsunny Retractable Awning operates manually using the provided crank handle.
6.1 Рассоўванне тэнта
- Locate the manual crank handle.
- Insert the crank handle into the designated loop or hook on the awning mechanism.
- Turn the crank handle clockwise to extend the awning. Continue turning until the awning reaches the desired extension. Do not force the awning beyond its maximum extension.
6.2 Складанне тэнта
- Insert the crank handle into the designated loop or hook.
- Turn the crank handle counter-clockwise to retract the awning. Continue turning until the awning is fully retracted against the wall.
6.3 Рэгуляванне вугла
The installation angle can be adjusted between 45-85 degrees. The optimal angle for most conditions is 80 degrees. Consult the installation diagram for details on how to adjust the angle using the appropriate locking screws on the arms.

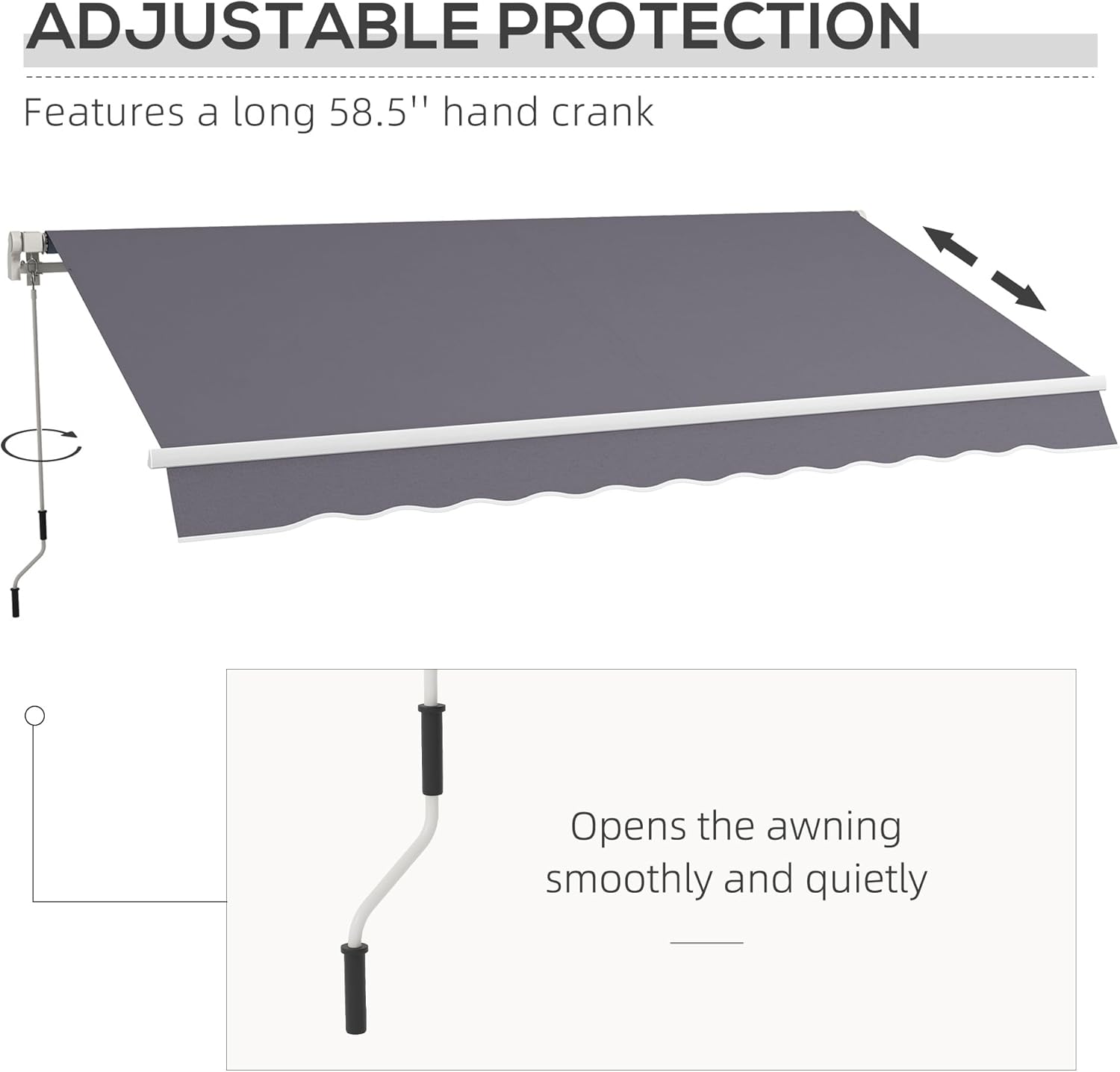

Image 6.1: Operation of the manual crank handle for extending and retracting the awning.
Image 6.2: Visual representation of the awning's retractable mechanism.
7. Тэхнічнае абслугоўванне
Рэгулярны догляд дапаможа падоўжыць тэрмін службы і знешні выгляд вашага тэнта.
- Тканіна для чысткі: Clean the awning fabric periodically with mild soap and water. Use a soft brush or sponge. Rinse thoroughly with clean water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Рамка для чысткі: Працярыце алюмініевую і сталёвую раму рэкламайamp сурвэткай для выдалення бруду і смецця.
- змазка: Перыядычна наносьце змазку на аснове сілікону на рухомыя часткі выкатных рычагоў і шатуннага механізму, каб забяспечыць плаўную працу.
- агляд: Annually inspect all bolts, screws, and connections to ensure they are tight. Check the fabric for any tears or damage. Address any issues promptly.
8. Выпраўленне непаладак
Калі ў вас узніклі праблемы з тэнтам, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Awning does not extend/retract smoothly | Obstruction, dirty mechanism, lack of lubrication | Check for obstructions. Clean and lubricate moving parts. |
| Awning sags or collects water | Incorrect installation angle, fabric stretched, heavy rain | Adjust the installation angle to 80 degrees. Retract during heavy rain. Inspect fabric for damage. |
| Awning fabric appears faded | Доўгі знаходжанне на сонца | This is normal wear over time. Ensure proper retraction when not in use to minimize exposure. |
| Awning feels unstable | Loose mounting, damaged frame | Check all mounting bolts and frame connections. Tighten as necessary. If frame is damaged, discontinue use and contact support. |
9. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | Аутсунны |
| Нумар мадэлі | B0CTF5BYWF |
| Памер | 12' x 10' (141.75"D x 118"W x 59"H) |
| Колер | Вугальна-шэры |
| Матэрыял | Aluminum frame, Polyester fabric |
| Тып тканіны | 280g/m² Polyester with PU coating |
| Рэжым працы | Ручной шатун |
| Вага прадмета | 55 фунтаў (25 кг) |
| Адлегласць праекцыі | 118 Inches (3 m) |
| Minimum Clearance (above door/window) | 11.75 цалі (30 см) |
| Adjustable Installation Angle | 45-85 градусаў |
| Неабходная зборка | так |
Image 9.1: Dimensional drawing of the retractable awning.
10. Гарантыя і падтрымка
For warranty information, returns, or customer support, please refer to the retailer's policy or contact the manufacturer directly.
- Палітыка вяртання: Typically, a 30-day easy return policy is offered by the seller. Please check your purchase details for specific terms.
- вытворца: Кампанія Aosom LLC
- Кантакты: Refer to your purchase documentation or the Aosom LLC webсайт для кантактнай інфармацыі службы падтрымкі кліентаў.
