1. Уводзіны
This manual provides essential instructions for the assembly, operation, and maintenance of your Outsunny PE Garden Greenhouse. Designed for cultivating vegetables, plants, and flowers, this greenhouse offers a protected environment for optimal growth. Please read all instructions carefully before assembly and use to ensure safe and efficient operation.
Figure 1: Outsunny PE Garden Greenhouse (100x80x150 cm)
2. Інфармацыя па бяспецы
- зборка: It is recommended that 1 to 2 people install the greenhouse to ensure safety and ease of assembly.
- Апрацоўка: Exercise caution when handling all components, especially the steel frame parts, to prevent injury.
- Стабільнасць: Ensure the greenhouse is securely anchored to the ground. Burying the extended edge of the cover is crucial for stability and to prevent wind damage.
- Умовы надвор'я: Do not use or assemble the greenhouse during strong winds, heavy rain, or snow. Disassemble or secure the greenhouse adequately in anticipation of severe weather.
- Вентыляцыя: Maintain proper ventilation to prevent overheating and excessive humidity, which can harm plants.
- Дзеці і хатнія жывёлы: Keep children and pets away from the assembly area and supervise them around the greenhouse during use.
3. Змесціва ўпакоўкі
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer service.
- Steel Alloy Frame Components (poles, connectors)
- Reinforced PE Cover (135 g/m²)
- Zippered Roll-up Doors (2 units)
- Кіраўніцтва па зборцы
4. Налада і зборка
Follow these steps to assemble your Outsunny PE Garden Greenhouse:
- Падрыхтуйце сайт: Choose a level, sheltered location for your greenhouse. Clear any debris or sharp objects from the area.
- Збярыце каркас: Connect the steel alloy poles using the provided connectors according to the assembly manual. Ensure all connections are secure.
- Усталюйце вечка: Carefully drape the reinforced PE cover over the assembled frame. Ensure the cover is centered and evenly distributed.
- Замацуеце вокладку: Fasten the cover to the frame using any integrated ties or fasteners. Ensure the cover is taut to prevent water pooling.
- Замацуйце цяпліцу: For optimal stability and sealing, bury the extended 10 cm edge of the PE cover deeply and firmly into the soil. This also helps prevent small animals from entering.
Figure 2: Reinforced PE Cover and UV Resistance

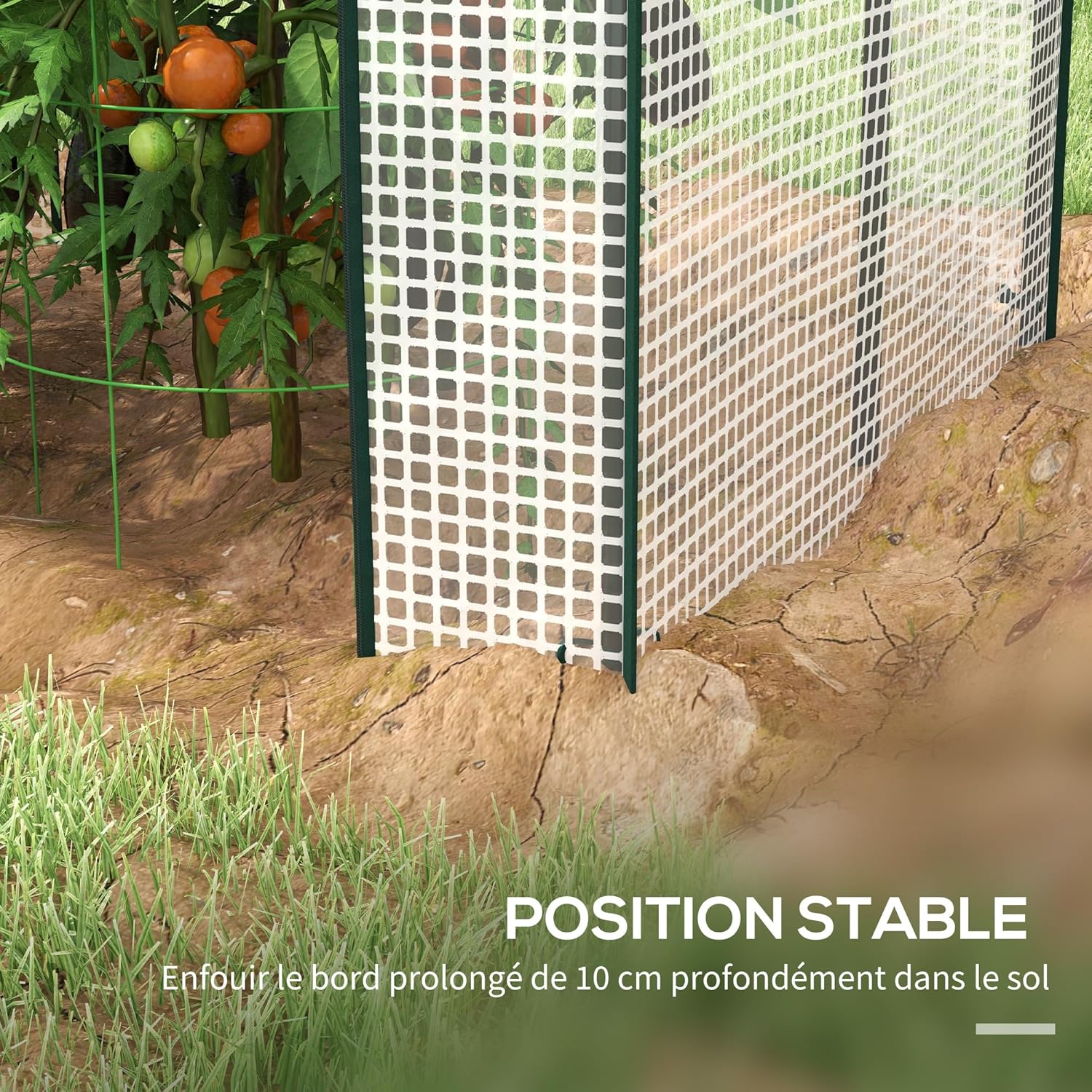

Figure 3: Burying the Extended Edge for Stability
5. Інструкцыя па эксплуатацыі
To maximize the benefits of your greenhouse:
- Access and Zone Management: The greenhouse features two zippered roll-up doors, allowing easy access to different sections. This design is practical for managing distinct plant varieties or creating two separate growing zones.
- Вентыляцыя: Utilize the four ventilation holes (two on each side) to control the internal temperature and humidity. Open them as needed to provide cross-ventilation and prevent excessive heat buildup.
- Прапусканне святла: The reinforced PE cover is designed to allow approximately 85% of nutrient-rich sunlight to pass through, promoting healthy plant growth while protecting against harmful UV rays.
Figure 4: Two-Zone Design and Roll-Up Doors
Figure 5: Ventilation Holes for Temperature and Humidity Control
Figure 6: Detail of Roll-Up Zippered Door
6. Тэхнічнае абслугоўванне
Regular maintenance will extend the lifespan of your greenhouse:
- Ачыстка вечка: Periodically clean the PE cover with mild soap and water to remove dirt, dust, and algae. This ensures maximum light transmission. Rinse thoroughly with clean water.
- Агляд рамы: Regularly inspect the steel alloy frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or replace damaged parts as necessary.
- Праверка мацавання: After strong winds or heavy rain, check the ground anchoring to ensure the extended edge of the cover remains securely buried and the greenhouse is stable. Re-bury or reinforce if needed.
- Сыход за маланкай: Keep the zippers clean and lubricated to ensure smooth operation. Avoid forcing stuck zippers.
7. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Greenhouse instability / Wind damage | Недастатковае мацаванне; моцны вецер. | Ensure the extended edge of the cover is buried deeply in the soil. Add additional weights or ground anchors if necessary. Disassemble in severe weather. |
| Скопліванне вады на даху | Cover not taut; insufficient roof pitch. | Ensure the cover is stretched tightly over the frame during assembly. Consider adding internal supports if heavy rain is common in your area. |
| Дрэнны рост раслін | Lack of ventilation; insufficient light; improper temperature/humidity. | Utilize ventilation holes to regulate temperature and humidity. Ensure the cover is clean for maximum light transmission. Adjust watering and plant care as needed. |
| Складанасць маланкі | Dirt/debris in zipper; lack of lubrication. | Clean the zipper teeth with a brush. Apply a silicone-based lubricant to the zipper. |
8. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Памеры (Д х Ш х У) | 100 см х 80 см х 150 см |
| Матэрыял вокладкі | Reinforced Polyethylene (PE) 135 g/m² |
| Матэрыял каркаса | Легаваная сталь |
| Колькасць дзвярэй | 2 (на маланцы, згортваюцца) |
| Колькасць вентыляцыйных адтулін | 4 |
| Вага прадукту | 3.35 кг |
| Ўстойлівасць да ультрафіялету | Yes (85% light transmission) |
| Выкарыстанне па прызначэнні | На адкрытым паветры |

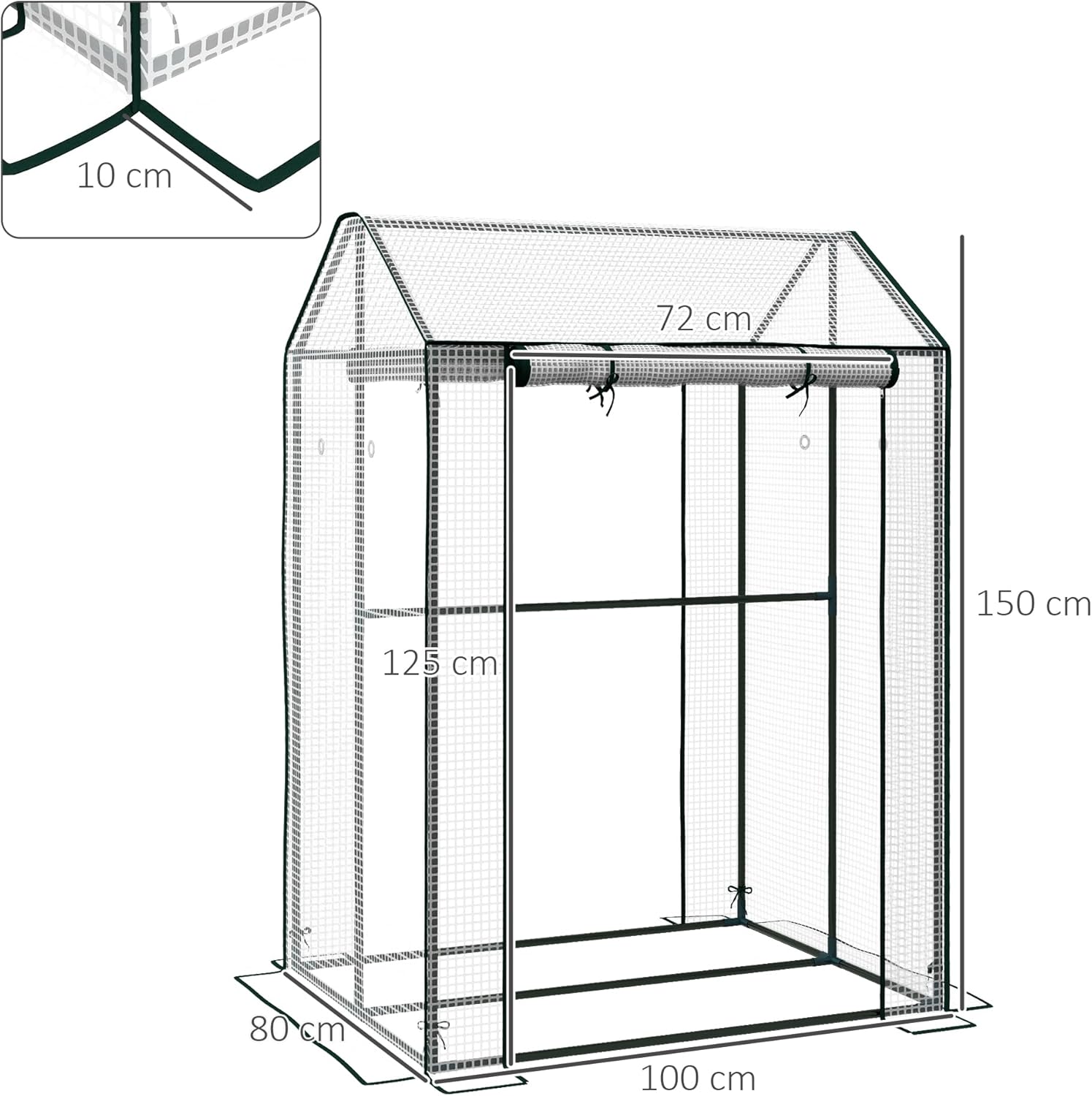

Малюнак 7: Памеры вырабу
9. Гарантыя і падтрымка
For warranty information, product support, or to inquire about replacement parts, please refer to your purchase documentation or contact Outsunny customer service directly. Keep your proof of purchase for any warranty claims.
