SUNMI V2SE Smart Mobile Terminal User Manual

1. Уводзіны

This manual provides instructions for the proper use and maintenance of the SUNMI V2SE Smart Mobile Terminal. The V2SE is a versatile device designed for various business applications, featuring an integrated 58mm thermal printer, 1D/2D barcode recognition, NFC capabilities, and running on Android 12.0.

Асноўныя функцыі ўключаюць у сябе:

• Integrated 58mm thermal printer with 80mm/s print speed.
• 1D/2D Barcode recognition for efficient scanning.
• NFC for contactless transactions.
• Android 12.0 operating system with a Quad Core 2.0 GHz CPU.
• 2 GB RAM and 8 GB ROM for smooth operation.
• Connectivity: 4G/3G/2G, 2.4G/5G Wi-Fi, Bluetooth 2.1/3.0/4.2.
• Removable Lithium Ion battery.

2. Кампаненты прылады

Familiarize yourself with the main components of your SUNMI V2SE terminal.

Малюнак 2.1: Спераду і збоку View. This image displays the device's screen, the integrated barcode scanner at the top, and the power and volume buttons located on the side.

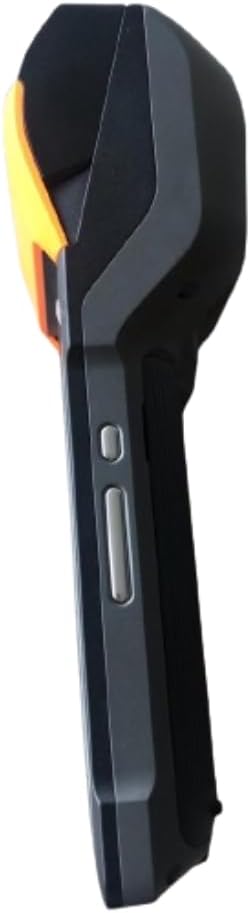

Малюнак 2.2: Збоку View. This image shows the side profile of the terminal, including the cover for the SIM card slot and additional buttons.

Малюнак 2.3: Назад View. This image illustrates the rear of the device, featuring the thermal printer cover, the 0.3 MP camera, and the charging contact points.

Спіс кампанентаў:

• Экран дысплея: Touch-sensitive LCD for user interaction.
• Сканер штрых-кода: Integrated 1D/2D scanner for data capture.
• Тэрмапрынтэр: For printing receipts and other documents.
• Кнопка харчавання: Каб уключыць/выключыць прыладу або абудзіцца/перавесці яе ў рэжым сну.
• Кнопкі гучнасці: Каб рэгуляваць узровень гуку.
• Камера: 0.3 MP front photo sensor.
• Слот для SIM-карты: Supports 1 Nano SIM.
• Батарэйны адсек: Houses the removable Lithium Ion battery.
• Charging Port/Contacts: Для зарадкі прылады.

3. Пачатковая налада

3.1. Устаноўка батарэі

1. Пераканайцеся, што прылада выключана.
2. Знайдзіце вечка батарэйнага адсека на задняй панэлі прылады (гл. малюнак 2.3).
3. Зніміце вечка, зрушыўшы або падняўшы яго ў адпаведнасці з пазнакамі.
4. Insert the provided Lithium Ion battery, ensuring the contacts align correctly.
5. Надзейна заменіце крышку батарэйнага адсека.

3.2. Ўстаноўка SIM-карты

1. Ensure the device is powered off and the battery is installed.
2. Locate the SIM card slot cover on the side of the device (refer to Figure 2.2).
3. Адкрыйце крышку.
4. Insert a Nano SIM card into the designated slot with the gold contacts facing down and the notched corner aligned.
5. Close the SIM card slot cover firmly.

3.3. Thermal Paper Loading

1. Locate the printer cover release latch, typically on the top or side of the printer compartment (refer to Figure 2.3).
2. Адкрыйце крышку прынтара.
3. Insert a 58mm thermal paper roll into the compartment, ensuring the paper feeds from the bottom and the leading edge extends out of the printer slot.
4. Close the printer cover firmly until it clicks into place. Ensure there is no slack in the paper roll.

3.4. Пачатковая зарадка і ўключэнне

1. Connect the provided power adapter to the device's charging port.
2. Plug the adapter into a power outlet. Allow the device to charge fully before first use.
3. To power on, press and hold the Power button (refer to Figure 2.1) until the SUNMI logo appears on the screen.

4. Інструкцыя па эксплуатацыі

4.1. Уключэнне/выключэнне харчавання і рэжым сну

• Уключэнне: Press and hold the Power button until the device vibrates and the screen lights up.
• Выключэнне: Press and hold the Power button until a power menu appears. Select "Power Off" and confirm.
• Сон/няспанне: Briefly press the Power button to put the device into sleep mode or wake it up.

4.2. Using the Thermal Printer

The integrated 58mm thermal printer can be used to print receipts, tickets, and other documents.

1. Ensure thermal paper is correctly loaded (refer to Section 3.3).
2. Open the application that requires printing (e.g., POS software).
3. Initiate the print command within the application. The device will automatically print the content.
4. Tear off the printed paper against the serrated edge.

4.3. Сканіраванне штрых-кодаў

The V2SE supports 1D and 2D barcode recognition.

1. Open an application that requires barcode input.
2. Point the scanner window (located at the top of the device, refer to Figure 2.1) at the barcode.
3. Press the dedicated scan button (if available) or trigger the scan function within the application.
4. Пераканайцеся, што штрых-код знаходзіцца ў полі зроку сканера view and well-lit for optimal performance.

4.4. Функцыянальнасць NFC

The device supports Near Field Communication (NFC) for contactless operations.

1. Ensure NFC is enabled in the device settings (Settings > Connected devices > NFC).
2. Open an application that utilizes NFC (e.g., payment app, data transfer app).
3. Hold the NFC-enabled card or device close to the NFC detection area on your terminal (typically near the top or back of the device).
4. Follow the on-screen prompts to complete the transaction or data transfer.

4.5. Падключэнне да сеткі

• Wi-Fi: Go to Settings > Network & internet > Wi-Fi to connect to available wireless networks.
• Мабільная сувязь (4G/3G/2G): Ensure a valid SIM card is installed and mobile data is enabled in Settings > Network & internet > Mobile network.
• Bluetooth: Каб падключыцца да іншых прылад Bluetooth, перайдзіце ў Налады > Падлучаныя прылады > Bluetooth.

5. Тэхнічнае абслугоўванне

5.1. Ачыстка прылады

• Перад чысткай адключыце прыладу.
• Выкарыстоўвайце мяккую безворсовую тканіну, злёгку dampвадой або мяккім неабразіўным ачышчальнікам, каб выцерці вонкавую паверхню.
• For the display, use a screen-specific cleaner and a microfiber cloth.
• Do not use harsh chemicals, solvents, or abrasive materials. Avoid spraying liquids directly onto the device.

5.2. Сыход за батарэяй

• Charge the battery regularly, avoiding complete discharge whenever possible.
• Не падвяргайце батарэю ўздзеянню экстрэмальных тэмператур.
• Калі прылада не будзе выкарыстоўвацца працяглы час, зарадзіце акумулятар прыкладна да 50% і захоўвайце яго ў прахалодным, сухім месцы.
• Use only the original or approved charger and battery.

5.3. Printer Head Cleaning

Regular cleaning of the printer head can prevent print quality issues.

1. Power off the device and open the printer cover.
2. Злёгку працярыце ватовым тампонамampened with isopropyl alcohol to gently wipe the thermal print head.
3. Allow the print head to dry completely before closing the cover and powering on the device.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your vendor. Keep your proof of purchase for warranty claims.
