1. Уводзіны
This manual provides essential information for the safe and efficient operation and maintenance of your XtremepowerUS 19" Sand Filter 1.5HP Pump System. This system is designed for effective water filtration in pools up to 18,000 gallons, featuring a powerful 1.5HP pump with a 4,500 GPH flow rate and a versatile 7-way multi-port valve.
The system ensures optimal water turnover and filtration, contributing to a clean and healthy swimming environment. Please read this manual thoroughly before installation and use.
Image 1.1: Visual representation of the highly effective filtration, transforming cloudy water into crystal clear pool water.
Image 1.2: Illustration highlighting the robust filtration capacity, suitable for pools up to 20,000 gallons with a 175 lbs filter capacity.
2. Інфармацыя па бяспецы
Always prioritize safety when installing, operating, or maintaining pool equipment. Failure to follow safety instructions can result in serious injury or property damage.
- Электрабяспека: Ensure the pump is connected to a properly grounded outlet with a Ground Fault Circuit Interrupter (GFCI). Do not operate the pump if the power cord is damaged.
- Вада і электрычнасць: Never operate electrical appliances near water or with wet hands. Keep all electrical connections dry.
- Папярэджанне аб ціску: The filter operates under high pressure. Do not attempt to open the filter or pump while the system is running. Always turn off the pump and relieve pressure before servicing.
- Бяспека дзяцей: Keep children away from pool equipment. Adult supervision is required at all times.
- Ўстаноўка: Ensure the system is installed on a level, solid surface to prevent tipping.
3. Настройка
Follow these steps for proper installation of your sand filter and pump system.
- Размяшчэнне: Position the filter and pump on a firm, level surface, close to the pool and a suitable electrical outlet. Ensure adequate ventilation and drainage.
- Connect Pump to Filter: Attach the pump to the filter tank using the provided hoses and fittings. Ensure all connections are secure and watertight. The system features NPT 1.5 inch internal threads for inlet and outlet connections.
- Fill Filter with Sand: Remove the multi-port valve from the top of the filter tank. Place the standpipe inside the tank and carefully pour the recommended amount of filter sand (up to 175 lbs) around the standpipe. Ensure sand is filled between the MIN & MAX lines.
- Усталюйце шматпортавы клапан: Carefully place the multi-port valve onto the filter tank, ensuring the standpipe aligns correctly with the valve's opening. Secure the valve with the provided clamp або балты.
- Connect to Pool: Connect the pool's skimmer line to the pump's inlet and the pool's return line to the multi-port valve's 'RETURN' port. Connect a waste hose to the 'WASTE' port.
- Заліце помпу: Before starting, ensure the pump basket is full of water. Open all necessary valves to allow water flow from the pool to the pump.
- Электрычнае падключэнне: Plug the pump into a GFCI-protected electrical outlet.

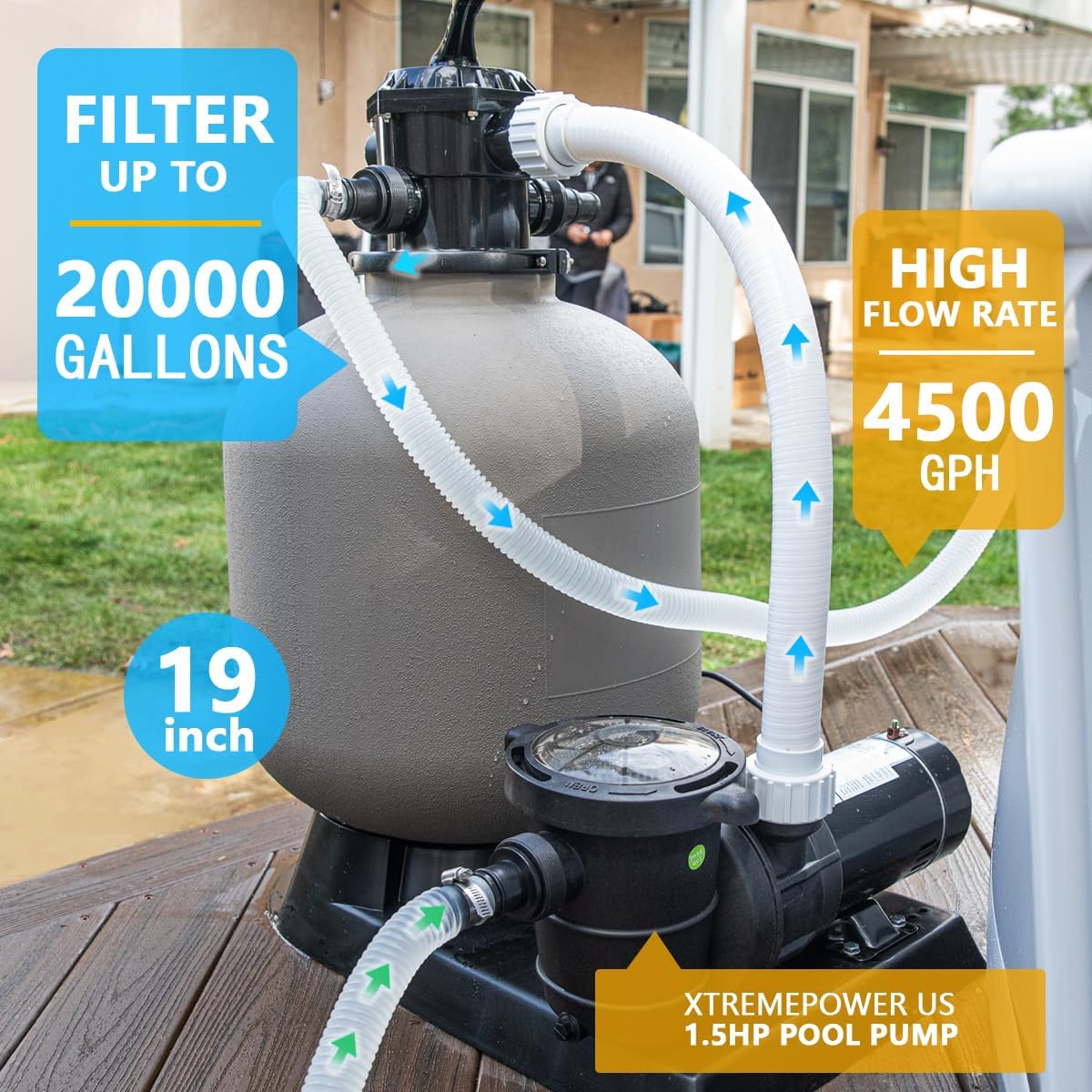

Выява 3.1: Канецview of the sand filter and pump system setup next to an above-ground pool.
Image 3.2: Detail of the NPT 1.5 inch internal thread connections for easy setup.
Відэа 3.1: Чыноўнік скончыўview of the XtremepowerUS 19" Sand Filter with 1.5HP Pool Pump for above-ground pools, demonstrating its features and setup.
4. Інструкцыя па эксплуатацыі
The 7-way multi-port valve allows for various operational modes. Always turn off the pump before changing the valve position.
- Фільтр: This is the standard operating mode for daily filtration. Water flows through the sand, removing debris, and returns to the pool.
- Зваротная прамыванне: Used to clean the filter sand. Water flows in reverse through the filter, flushing accumulated debris out through the waste port. Perform when the pressure gauge reads 8-10 PSI above its clean operating pressure.
- Паласканне: After backwashing, this mode settles the sand and flushes any remaining dirty water from the valve to the waste port before returning to filter mode.
- Рэцыркуляцыя: Bypasses the filter, circulating water directly back to the pool. Useful for chemical distribution without filtering.
- Адходы: Drains water directly from the pool through the waste port, bypassing the filter. Useful for lowering pool water level or vacuuming heavy debris directly to waste.
- зіма: Used for winterizing the filter system.
- Закрыты: Shuts off all flow to the filter. Use only when servicing the pump or filter.
Monitor the built-in pressure gauge for optimal performance. A rising pressure indicates the need for backwashing.
Малюнак 4.1: Падрабязны view of the multi-port valve, showing the handle and pressure gauge for operational control.
Image 4.2: Diagram explaining the various functions of the 7-way filtering valve.
5. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and efficiency of your XtremepowerUS filter system.
- Зваротная прамыванне: Perform backwashing when the pressure gauge indicates a rise of 8-10 PSI above its normal clean operating pressure. Follow the 'Backwash' and 'Rinse' steps in the operating instructions.
- Ачыстка кошыка фільтра: Periodically check and clean the pump's strainer basket. Turn off the pump, close necessary valves, and remove the transparent lid to access the basket. Remove any debris and replace the basket and lid securely.
- Замена пяску: Filter sand typically needs replacement every 3-5 years, depending on usage and water quality. Refer to the setup section for instructions on filling the filter with new sand.
- Зімоўка: Before freezing temperatures, drain all water from the pump and filter. Set the multi-port valve to 'WINTER' position. Store the pump in a dry, protected area if possible.
6. Выпраўленне непаладак
Below are common issues and potential solutions for your filter system.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Нізкі расход вады | Clogged strainer basket, dirty filter sand, air leak in suction line, low water level in pool. | Clean strainer basket, backwash/rinse filter, check all connections for leaks, ensure adequate pool water level. |
| Water Not Clearing | Insufficient filtration time, dirty filter sand, incorrect chemical balance, undersized system. | Increase run time, backwash/rinse filter, check and adjust pool chemistry, ensure proper sand level. |
| Помпа не запускаецца | No power, tripped GFCI, motor issue. | Check power supply and GFCI, consult an electrician if motor hums but doesn't start. |
| Уцечка вады | Loose connections, damaged O-rings/gaskets. | Tighten all connections, inspect and replace O-rings/gaskets as needed. |
If problems persist, contact XtremepowerUS customer support.
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | XtremepowerUS |
| Нумар мадэлі | 75112-V |
| Магутнасць помпы | 1.5 HP |
| Хуткасць патоку | 4500 гадавых за гадзіну |
| Памер бака фільтра | 19 цаляў |
| Максімальная ёмістасць басейна | Да 18,000 XNUMX галонаў |
| Filter Media Capacity | Up to 175 lbs of sand |
| Шматпортавы клапан | 7-Way (Filter, Backwash, Rinse, Recirculate, Waste, Winter, Closed) |
| тtage | 115 вольт |
| Матэрыял | Metal, Polyethylene (PE) |
| Вага прадмета | 60 фунта |
| UPC | 840166544631 |
Image 7.1: Dimensions of the XtremepowerUS sand filter and pump system.
8. Гарантыя і падтрымка
For warranty information, technical support, or replacement parts, please contact XtremepowerUS customer service. Keep your purchase receipt as proof of purchase.
For further assistance, visit the official XtremepowerUS webсайт або звярніцеся да кантактнай інфармацыі, размешчанай на ўпакоўцы прадукту.
