Green Cell Duo 12V/24V to 230V 300W/600W Modified Sine Wave Power Inverter

Уводзіны

This manual provides essential information for the safe and efficient operation of your Green Cell Duo 12V/24V to 230V 300W/600W Modified Sine Wave Power Inverter. This universal DC/AC inverter is designed to convert battery power from 12V or 24V DC sources (such as car or truck batteries) into 230V AC power, allowing you to power various electronic devices on the go. Please read this manual thoroughly before installation and use, and retain it for future reference.

Інструкцыі па тэхніцы бяспекі

Always prioritize safety when operating electrical equipment. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Вентыляцыя: Ensure the inverter is installed in a well-ventilated area. Do not block the ventilation openings or fan.
• Вільготнасць: Do not expose the inverter to rain, moisture, or water. Operate only in dry conditions.
• тэмпература: Avoid operating the inverter in direct sunlight or near heat sources. Maintain ambient temperatures within the specified range.
• Вогненебяспечныя матэрыялы: Не выкарыстоўвайце інвертар паблізу лёгкаўзгаральных вадкасцей, газаў або іншых лёгкаўзгаральных матэрыялаў.
• падключэнне: Connect the inverter only to a 12V or 24V DC power source. Ensure correct polarity (+ to + and - to -). Incorrect connection can damage the inverter and battery.
• нагрузка: Do not exceed the inverter's continuous power rating of 300W. The surge power is 600W for short periods. Overloading can cause damage or trigger protection mechanisms.
• Зазямленне: Пераканайцеся, што інвертар належным чынам заземлены ў адпаведнасці з мясцовымі электрычнымі нормамі.
• дзеці: Трымайце інвертар у месцах, недаступных для дзяцей.
• Тэхнічнае абслугоўванне: Only qualified personnel should perform maintenance or repairs. Refer to the 'Maintenance' section for user-serviceable parts.

выява: This diagram illustrates the inverter's built-in safety protections, including short-circuit protection, over-voltage protection, overload protection, high-temperature protection, reverse polarity protection, and under-voltagэлектронная абарона.

Змест пакета

Калі ласка, праверце ўпакоўку на наяўнасць наступных прадметаў:

• Green Cell Duo Power Inverter (Model: INVGC1224M300DUO)
• DC Connection Cable (50 cm) with battery clamps
• 12V/24V Car Cigarette Lighter Plug
• Two (2) Spare Fuses
• Кіраўніцтва карыстальніка

выява: The Green Cell power inverter shown alongside its included accessories: DC connection cables with battery clamps, a cigarette lighter plug, and two spare fuses.

Прадукт скончаныview

Familiarize yourself with the components and features of your Green Cell power inverter.

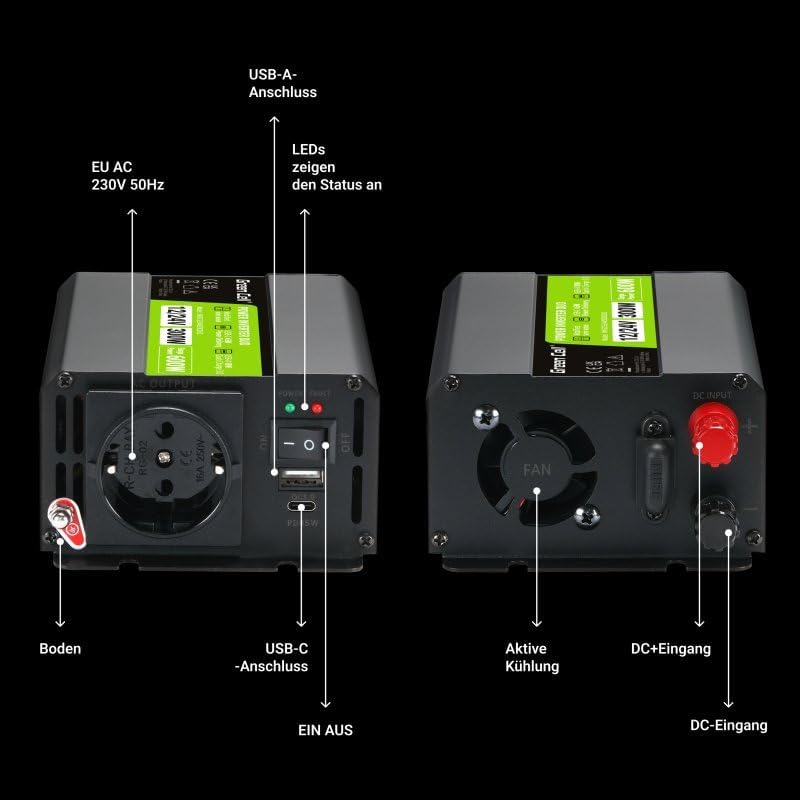

выява: This detailed diagram highlights the various ports and features of the inverter. On the output side, it shows the EU AC 230V 50Hz outlet, USB-A port, USB-C port, ON/OFF switch, and status LEDs. On the input side, it shows the DC+ and DC- input terminals, the cooling fan, and the external fuse holder.

Асноўныя характарыстыкі:

• Mobile Power: Provides 300W continuous power (600W surge) for electronics in remote locations.
• Flexible Input: Supports dual input voltage of 12V and 24V DC, compatible with car and truck electrical systems.
• Хуткая зарадка: Equipped with USB-C Power Delivery (45W) and USB-A Quick Charge 3.0 (18W) ports for efficient charging of multiple devices.
• Modified Sine Wave Output: Suitable for most common electronic devices.
• Функцыі бяспекі: Includes short-circuit, over-voltage, overload, high-temperature, reverse polarity, and under-voltagэлектронная абарона.
• Зручны: Intuitive design with an easily accessible and replaceable fuse.

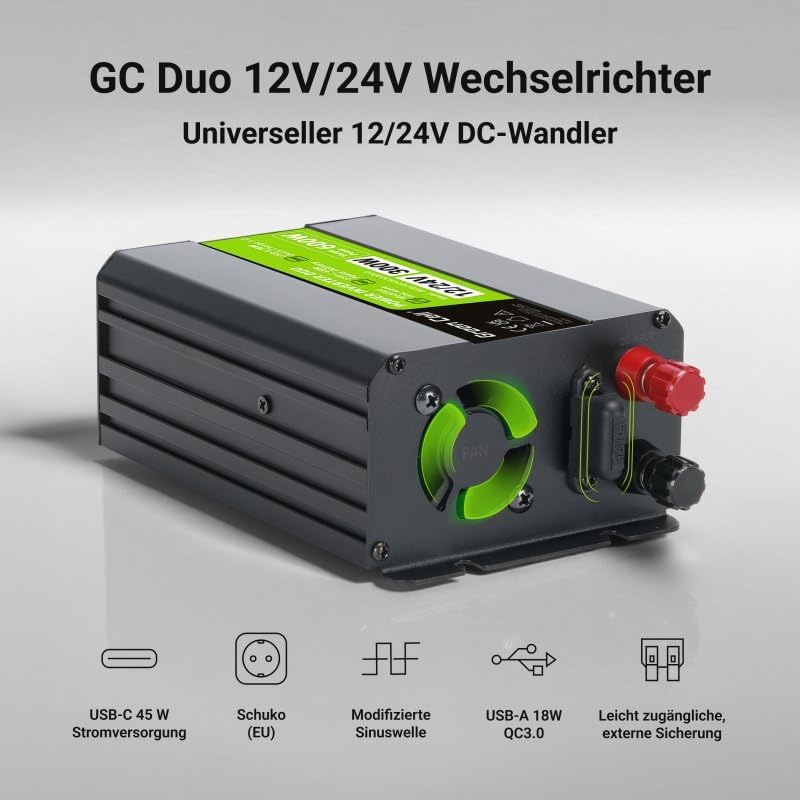

выява: This image highlights the main features of the Green Cell Duo inverter: USB-C 45W Power Delivery, Schuko (EU) 230V socket, Modified Sine Wave output, USB-A 18W Quick Charge 3.0, and an easily accessible external fuse.

Настройка і ўстаноўка

Follow these steps to properly set up and install your power inverter.

1. Выберыце месца: Select a dry, well-ventilated area for installation, away from direct sunlight, heat sources, and flammable materials. Ensure adequate space around the inverter for air circulation, especially around the fan.
2. Мантаж (дадаткова): The inverter can be mounted using the integrated mounting tabs. Use appropriate screws (not included) to secure it to a stable surface.
3. Connect to DC Power Source:
   • For Battery Clamp падключэнне: Connect the red cable (positive +) to the positive terminal of your 12V or 24V battery and the black cable (negative -) to the negative terminal. Ensure connections are tight and secure.
   • For Cigarette Lighter Plug Connection: Insert the cigarette lighter plug into your vehicle's 12V or 24V cigarette lighter socket. This method is suitable for lower power devices (typically up to 150W, check your vehicle's socket rating).

   Важна: Always connect the inverter to the DC power source раней turning it on or connecting AC devices.

4. Зазямленне: Connect the inverter's grounding terminal to a proper earth ground (e.g., vehicle chassis) using a suitable wire.

Інструкцыя па эксплуатацыі

Пасля таго, як інвертар правільна ўсталяваны і падключаны, выканайце наступныя дзеянні для яго эксплуатацыі:

1. Turn On the Inverter: Flip the ON/OFF switch on the inverter to the 'ON' position. The status LEDs should illuminate, indicating the inverter is active.
2. Падключэнне прылад кандыцыянера: Plug your 230V AC device(s) into the AC outlet on the inverter. Ensure the total power consumption of your devices does not exceed 300W.
3. Падключыце прылады USB: For charging USB devices, connect them to the USB-A Quick Charge 3.0 port or the USB-C Power Delivery port.
4. Манітор узроўню батарэі: Pay attention to your vehicle's battery level, especially when using the inverter for extended periods. Prolonged use can drain the battery. The inverter has an under-voltage protection feature that will shut it down if the battery voltage апускаецца занадта нізка.
5. Turn Off the Inverter: When you are finished using the inverter, first disconnect all AC and USB devices, then flip the ON/OFF switch to the 'OFF' position.

Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае аптымальную прадукцыйнасць і даўгавечнасць вашага інвертара.

• Уборка: Перыядычна працірайце знешнія паверхні інвертара сухой мяккай тканінай. Не выкарыстоўвайце вадкія ачышчальнікі або растваральнікі.
• Вентыляцыя: Ensure the cooling fan and ventilation openings are free from dust and debris. Use compressed air to clear any blockages if necessary.
• Сувязі: Regularly check all electrical connections (DC input, AC output, grounding) to ensure they are tight and free from corrosion.
• Замена засцерагальніка: The inverter features an easily accessible, replaceable fuse. If the inverter stops working and the status light indicates a fuse issue, disconnect the inverter from all power sources, open the fuse holder, and replace the blown fuse with a new one of the same rating (spare fuses are included).

Ліквідацыю непаладак

Калі ў вас узніклі праблемы з інвертарам, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

Green Cell products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided on the official Green Cell website or your purchase documentation. Please have your model number (INVGC1224M300DUO) and proof of purchase ready when contacting support.
