Neutral Safety Switch MR263257 User Manual

1. Уводзіны

This manual provides essential information for the installation, operation, and maintenance of the QANYEGN Neutral Safety Switch, model MR263257. This component is designed to ensure the safe operation of your vehicle's transmission system by preventing engine startup when the transmission is not in Park or Neutral. Please read this manual thoroughly before installation and use.

2. Апісанне прадукту

The QANYEGN Neutral Safety Switch (Inhibitor Switch) MR263257 is a direct replacement part engineered to match original equipment specifications. It is constructed from durable ABS plastic and aluminum components, ensuring longevity and reliable performance in automotive environments.

Image 1: The QANYEGN Neutral Safety Switch MR263257, showing the main body and integrated wiring harness with connector.

Асноўныя характарыстыкі:

• OE Number Reference: Designed to match OE number MR263257 for precise fitment.
• Прамая замена: Engineered to be a perfect fit, replacing the original part without modifications.
• Высакаякасны матэрыял: Crafted with ABS and Aluminum for enhanced durability and performance.
• Надзейная прадукцыйнасць: Features anti-rust and wear-resistant properties for optimal functionality and extended lifespan.
• Лёгкая ўстаноўка: Designed for a straightforward and efficient replacement process.

3. Сумяшчальнасць і прыстасаванне

This Neutral Safety Switch (MR263257) is compatible with the following vehicle models:

• For Mitsubishi Montero Sport: 1999-2004
• For Mitsubishi Montero: 1999-2004

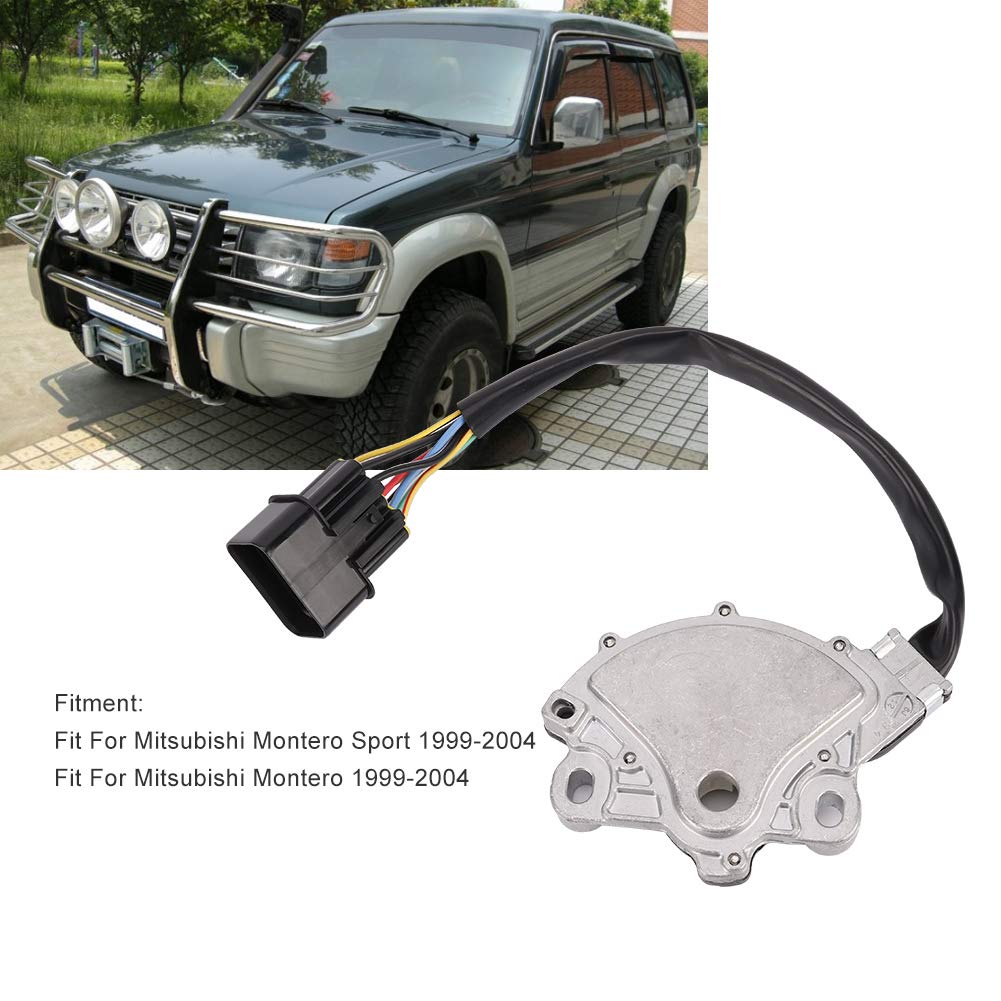

Image 2: The neutral safety switch shown alongside a Mitsubishi Montero Sport, illustrating the intended vehicle application.

4. Змесціва ўпакоўкі

Пасля адкрыцця ўпакоўкі пераканайцеся, што ўсе кампаненты наяўныя і не пашкоджаныя.

• 1 x Inhibitor Neutral Safety Switch (MR263257)

5. Інструкцыя па ўстаноўцы

The installation of the Neutral Safety Switch requires basic automotive knowledge and tools. If you are unsure about any step, it is recommended to seek professional assistance.

Неабходныя інструменты:

• Набор торцавых ключоў
• Набор адвёртак
• Vehicle jack and jack stands (for safe access)
• Ахоўныя акуляры і пальчаткі

Пакрокавае кіраўніцтва:

1. Бяспека перш за ўсё: Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the engine is off. Disconnect the negative terminal of the vehicle's battery to prevent electrical hazards.
2. Знайдзіце стары выключальнік: The neutral safety switch is typically located on the side of the transmission, near the shift linkage. Refer to your vehicle's service manual for the exact location.
3. Адключыце праводку: Carefully disconnect the electrical connector from the old neutral safety switch. Avoid pulling directly on the wires.
4. Зняць стары перамыкач: Unbolt the old neutral safety switch from the transmission. Note the orientation of the switch for proper installation of the new one.
5. Усталяваць новы камутатар: Position the new QANYEGN Neutral Safety Switch (MR263257) in the same orientation as the old one. Secure it with the bolts, tightening them to the manufacturer's specifications.
6. Падключэнне правадоў: Reconnect the electrical connector to the new switch, ensuring a secure connection.
7. Паўторнае падключэнне батарэі: Зноў падключыце адмоўны вывад акумулятара аўтамабіля.
8. Праверка функцыянальнасці: Start the vehicle and test the switch by attempting to start the engine in various gear positions. The engine should only start in Park or Neutral.

Малюнак 3: Падрабязны view of the electrical connector on the neutral safety switch, highlighting the multi-pin configuration for proper wiring connection.

6. Прынцыпы працы

The Neutral Safety Switch is a critical safety device that prevents the engine from starting unless the transmission is in either the Park (P) or Neutral (N) position. When the gear selector is in P or N, the switch completes an electrical circuit, allowing the starter motor to engage. In any other gear (Reverse, Drive, etc.), the circuit remains open, preventing the engine from cranking. This mechanism helps prevent accidental vehicle movement during startup.

7. Тэхнічнае абслугоўванне

The QANYEGN Neutral Safety Switch is designed for long-term reliability and typically requires minimal maintenance. Regular vehicle inspections should include checking the wiring harness for any signs of wear, corrosion, or damage. Ensure the electrical connector remains securely attached. No lubrication or internal servicing of the switch is required.

8. Выпраўленне непаладак

If you experience issues with your vehicle's starting system after installing or during the use of the neutral safety switch, consider the following:

• Engine Does Not Crank in Park or Neutral:
  • Check the electrical connection to the switch for looseness or corrosion.
  • Verify the switch is correctly aligned and fully engaged.
  • Inspect the wiring harness for damage.
  • Ensure the vehicle battery is charged and terminals are clean.
• Engine Cranks in Other Gears (e.g., Drive or Reverse):
  • This indicates a potential malfunction of the neutral safety switch or incorrect installation. Re-check the installation steps and ensure the switch is properly aligned.
  • If the issue persists, the switch may be faulty and require replacement.

Пры пастаянных праблемах звярніцеся да кваліфікаванага аўтамабільнага тэхніка.

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

QANYEGN products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the product packaging or contact QANYEGN customer service through their official channels. Keep your purchase receipt as proof of purchase.
