GOWENIC Electric Sprayer 8L User Manual

Уводзіны

Thank you for choosing the GOWENIC Electric Sprayer 8L. This battery-powered sprayer is designed for efficient and convenient application of liquids for various tasks, including gardening, lawn care, cleaning, and disinfection. Its automatic operation and portable design make it suitable for both small and large areas. Please read this manual thoroughly before initial use to ensure proper assembly, safe operation, and optimal performance.

The GOWENIC 8L Electric Sprayer, shown with its shoulder strap and demonstrating its spray capability.

Інфармацыя па бяспецы

Заўсёды выконвайце асноўныя меры бяспекі пры выкарыстанні гэтага прадукта, каб знізіць рызыку траўмаў або пашкоджанняў.

• Прачытайце ўсе інструкцыі перад выкарыстаннем.
• Do not spray flammable liquids, strong acids, or corrosive chemicals.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling chemicals.
• Захоўваць у месцах, недаступных дзецям і хатнім жывёлам.
• Do not immerse the sprayer unit in water.
• Charge the battery in a dry, well-ventilated area.
• Адключыце зарадная прылада, як толькі акумулятар будзе цалкам зараджаны.
• Do not modify the sprayer or its components.

Настройка

Follow these steps to assemble and prepare your electric sprayer for first use.

1. Распакаванне і праверка кампанентаў

Carefully remove all components from the packaging. Verify that all parts listed below are present and undamaged.

• 1 x Water Bottle (8L capacity)
• 1 x Sprayer Unit (with inbuilt battery and handle)
• 1 x Sprayer Pole
• 1 х шланг
• 4 x Nozzles (various types)
• 1 x Straps (shoulder strap)
• 2 x Cover (for bottle openings)
• 1 х USB-кабель (для зарадкі)
• 2 х пракладка
• 1 x English Manual (this document)

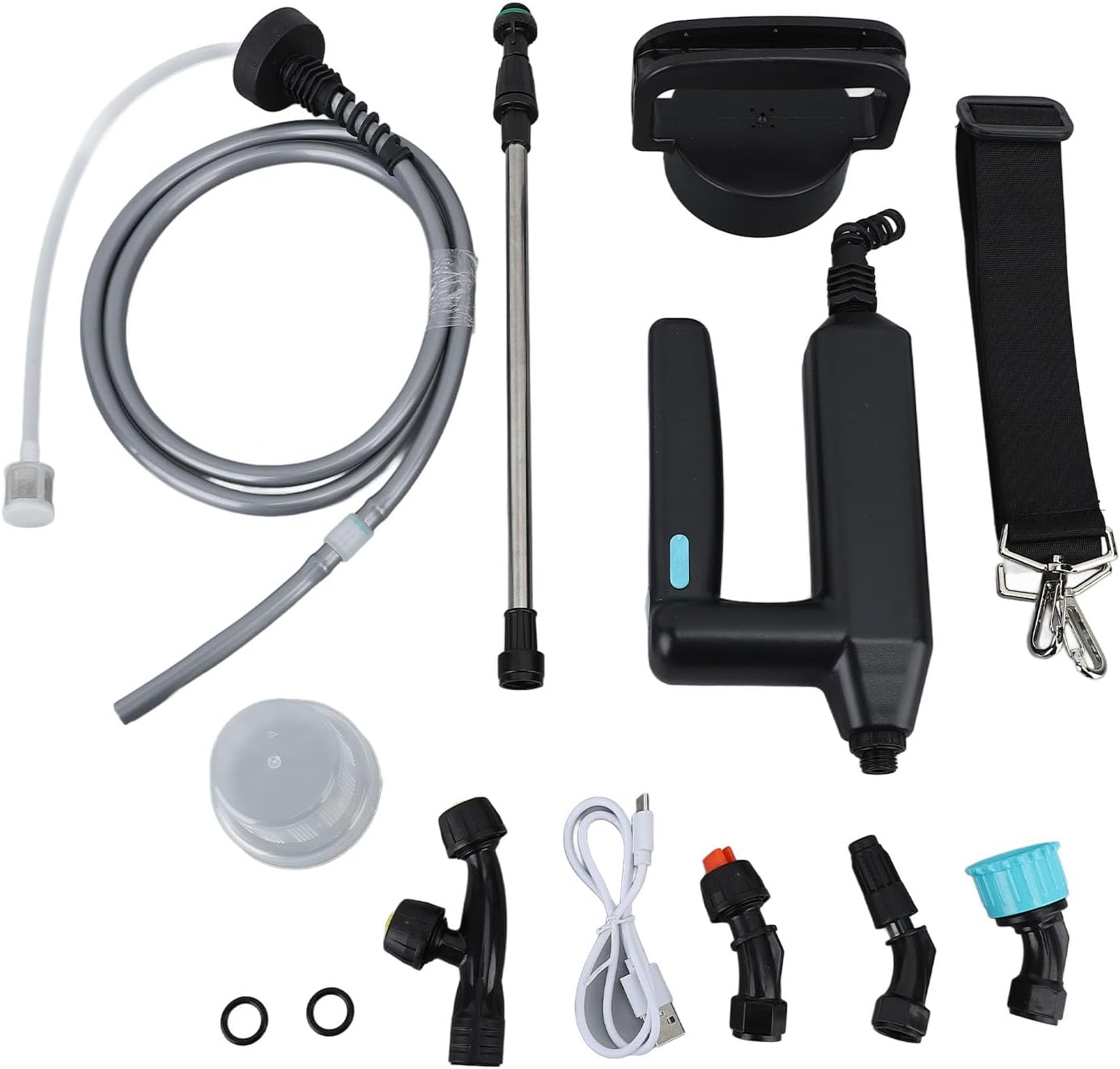

All included components of the GOWENIC 8L Electric Sprayer, including the main unit, hose, pole, nozzles, strap, and charging cable.

2. зборка

1. Падключыце шланг: Attach one end of the hose to the outlet port on the sprayer unit and the other end to the inlet on the water bottle. Ensure connections are secure to prevent leaks.
2. Attach the Sprayer Pole: Connect the sprayer pole to the handle of the sprayer unit.
3. Выберыце і прымацуйце фарсунку: Choose the desired nozzle from the four provided and screw it onto the end of the sprayer pole.
4. Прымацаваць плечавы рамень: If desired, attach the shoulder strap to the designated loops on the water bottle for easier portability.

3. Пачатковая зарадка

Before first use, fully charge the built-in lithium battery. Connect the provided USB cable to the charging port on the sprayer unit and plug the other end into a compatible USB power adapter (not included). The charging indicator light will show the charging status. A full charge typically takes several hours.

Інструкцыя па эксплуатацыі

1. Filling the Water Bottle

1. Ensure the sprayer unit is turned off.
2. Unscrew the main cap of the 8L water bottle.
3. Pour the desired liquid (water, fertilizer, pesticide, cleaning solution) into the bottle. Do not exceed the 8L maximum fill line.
4. Securely screw the cap back onto the bottle to prevent leaks.

Буйны план view of the sprayer's top cap, which is removed for filling, and the integrated handle.

2. Уключэнне і распыленне

1. Hold the sprayer handle comfortably.
2. Press the power button on the handle to turn on the sprayer. The built-in electric motor will activate, and liquid will begin to spray automatically.
3. Direct the sprayer pole towards the target area.
4. To stop spraying, press the power button again.

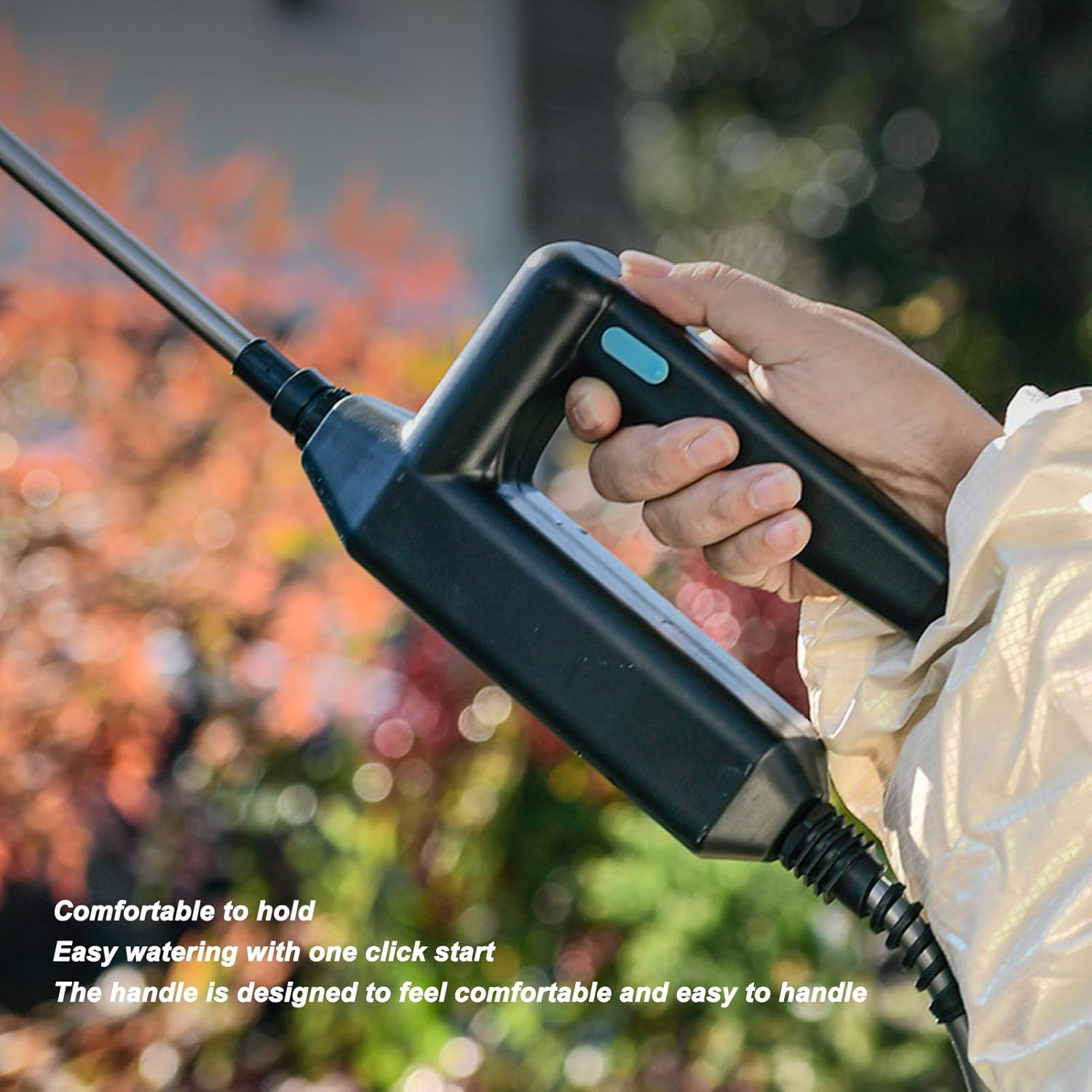

A hand demonstrating how to comfortably hold the sprayer handle and operate the one-click start button.

3. Adjusting Spray Pattern

The sprayer comes with four different nozzles to achieve various spray patterns:

• Direct Spray: For concentrated application.
• Atomized Nozzle: For a fine mist.
• Fan Nozzle: For a wide, flat spray pattern.
• 6-Hole Nozzle / 2-Head Nozzle: For broader coverage or specific applications.

To change the spray pattern, unscrew the current nozzle from the sprayer pole and screw on the desired nozzle. Test the spray pattern in a safe area before applying to your target.

Візуальны эксamples of various spray patterns achievable with the different nozzles, including direct spray, atomized mist, and fan spray.

Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and efficient operation of your sprayer.

1. Уборка пасля выкарыстання

1. Empty any remaining liquid from the water bottle.
2. Rinse the bottle thoroughly with clean water.
3. Fill the bottle with clean water and spray it through the nozzle for a few minutes to flush out the hose and sprayer pole.
4. Clean the exterior of the sprayer unit with a damp тканінай. Не выкарыстоўвайце абразіўныя ачышчальныя сродкі і не апускайце прыладу ў ваду.
5. Remove and clean the nozzles separately to prevent clogging.

2. Захоўванне

• Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures.
• Ensure the battery is partially charged (not fully depleted or fully charged for extended periods) before storing for long durations.
• Keep the sprayer out of reach of children.

Ліквідацыю непаладак

If you encounter issues with your sprayer, refer to the following common problems and solutions:

Тэхнічныя характарыстыкі

• мадэль: GOWENICp3a9buk26z-11
• Ёмістасць: 8 літра (2.1 галона)
• Тып батарэі: Убудаваная літыевая батарэя
• Ёмістасць батарэі: 2000 мАг
• матэрыял: Acrylonitrile Butadiene Styrene (ABS), Polyethylene (PE)
• Крыніца харчавання: Пераменны/пастаянны ток (праз зарадку праз USB)
• Памеры (прыблізна): 26 cm (H) x 30 cm (L) x 16.5 cm (W) / 10.24 in (H) x 11.81 in (L) x 6.5 in (W)
• Вага (прыбл.): 1430 г / 50.4 унцый

Key dimensions of the GOWENIC 8L Electric Sprayer for reference.

Інфармацыя аб гарантыі

This product is covered by a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the warranty card included in your product packaging or contact GOWENIC customer support directly. Keep your purchase receipt as proof of purchase.

Падтрымка кліентаў

If you have any questions, require technical assistance, or need to report an issue with your GOWENIC Electric Sprayer, please contact our customer support team. Refer to the contact information provided on the product packaging or the official GOWENIC webсайт з найбольш актуальнымі каналамі падтрымкі.
