Aquagem Inverstar IA23 Variable Speed Pool Pump User Manual

1. Уводзіны

Thank you for choosing the Aquagem Inverstar IA23 Variable Speed Pool Pump. This pump utilizes advanced INVERTER technology to provide precise control over motor speed, offering significant energy savings, quieter operation, and extended product lifespan compared to traditional single-speed pumps. This manual provides essential information for the safe installation, operation, and maintenance of your pump. Please read it thoroughly before use and retain it for future reference.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Невыкананне гэтых інструкцый можа прывесці да сур'ёзных траўмаў або смерці.

• Заўсёды адключайце харчаванне помпы перад выкананнем любога абслугоўвання або тэхнічнага абслугоўвання.
• Installation must be performed by a qualified electrician and plumber in accordance with all local and national codes.
• Ensure the pump is installed on a solid, level surface, protected from excessive moisture and direct sunlight.
• Do not operate the pump if it is damaged or if any electrical components are exposed.
• Трымайце дзяцей і хатніх жывёл далей ад помпы падчас працы.
• Ніколі не запускайце помпу ўсухую. Перад запускам пераканайцеся, што помпа запоўнена вадой.
• Выкарыстоўвайце толькі арыгінальныя запасныя часткі.

3. Змесціва ўпакоўкі

Please check the contents of your package. If any items are missing or damaged, contact your supplier immediately.

• Aquagem Inverstar IA23 Variable Speed Pool Pump
• Кіраўніцтва карыстальніка (гэты дакумент)
• Connection fittings (typically 2" / 63mm)
• Гарантыйны талон

4. Настройка і ўстаноўка

4.1. размяшчэнне

Position the pump as close to the pool as possible to minimize friction loss from plumbing. Ensure adequate ventilation around the pump for cooling. The pump should be installed below water level for optimal priming, or in a location that allows for easy manual priming.

4.2. Сантэхнічныя злучэнні

Connect the pool plumbing to the pump's inlet and outlet ports. The pump is designed for 2" / 63mm connections. Use appropriate PVC cement and primer for secure, leak-free joints. Ensure all connections are tight to prevent air leaks, which can affect pump performance and priming.

4.3. Электрычнае падключэнне

The Aquagem Inverstar IA23 pump is a single-phase unit and requires a dedicated electrical circuit. Connect the pump to a properly grounded power supply via an electrical cable, ensuring all wiring complies with local electrical codes. A Residual Current Device (RCD) or Ground Fault Circuit Interrupter (GFCI) is highly recommended for safety.

4.4. Запраўка помпы

Before initial startup, the pump must be primed. Open the strainer basket lid, fill the basket with water until it overflows, then securely replace the lid. Ensure all valves leading to and from the pump are open. Once primed, the pump is ready for operation.

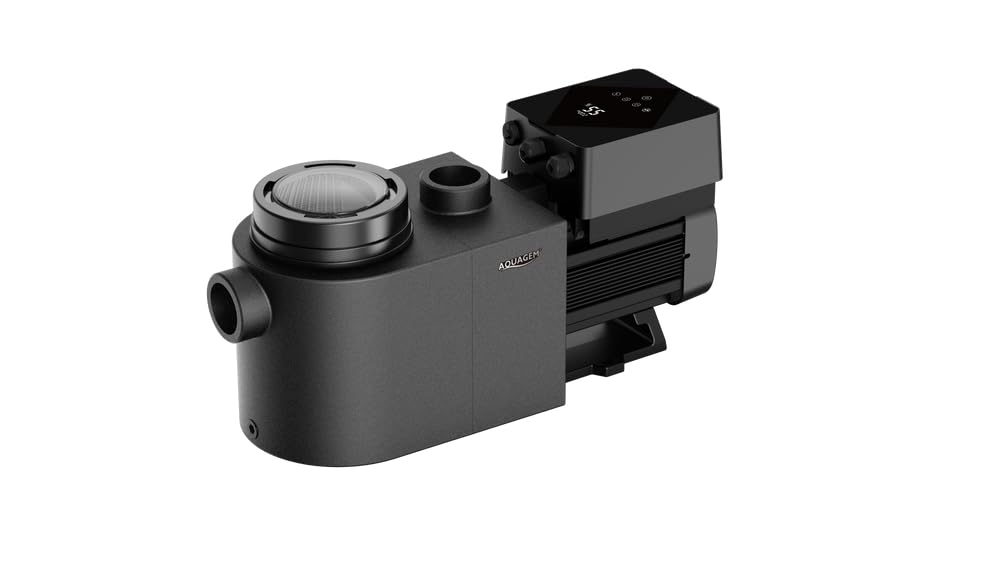

Figure 1: Aquagem Inverstar IA23 Variable Speed Pool Pump. This image shows the compact design of the pump, including its motor, wet end, and control panel. The inlet and outlet ports are visible, ready for plumbing connections.

5. Інструкцыя па эксплуатацыі

5.1. Уключэнне / выключэнне харчавання

To power on the pump, ensure it is properly connected to the electrical supply and the main power switch is engaged. The pump's control panel will illuminate. To power off, use the designated power button on the control panel or disconnect the main power supply.

5.2. Adjusting Flow and Speed

The Inverstar IA23 pump allows for precise adjustment of motor speed and flow rate thanks to its INVERTER technology. Use the control panel to select desired operating speeds or pre-set programs. For daily filtration, a lower speed can be selected for quiet and energy-efficient operation. The pump can operate at 100% capacity for tasks requiring maximum flow.

5.3. Backwash Function

The pump features a convenient one-button backwash function. When performing a backwash on your filter, activate this function to temporarily run the pump at full capacity, ensuring effective cleaning of the filter media. Refer to your filter's manual for specific backwash procedures.

5.4. Current Consumption Display

The control panel displays the current electrical consumption, allowing you to monitor energy usage in real-time. This feature helps in optimizing pump speed for energy efficiency.

5.5. External Control (Modbus RS485)

For advanced integration with pool automation systems, the pump supports external control via Modbus RS485. Consult a qualified technician for setup and configuration of this feature.

6. Тэхнічнае абслугоўванне

6.1. Strainer Basket Cleaning

Regularly inspect and clean the pump's strainer basket. Turn off the pump and close all necessary valves before opening the basket lid. Remove debris, rinse the basket, and replace it securely. A clogged basket can reduce pump efficiency and lead to damage.

6.2. Падрыхтоўка да зімы

In regions with freezing temperatures, proper winterization is crucial. Drain all water from the pump and plumbing lines to prevent freeze damage. Store the pump in a dry, protected area if possible, or cover it adequately if left outdoors.

7. Выпраўленне непаладак

Перш чым звяртацца ў службу падтрымкі кліентаў, азнаёмцеся з наступнымі распаўсюджанымі праблемамі і іх рашэннямі:

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

The Aquagem Inverstar IA23 Variable Speed Pool Pump comes with a Гарантыя 2 год. The motor specifically is covered by a Гарантыя 2 год з даты пакупкі. Гэтая гарантыя распаўсюджваецца на вытворчыя дэфекты пры нармальным выкарыстанні і абслугоўванні.

For warranty claims, technical support, or inquiries, please contact your authorized Aquagem dealer or visit the official Aquagem website for contact information. Please have your proof of purchase and model number (IA23) ready when contacting support.
