Vector Optics SCOL-TE52 Continental 6-48x56ED SFP MOA Riflescope User Manual

1. Прадукт скончыўсяview

The Vector Optics Continental series represents a flagship product line, designed to offer exceptional optical performance comparable to renowned optics at a competitive price. This SCOL-TE52 model features high-quality LaREE lenses manufactured by the German company Schott, ensuring excellent optical clarity, high light transmission, and minimal distortion for a sharp image, even in challenging lighting conditions.

Key features include a 6-level illuminated reticle, adjustable to ambient brightness for rapid target acquisition, and precise 1/10 MOA click adjustments. This allows for improved reticle visibility in low-light conditions and fine-tuning for target precision, adapting the riflescope optimally to your shooting needs.

In summary, the Continental riflescope is a powerful and reliable optical instrument designed for precision shooters and hunters. With its high-quality LaREE lenses, illuminated reticle, and precise adjustments, it delivers excellent optical performance and enables accurate target acquisition across various distances.

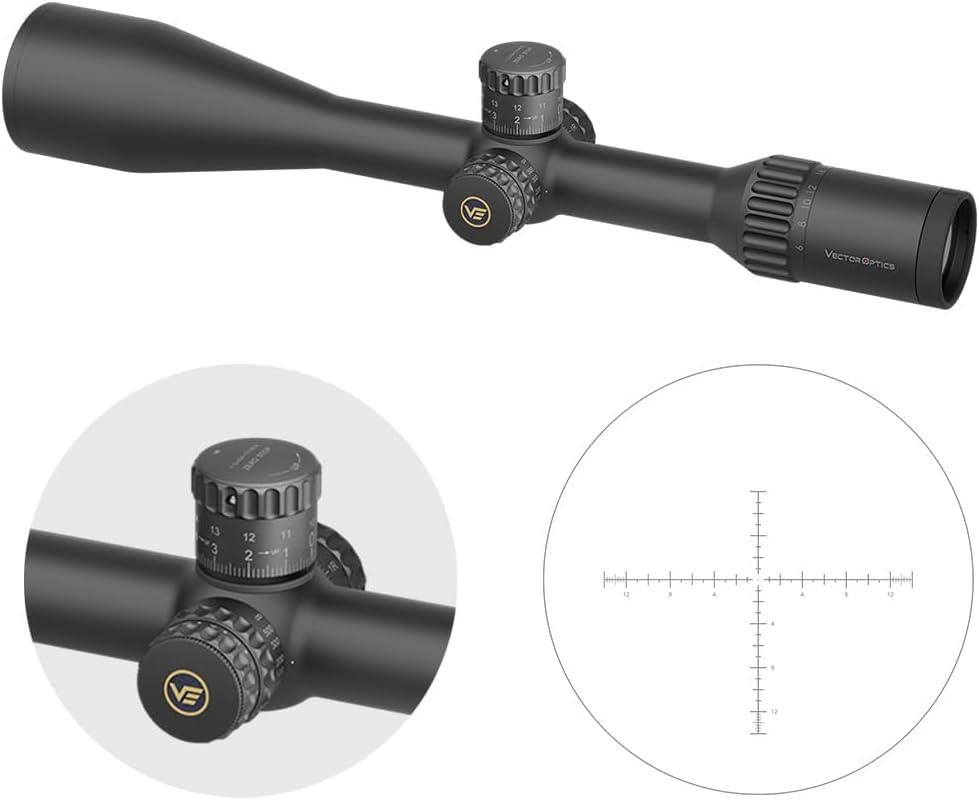

Image 1.1: The Vector Optics SCOL-TE52 Continental 6-48x56ED SFP MOA Riflescope, showcasing its overall design and turrets.

2. Камплектацыя і ўстаноўка

2.1 Змест пакета

Перад тым, як працягнуць усталёўку, пераканайцеся, што ўсе кампаненты прысутнічаюць у камплекце:

• Vector Optics SCOL-TE52 Continental Riflescope
• Mounting Rings for 21mm Picatinny / Weaver Rails
• Eyepiece and Objective Lens Protection Caps
• Анучка для чысткі
• Кіраўніцтва па эксплуатацыі

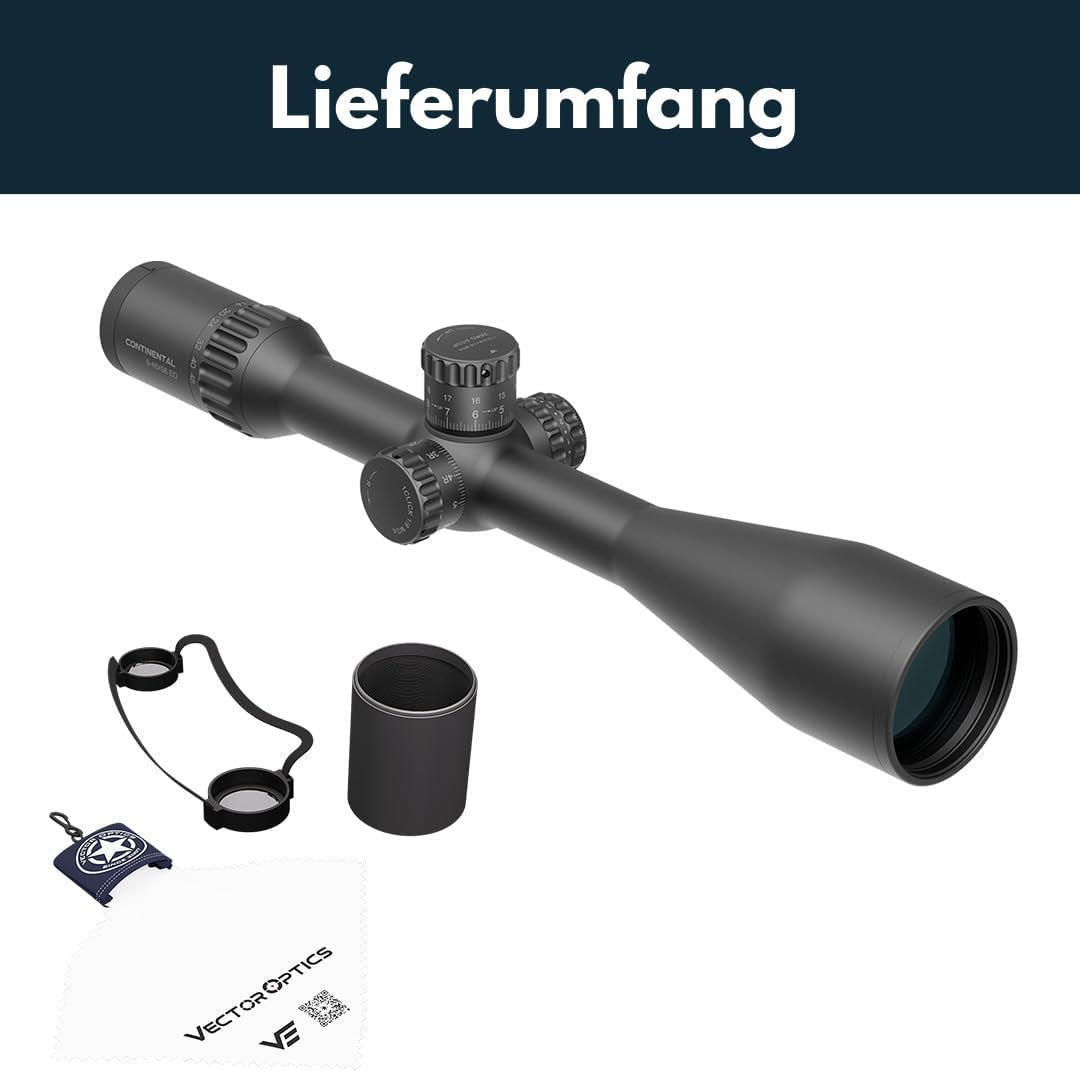

Image 2.1: Included accessories: riflescope, mounting rings, lens caps, and cleaning cloth.

2.2 Усталёўка аптычнага прыцэла

To ensure stable and accurate performance, proper mounting is crucial. Use the provided mounting rings for 21mm Picatinny or Weaver rails.

1. Attach the mounting rings securely to your firearm's Picatinny or Weaver rail. Ensure they are spaced appropriately for optimal balance and eye relief.
2. Place the riflescope into the lower halves of the mounting rings.
3. Attach the upper halves of the rings and tighten the screws evenly. Do not overtighten, as this can damage the scope tube. Refer to your mounting ring manufacturer's torque specifications if available.
4. Adjust the riflescope's position forward or backward to achieve the optimal eye relief (approximately 95mm for this model) while maintaining a clear, full field of view.
5. Ensure the reticle is level with the firearm. Use a reticle leveling tool if available.
6. Once eye relief and reticle level are set, fully tighten all mounting screws according to manufacturer specifications.

3. Інструкцыя па эксплуатацыі

3.1 Рэгуляванне павелічэння

The SCOL-TE52 offers a variable magnification range from 6x to 48x. Rotate the magnification ring, located near the eyepiece, to adjust the desired level of magnification.

Image 3.1: The magnification ring allows adjustment from 6x to 48x.

3.2 Рэгуляванне дыёптрый

The diopter adjustment ring, located on the eyepiece, allows you to fine-tune the reticle's focus to your individual eyesight. Rotate this ring until the reticle appears sharp and clear without straining your eye. The diopter compensation range is +2 to -3 dpr.

3.3 Падсвятленне сеткі прыцэла

The riflescope features a 2nd focal plane (SFP) reticle with 11 levels of red illumination. The illumination control is typically integrated into the parallax adjustment knob or a separate turret. Rotate the illumination dial to turn the reticle on/off and adjust its brightness to suit ambient light conditions.

Image 3.2: The reticle is located on the second focal plane and features 11 dimmable red illumination levels.

Малюнак 3.3: Падрабязны view of the reticle markings and dimensions, set at 40x magnification in MOA.

3.4 Карэкцыя па ветравым нахіле і вышыні

The riflescope is equipped with precision adjustment turrets for windage (horizontal) and elevation (vertical) corrections. Each click provides 1/8 MOA adjustment. The maximum adjustment range is 48 MOA for both windage and elevation.

• Elevation Turret (Top): Used for vertical adjustments. Features a Zero Stop mechanism to easily return to your zero setting.
• Windage Turret (Right): Used for horizontal adjustments. Features a Turret Lock to prevent accidental changes.

To make adjustments, lift or unlock the turret (depending on the mechanism), rotate it in the desired direction, and then push down or lock it back into place. Always refer to the markings on the turrets for direction (UP/DOWN, L/R).

Image 3.4: Fine adjustments are made via the turrets. Each click equals 1/8 MOA, with a total adjustment range of 48 MOA for both windage and elevation.

3.5 Parallax Adjustment

The parallax adjustment knob is typically located on the left side of the riflescope. Rotate this knob to eliminate parallax error, which occurs when the target and reticle appear to shift relative to each other with slight head movements. Adjust the parallax until the target and reticle are in the same focal plane, appearing sharp and stationary when you move your head slightly.

4. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and optimal performance of your Vector Optics riflescope.

• Чыстка лінзаў: Use the provided cleaning cloth or a high-quality lens cleaning kit. Gently wipe the lens surfaces to remove dust and smudges. Avoid using harsh chemicals or abrasive materials.
• Ачыстка цела: Працярыце корпус прыцэла мяккай тканінайamp сурвэткай для выдалення бруду і смецця.
• захоўванне: Store the riflescope in a dry, cool place, away from direct sunlight and extreme temperatures. Use the protective lens caps when not in use.
• Пазбягайце разборкі: Do not attempt to disassemble the riflescope. This will void the warranty and may cause irreparable damage.

5. Выпраўленне непаладак

Калі ў вас узніклі праблемы з прыцэлам, выканайце наступныя распаўсюджаныя дзеянні па ліквідацыі непаладак:

• Unclear Image/Reticle:
  • Adjust the diopter setting on the eyepiece.
  • Adjust the parallax setting for the specific target distance.
  • Ensure lenses are clean and free of smudges.
• Падсвятленне сеткі прыцэла не працуе:
  • Check if the illumination is turned on and set to a visible brightness level.
  • Verify the battery is correctly installed and has sufficient charge. Replace if necessary.
• Непаслядоўная кропка ўдару:
  • Ensure the riflescope is securely mounted and all screws are tightened to specification.
  • Check for any loose components on the firearm or scope.
  • Confirm proper zeroing procedure was followed.

If problems persist, please contact Vector Optics customer support for assistance.

6. Тэхнічныя характарыстыкі

Detailed technical specifications for the Vector Optics SCOL-TE52 Continental 6-48x56ED SFP MOA Riflescope:

Выява 6.1: Канецview of the riflescope's physical characteristics, including length, weight, and tube diameter, along with compatible calibers.

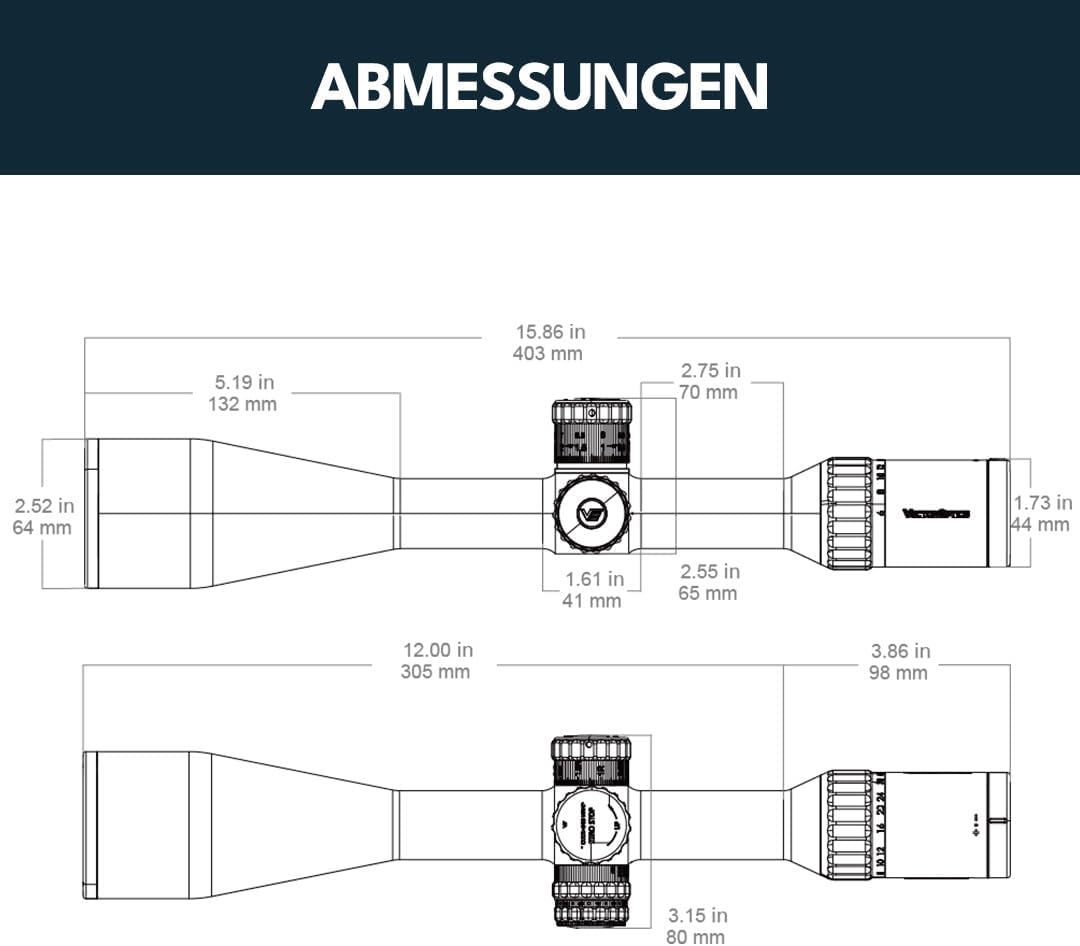

Image 6.2: Technical drawing illustrating the precise dimensions of the riflescope in both millimeters and inches.

7. Гарантыя і падтрымка

Vector Optics stands behind the quality of its Continental series products. We offer a пажыццёвая гарантыя on all Continental models, reflecting our confidence in their durability and performance.

For any questions, technical assistance, or warranty claims, please contact Vector Optics customer support. For customers in Germany, dedicated German support and customer service are available.

Калі ласка, захавайце пацвярджэнне пакупкі для гарантыйных мэт.
