GOOJODOQ Portable Turbo Fan User Manual

1. Уводзіны

Thank you for choosing the GOOJODOQ Portable Turbo Fan. This compact and powerful fan is designed to provide efficient cooling wherever you go, whether for outdoor adventures, travel, or indoor use. Equipped with a high-capacity battery and USB-C fast charging, it offers convenience and long-lasting performance. Please read this manual carefully before using the product to ensure proper operation and maintenance.

Image: The GOOJODOQ Portable Turbo Fan in grey, showcasing its sleek design and the powerful airflow it generates from the front nozzle. A digital display on the fan shows 'AIR VOLUME', '100', and 'POWER'.

2. Асаблівасці прадукту

• Акумулятар вялікай ёмістасці: Integrated 4000 mAh battery provides 2 to 12 hours of continuous operation, depending on the selected wind speed.
• Хуткая зарадка USB-C: Type-C port enables quick charging, reaching full capacity in approximately 2.3 hours.
• Five Adjustable Wind Speeds: Equipped with advanced brushless motor technology, offering fine wind speed adjustment from 1 to 100, providing five distinct speed options.
• High-Resolution Digital Display: Features a digital screen that shows real-time remaining power and current wind speed, allowing for precise control and timely charging.
• Кампактны і партатыўны дызайн: Weighing only 225g, its lightweight and compact body, along with a thoughtful anti-loss cable design, makes it easy to carry in a backpack or bag.
• Універсальнае выкарыстанне: Ідэальна падыходзіць для паходаў, вamping, barbecues, sports, outdoor activities, indoor office use, and general travel.

Выява: Унутраная view of the fan highlighting the brushless motor and its components, emphasizing low losses and long service life. The diagram also shows the airflow path.

Выява: Падрабязны view of the high-resolution digital display on the fan, clearly indicating 'AIR VOLUME' (wind speed) as '100' and 'POWER' (battery level) with a battery icon.

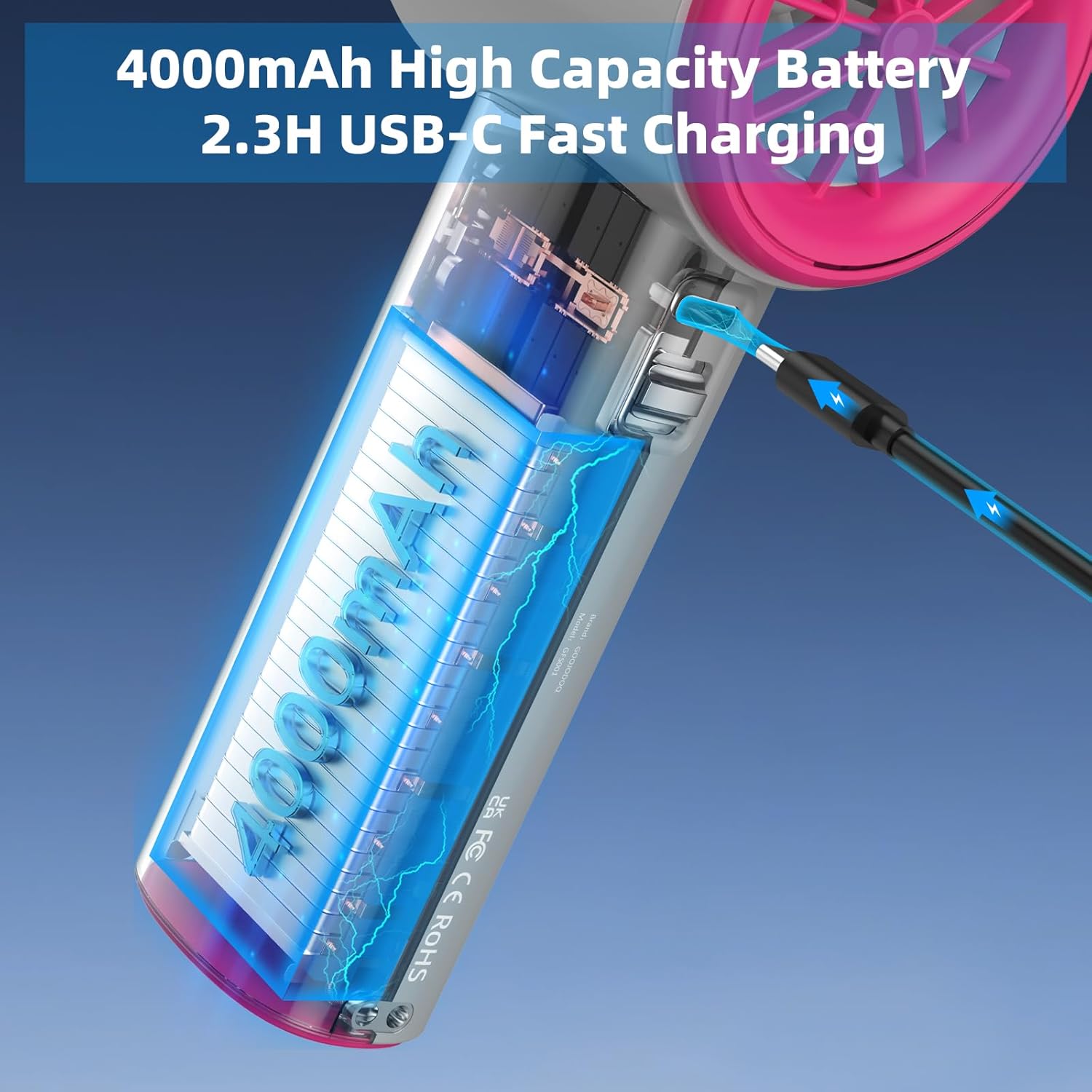

Выява: у стылі рэнтгенаўскага здымка view of the fan's handle, revealing the internal 4000mAh high-capacity battery and the USB-C charging port with a charging cable connected, illustrating 2.3 hours fast charging.

Image: A hand demonstrating the compact and portable nature of the fan by easily placing its 225g body into a handbag, highlighting its convenience for travel.

Image: A person outdoors using the GOOJODOQ Portable Turbo Fan, with the anti-drop hand strap securely attached to their wrist, demonstrating safe and convenient use.

3. Настройка

1. Распакоўка: Carefully remove the fan and all accessories from the packaging. Ensure all components are present: the fan unit, USB-C charging cable, and anti-loss hand strap.
2. Першапачатковая плата: Before first use, fully charge the fan. Connect the provided USB-C cable to the fan's charging port and the other end to a compatible USB power adapter (not included). The digital display will show charging progress. A full charge takes approximately 2.3 hours.
3. Attach Hand Strap: If desired, attach the anti-loss hand strap to the designated loop on the fan's handle for added security during use.

4. Інструкцыя па эксплуатацыі

1. Уключэнне/выключэнне харчавання: Press and hold the power button (usually the lower button on the side) for a few seconds to turn the fan on or off. The digital display will illuminate upon activation.
2. Adjusting Wind Speed: The fan features five adjustable wind speeds. Use the control buttons (typically '+' and '-' or up/down arrows) on the side of the fan to increase or decrease the wind speed. A short press will adjust the speed by 20%, while a long press allows for continuous adjustment from 1 to 100. The current wind speed will be displayed on the digital screen.
3. Monitoring Battery and Speed: The high-resolution digital display provides real-time information. The 'POWER' indicator shows the remaining battery level, and the 'AIR VOLUME' indicator shows the current wind speed setting.
4. Зарадка: When the battery level is low, connect the USB-C charging cable to recharge the fan. The display will indicate charging status.

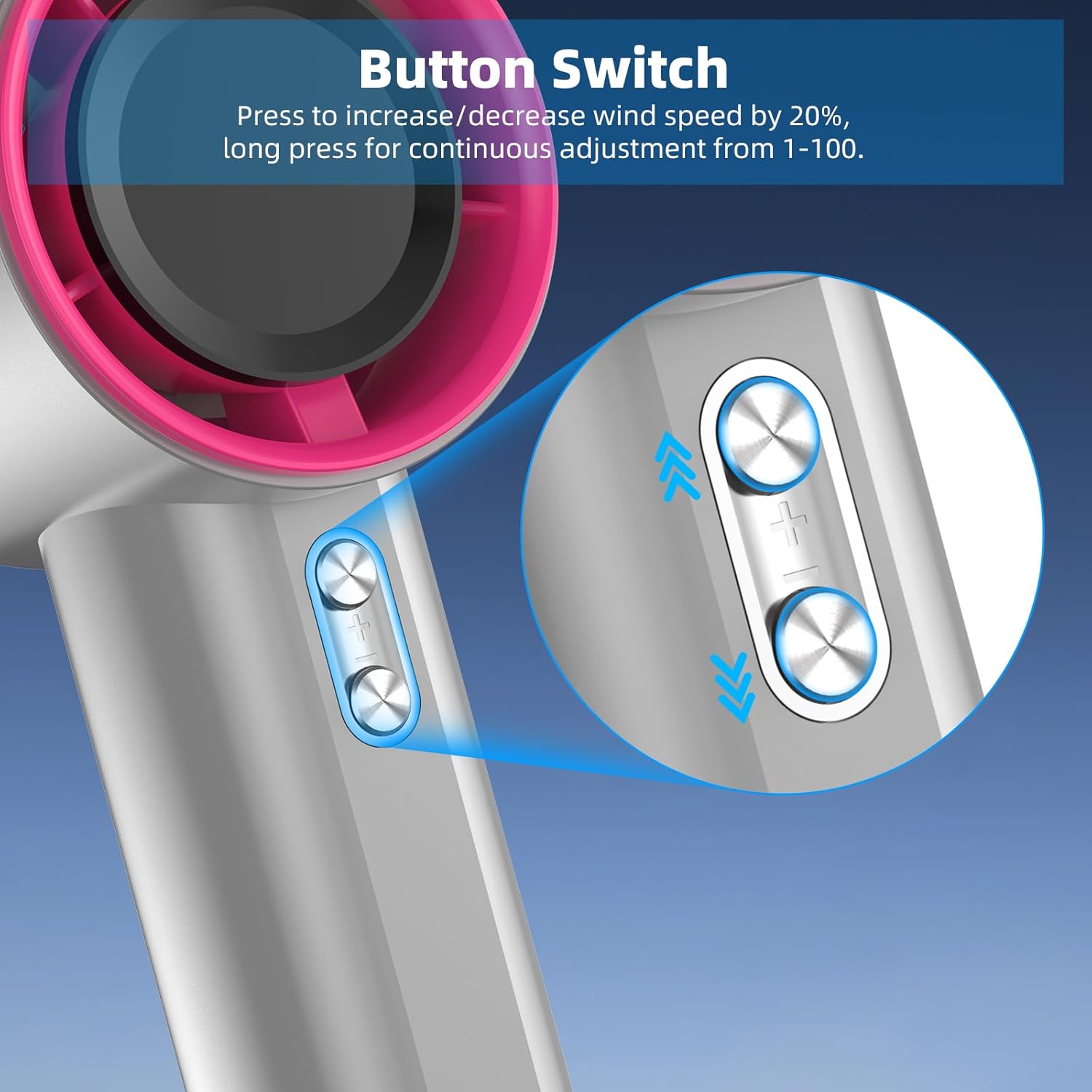

Выява: буйны план view of the fan's button switch, showing the 'up' and 'down' arrows for adjusting wind speed. Instructions indicate a short press for 20% adjustment and a long press for continuous adjustment from 1-100.

5. Тэхнічнае абслугоўванне

• Уборка: To clean the fan, ensure it is turned off and unplugged. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or immerse the fan in water. For the air inlet/outlet, use a soft brush or compressed air to remove dust.
• захоўванне: When not in use for extended periods, store the fan in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the battery to about 50% before storing to prolong battery life.
• Сыход за батарэяй: To maintain battery health, avoid completely draining the battery frequently. Recharge the fan when the battery indicator shows low power.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the product packaging or contact your point of purchase. If you encounter any issues or have questions regarding your GOOJODOQ Portable Turbo Fan, please contact customer support through the retailer or the official GOOJODOQ webсайт для дапамогі.

Калі ласка, захавайце доказы пакупкі для прэтэнзій па гарантыі.
