Vive Mobility Reclining Wheelchair with Elevating Leg Rests

1. Уводзіны

Thank you for choosing the Vive Mobility Reclining Wheelchair. This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your new wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.

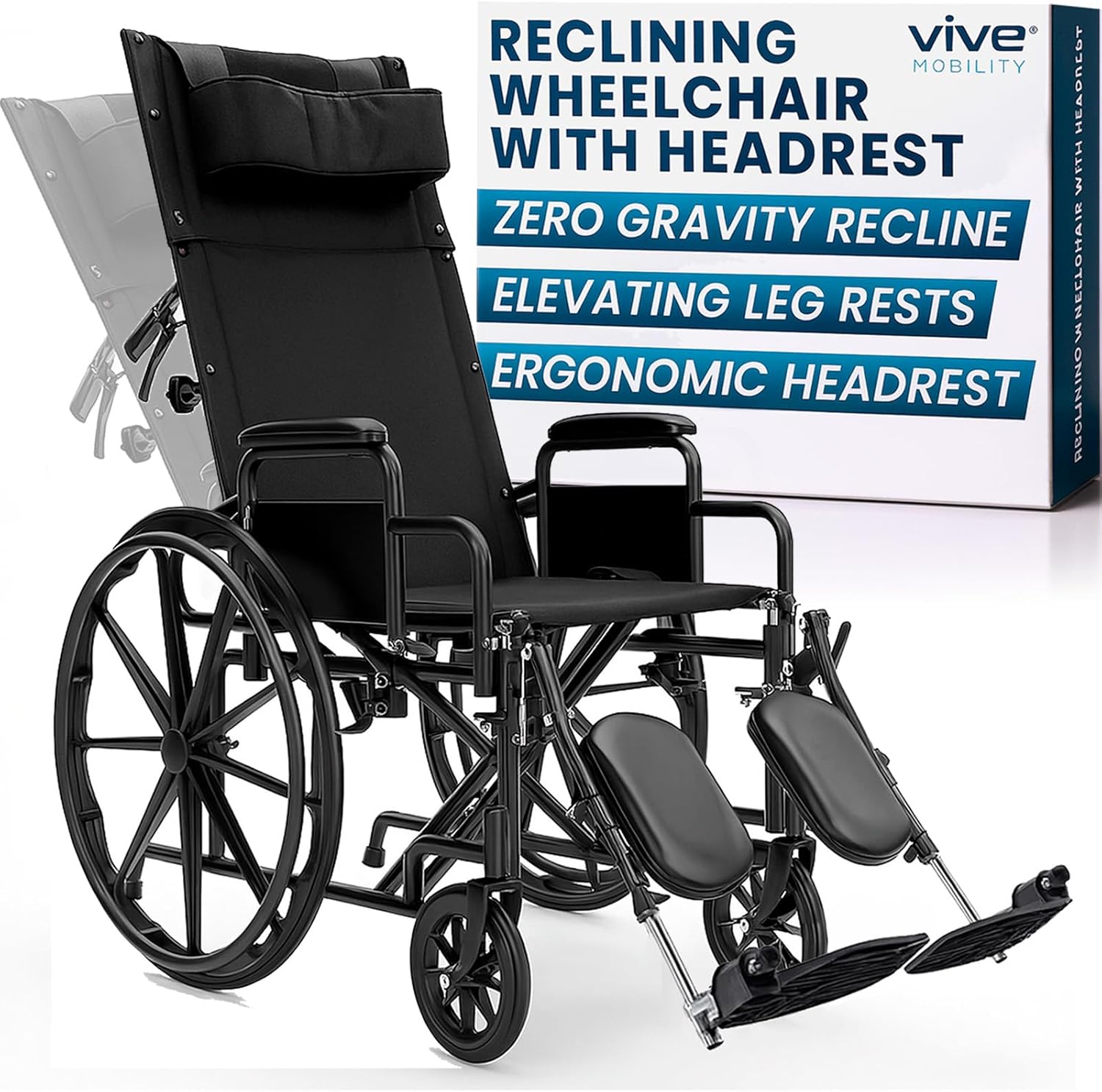

Image 1.1: The Vive Mobility Reclining Wheelchair, designed for comfort and support.

2. Інфармацыя па бяспецы

Always prioritize safety when operating this wheelchair. Failure to follow these instructions could result in injury or damage to the product.

• Ёмістасць вагі: Не перавышайце максімальную грузападымальнасць 300 кг (136 фунтаў).
• тармазы: Always engage the wheel locks before transferring in or out of the wheelchair, or when stationary.
• Стабільнасць: Avoid leaning excessively to the side or front, especially when the backrest is reclined or leg rests are elevated, as this may cause the wheelchair to tip.
• Дапамога: Always seek assistance from a caregiver when navigating inclines, declines, uneven surfaces, or during transfers.
• Падстаўкі для ног: Ensure leg rests are securely locked in place before use. Do not stand on the footplates.
• Тэхнічнае абслугоўванне: Regularly inspect all components for wear, damage, or loose parts. Do not use the wheelchair if any part is damaged or missing.
• дзеці: Keep children away from moving parts and do not allow them to play with or on the wheelchair.

3. Кампаненты большview

Familiarize yourself with the main components of your Vive Mobility Reclining Wheelchair:

• кадр: Reinforced steel frame for durability and stability.
• Спінка: Full reclining backrest, adjustable from 90 to 180 degrees.
• Падгалоўнік: Integrated headrest with a detachable cervical cushion for neck and head support.
• Падлакотнікі: Padded armrests for comfort.
• Месца: Wide 18-inch seat.
• Падстаўкі для ног: Elevating, swing-away, and height-adjustable leg rests with dual calf pads.
• Падножкі: Adjustable footplates.
• Заднія колы: 24-inch rear wheels with push-to-lock brakes.
• Пярэднія ролікі: 8-inch front casters for maneuverability.
• Push Handles: Ergonomic push handles for caregivers.

Image 3.1: Key components and features of the wheelchair.

4. Настройка

The Vive Mobility Reclining Wheelchair is designed for easy, tool-free assembly. Follow these steps to prepare your wheelchair for use:

1. Раскладванне інваліднага крэсла: Gently push down on the seat rails until the wheelchair is fully open and the seat is flat.
2. Прымацаванне задніх колаў: Insert the axle of each 24-inch rear wheel into the axle receiver on the wheelchair frame until it clicks securely into place. Ensure both wheels are firmly attached.
3. Installing Leg Rests: Align the two pins on the leg rest assembly with the corresponding holes on the front of the wheelchair frame. Push down firmly until the leg rest locks into position. Repeat for the other leg rest.
4. Attaching Headrest: Slide the headrest cushion onto the top of the backrest. Secure any straps or fasteners provided to ensure it is stable.

Image 4.1: The wheelchair is designed for easy transport and can be folded to fit in most car trunks.

5. Інструкцыя па эксплуатацыі

5.1. Reclining the Backrest

The backrest can be adjusted to a full 180-degree recline for maximum comfort and pressure relief.

1. Ensure the wheelchair is on a stable, level surface and the wheel locks are engaged.
2. Locate the recline levers, typically on the sides of the backrest near the push handles.
3. Simultaneously pull both recline levers and gently push the backrest backward to the desired angle.
4. Release the levers to lock the backrest in position. Ensure it is securely locked before use.

Image 5.1: The backrest can be adjusted from an upright 90-degree position to a flat 180-degree recline.

5.2. Adjusting Elevating Leg Rests

The leg rests can be elevated and adjusted for height to promote circulation and reduce swelling.

1. To elevate the leg rests, locate the release lever or button on the side of the leg rest assembly.
2. Press the lever/button and gently raise the leg rest to the desired height. Release to lock.
3. To adjust the height of the footplates, locate the pin or knob on the leg rest extension. Adjust to the desired height and secure.
4. The leg rests can also swing away for easier transfers. Locate the release mechanism near the frame attachment point, pull it, and swing the leg rest outwards.

Image 5.2: Elevating leg rests provide comfort and support for the lower limbs.

5.3. Engaging/Disengaging Brakes

The wheelchair is equipped with push-to-lock brakes on the rear wheels.

• Для ўдзелу: Push the brake levers located near the rear wheels forward until they click into place. Ensure both brakes are fully engaged.
• Каб адключыць: Pull the brake levers backward until they release.

5.4. Folding for Transport

The wheelchair can be folded flat for convenient storage and transport.

1. Ensure the leg rests are removed or swung away.
2. Pull up on the center of the seat fabric or the seat rails to begin folding the wheelchair inwards.
3. Continue to fold until the wheelchair is compact.
4. For even more compact storage, the rear wheels and headrest can be removed.

6. Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і бяспечную эксплуатацыю вашага інваліднага крэсла.

• Уборка: Працярыце раму і абіўку рэкламайamp тканіна і мяккае сродак для мыцця. Пазбягайце абразіўных ачышчальнікаў.
• агляд: Periodically check all bolts, screws, and fasteners for tightness. Inspect tires for wear and proper inflation (if applicable). Check brake functionality.
• змазка: Apply a silicone-based lubricant to moving parts such as wheel axles and folding mechanisms as needed to ensure smooth operation.
• захоўванне: Захоўвайце інвалідны вазок у сухім, чыстым месцы, удалечыні ад экстрэмальных тэмператур.

7. Выпраўленне непаладак

Вось рашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Vive Mobility customer support.

8. Тэхнічныя характарыстыкі

Detailed specifications for the Vive Mobility Reclining Wheelchair (18 inch Seat):

Image 8.1: Detailed dimensions of the wheelchair for reference.

9. Гарантыя і падтрымка

The Vive Mobility Reclining Wheelchair comes with a 1-гадовая гарантыя. This warranty covers manufacturing defects and ensures your product meets quality standards. For warranty claims or technical support, please contact Vive Mobility customer service.

Кантактная інфармацыя: Please refer to the contact details provided with your purchase or visit the official Vive Mobility webсайт для падтрымкі.

Image 9.1: Vive Health 1-Year Guarantee for peace of mind.
