PowerSmart 2500-Watt Gas Powered Portable Inverter Generator User Manual

1. Важная інфармацыя па бяспецы

Read and understand all safety precautions before operating this generator. Failure to follow these instructions can result in serious injury or death.

• Небяспека чаднага газу: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors only, far away from windows, doors, and vents. Never operate indoors, in a garage, or in any enclosed space.
• Небяспека паразы электрычным токам: Do not operate the generator in wet conditions. Ensure all electrical connections are dry and properly insulated. Never touch the generator with wet hands.
• Небяспека пажару: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cooled. Do not smoke or allow open flames near the generator. Store fuel in approved containers.
• Гарачыя паверхні: Рухавік і глушыцель генератара моцна награваюцца падчас працы і застаюцца гарачымі яшчэ некаторы час пасля выключэння. Пазбягайце кантакту, каб пазбегнуць апёкаў.
• Дзеці і хатнія жывёлы: Трымайце дзяцей і хатніх жывёл далей ад генератара.

2. Прадукт скончыўсяview

The PowerSmart 2500-Watt Portable Inverter Generator (Model HB5020) is designed to provide clean, stable power for various applications, including camping, tailgating, and emergency home backup. It features inverter technology for sensitive electronics, a quiet operation, and a lightweight, compact design.

Image: Generator displaying key power specifications and available outlets.

Асноўныя функцыі ўключаюць у сябе:

• Магутны выхад: 2,500 peak watts and 1,900 running watts of clean power (<3% THD).
• Супер ціхая праца: Operates as low as 56 dBA due to a double-insulated acoustic enclosure and advanced engine design.
• Звышлёгкі: Важыць усяго 39 фунта для зручнасці пераноскі.
• Versatile Power Panel: Includes (2) 120V 20A NEMA 5-20R household receptacles, (2) USB receptacles, and (1) 12V DC outlet.
• Паралельны гатовы: Allows connection of two 2500-watt inverters for increased output (parallel kit sold separately).
• Функцыі бяспекі: EPA compliant, low-oil shutdown, overload protection, and Eco-mode.

Выява: Падрабязная view of the generator's control panel and output options.

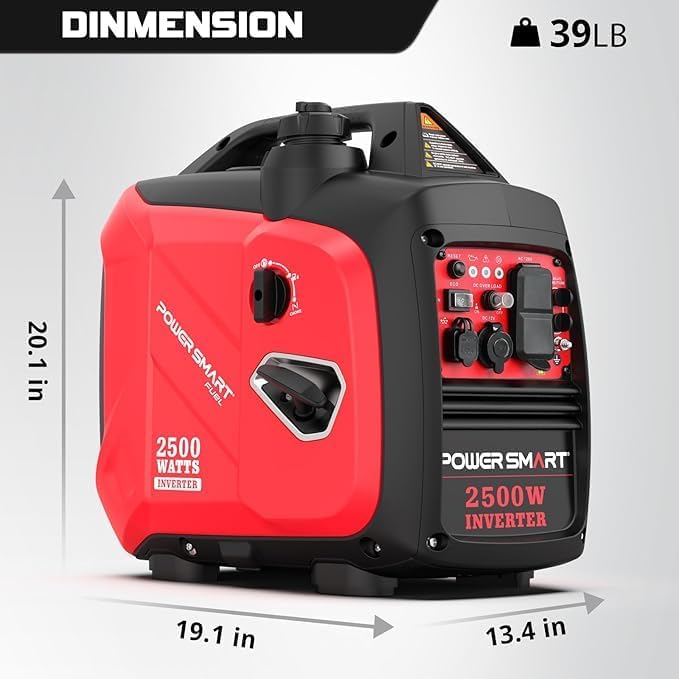

Image: Generator with its physical dimensions and weight indicated.

3. Настройка

Before first use, perform the following steps:

1. Распакаванне: Carefully remove the generator from its packaging. Inspect for any shipping damage. Retain packaging for future storage or transport.
2. Дадайце маторнае масла:
   • Пастаўце генератар на роўную паверхню.
   • Знайдзіце вечка/мацавальнік алею.
   • Add the recommended 10W-30 engine oil (not included) to the crankcase. Do not overfill. The oil capacity is typically around 0.35-0.4 liters. Refer to the oil fill level indicator.
   • Шчыльна закруціце вечка заліўной адтуліны алею/макавы щуп.
3. Дадаць паліва:
   • Ensure the generator is off and cooled.
   • Use fresh, unleaded gasoline with an octane rating of 87 or higher. Non-ethanol gasoline is recommended to prevent fuel system issues.
   • Open the fuel tank cap and carefully pour gasoline into the tank. Do not fill above the red indicator line or the bottom of the filler neck. The tank volume is 1.05 gallons.
   • Securely replace the fuel tank cap. Wipe up any spilled fuel immediately.

4. Аперацыя

4.1 Запуск генератара

1. Ensure the generator is on a level, outdoor surface, away from combustible materials.
2. Павярніце паліўны клапан у становішча «ON».
3. Move the choke lever to the 'CHOKE' position (cold start).
4. Павярніце выключальнік рухавіка ў становішча «ON».
5. Моцна і плаўна пацягніце ручку стартара, пакуль рухавік не завядзецца.
6. Пасля запуску рухавіка паступова перавядзіце рычаг дросельнай засланкі ў становішча «RUN».

4.2 Падключэнне прыбораў

Once the generator is running stably, you can connect your electrical devices.

• Забяспечце агульную ватtagпадлучаных прылад не перавышае магутнасць генератараtage (1900 Вт).
• Plug your devices into the appropriate 120V AC, USB, or 12V DC outlets.
• The generator features an Эка-рэжым switch. When activated, the engine speed adjusts automatically to the load, improving fuel efficiency and reducing noise. For high-demand appliances, it may be necessary to turn Eco-mode off.
• If an overload occurs, the overload indicator light will illuminate, and power output will stop. Disconnect devices, press the reset button, and restart the generator if necessary.

4.3 Паралельная праца

This generator is parallel ready, allowing you to connect two PowerSmart 2500-watt inverter generators for increased power output. A parallel kit is sold separately and required for this function. Refer to the parallel kit's instructions for proper connection and operation.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the life of your generator. Always turn off the engine and allow it to cool before performing any maintenance.

• Праверце маторны алей: Check the oil level before each use. Add oil if necessary.
• Чысты паветраны фільтр: Inspect the air filter regularly and clean or replace it as needed. A dirty air filter can reduce engine performance.
• Свечка запальвання: Inspect the spark plug periodically. Clean or replace if fouled or worn.
• Паліўная сістэма: If storing the generator for an extended period, drain the fuel tank and carburetor or use a fuel stabilizer to prevent fuel degradation.
• Генеральная ўборка: Трымайце генератар чыстым і без бруду і смецця. Выкарыстоўвайце рэкламуamp cloth to wipe down exterior surfaces.

6. Выпраўленне непаладак

If you encounter issues with your generator, refer to the following common troubleshooting steps:

Калі пасля спробы гэтых рашэнняў праблемы не знікнуць, звярніцеся ў службу падтрымкі кліентаў.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

8.1 Інфармацыя аб гарантыі

This PowerSmart generator comes with a Гарантыя 2 год з даты пакупкі. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.

8.2 Падтрымка кліентаў

PowerSmart is a brand by Amerisun Inc., headquartered in Itasca, Illinois. For technical support, service, or replacement parts, please contact PowerSmart customer service. The company maintains over 500 certified repair centers in the U.S. and provides full replacement parts through its IL headquarters.

For assistance, please refer to the contact information provided with your product packaging or visit the official PowerSmart webсайт.
