Ledvion 1m Single-Phase Track Lighting System with 4 GU10 Adjustable Spotlights, White

Уводзіны

This manual provides instructions for the safe and efficient installation, operation, and maintenance of your Ledvion 1m Single-Phase Track Lighting System. Please read this manual thoroughly before installation and retain it for future reference.

The Ledvion track lighting system offers a modern and flexible lighting solution for various indoor spaces. It features a 1-meter single-phase track with four adjustable GU10 spotlights, allowing you to direct light precisely where needed. The system is designed for easy installation and is compatible with energy-efficient LED GU10 lamps, offering dimmable functionality with an external dimmer (not included).

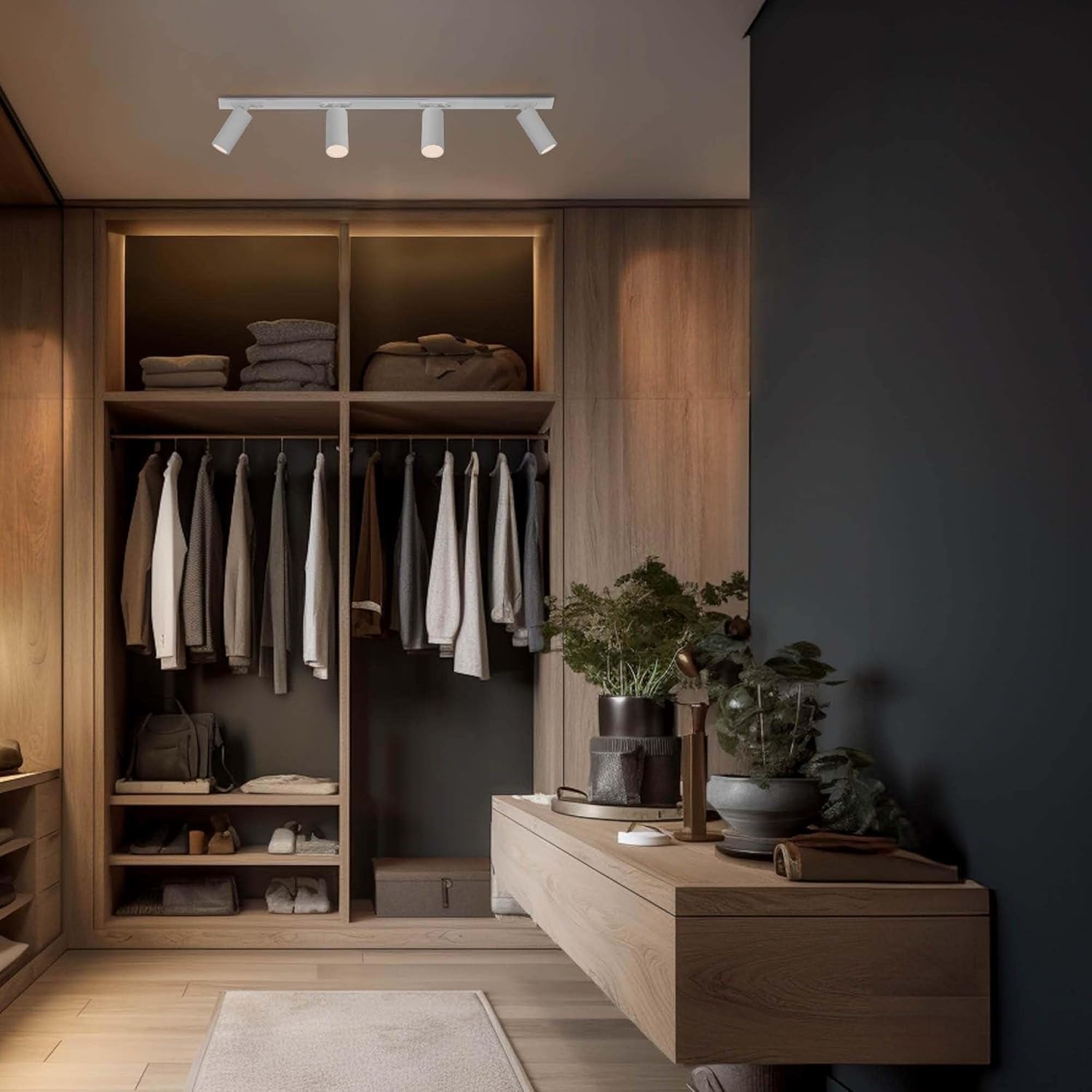

Image: The Ledvion track lighting system installed in a modern closet, demonstrating its application in illuminating specific areas.

Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Electrical installation should only be performed by a qualified electrician or in accordance with local electrical codes. Always disconnect power at the main circuit breaker before installation, maintenance, or changing lamps.

• Ensure the power supply is turned off before handling any electrical components.
• Не перавышайце максімальную ватtage specified for GU10 lamps.
• Гэты прадукт прызначаны толькі для выкарыстання ў памяшканнях.
• Беражыце прадукт ад вады і вільгаці.
• Не спрабуйце мадыфікаваць прадукт. Любыя мадыфікацыі могуць ануляваць гарантыю і стварыць пагрозу бяспецы.
• Пераканайцеся, што ўсе злучэнні надзейныя, каб прадухіліць пашкоджанне электрычным токам.

Што ў скрынцы

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя і не пашкоджаныя.

• 1x 1-meter Single-Phase Track
• 4x GU10 Adjustable Spotlights (lampне ўваходзіць)
• Мантажныя прыналежнасці (шрубы, дзюбелі)
• Раз'ём харчавання

Выява: Выбухнула view of the Ledvion track lighting system components, including the track, four spotlights, and installation hardware.

Настройка і ўстаноўка

Follow these steps for proper installation of your track lighting system.

1. Падрыхтоўка да ўстаноўкі

• Выключыць харчаванне: Locate the main circuit breaker and turn off the power to the area where you will install the track lighting.
• Адзначце кропкі мацавання: Hold the track against the ceiling or wall at the desired installation location. Use a pencil to mark the drilling points for the mounting screws.

2. Mount the Track

• Свідраваць адтуліны: Drill holes at the marked points. Insert the provided wall plugs if necessary.
• Бяспечны шлях: Attach the track to the ceiling or wall using the provided screws. Ensure the track is securely fastened.

3. Падключыце харчаванне

• Правадное злучэнне: Connect the electrical wires from your ceiling/wall to the power connector of the track. Ensure correct polarity (Live, Neutral, Earth).
• Бяспечны раз'ём: Attach the power connector to the track.

4. Install Spotlights

The spotlights feature a plug-and-play locking system for easy installation.

Image: Visual guide for the plug-and-play installation of a spotlight onto the track, showing the unlock and lock positions.

• Insert GU10 Lamps: Gently insert GU10 lamps (not included) into each spotlight fixture.
• Attach Spotlights: Align the spotlight adapter with the track. Push the spotlight into the track and rotate the locking mechanism to secure it in place.
• Змяніць становішча: Spotlights can be easily added, removed, or repositioned along the track as needed.

Выява: Падрабязны view of a single GU10 spotlight mounted on the track, showing its connection point.

Інструкцыя па эксплуатацыі

Once installed, your Ledvion track lighting system is ready for use.

• Уключэнне: Аднавіце электраэнергію на галоўным выключальніку.
• Адрэгулюйце пражэктары: Each spotlight can be tilted up to 90 degrees and rotated 350 degrees horizontally. Adjust the spotlights to direct light to your desired areas.

Image: A visual representation of the adjustable features of the spotlights, showing their range of motion for tilting and rotation.

• Зацямненне (неабавязкова): If using dimmable GU10 LED lamps and an external dimmer switch (not included), you can adjust the light intensity.
• Anti-Glare Grid (Optional): If you have the optional anti-glare grid, it can be easily added or removed from the front of the spotlight to prevent glare.

Image: The optional anti-glare grid feature, showing its honeycomb structure and ease of installation/removal from the spotlight.

Тэхнічнае абслугоўванне

• Уборка: Адключыце сілкаванне перад чысткай. Працярыце рэйку і пражэктары мяккай сухой тканінай. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
• Lamp Замена: Ensure power is off. Carefully remove the old GU10 lamp and insert a new one.
• агляд: Periodically check all connections and mounting points for security.

Ліквідацыю непаладак

Тэхнічныя характарыстыкі

• Марка: Лядвён
• Нумар мадэлі: LVT10002_1m4s
• Памеры прадукту: 105 х 15 х 15 см
• Вага прадмета: 1.36 кг
• матэрыял: Алюміній
• Колькасць агнёў: 4
• тtage: 230 вольт
• Крыніца харчавання: Электрычныя
• Тып лямпы: LED (GU10 fitting, lampне ўваходзіць)
• стыль: Single-Phase Track Lighting System

Image: A diagram illustrating the key dimensions of the track and spotlights, including track length (1000mm) and spotlight height (150mm) and diameter (50mm).

Гарантыя і падтрымка

This Ledvion product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Ledvion customer support.

For technical assistance, troubleshooting, or questions regarding your product, please contact Ledvion customer service through their official webсайт або прадаўца, дзе быў набыты тавар.

Дадатковыя аксэсуары

Expand your Ledvion track lighting system with optional accessories (sold separately) to customize your lighting setup.

Выява: Оверview of optional accessories such as power feeders with cover plates or I-connectors, X-connectors, T-connectors, and pendant spotlights, allowing for system expansion.
