Bingfu 5 Elements Yagi Antenna (Model BFN00976) User Manual

Уводзіны

Thank you for choosing the Bingfu 5 Elements Yagi Antenna. This manual provides essential information for the proper installation, operation, and maintenance of your antenna. Designed for UHF 430-450MHz frequencies, this high-gain 11dBi antenna is constructed from durable aluminum alloy, making it suitable for various outdoor applications including ham radio, GMRS repeater systems, and amateur two-way radios. Please read these instructions carefully before proceeding with installation and use.

Змест пакета

Калі ласка, пераканайцеся, што ўсе пералічаныя ніжэй прадметы ўваходзяць у ваш пакет:

• 1 x Bingfu 5 Elements Yagi Antenna
• 1 x 10ft (3m) UHF PL259 Male to Male Extension Cable
• 1 x U-shaped Clamp Kit for mounting
• 2 шасцігранныя ключы
• 1 x Rubber Grip

Тэхнічныя характарыстыкі

Настройка і ўстаноўка

Proper installation is crucial for optimal performance. Choose a mounting location that is as high as possible and free from obstructions to ensure clear line-of-sight for signal reception and transmission.

Мантаж антэны

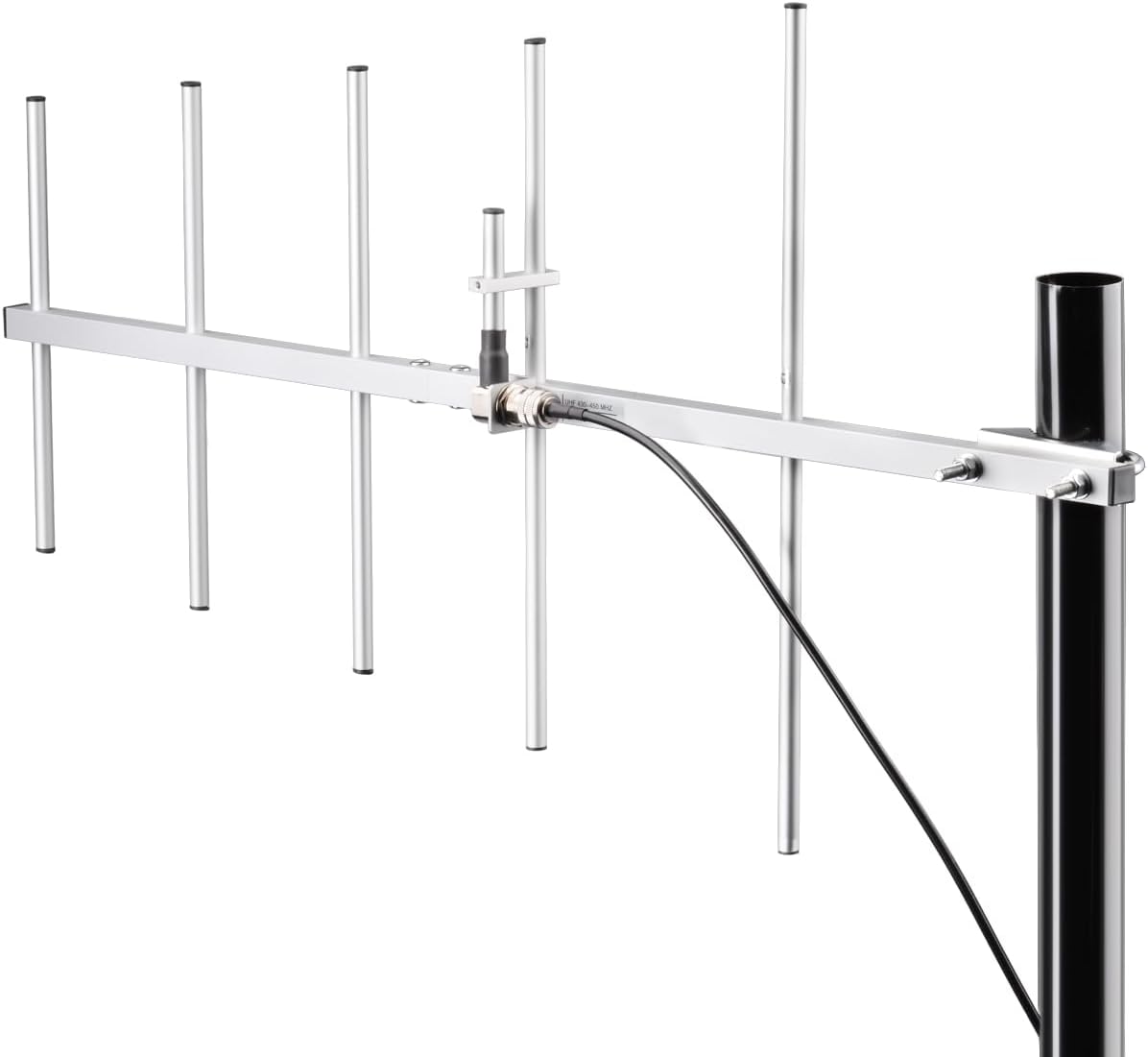

1. Assemble the Antenna: Ensure all five elements are securely attached to the main boom.
2. Attach the U-shaped Clamp: Use the provided U-shaped clamp kit to secure the antenna boom to a suitable mounting pole or mast. Ensure the clamp is tightened firmly using the hexagon wrenches to prevent movement in windy conditions.

Падключэнне кабеля

3. Connect the Extension Cable: Attach one end of the 10ft UHF PL259 male to male extension cable to the SL16/UHF Female connector on the antenna. Hand-tighten the connector securely.
4. Пракладка кабеля: Carefully route the cable to your radio equipment, avoiding sharp bends or kinks that could damage the cable. Secure the cable along its path to prevent strain or movement.
5. Падключэнне да радыё: Connect the other end of the extension cable to the appropriate UHF input on your ham radio, GMRS repeater, or other compatible device.

Antenna Orientation and Tuning

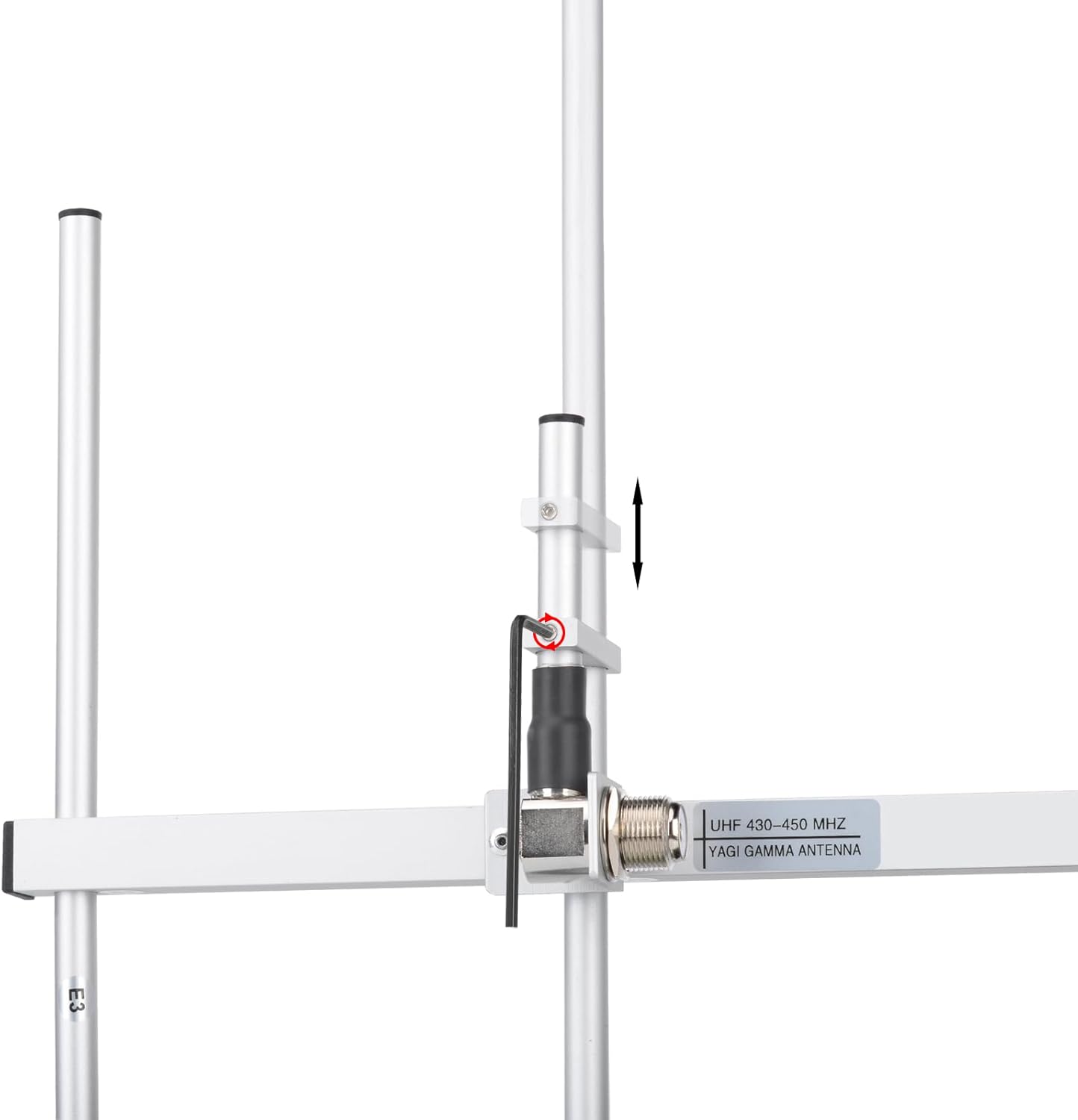

The Yagi antenna is directional. For best results, orient the antenna towards the desired signal source (e.g., a repeater or another station). The antenna is designed for easy installation and tuning. Minor adjustments to the gamma match (visible near the connector) may be made to optimize the VSWR for your specific operating frequency within the 430-450MHz range. Consult your radio's manual for VSWR measurement procedures.

Інструкцыя па эксплуатацыі

Once the antenna is securely mounted and connected to your radio equipment, ensure all connections are tight and free from moisture. Power on your radio and select the desired operating frequency within the 430-450MHz band. The high gain and strong directivity of this antenna will enhance your signal reception and transmission capabilities. This antenna is compatible with a wide range of devices, including:

• Baofeng, Motorola, Yaesu ham radios
• Other amateur two-way radios
• GMRS repeater systems
• Police scanners
• 433MHz radio systems
• Data radios
• Satellite communication setups

Тэхнічнае абслугоўванне

The Bingfu Yagi Antenna is designed for outdoor durability with its aluminum alloy construction. Regular maintenance will ensure its longevity and consistent performance:

• Перыядычная праверка: Annually inspect the antenna and mounting hardware for any signs of physical damage, corrosion, or loose connections. Ensure the mounting pole is stable.
• Праверка кабеля: Examine the coaxial cable for cracks, fraying, or damage to the connectors. Replace damaged cables immediately to prevent signal loss or water ingress.
• Уборка: If necessary, gently clean the antenna elements and boom with a damp cloth to remove dirt, dust, or debris. Avoid using harsh chemicals or abrasive materials.
• Устойлівасць да карозіі: The aluminum alloy construction provides excellent corrosion resistance, but in harsh environments, additional protective coatings can be applied to exposed metal parts if desired.

Ліквідацыю непаладак

If you experience issues with your Bingfu Yagi Antenna, consider the following troubleshooting steps:

Poor Signal Reception or Transmission

• Праверце злучэнні: Ensure all cable connections (antenna to cable, cable to radio) are secure and properly tightened.
• Арыентацыя антэны: Verify that the antenna is correctly aimed towards the desired signal source. Slight adjustments can significantly improve performance.
• Перашкоды: Confirm there are no new obstructions (e.g., trees, buildings) blocking the line-of-sight between your antenna and the signal source.
• Цэласнасць кабеля: Inspect the coaxial cable for any damage. A damaged cable can lead to significant signal loss.
• Налады радыё: Ensure your radio is set to the correct frequency and operating mode.

Няма сігналу

• Праверка харчавання: Ensure your radio equipment is powered on and functioning correctly.
• Cable Continuity: Test the coaxial cable for continuity to ensure there are no breaks.
• Праблемы з раздымам: Check for any bent pins or damaged connectors on both the antenna and the cable.

Гарантыя і падтрымка

Bingfu products are manufactured to high-quality standards. For any product-related inquiries, technical assistance, or warranty information, please refer to the official Bingfu store or contact their customer support directly. Keep your purchase receipt for warranty claims.

Каб атрымаць дадатковую падтрымку і інфармацыю пра прадукт, наведайце BINGFU Store on Amazon.
