RC-764M Replacement Remote Control User Manual

Model: RC-764M | Brand: ZWP

Уводзіны

This manual provides comprehensive instructions for the ZWP RC-764M Replacement Remote Control. Designed as a direct replacement for select Onkyo AV Receiver models, this remote offers immediate functionality without the need for complex programming. Please read this manual thoroughly to ensure proper use and longevity of your remote control.

Фронт view of the RC-764M replacement remote control

Выява: спераду view of the RC-764M replacement remote control, showcasing its buttons and layout.

Сумяшчальнасць

The ZWP RC-764M remote control is specifically designed to be compatible with the following Onkyo AV Receiver models:

  • TX-SR508
  • HT-S5300
  • HT-S6300

This remote functions as a direct replacement and should operate these models without additional setup.

Настройка

Ўстаноўка акумулятара

The RC-764M remote control requires two (2) 1.5V AAA batteries (not included). Follow these steps to install the batteries:

  1. Знайдзіце батарэйны адсек на задняй частцы пульта дыстанцыйнага кіравання.
  2. Націсніце на язычок і зрушце вечка батарэйнага адсека ўніз, каб адкрыць яго.
  3. Устаўце дзве батарэйкі тыпу AAA, пераканаўшыся, што станоўчая (+) і адмоўная (-) клемы правільна сумяшчаюцца з пазнакамі ўнутры адсека.
  4. Адсуньце крышку батарэйнага адсека на месца, пакуль яна не зашчоўкнецца.
Image showing the battery compartment of the remote control with two AAA batteries being inserted.

Выява: Падрабязная view of the remote's back, illustrating the battery compartment and the correct orientation for inserting two AAA batteries.

Заўвага: This remote control does not require any programming or pairing. Once batteries are installed, it is ready for immediate use with compatible Onkyo AV receivers.

Image indicating no programming or pairing is needed for the remote control.

Image: Visual confirmation that the remote works right out of the box after battery installation, highlighting its plug-and-play nature.

Інструкцыя па эксплуатацыі

The RC-764M remote control provides full functionality for your compatible Onkyo AV receiver. Below is a general guide to its key features and buttons.

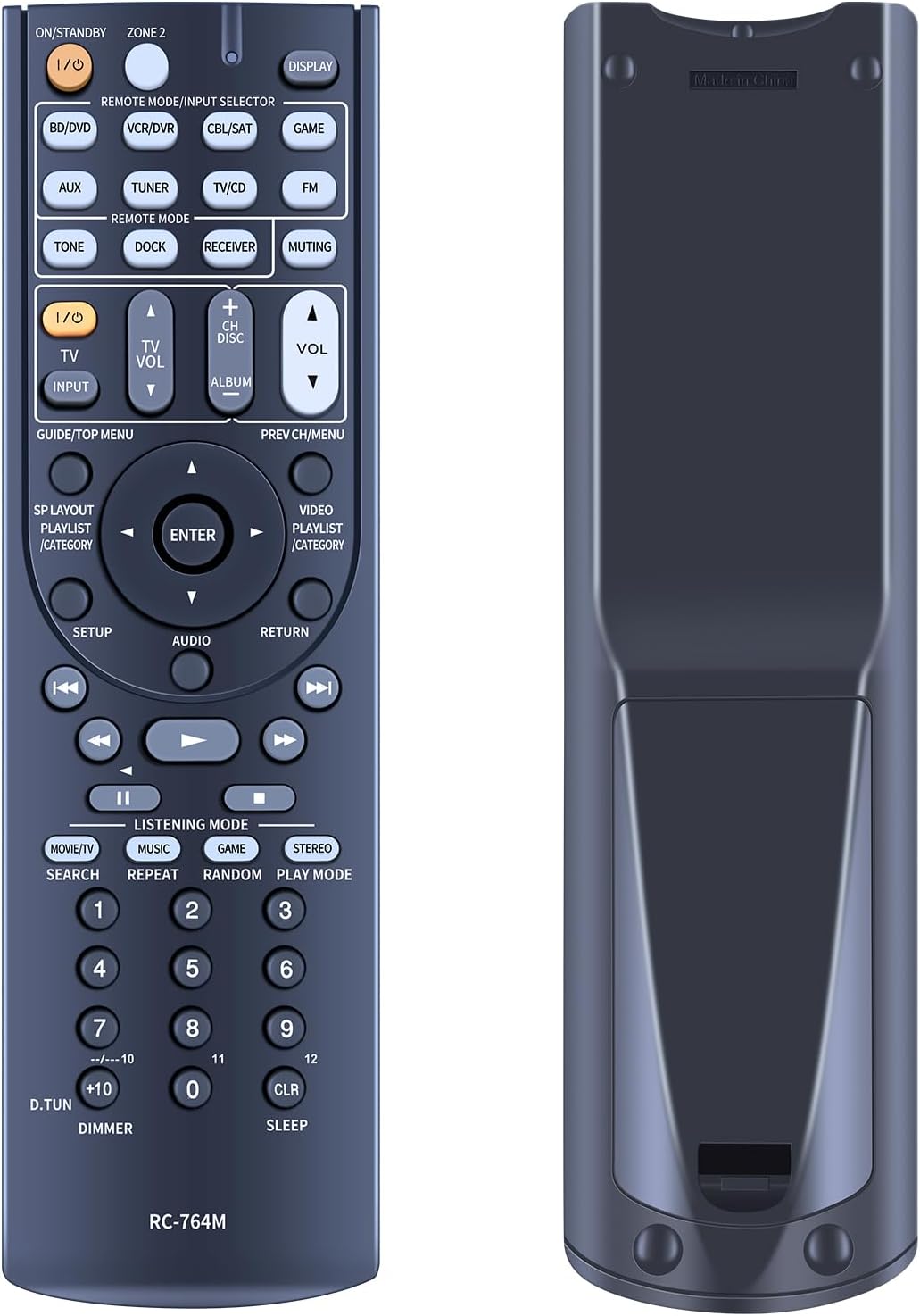

Поўны фронт view of the RC-764M remote control showing all buttons.

Image: A clear, detailed view of the remote control's front face, displaying all buttons and their labels for easy identification.

Ключавыя функцыі кнопак

  • ON/STANDBY (I/O): Powers the AV receiver on or off.
  • DISPLAY: Changes the display mode on the receiver or connected display.
  • REMOTE MODE/INPUT SELECTOR: Buttons like BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX, TUNER, TV/CD, FM allow selection of different input sources.
  • REMOTE MODE (TONE, DOCK, RECEIVER, MUTING): Specific mode buttons for various functions.
  • TV I/O, TV VOL, INPUT: Controls for connected television.
  • +/- CH DISC, VOL: Channel and volume controls.
  • ГІД/ГАЛОЎНАЕ МЕНЮ, ПАПЯРЭДНІ КАНАЛ/МЕНЮ: Navigation and menu access.
  • Navigation Pad (ENTER, UP, DOWN, LEFT, RIGHT): For navigating menus and confirming selections.
  • SETUP, AUDIO, RETURN: System setup, audio settings, and back functions.
  • Playback Controls (REW, PLAY, FF, PREV, PAUSE, NEXT, STOP): Стандартныя элементы кіравання прайграваннем мультымедыя.
  • LISTENING MODE (MOVIE/TV, MUSIC, GAME, STEREO, SEARCH, REPEAT, RANDOM, PLAY MODE): Selects various audio listening modes and playback options.
  • Numeric Keypad (0-9, +10, D.TUN, CLR, SLEEP): Direct input for channels, tracks, and other numerical functions.
  • ДЫММЕР: Рэгулюе яркасць дысплея.

Парады па выкарыстанні

  • Ensure a clear line of sight between the remote control and the AV receiver's infrared sensor.
  • The remote is designed for long-distance precise control, effective up to 10 meters (33 feet) using infrared technology.
Remote control being used with a television displaying streaming content.

Image: The RC-764M remote control positioned next to a television, illustrating its use in controlling home theater systems.

Infographic highlighting features: No Need to Set Up, Soft Plastic Button, ABS Material.

Image: An infographic detailing key features of the remote: no setup required, soft plastic buttons for comfortable use, and durable ABS material construction.

Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your RC-764M remote control, please follow these maintenance guidelines:

  • Уборка: Працярыце пульт дыстанцыйнага кіравання мяккай сухой тканінай. Для выдалення ўстойлівага бруду злёгкуampПрацярыце тканіну вадой або мяккім неабразіўным ачышчальнікам. Пазбягайце выкарыстання агрэсіўных хімікатаў або абразіўных матэрыялаў.
  • Замена батарэі: Замяняйце батарэйкі, калі пульт дыстанцыйнага кіравання становіцца павольным або перастае працаваць. Заўсёды замяняйце абедзве батарэйкі адначасова на новыя аднолькавага тыпу (AAA).
  • захоўванне: If the remote will not be used for an extended period, remove the batteries to prevent leakage, which can damage the remote. Store in a cool, dry place.
  • Пазбягайце пашкоджанняў: Do not drop the remote, expose it to extreme temperatures, direct sunlight, or moisture.

Ліквідацыю непаладак

Калі ў вас узніклі праблемы з пультам дыстанцыйнага кіравання RC-764M, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

праблемаМагчымая прычынаРашэнне
Пульт дыстанцыйнага кіравання не працуе.Разраджаныя або няправільна ўсталяваныя батарэйкі.Замяніце батарэйкі новымі батарэйкамі тыпу AAA, сачыце за правільнай палярнасцю (+/-).
Пульт мае абмежаваны радыус дзеяння або рэагуе перарывіста.Weak batteries; Obstruction between remote and receiver; Remote sensor on receiver is blocked.Replace batteries. Ensure a clear line of sight. Remove any objects blocking the receiver's IR sensor.
Пэўныя кнопкі не рэагуюць.Button stuck or dirty; Remote mode incorrect (less likely for this model).Clean the remote surface around the button. If the issue persists, contact customer support.
Remote does not control my Onkyo receiver.Receiver model is not compatible.Verify your Onkyo AV receiver model against the compatible models listed in this manual (TX-SR508, HT-S5300, HT-S6300).

Тэхнічныя характарыстыкі

АсаблівасцьДэталь
Нумар мадэліRC-764M
МаркаЗВП
Сумяшчальныя прыладыOnkyo AV Receiver models: TX-SR508, HT-S5300, HT-S6300
Крыніца харчавання2 батарэйкі тыпу AAA 1.5 В (не ўключаны)
МатэрыялВысокаякасны АБС
КолерЧорны
Вага прадмета2.4 унцыі (прыблізна 68 грамаў)
Памеры ўпакоўкі10 х 3 х 1 цалі (прыблізна 25.4 х 7.6 х 2.5 см)
АсаблівасцьЭрганамічны дызайн, не патрабуецца праграмавання
Максімальная колькасць падтрымоўваных прылад1 (specific Onkyo AV receiver models)
Image showing the dimensions of the RC-764M remote control.

Image: Visual representation of the remote control's dimensions, including length and width measurements.

Падтрымка кліентаў

For any questions, concerns, or assistance regarding your ZWP RC-764M Replacement Remote Control, please do not hesitate to contact our customer support team. We are committed to helping you resolve any issues.

Please refer to the seller's contact information on the platform where you purchased the product for direct support.
