Vive Mobility Bariatric Transport Wheelchair

1. Уводзіны

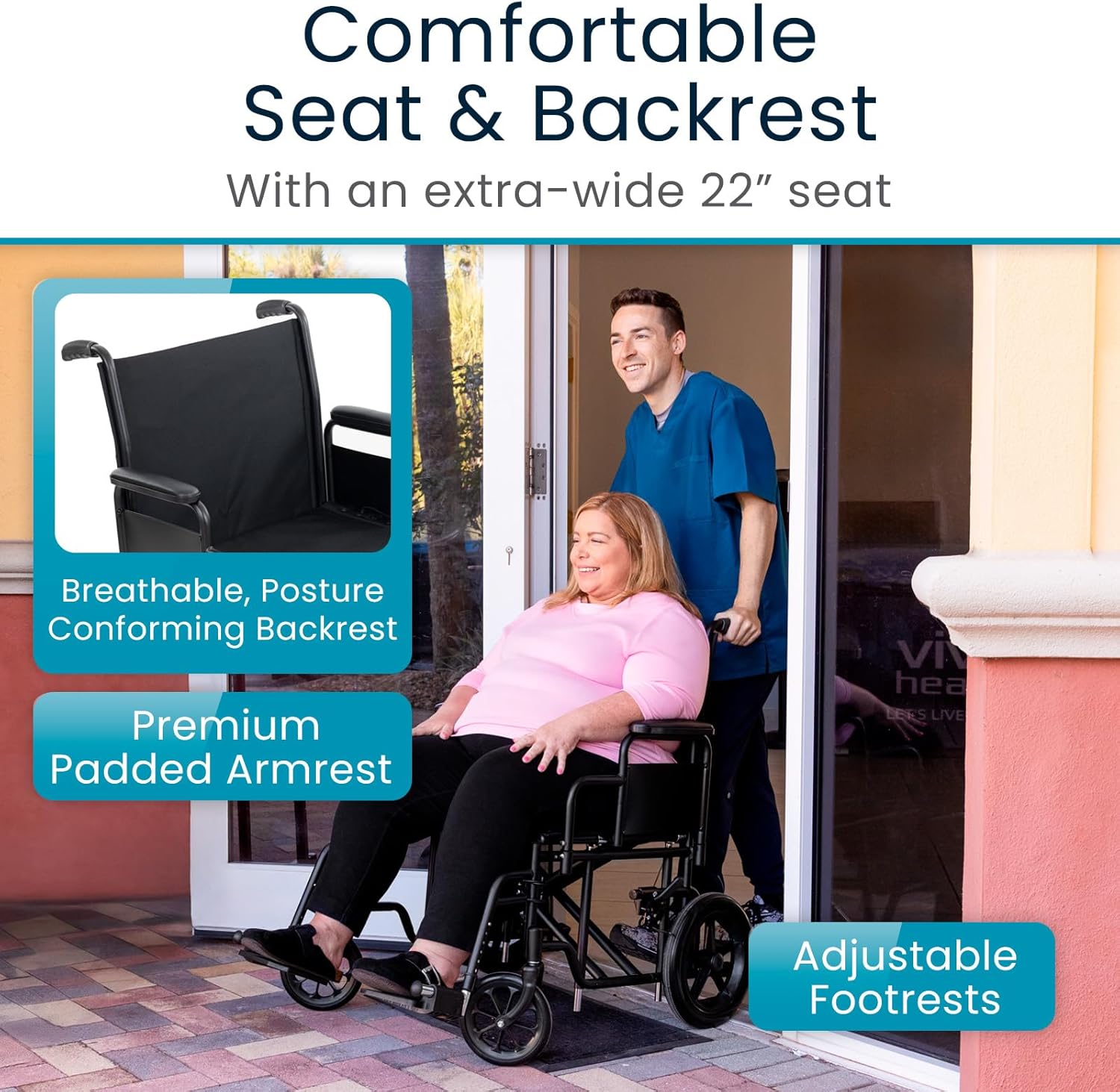

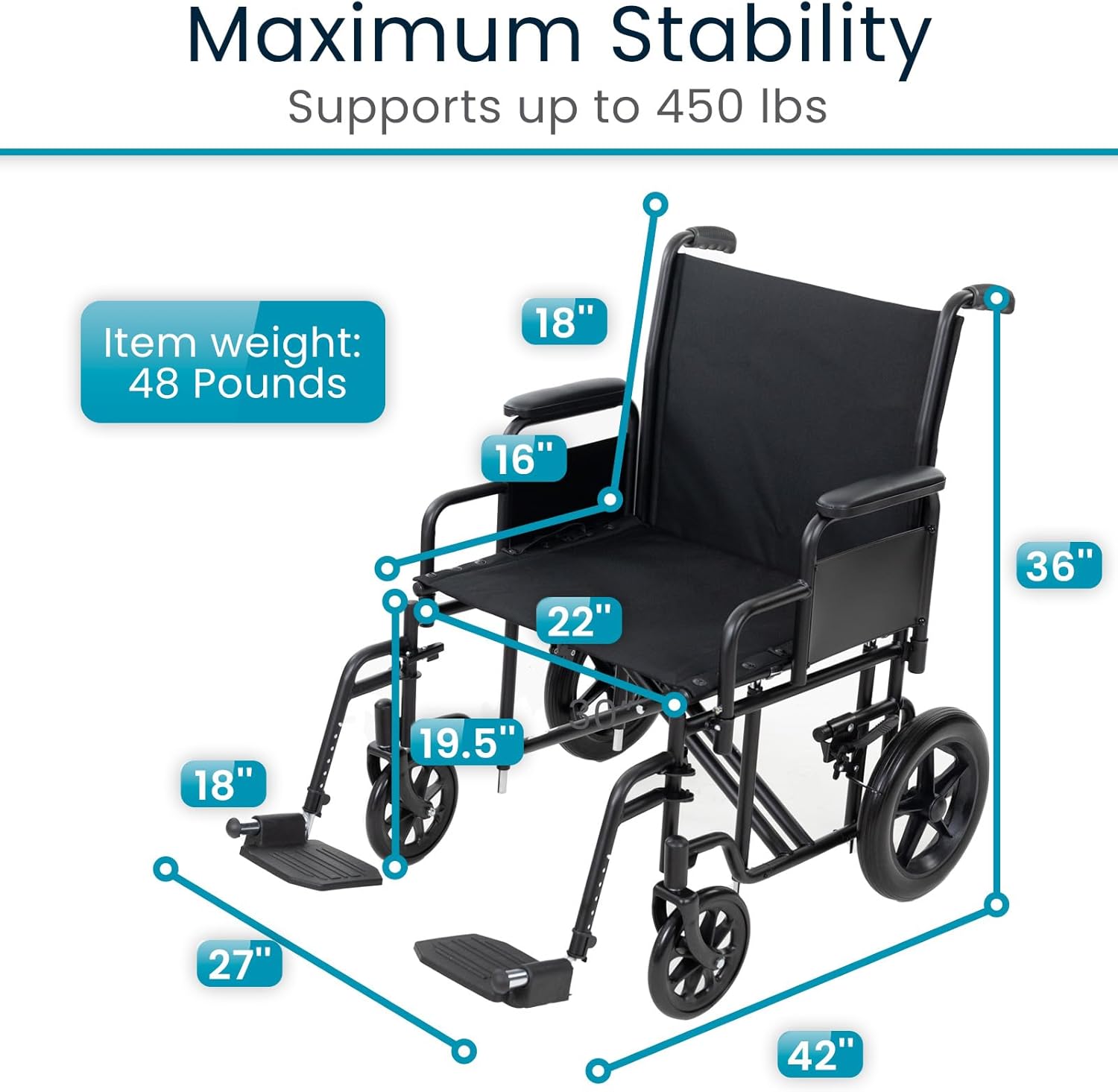

This manual provides essential instructions for the safe and effective use, setup, operation, and maintenance of your Vive Mobility Bariatric Transport Wheelchair. Designed for adults, this heavy-duty, foldable transport chair supports individuals up to 450 pounds, offering portability and comfort with its 22-inch wide seat and swing-away footrests.

2. Інфармацыя па бяспецы

Please read all safety warnings and instructions carefully before using the transport wheelchair. Failure to do so may result in injury or damage to the product.

• Doorway Clearance: The chair features an extra-wide frame measuring 27 inches wide. Be aware that this increased width may not fit through narrow doorways in some homes or facilities. Always measure your entryways to ensure safe passage.
• Ёмістасць вагі: Не перавышайце максімальную грузападымальнасць 450 фунтаў.
• тармазы: Always engage the handbrakes when transferring in or out of the chair, or when the chair is stationary.
• Кантроль: Ensure the user is properly seated and secured before transport. Always have a caregiver present to operate the chair.
• Няроўныя паверхні: Exercise caution on uneven terrain, inclines, or declines. Avoid sudden movements.
• Механізм складання: Keep hands and fingers clear of moving parts when folding or unfolding the chair to prevent pinching.

3. Настройка

Your Vive Mobility Bariatric Transport Wheelchair arrives largely pre-assembled. Follow these steps to prepare it for use:

1. Раскладванне крэсла: Carefully unfold the chair by pushing down on the seat rails until the chair is fully open and the seat is flat. Ensure all locking mechanisms are engaged.
2. Attaching Footrests: Insert the swing-away footrests into the designated slots on the front frame of the wheelchair. Secure them by pushing down until they click into place. Adjust the height of the footrests as needed for user comfort.

Відэа кіраўніцтва па наладзе

4. Інструкцыя па эксплуатацыі

4.1. Transporting a User

1. Ensure the user is comfortably seated and any safety belts are fastened.
2. The caregiver should stand behind the chair, gripping the ergonomic hand grips.
3. To move, gently push the chair forward. The 12-inch smooth-rolling wheels are designed for easy navigation on various indoor and outdoor surfaces.
4. To stop, engage the dual handbrakes located on the push handles.

4.2. Using Handbrakes

The transport chair is equipped with dual handbrakes for secure stopping and parking.

• To engage the brakes, squeeze the levers on the push handles.
• For parking, push the brake levers down until they lock into place. This activates the wheel locks.
• To release, pull the brake levers up.

4.3. Adjusting Footrests

The swing-away footrests can be adjusted for height and swung out of the way for easier transfers.

• To adjust height: Locate the adjustment pins on the footrest hangers. Press the pins and slide the footrest up or down to the desired height. Ensure both footrests are at the same height and securely locked.
• To swing away: Lift the release lever on the side of the footrest hanger and swing the footrest outwards.

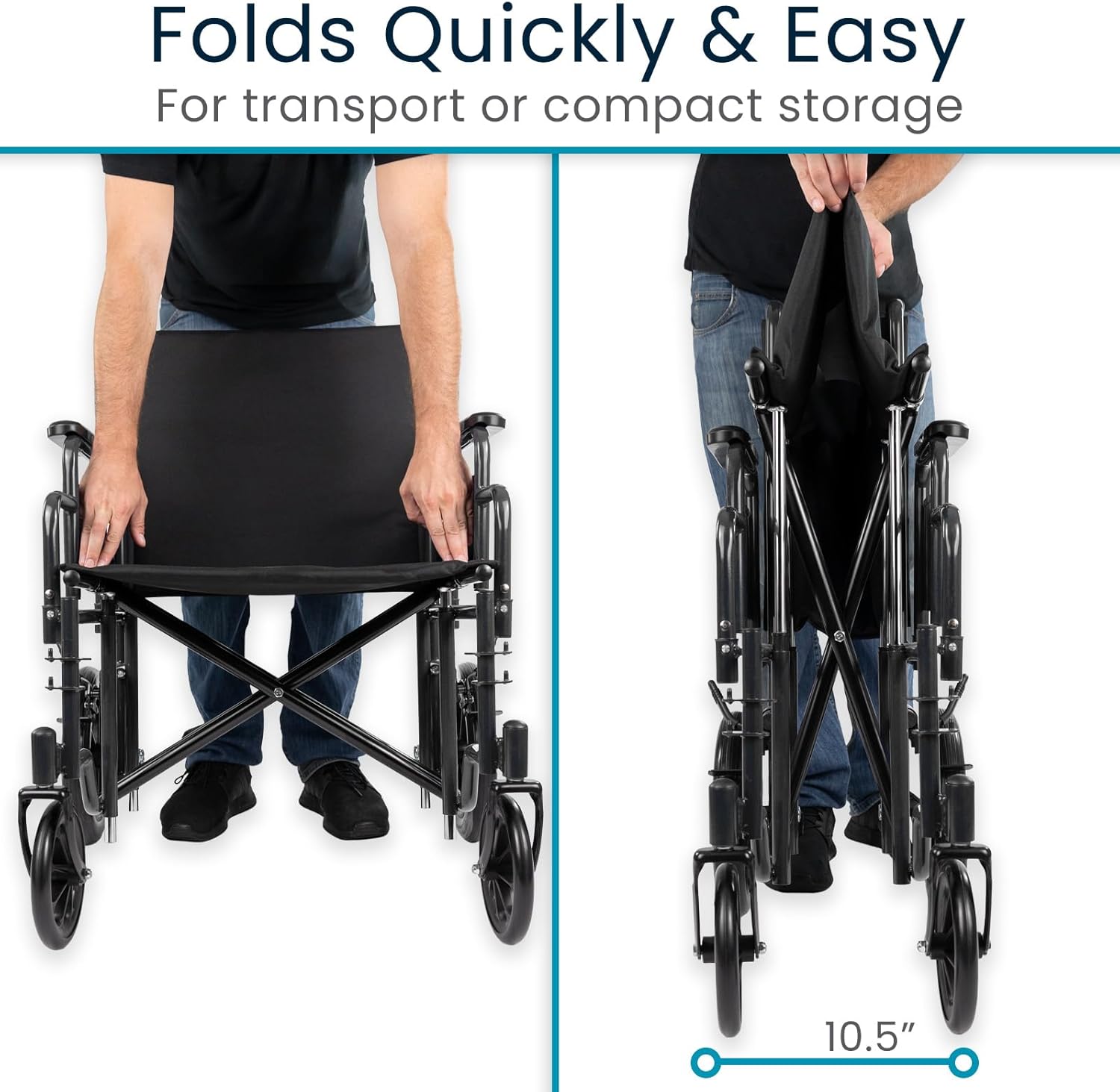

4.4. Складанне для захоўвання і транспарціроўкі

The chair features a simple folding design for compact storage and easy transport.

1. Ensure the footrests are either removed or swung to the side.
2. Lift the center of the seat fabric upwards. The chair frame will begin to collapse inwards.
3. Continue lifting until the chair is fully folded.

5. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your transport wheelchair.

• Уборка: Wipe down the frame and upholstery regularly with a damp тканінай і мяккім мылам. Пазбягайце абразіўных ачышчальнікаў.
• Праверка колаў: Periodically check the wheels for wear and tear. Ensure they roll smoothly and are free of debris.
• Праверка тармазоў: Test the handbrakes regularly to ensure they engage and disengage properly.
• Зашпількі: Перыядычна правярайце ўсе балты, шрубы і крапежныя элементы, каб пераканацца ў іх зацягнутасці. Не перацягвайце.

6. Выпраўленне непаладак

If you encounter any issues with your Vive Mobility Bariatric Transport Wheelchair, please refer to the following general advice:

• Цяжкасць катання: Check wheels for debris or damage. Ensure brakes are fully disengaged.
• Brakes Not Engaging: Inspect brake cables and mechanisms for proper alignment and function.
• Нестабільнае пачуццё: Verify that the chair is fully unfolded and all locking mechanisms are engaged. Check for loose fasteners.

For persistent issues or concerns not addressed here, please contact Vive Mobility customer support.

7. Тэхнічныя характарыстыкі

8. Інфармацыя аб гарантыі

The Vive Mobility Bariatric Transport Wheelchair comes with a 1-гадовая гарантыя. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Vive Mobility customer support.

9. Падтрымка кліентаў

For assistance, questions, or to report any issues, please contact Vive Health Direct customer support. Information regarding returns and customer service can be found on the seller's platform or through the contact details provided with your purchase.

Manufacturer: Vive Health
