1. Уводзіны
The U UZOPI Magnetic Rechargeable Hand Warmers (Model PG02) provide portable and adjustable warmth for various outdoor activities and cold environments. This device features a unique 2-in-1 magnetic split design, allowing for individual use or combined heating. Equipped with an LED display, it offers four distinct heating levels and indicates battery status. This manual provides essential information for the safe and effective use of your hand warmers.
Змест пакета:
- 2 x Rechargeable Hand Warmers
- 1 x Chargeable Cable (2-in-1 USB-A to USB-C)
- 1 х Кіраўніцтва карыстальніка
- 2 x Black Lanyards
Figure 1: U UZOPI Magnetic Rechargeable Hand Warmers (Aurora color)
2. Інфармацыя па бяспецы
- Не падвяргайце прыладу ўздзеянню экстрэмальных тэмператур або прамых сонечных прамянёў на працягу доўгага часу.
- Захоўваць удалечыні ад вады і вільгаці.
- Не спрабуйце разабраць, адрамантаваць або мадыфікаваць прыладу.
- Захоўваць у месцах, недаступных дзецям і хатнім жывёлам.
- Выкарыстоўвайце толькі кабель для зарадкі, які ўваходзіць у камплект.
- If the device becomes excessively hot, discontinue use immediately.
- Avoid placing the device directly on bare skin for extended periods, especially at higher heat settings, to prevent discomfort or burns.
3. Настройка
3.1 Charging the Hand Warmers
- Connect the 2-in-1 USB-A to USB-C charging cable to a compatible USB power source (e.g., wall adapter, computer USB port).
- Plug the two USB-C ends of the cable into the charging ports located on each hand warmer unit.
- The LED display on each unit will show the charging progress. A full charge typically takes approximately 3 hours.
- Пасля поўнай зарадкі адключыце кабель.
3.2 Attaching the Lanyards
Each hand warmer comes with a wrist lanyard for secure carrying and to prevent accidental drops. Thread the thin loop of the lanyard through the small hole on the side of the hand warmer, then pass the larger end of the lanyard through the loop and pull tight to secure.
4. Інструкцыя па эксплуатацыі
4.1 Уключэнне/выключэнне сілкавання
- To power on: Press and hold the orange power button for approximately 3 seconds. The LED display will illuminate, showing the current battery percentage and heat level.
- To power off: Press and hold the orange power button for approximately 3 seconds. The LED display will turn off.
4.2 Рэгуляванне ўзроўню нагрэву
Once powered on, short press the orange power button to cycle through the four heating levels:
- L1 (Cozy): Прыкладна 106°F (41°C)
- L2 (Warm): Прыкладна 113°F (45°C)
- L3 (Toasty): Прыкладна 120°F (49°C)
- L4 (Hot): Прыкладна 127.4°F (53°C)
Figure 2: Fast Heating and Temperature Levels
4.3 святлодыёдны дысплей
Убудаваны святлодыёдны дысплей адлюстроўвае інфармацыю ў рэжыме рэальнага часу:
- Працэнт зарада батарэіtage: Shows the remaining charge level.
- Узровень цяпла: Indicates the currently selected heating intensity (L1-L4).
Малюнак 3: Разумны святлодыёдны дысплей
4.4 Magnetic Function

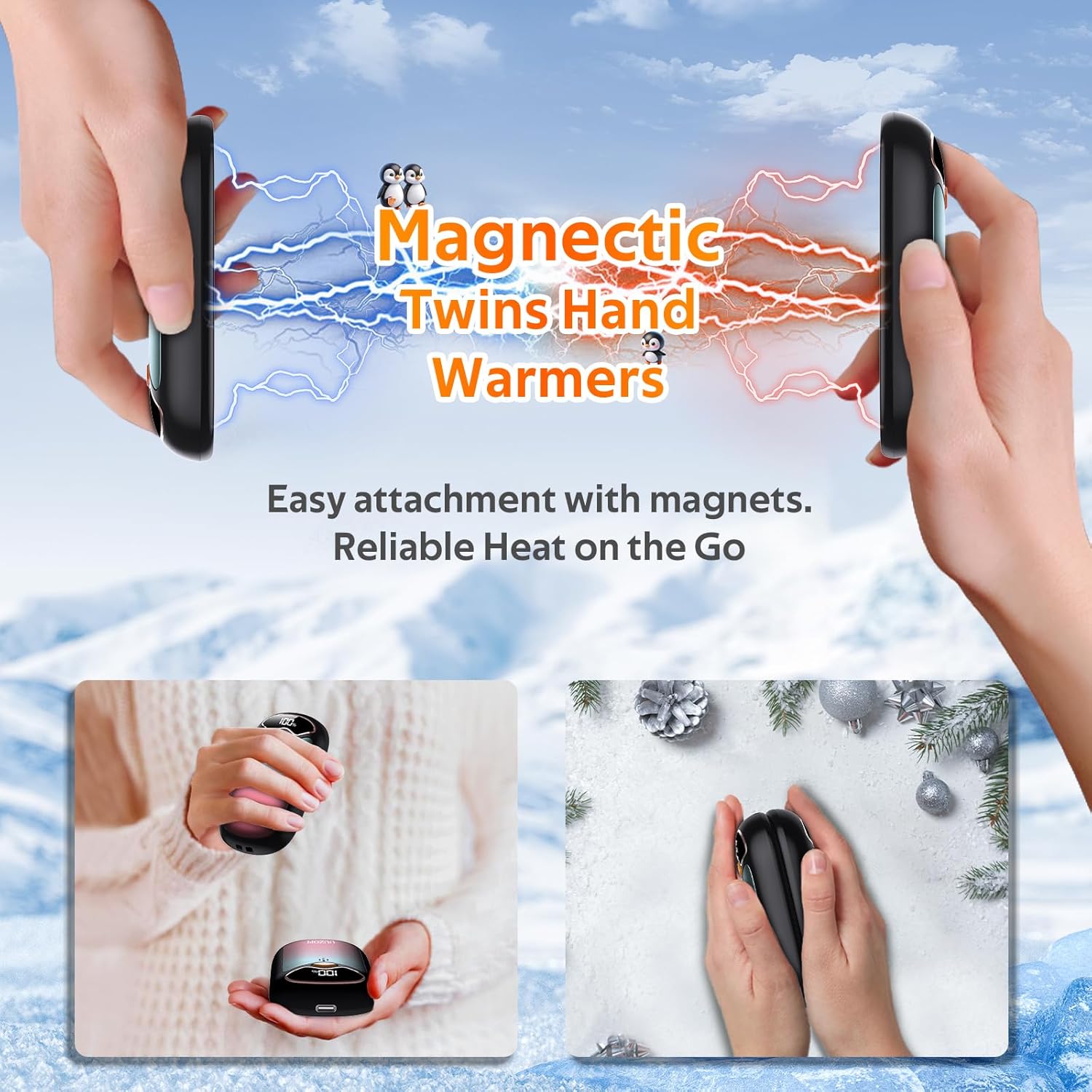

The two hand warmer units are designed with strong magnets, allowing them to snap together for convenient storage or to provide dual-sided heating when held as a single unit. They can also be used separately to warm both hands independently.
Figure 4: Magnetic 2-in-1 Design
4.5 Відэа пра прадукты
Video 1: UZOPI Hand Warmers Rechargeable with LED Display, Instant Heating. This video demonstrates the product's features, including the LED display and instant heating capabilities.
Video 2: UZOPI Magnetic Hand Warmers Rechargeable with LED Display. This short video highlights the magnetic function and LED display of the hand warmers.
5. Тэхнічнае абслугоўванне
5.1 Ачыстка
Працірайце паверхню грэлак для рук мяккай сухой тканінай. Не выкарыстоўвайце абразіўныя ачышчальнікі і не апускайце прыладу ў ваду.
5.2 Захоўванне
Store the hand warmers in a cool, dry place when not in use. If storing for an extended period, it is recommended to charge the units every two months to maintain battery health.
6. Выпраўленне непаладак
6.1 Hand Warmer Not Charging
- A. Replace the Charging Cable: Try using a different, known-good USB-C charging cable.
- B. Change the Power Adapter: Connect the charging cable to a different USB power adapter or port.
- C. Clean & Inspect the Port: Gently inspect the charging port on the hand warmer for any debris or damage. Clean carefully if necessary.
- D. Charging cable is fully or firmly inserted into the port: Ensure the USB-C connector is fully and securely inserted into the hand warmer's charging port.
7. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | У УЗОПІ |
| Назва мадэлі | PG02 |
| Памер | Small (3.42 x 1.85 x 0.6 inches per unit) |
| Матэрыял | Міні |
| Колер | Аўрора |
| Апісанне батарэі | Акумулятарная батарэя |
| Час зарадкі | 3 гадзін |
| Верхняя адзнака тэмпературы | 127.4 градусы па Фарэнгейту (53°C) |
| Шматразовае выкарыстанне | Акумулятарная |
| Крыніца харчавання | Харчаванне ад батарэі |
| Сертыфікат бяспекі | Сертыфікавана UL |
8. Гарантыя і падтрымка
8.1 Інфармацыя аб гарантыі
The U UZOPI Magnetic Rechargeable Hand Warmers come with a One Year Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper storage.
8.2 Падтрымка кліентаў
For any questions, troubleshooting assistance, or warranty claims, please contact U UZOPI customer support through the retailer's platform or the official U UZOPI website. Please have your purchase details and product model number (PG02) available when contacting support.
