MEDION Mini Dishwasher DWT51 User Manual

1. Уводзіны

Thank you for choosing the MEDION Mini Dishwasher DWT51. This manual provides essential information for the safe and efficient use of your appliance. Please read these instructions carefully before installation and operation, and retain them for future reference.

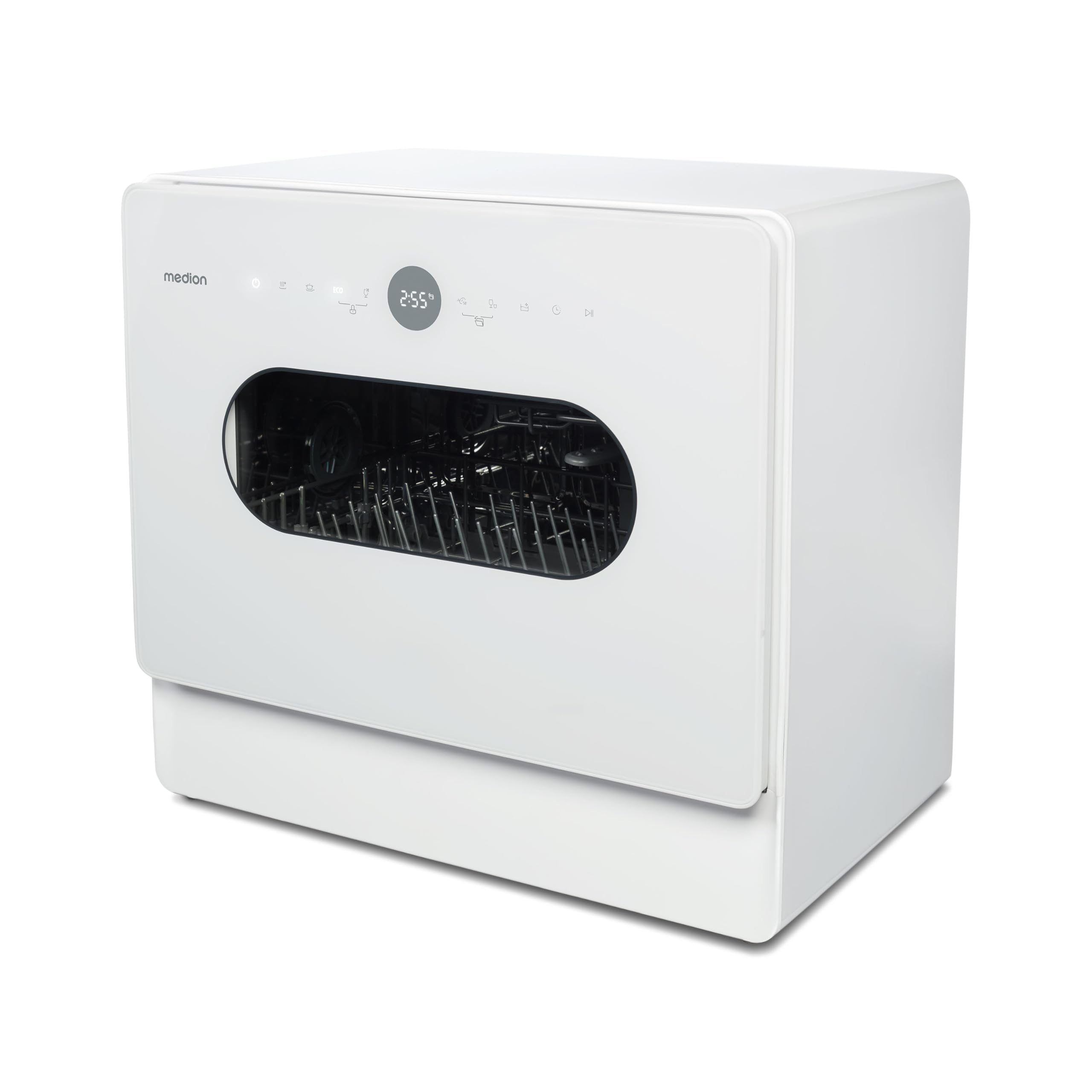

Figure 1: MEDION Mini Dishwasher DWT51, front view.

2. Прадукт скончыўсяview

The MEDION Mini Dishwasher DWT51 is a compact tabletop dishwasher designed for convenience and efficiency. It offers flexible water supply options and multiple washing programs to suit various needs.

Асноўныя характарыстыкі:

• 7 Washing Programs: Rapid, Eco, Glasses, Intensive, Hygienic, 58' Wash, Self-cleaning.
• Bucket Function: Operates without a fixed water connection using the included foldable bucket.
• Compact EasyFit Design: Ideal for small kitchens or travel.
• Touch Control Panel with LED Display: For intuitive operation.
• 5 Standard Place Settings: Accommodates daily dishwashing needs.
• Low Water Consumption: Only 7.8 liters per Eco wash cycle.

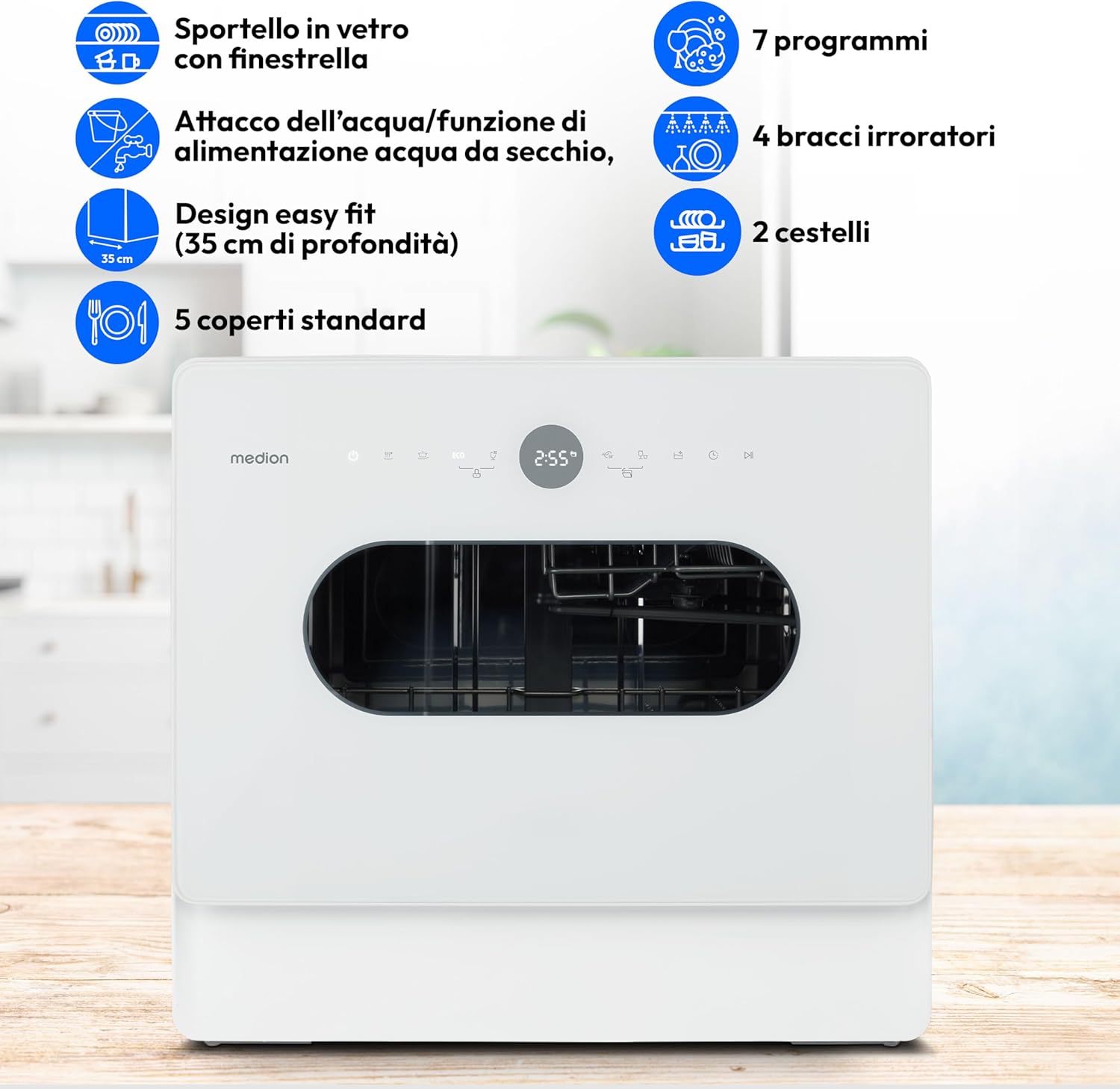

Малюнак 2: Закончанаview of key features including glass door, 7 programs, bucket function, 4 spray arms, 2 baskets, and 5 place settings.

Уключаныя кампаненты:

• Tabletop Dishwasher Unit
• 1 Lower Dish Basket
• 1 Upper Dish Basket with Cutlery Tray
• 1 Шланг для падачы вады
• 1 Water Outlet Hose
• 1 Foldable Bucket
• 1 Bucket Hose
• 2 Suction Cups with Screws
• Кароткае кіраўніцтва

3. Настройка

3.1 Размяшчэнне

Position the dishwasher on a stable, level surface. Ensure there is adequate space around the unit for ventilation and access. The compact design allows for placement in various kitchen environments.

Figure 3: The MEDION Mini Dishwasher DWT51 in a kitchen setting, highlighting its compact and efficient design.

Figure 4: Dimensions of the dishwasher, showing its compact footprint (55 cm x 50 cm x 35 cm).

3.2 Падключэнне вады

The DWT51 offers two methods for water supply:

1. Прамое падключэнне да вады: Connect the water inlet hose to a suitable water tap and the dishwasher's inlet port. Ensure all connections are secure to prevent leaks.
2. Bucket Function: If a direct water connection is not available, use the provided foldable bucket. Place the bucket near the dishwasher and connect the bucket hose to the dishwasher's inlet. Fill the bucket with water before starting a wash cycle. The dishwasher will draw water from the bucket as needed.

Figure 5: The dishwasher operating using the bucket function, demonstrating its independence from a fixed water supply.

3.3 Дрэнаж

Connect the water outlet hose to a drain or sink. Ensure the hose is properly secured and positioned to allow for efficient water discharge.

3.4 Падключэнне харчавання

Plug the dishwasher into a grounded electrical outlet. Ensure the power supply matches the specifications listed on the appliance's rating label.

4. Інструкцыя па эксплуатацыі

4.1 Панэль кіравання

The dishwasher features a touch control panel and an LED display for easy program selection and monitoring.

Figure 6: The intuitive touch control panel and LED display for convenient operation.

4.2 Загрузка посуду

Arrange dishes in the baskets, ensuring they do not block the spray arms or detergent dispenser. Place larger items in the lower basket and smaller items, including cutlery, in the upper basket or cutlery tray.

4.3 Даданне мыйнага сродкі

Open the detergent dispenser and add the recommended amount of dishwasher detergent. Close the dispenser securely.

4.4 Выбар праграмы

Use the touch controls to select one of the 7 available washing programs:

• Хутка: For lightly soiled dishes, quick wash.
• Эка: Энергаэфектыўная праграма для мыцця посуду сярэдняга забруджвання.
• Акуляры: Далікатнае мыццё для далікатнага шклянога посуду.
• інтэнсіўны: Для моцна забруджанага посуду і патэльняў.
• Гігіенічны: High-temperature wash for sterilization.
• 58' Wash: A quick wash cycle lasting 58 minutes.
• Самаачышчэнне: For cleaning the dishwasher interior.

Figure 7: The 7 available washing programs, catering to different cleaning needs.

4.5. Пачатак цыкла

Press the Start button to begin the selected wash cycle. The LED display will show the remaining time.

5. Тэхнічнае абслугоўванне

5.1 Ачыстка фільтраў

Regularly clean the filters located at the bottom of the dishwasher to ensure optimal performance and prevent blockages. Remove food debris and rinse the filters under running water.

5.2 Cleaning Interior and Exterior

Wipe the interior and exterior surfaces of the dishwasher with a damp cloth. For stubborn stains, use a mild detergent. Avoid abrasive cleaners that could damage the finish.

5.3 Накіп

Depending on water hardness, periodic descaling may be necessary. Use a dishwasher-safe descaling agent according to the product instructions.

6. Выпраўленне непаладак

If you encounter issues with your dishwasher, refer to the following common problems and solutions:

7. Тэхнічныя характарыстыкі

Below are the technical specifications for the MEDION Mini Dishwasher DWT51:

• Марка: MEDION
• мадэль: DWT51
• Тып ўстаноўкі: корпусная
• Памеры вырабу (Г х Ш х В): 35 см х 55 см х 50 см
• Ёмістасць вады: 7.8 Liters (per Eco cycle)
• асаблівасць: Праграму для ачысткі
• колер: Белы
• Тып элементаў кіравання: Дакранацца
• матэрыял: Glass, Stainless steel, Plastic
• Узровень шуму: 58 дэцыбел
• Налады месца: 5

Figure 8: Illustrating the reduced water consumption of 7.8 liters per Eco wash cycle.

8. Гарантыя і падтрымка

For warranty information and technical support, please refer to the warranty card included with your product or visit the official MEDION webсайт. Захоўвайце чэк аб куплі як пацверджанне пакупкі.

For further assistance, you may contact MEDION customer service through their official channels.
